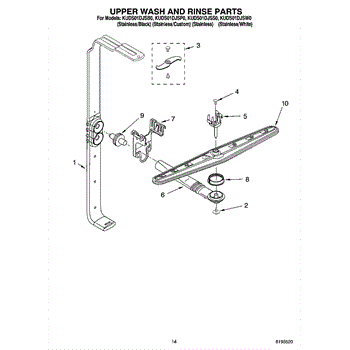

Parts for Kitchenaid KUDS01DJSB0: 11 - Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Feed Tube is an OEM replacment part for Whirlpool built-in dishwashers. Extending from the bottom of the lower spray arm manifold to the upper spray arm, this tube routes rinse water during cycles.

Causes relate to mineral accumulation stiffening the interior over time, punctures from sharp utensil edges, or cracks allowing leaks

Symptoms of a defective feed tube involve:

• Poor or absent spray coverage of utensils and containers
• Clogs or sediment buildup obstructing uniform distribution
• Ineffective cleaning even on light soil loads

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Upper Wash Arm is an OEM component specifically designed for Whirlpool dishwashers. It is responsible for spraying water across the upper rack during the wash cycle to effectively clean dishes. It measures approximately 7.5 inches long by 1.37 inches wide.

Causes of a bad upper wash arm can include mineral or lime scale buildup that clogs the spray nozzles, or damage to the arm itself such as cracks or breaks that compromise its spraying ability.

Symptoms of a bad upper wash arm include:

• Inadequate cleaning of upper rack dishes
• Dirty dishes after a cycle
• Clogged or blocked spray nozzles
• Visible damage or wear to the arm

This OEM replacement wash arm from Whirlpool is compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models as well.

This push-in screw cover conceals exposed fasteners or open screw holes on your appliance for a clean, finished look. It snaps into place to hide hardware and help keep dust and splashes out of the opening.

• Conceals visible screw heads or open screw holes on panels, doors, or trim
• Helps block dust and moisture from entering the opening
• Restores appearance when the original cap is missing or damaged
• Common symptoms: missing cap, cracked or loose cover, visible fastener or hole

• Align the cap with the hole and press in until fully seated and flush
• Clear any debris or old cap fragments from the hole to ensure a secure fit

This replacement mount secures the dishwasher's upper spray assembly in place, keeping it aligned so it spins freely and delivers consistent water coverage to the upper rack for dependable cleaning performance.

• Holds the up-spray/upper spray arm assembly securely inside the tub
• Maintains proper alignment and clearance for free rotation
• Common symptoms: upper spray arm loose or falls off, poor cleaning on the top rack, rattling from the arm striking the rack or tub, visible cracks in the mount
• Restores stable support after a worn or broken mount

• Disconnect power and water supply before servicing
• Remove the upper rack for access; release the old mount and transfer the spray arm if attached
• Seat and lock the new mount; verify the upper spray arm spins freely
• Run a short test cycle to confirm proper operation

This adjustable manifold connects the upper rack to the dishwasher's rear water feed. It channels wash water to the upper spray arm and maintains a sealed connection as the rack height changes for consistent cleaning performance. What it does:

• Routes water from the rear feed tube to the upper/middle spray arm
• Self-adjusts with rack position to keep a secure, leak-resistant connection
• Replace if cracked, deformed, or the coupling no longer seals
• Common symptoms include poor cleaning on the upper rack, weak spray, upper spray arm not turning, or a small leak at the back of the tub

• 1 adjustable manifold

• Disconnect power and shut off water; wear gloves for protection
• Remove the upper rack by releasing the rail end caps and sliding the rack out
• Unclip the manifold from the rack and disengage it from the rear feed port; seat the new manifold fully
• Reinstall the rack and ensure the spray arm spins freely

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This hanger anchors the dishwasher's door-balance spring to the frame so the door opens and closes smoothly. Replacing a worn or broken hanger restores proper spring tension and helps prevent a door that drops, slams, or feels heavy.

• Secures the door balance spring to the dishwasher cabinet/frame
• Maintains correct spring tension for smooth, controlled door movement
• Helps fix a door that falls open quickly or won't stay in position
• Useful to replace when door balance hardware shows wear or damage

• Disconnect power and shut off water before servicing; remove the toe panel/kickplate
• Support the door and carefully relieve spring tension before removing parts
• Slide the dishwasher out if needed for side access; transfer the spring to the new hanger and reinstall
• Inspect the opposite-side spring/link and hinge for wear; verify door balance before reassembly

The Spray Arm Seal is an OEM replacement part for Whirlpool dishwashers. This seal is responsible for creating a watertight seal between the spray arm and the water supply tube, ensuring that water is directed through the spray arm without leaking.

Causes of a bad spray arm seal include wear and tear over time, exposure to high temperatures or harsh detergents, or physical damage from mishandling or debris.

Symptoms of a bad spray arm seal:

• Water leaks around the spray arm or in the dishwasher tub
• Reduced water pressure or inefficient spray coverage
• Excessive noise or rattling sounds from the spray arm during cycles
• Premature wear or damage to the spray arm components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Water Manifold Probe is an OEM replacement part for Whirlpool dishwashers. This probe monitors water levels during dishwasher cycles by sensing when the water valve opens and closes during different stages of cleaning and rinsing. It plays an integral role in ensuring the precise delivery of water at optimal temperatures and pressures.

Symptoms of a bad water manifold probe include:

• Inability to sense proper water levels
• Fault codes or error messages related to water levels
• Improper or failed dispenser of detergent
• Incomplete or inadequate wash and/or rinse cycles

Over time, probes can corrode, crack, or malfunction due to repetitive heating and cooling cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the dishwasher upper spray arm that delivers water across the top rack for effective cleaning. It replaces a worn or damaged spray arm to restore proper water distribution and rinse performance. What it does:

• Spins and sprays water across the top rack to help remove food and detergent residue
• Restores proper spray pattern when the original arm is cracked, clogged, or not turning
• Helps prevent poor cleaning, spots, or missed areas on top-rack dishes
• Works with the dishwasher's water delivery system to maintain rinse and wash coverage

• One upper spray arm

• Turn off power and water to the dishwasher before beginning any service
• Inspect and clear any debris from the spray arm and the mounting area before installation
• Hand-tighten or snap the arm into place per your model's instructions; avoid overtightening

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
