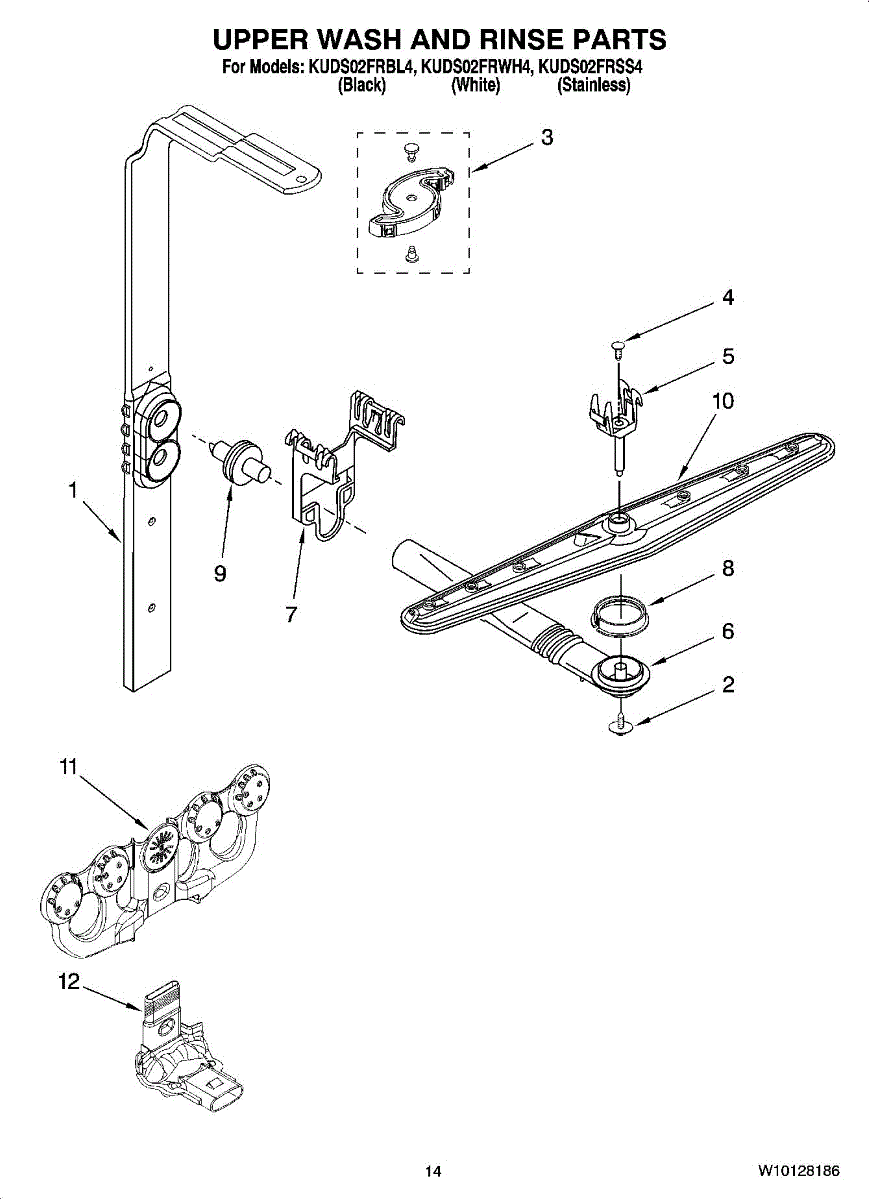

Parts for Kitchenaid KUDS02FRBL4: 11 - Upper Wash And Rinse Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Water Supply Tube is an OEM component specifically designed for connecting Whirlpool brand dishwashers to home plumbing systems. It transports water into dishwashers for cleaning and rinsing cycles.

Potential causes of a problematic supply tube include mineral deposits reducing flow or small punctures from prolonged vibrations.

Symptoms of a faulty water supply tube include:

• Water leaks inside or underneath the dishwasher
• Inadequate water pressure impacting clean performance

Compatible models include some brands produced by KitchenAid, Maytag, and Kenmore.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Spinner Kit is an OEM part for Whirlpool dishwashers. The spinners are responsible for spraying water to effectively clean and rinse dishes. Over time, spinners may wear out or break, impacting performance. If your dishwasher isn't cleaning properly, inspect the spinners first

Causes of a bad Spinner Kit can include mineral buildup from hard water, which may block the water jets, or physical damage to the spinner arms that can occur from loading large or improperly placed dishes.

Symptoms of a failing Spinner Kit include:

• Dishes remaining dirty or spotted after a wash cycle
• Water not spraying adequately throughout the dishwasher
• Unusual noise during the wash cycle as the damaged spinner struggles to rotate
• Decreased water pressure affecting overall appliance performance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This push-in screw cover conceals exposed fasteners or open screw holes on your appliance for a clean, finished look. It snaps into place to hide hardware and help keep dust and splashes out of the opening.

• Conceals visible screw heads or open screw holes on panels, doors, or trim
• Helps block dust and moisture from entering the opening
• Restores appearance when the original cap is missing or damaged
• Common symptoms: missing cap, cracked or loose cover, visible fastener or hole

• Align the cap with the hole and press in until fully seated and flush
• Clear any debris or old cap fragments from the hole to ensure a secure fit

This replacement mount secures the dishwasher's upper spray assembly in place, keeping it aligned so it spins freely and delivers consistent water coverage to the upper rack for dependable cleaning performance.

• Holds the up-spray/upper spray arm assembly securely inside the tub
• Maintains proper alignment and clearance for free rotation
• Common symptoms: upper spray arm loose or falls off, poor cleaning on the top rack, rattling from the arm striking the rack or tub, visible cracks in the mount
• Restores stable support after a worn or broken mount

• Disconnect power and water supply before servicing
• Remove the upper rack for access; release the old mount and transfer the spray arm if attached
• Seat and lock the new mount; verify the upper spray arm spins freely
• Run a short test cycle to confirm proper operation

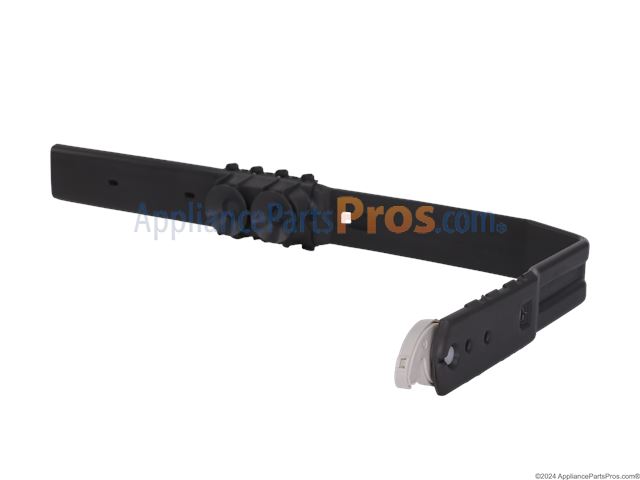

This adjustable manifold connects the upper rack to the dishwasher's rear water feed. It channels wash water to the upper spray arm and maintains a sealed connection as the rack height changes for consistent cleaning performance. What it does:

• Routes water from the rear feed tube to the upper/middle spray arm
• Self-adjusts with rack position to keep a secure, leak-resistant connection
• Replace if cracked, deformed, or the coupling no longer seals
• Common symptoms include poor cleaning on the upper rack, weak spray, upper spray arm not turning, or a small leak at the back of the tub

• 1 adjustable manifold

• Disconnect power and shut off water; wear gloves for protection
• Remove the upper rack by releasing the rail end caps and sliding the rack out
• Unclip the manifold from the rack and disengage it from the rear feed port; seat the new manifold fully
• Reinstall the rack and ensure the spray arm spins freely

This hanger anchors the dishwasher's door-balance spring to the frame so the door opens and closes smoothly. Replacing a worn or broken hanger restores proper spring tension and helps prevent a door that drops, slams, or feels heavy.

• Secures the door balance spring to the dishwasher cabinet/frame
• Maintains correct spring tension for smooth, controlled door movement
• Helps fix a door that falls open quickly or won't stay in position
• Useful to replace when door balance hardware shows wear or damage

• Disconnect power and shut off water before servicing; remove the toe panel/kickplate
• Support the door and carefully relieve spring tension before removing parts
• Slide the dishwasher out if needed for side access; transfer the spring to the new hanger and reinstall
• Inspect the opposite-side spring/link and hinge for wear; verify door balance before reassembly
