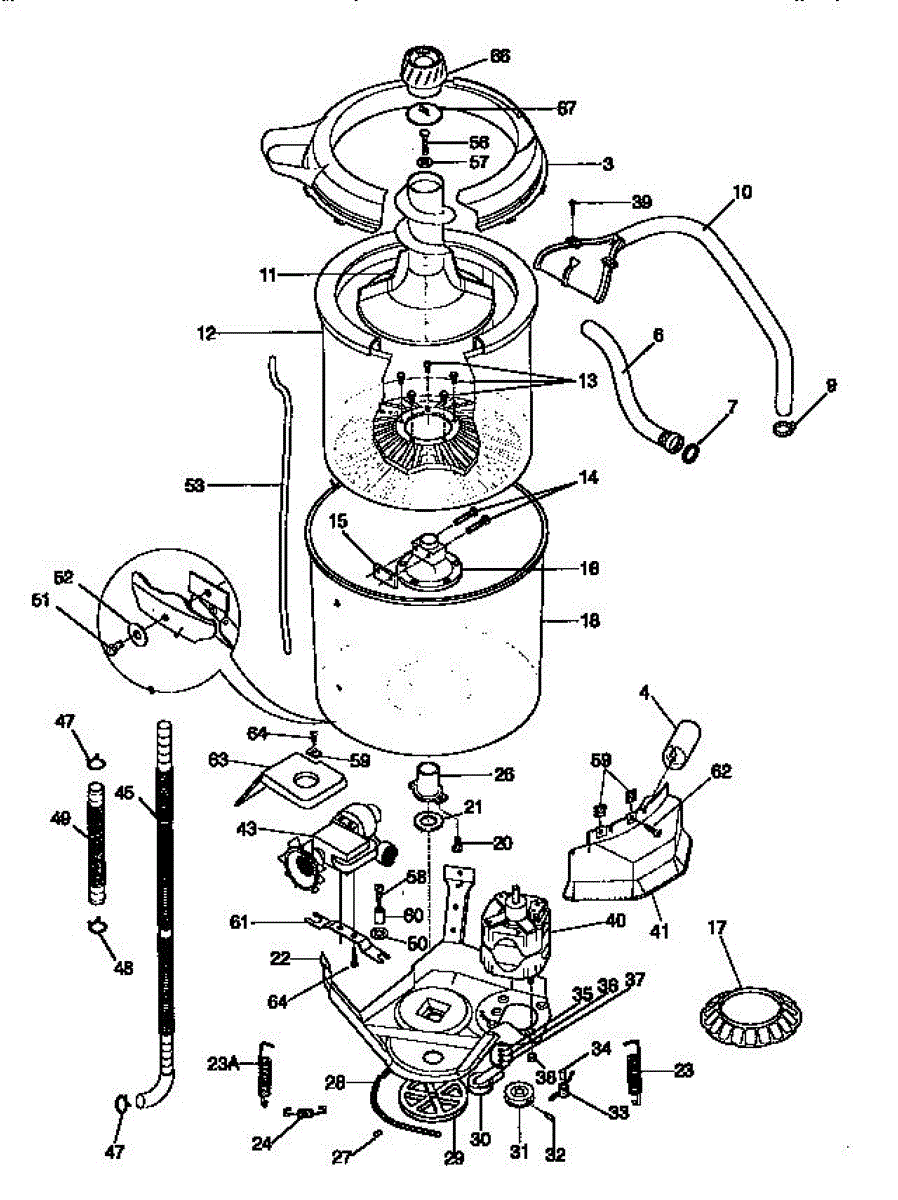

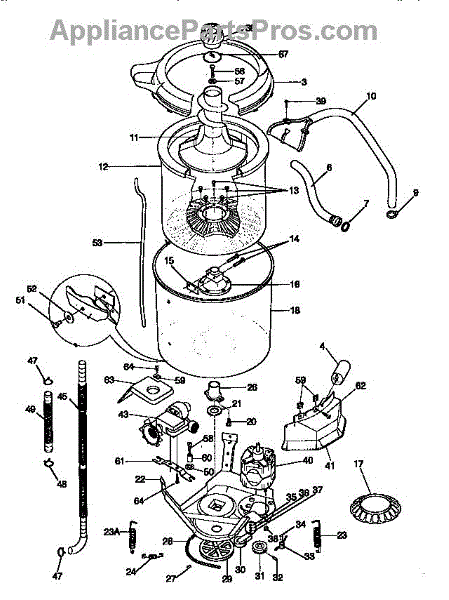

Parts for Kenmore 417.97804792 (41797804792, 417 97804792): Washer Assembly Parts

Replaces a cracked or broken splash tub cover assembly on your washer. Installs around the tub to protect internal components from water damage.

Washer motor won't start or stops mid-cycle? This motor start capacitor stores electrical energy to start your washer motor. Moderate DIY repair.

One per package.

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

Includes ATC

The Agitator is an OEM replacement part for Frigidaire washing machines. This component is responsible for moving clothes during the wash cycle, ensuring that water and detergent are evenly distributed for effective cleaning. The agitator's motion helps to loosen dirt and stains from fabrics. The agitator measures approximately 17" tall

Causes of a bad agitator can include wear and tear over time, damage from washing heavy or unbalanced loads, or issues with the agitator’s internal mechanisms that reduce its efficiency.

Symptoms of a bad Agitator include:

• Clothes not getting properly cleaned
• The washing machine making unusual noises during the wash cycle
• The agitator not moving or moving erratically
• Visible damage or cracks on the agitator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement mounting screw for washers and laundry centers. Secures panels, components, or brackets. Replace if lost, stripped, or corroded.

This replacement bolt secures internal components in your appliance. A stripped, rusted, or missing bolt can let parts loosen and vibrate; installing a new bolt restores a tight, stable connection for reliable operation.

• Provides a secure, threaded fastener for brackets, weights, or assemblies
• Helps maintain alignment and reduce movement during operation
• Typical issues: missing hardware, stripped threads, or visible corrosion
• Helps address rattling or excessive vibration caused by loose hardware

• Safety first: Disconnect power; for water- or gas-connected units, shut off supplies
• Support the component being secured before removing the old fastener
• Start threads by hand to avoid cross-threading; tighten evenly to manufacturer guidance—do not overtighten
• Reuse original washers/spacers and thread locker only if they were originally present

Secures the washer's inner basket to the drive hub, keeping the tub centered and stable during spin. Replace if cracked, corroded, or bolts are damaged.

The trunnion is the hub that mounts the washer's inner tub to the drive shaft. Replacing a worn hub restores a solid, centered connection so the basket spins smoothly without wobble, slip, or grinding. What it does:

• Secures and centers the spin basket on the drive shaft for balanced rotation
• Transfers drive torque to the inner tub during spin
• Helps maintain basket alignment to reduce vibration
• Typical symptoms of failure: loose/wobbly tub, scraping or grinding noises, poor or no spin, frequent out-of-balance events

• 1 trunnion

• Disconnect power and water before service; wear gloves and eye protection
• Access the hub by removing top/access parts, then the agitator/wash plate and inner-tub fasteners
• Clean the shaft and mating surfaces; seat the new trunnion fully and tighten fasteners evenly in a crisscross pattern
• Inspect related parts (tub seal, bolts, bearing) while open and replace if worn; run a short test cycle to ensure smooth spin

This is a round lint filter for a washing machine. Diameter: 10-1/4"

Replacement mounting screw that secures panels, brackets, and trim pieces on your washer. Needed when original fasteners are missing, stripped, or damaged.

The Spin Bearing Washer is an OEM part for Frigidaire washing machines. Situated inside the transmission housing, this thin metal washer acts as a subsurface support for the belt pulley bearing. The spin-bearing washer facilitates smooth, balanced rotation essential for agitated and spun wash cycles.

Causes of a bad spin-bearing washer include wear and fatigue from years of successive rotations, potentially allowing excessive movement between housing components.

Symptoms of a bad spin-bearing washer involve:

• Vibration or shaking noises coming from inside the washer cabinet
• Belt slippage wasting energy by inefficiently spinning loads
• Increased friction resulting in longer cycle times for spins
• Failure of belts or other components from unsupported bearing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Return spring for washer door lock mechanism. Restores tension so the latch returns to proper position. Replace if worn, missing, or causing loose latch.

Replacement suspension spring for washer tub support systems. Restores proper tension when original spring is weakened, broken, or causing tub tilt.

Enables smooth drum rotation in your washer. Replace if you hear loud roaring or whirling noises during spin cycle. Confirm fit with your model number.

Drive belt connects motor to drum for wash and spin cycles. Replace if washer won't spin, clothes stay wet, or you smell burning rubber. Verify fit.

The Idler Pulley is an OEM part for Frigidaire dryers. It helps guide and maintain tension on the dryer drum belt, ensuring the drum rotates smoothly during the drying cycle.

Over time, the idler pulley can wear out due to friction and regular use, or it may become damaged from excessive strain or misalignment. If the idler pulley fails, the dryer drum may not rotate properly, leading to inefficient drying or a complete inability to dry clothes.

Symptoms of a bad Idler Pulley include:

• Squeaking or squealing noises during operation
• The drum not rotating or rotating unevenly
• The belt appearing loose or slipping off the drum

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Coiled roll pin secures shafts, rollers, and linked components in washers. Replace if worn, damaged, or missing to restore proper alignment.

Secures shafts and components to prevent axial movement, wobble, and noise. Replace if worn, damaged, or loose to restore proper alignment. Confirm fit.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Washer won't spin or agitate? Humming motor or clothes staying wet often means a failed drive motor. This repair typically takes 15-60 minutes with basic tools.

Fix a washer that won't drain or makes whining sounds with this pump and motor assembly. Common causes: debris lodged in pump or burned-out motor.

The Washer Drain Hose is an OEM replacement part for Frigidaire washing machines. It is a flexible, 7 ½ ft plastic hose that connects the washer tub to the household drainage system. The drain hose removes water from the washer at the end of each cycle.

Symptoms of a faulty drain hose include:

• Water failing to fully drain or continuously draining
• Wet  flooring around the washer due to leaks
• Excess water left standing in the washer tub after cycles
• Reduced washing performance due to inadequate drainage

Causes of a bad drain hose include kinks or bends that restrict water flow, cracks or holes from wear and tear, and blockages from accumulated debris. These issues can compromise the hose's ability to drain water properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Connects washer outer tub to drain pump, channeling water out during drain cycle. Replace if cracked, leaking, deteriorated, or damaged by pests.

Replace your washer's worn or cracked pump grommet. This rubber grommet cushions and seals the drain pump assembly, preventing vibration and leaks.

Hex washer head screw for laundry centers. Secures panels and components during assembly. Replace if stripped, missing, or damaged during repairs.

Pressure tube connects washer tub to water level switch. Replace if cracked, kinked, or clogged to restore proper water level sensing in your laundry center.

Spacer that positions and cushions the agitator screw in top-load washers. Replace if worn, cracked, or missing to maintain proper agitator alignment.

Replacement pump spacer for washers. Installs between pump components to maintain proper alignment and clearance. Replace if cracked, worn, or missing.

Replacement pump mounting bracket that secures the drain pump assembly to the washer cabinet. Needed when original bracket is cracked, broken, or missing.

Replacement mounting screw for various appliances. Needed when original screws are stripped, lost, or damaged during repair or maintenance work.

Protective shield that covers and guards the washer pump assembly. Replace if cracked, broken, or missing to prevent debris damage and water spray.

Installation instructions manual for washer dryer combo units. Provides step-by-step setup guidance. Replace if lost, damaged, or illegible.

This printed owner's guide provides clear operating instructions, safety information, and basic care tips so you can use and maintain your appliance with confidence. What it does:

• Explains control panel functions and normal operating steps
• Lists safety precautions and recommended maintenance tasks
• Provides basic troubleshooting guidance for common user issues (controls, noises, or performance questions)
• Offers setup and operating tips to extend appliance life and avoid misuse

• Store the guide with your appliance paperwork for easy reference.
• Follow safety warnings exactly; disconnect power before servicing.

Secures the backsheet to the cabinet, preventing panel gaps and rattling. Replace if clip is broken or panels are loose. Confirm fit with your model number.

Vertical spring adjuster insert.

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.
