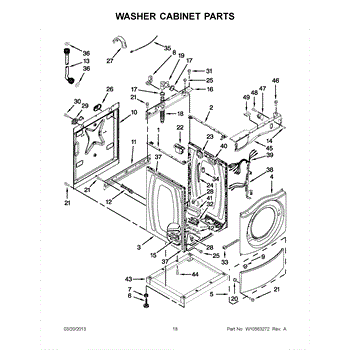

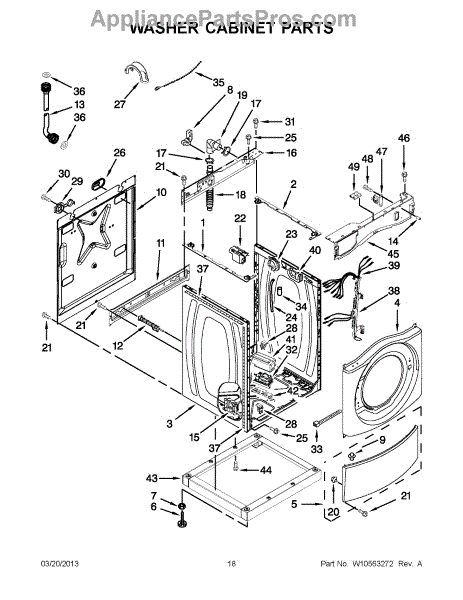

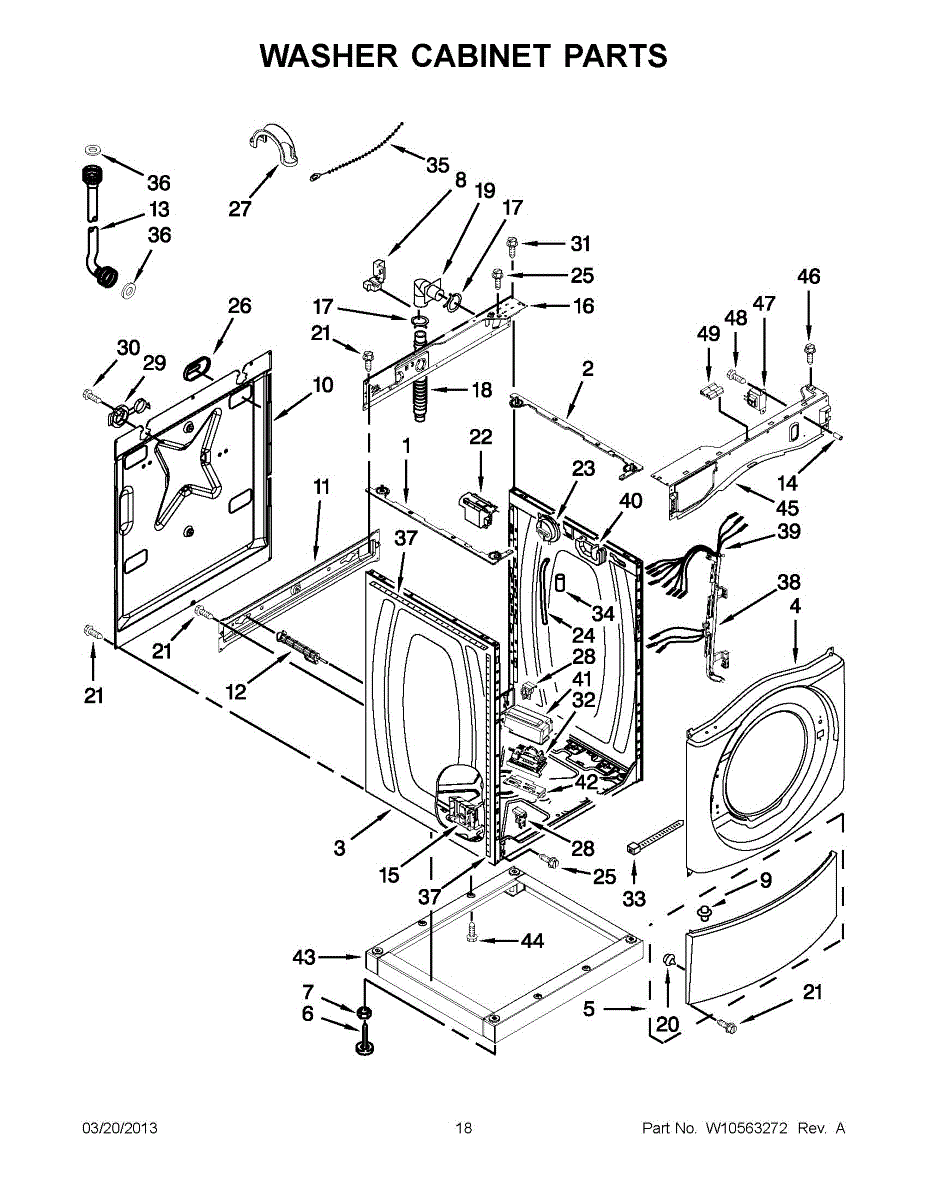

Parts for Maytag MLG20PRBWW2: 09 - Washer Cabinet Parts

This toe panel is the lower front trim piece that covers and protects the washer's base, restoring the machine's finished appearance and helping keep internal components free from debris. It replaces a cracked, dented, or missing front kick plate. What it does:

• Covers the lower front of the washer and conceals internal components
• Protects against dust, lint and accidental contact with internal parts
• Restores the washer's appearance after impact or corrosion damage
• Helps reduce drafts and prevents small items from entering the cabinet
• Stops rattling or vibration caused by a loose or broken panel

• Disconnect power and water supply before beginning any service
• Typical installation requires removing the lower access screws or clips and snapping or fastening the panel into place
• Use proper hardware and alignment to avoid gaps or binding; keep fasteners snug but do not overtighten
• Beware of sharp edges; wear gloves and follow model-specific service instructions

This leveling foot threads into the base of the appliance to support and stabilize it. Proper adjustment keeps the unit level on uneven floors, reducing rocking, vibration, and noise for smoother, more reliable operation.

• Provides height adjustment to level and stabilize the appliance
• Helps reduce rocking, vibration, and rattling during use
• Restores support when an original foot is worn, stripped, or missing
• Can improve door/tub alignment once the unit is properly leveled

• Disconnect power and, if applicable, turn off water/gas before servicing
• Carefully tip or raise the unit to access the foot; use a helper to prevent tipping
• Thread the new foot by hand to avoid cross-threading; use a wrench for final adjustment
• Level the appliance front-to-back and side-to-side; ensure all feet firmly contact the floor

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This rivet secures panels, trim, or small components on compatible Whirlpool appliances to restore proper fit and reduce noise. It's a simple replacement for worn, loose, or missing fasteners so parts stay firmly in place. What it does:

• Holds appliance panels, brackets or trim pieces together for a secure fit
• Stops rattling or vibration caused by loose or missing fasteners
• Restores proper alignment of parts that rely on a permanent fastener
• Provides a durable, low-profile connection where a rivet was originally used

• Turn off and unplug the appliance before working on it to avoid shock or injury
• Remove the damaged rivet by drilling or cutting; install new rivet with the proper rivet tool or replacement method for the original rivet type
• Wear eye protection and follow basic hand-tool safety

This replacement console panel restores the appliance's front housing for the control area, protecting internal components and keeping buttons and displays aligned for reliable operation and a clean appearance. What it does:

• Replaces a cracked, scratched or broken console housing to improve appearance and protect controls
• Provides the mounting surface and alignment for the control board, buttons, and display
• Prevents dust and moisture from reaching internal electronics through the console opening
• Helps restore proper fit and function when the original panel is warped or damaged

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Installation typically requires removing trim pieces and screws; handle the panel carefully to avoid scratching.
• Support the control assembly while removing and reconnecting any wiring harnesses; do not force connectors.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This motor control board regulates the washer's drive motor, coordinating tumble and spin speeds for smooth operation. Replacing a failed MCU restores proper wash motion and spin performance.

• Controls drive motor speed and direction for wash/tumble and spin cycles
• Communicates with the main control and motor feedback to deliver smooth acceleration and braking
• Monitors for faults to help protect the motor and shut down if needed
• Symptoms of failure can include no tumble or spin, intermittent motor operation, cycle interruption, or motor/speed-sensor error codes

• Disconnect power before servicing; use ESD precautions and handle the board by the edges
• Typically mounted low in the cabinet (rear or base); access varies by model—refer to your service information
• Move connectors one at a time to the same positions; ensure harnesses are fully seated and routed as original
• After installation, run diagnostics or calibration if required by your model's service procedure

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electrical connector links wiring within the appliance's harness, restoring a secure, reliable connection for proper operation. Use it to replace a damaged or corroded connector that's causing intermittent power or component failures.

• Creates a solid electrical connection between harness leads
• Helps resolve issues like intermittent operation, no power to a component, or visible heat damage at a connection point
• Maintains correct current flow and reduces risk of arcing at loose terminals
• Designed to fit the specified harness location per model

• Disconnect power and shut off utilities before servicing
• Match wire colors/positions and transfer one lead at a time to avoid miswiring
• Ensure terminals are fully seated and the connection is snug
• Inspect surrounding wiring for heat damage or corrosion and address as needed

Rubber bumper. Color: Grey.

Size: 8-18 x 1/2 inch.

This RFI noise filter conditions the AC power entering your microwave, reducing electrical interference and helping protect and stabilize the control and power circuits. Replace it if the unit is dead or trips a breaker when starting.

• Filters radio-frequency/electromagnetic noise on the incoming AC line
• Helps stabilize power to the control, relays, lights, and fans
• Failure may cause no display or intermittent loss of power
• A shorted filter may blow the line fuse or trip the household breaker when plugged in or when Start is pressed

• Disconnect power by unplugging the microwave or switching off the dedicated circuit breaker
• For over-the-range units, remove the microwave from the wall to safely access internal components
• Label and transfer wires to matching terminals; mount the filter securely and route wiring away from sharp edges

The Water Level Pressure Switch is an OEM replacement part for Whirlpool washing machines. It monitors the water level in the washer tub and senses pressure changes, signaling when to stop or start water filling.

Causes of a faulty switch can include mineral buildup interfering with sensor operation over time. Failure symptoms include:

• Inability to start or stop water filling
• Too much or too little water entering the tub
• Delays in cycle progress or termination of cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement hose restores a secure, leak-resistant path for water inside your appliance. Replacing it helps stop leaks and keeps cycles running as intended.

• Carries water between internal components during operation
• Maintains a sealed path to help prevent leaks
• Helps ensure proper filling, circulation, or draining as designed
• Common symptoms include water leaking under/inside the unit, standing water, or slow/incomplete fill or drain

• Disconnect power and shut off the water supply before servicing
• Keep towels or a shallow pan ready to catch residual water
• Note hose routing and clamp positions; transfer existing clamps if they're reusable
• After installation, run a test cycle and check carefully for leaks

This is a replacement mounting screw used to secure panels and internal components on compatible Whirlpool appliances. It restores proper fastening where the original screw is missing, stripped, or damaged for a safe, snug fit. What it does:

• Secures panels, brackets, or small components to the appliance chassis
• Restores lost or damaged fasteners that cause rattling or looseness
• Helps maintain correct alignment of parts that rely on threaded fastening
• Prevents further wear by replacing stripped or corroded screws

• Use the matching screw length and thread engagement; do not force if resistance is encountered
• Tighten firmly but avoid over-torquing which can strip threads or crack plastic
• Disconnect power and follow manufacturer safety instructions before servicing
• Consider replacing all matching fasteners for uniform fit

This transport cover secures internal components during shipping and service to prevent movement and damage. It helps keep parts aligned and reduces noise caused by loose components while the appliance is being moved. What it does:

• Holds internal components in place during transport to prevent shifting or impact damage
• Reduces rattles and vibration caused by unsecured parts
• Protects delicate assemblies from knocks during delivery or handling
• Helps maintain alignment of components until the appliance is installed

• One transport cover

• Disconnect power and water before servicing the appliance
• Remove all shipping brackets and covers per the owner's manual before normal operation
• Use manufacturer-specified fasteners and torque; do not force or modify the part

This U-bend retainer secures the drain U-bend or trap tubing in place to prevent leaks and keep plumbing routed safely under the appliance. It's a small but important clip that helps maintain proper drain alignment. What it does:

• Holds the U-shaped drain/trap tubing securely to the appliance drain outlet
• Helps prevent the drain hose from slipping free and causing leaks
• Keeps the drain line routed to avoid kinks or contact with moving parts
• Commonly replaced when the original clip is broken, cracked, or missing

• One U-bend retainer clip

• Basic hand tools may be required; disconnect power and water supply before servicing
• Remove any obstructing panels to access the drain outlet area
• Press the clip into position over the U-bend until it snaps or seats securely

This Marquardt ground switch completes the appliance's ground connection so controls and safety systems have a proper reference. Replace a failed ground switch to restore reliable grounding and help eliminate related electrical faults. What it does:

• Provides the ground connection path used by controls and safety circuits.
• Replaced when continuity tests fail or when appliances have intermittent power, control errors, or nuisance breaker trips.
• Restores correct electrical grounding to help reduce fault conditions and erratic control behavior.
• Matches the original switch form and electrical connector layout for a direct replacement.

• Disconnect all power (unplug appliance and/or shut off breaker) before beginning service.
• Photograph or label wiring and connector positions before removal; transfer connectors to the new switch exactly.
• Inspect connectors and wiring for damage; replace any frayed or heat-damaged wiring.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This factory screw secures appliance components such as panels, brackets, and trim. It replaces missing, stripped, or damaged hardware to restore a tight, rattle-free fit and proper alignment in the specified location for your model.

• Fastens covers, panels, brackets, or trim as specified in the parts diagram
• Restores secure fit when an original screw is missing or damaged
• Helps reduce vibration, rattling, and looseness
• Direct-fit hardware specified by the manufacturer for the original location

• Disconnect power and shut off water/gas before servicing
• Verify the screw's location in your model's parts diagram before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver/bit and avoid overtightening into plastic to prevent stripping

This wire harness routes power and signals between the appliance's control assembly and its components to restore reliable electrical connections and operation. Designed to replace a damaged or worn harness. What it does:

• Connects control board and components so the appliance can receive power and communicate commands
• Replaces frayed, scorched, or broken wiring that can cause intermittent operation or no power
• Helps stop sparking, arcing, or electrical odors when faulty wiring is the source
• Restores secure plug-and-socket connections that may have loosened over time

• One complete wire harness as shown

• Disconnect power (unplug or switch off breaker) before beginning any repair
• Compare new harness to the original to ensure connector types and lengths prior to installation
• Route and secure wiring away from moving parts and heat sources; use existing clips or ties
