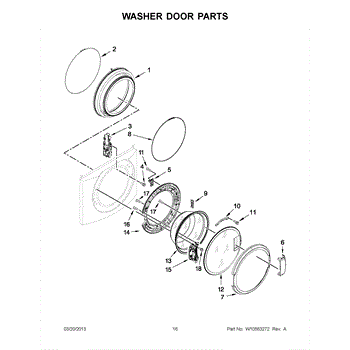

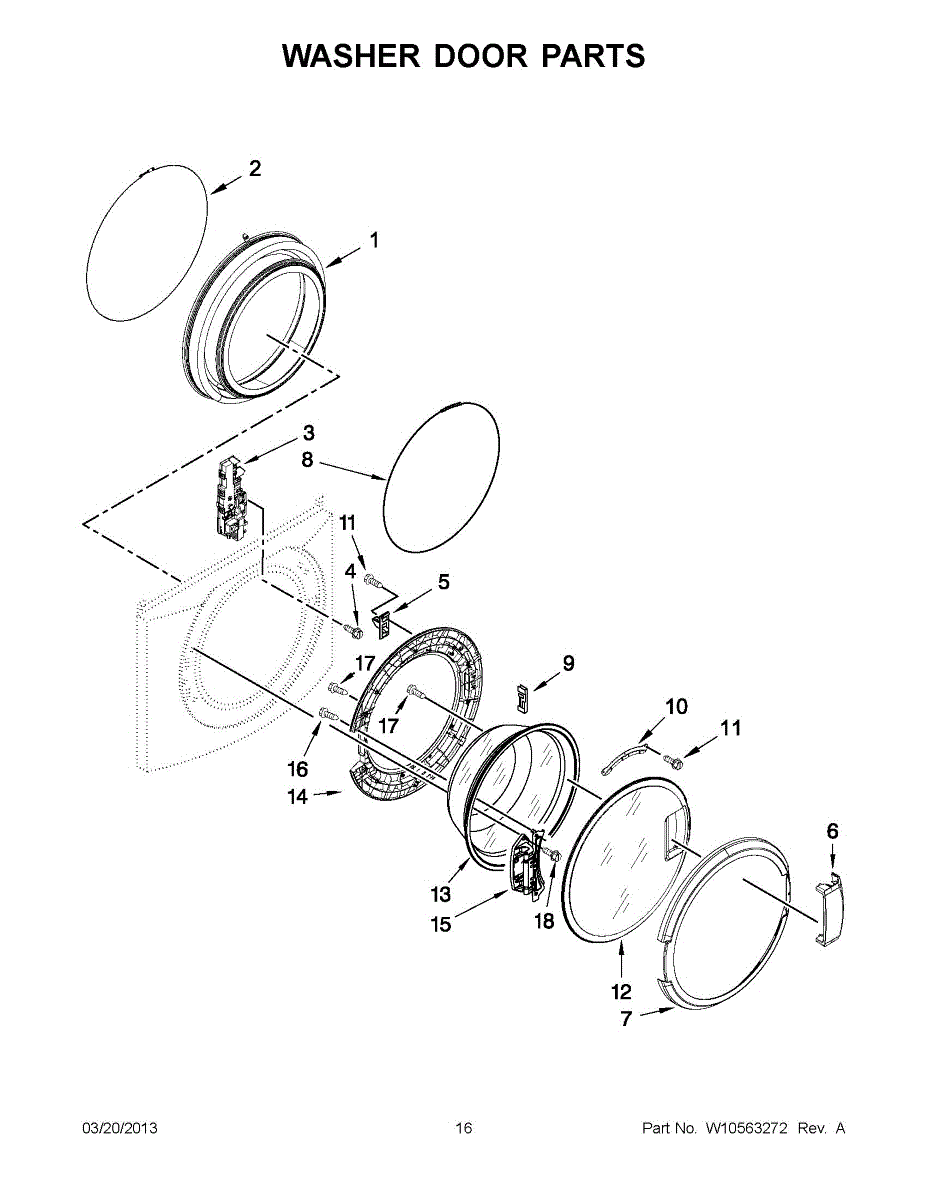

Parts for Maytag MLG20PRBWW2: 08 - Washer Door Parts

This washer bellow, also called the door boot seal, forms the watertight gasket between the front door opening and the outer tub. Replacing a worn or torn bellow helps stop front leaks and keeps wash water inside the machine.

• Creates a watertight seal between the door opening and outer tub on front-load washers
• Helps prevent water on the floor from leaks at the door area
• Common failure signs: water leaking from the front/door, visible tears or cracks, persistent mildew/odor on the gasket, or the seal pulling loose

• Disconnect power and turn off water supply before service
• Remove the outer retaining clamp, then access and remove the inner clamp as required by your model
• Note orientation marks/drain openings on the bellow and seat it evenly on both the tub and front panel
• Reinstall clamps securely and run a brief test fill to check for leaks

The Inner Bellow Clamp is an OEM part for Whirlpool washing machines. It secures the inner bellow, or door boot seal, in place, ensuring a tight fit and preventing leaks from the washer drum during operation. The clamp has a diameter of approximately 18 inches.

Over time, the inner bellow clamp can wear out or become damaged due to repeated exposure to water, detergent, and the constant movement of the washing machine drum. If the clamp loses its tension or breaks, it may result in leaks and improper sealing of the door boot.

Symptoms of a bad inner bellow clamp include:

• Water leaks from the door area
• The door boot seal appears loose or out of place
• Visible damage or rust on the clamp

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Lock is an OEM part for Whirlpool washing machines. This part securely locks the washer door during operation. This safety feature prevents the door from being opened while the washer is running, thereby avoiding water spillage and ensuring that the washing cycle can proceed without interruption.

Causes of a bad Door Lock can include electrical failures, mechanical wear and tear, and damage from forced attempts to open the door while it is locked.

Symptoms of a bad Door Lock include:

• The washer door not locking or unlocking properly
• The washing machine failing to start its cycle due to the door not being recognized as closed
• An error code indicating a door lock malfunction displayed on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance components such as panels, brackets, and covers. Replacing a missing, stripped, or rusted screw restores a tight fit and helps reduce vibration, rattling, and shifting during operation.

• Fastens metal or plastic parts to the appliance cabinet/frame
• Helps maintain proper alignment and reduces noise from loose panels
• Replaces hardware that is missing, corroded, or with stripped threads
• Symptoms include rattling, looseness, gaps, or misaligned parts

• Disconnect power; shut off gas/water before servicing
• Support panels to prevent drops; watch for sharp edges
• Start threads by hand to avoid cross-threading; use the correct driver
• Do not overtighten; match the original screw's location and orientation

The Washer Door Strike is an OEM part for Whirlpool washing machines. It serves as a component in the locking mechanism of the washer door, engaging with the door latch to secure the door during operation. This ensures that the machine can safely perform its cycles without risk of opening mid-wash, which could result in water spills and interrupted washing processes.

Symptoms of a failing Washer Door Strike include:

• The washer door not closing or latching properly
• Water leaking from the front of the machine
• The washing machine refusing to start due to the door not being recognized as closed

Causes of damage to the door strike typically involve physical impacts, such as slamming the door too hard, or general wear and tear that degrades the integrity of the strike over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Clamp is an OEM component specifically designed for Whirlpool washing machines. It secures important internal components, such as hoses, to the washer tub during operation. Precise alignment and sufficient tightness are essential for leak-free function.

Causes of a bad clamp can include cracks, breaks or missing segments from extended use under pressure. Mineral buildup or corrosion over time may also weaken the clamp material.

Symptoms of a bad clamp include:

• Vibrations or noises from loose or incorrectly positioned components
• Water leaks inside the washer from disconnected or poorly sealed hoses
• Reduced efficiency and improper filling or draining issues

This genuine OEM replacement, part is also compatible with other major brands like Maytag, KitchenAid and the brands of Sears Kenmore.

This supporting clamp secures hose or component assemblies to help prevent movement and wear. It restores proper routing and restraint so hoses and wiring stay in place during normal operation. What it does:

• Holds hoses, tubes or small wiring bundles in position to reduce rubbing and chafing
• Prevents strain on connections that can cause leaks or intermittent electrical issues
• Keeps components aligned for reliable operation and quieter performance
• Useful when original clamp is cracked, broken, or no longer grips securely

• One supporting clamp

• Inspect mating surfaces and replace any damaged hoses or fasteners before installing
• Use appropriate hand tools; avoid over-tightening which can deform the clamp or hose
• Disconnect power and turn off water supply when working near electrical or plumbing connections

This oven door glass replaces a cracked or broken glass panel so the door seals and you can safely see inside while cooking. It restores the oven door's protective barrier and appearance. What it does:

• Replaces damaged or cracked oven door glass to prevent heat loss and sharp edges
• Restores visibility into the oven cavity for safe monitoring of food
• Helps the door maintain proper sealing when paired with intact gaskets and hardware
• Reduces risk of glass shards or injury from a compromised panel

• Handle with care; glass is fragile—use gloves and eye protection during removal and installation
• Disconnect power and allow the oven to cool before working on the door
• Follow the oven manufacturer's instructions for removing the door and fastening the glass
• If door hardware or seals are damaged, inspect and replace them separately

This hinge restores smooth, stable movement of your appliance door so it opens and closes correctly, helping the door stay aligned with the frame for a proper seal and dependable everyday use. What it does:

• Provides the pivot point for the door to open and close
• Maintains door alignment to help ensure proper closing
• Replaces a bent, loose, or worn hinge that causes binding or rubbing
• Can help address issues like a door that sags, won't stay aligned, or is hard to close

• One hinge

• Disconnect power before servicing; allow hot surfaces to cool
• Support the door during removal/installation to prevent damage or injury
• Reuse existing mounting hardware unless new fasteners are supplied
• After installation, check alignment and operation before fully tightening fasteners

This replacement screw secures appliance components and panels in their proper position. Replacing worn, stripped, or missing hardware restores a tight fit, reduces vibration or rattles, and helps maintain safe, reliable operation per the manufacturer's design. What it does:

• Fastens panels, brackets, or assemblies where specified in the model's parts diagram
• Replaces missing, rusted, or stripped hardware
• Helps eliminate looseness, rattling, or vibration
• Restores secure alignment of mounted components

• 1 screw

• Disconnect power and shut off water/gas before servicing.
• Verify the exact location in your model's parts diagram and replace screws one at a time to maintain alignment.
• Use the correct driver/bit; start threads by hand to avoid cross-threading and do not overtighten.
• Inspect mating holes/clips for damage; repair or replace related hardware if threads are compromised.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it

Size: 8-18 x 1/2 inch.
