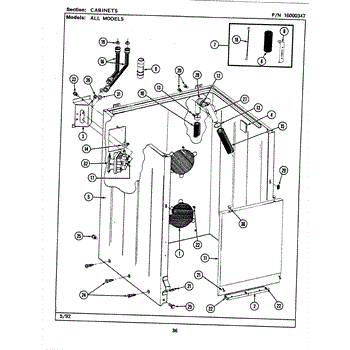

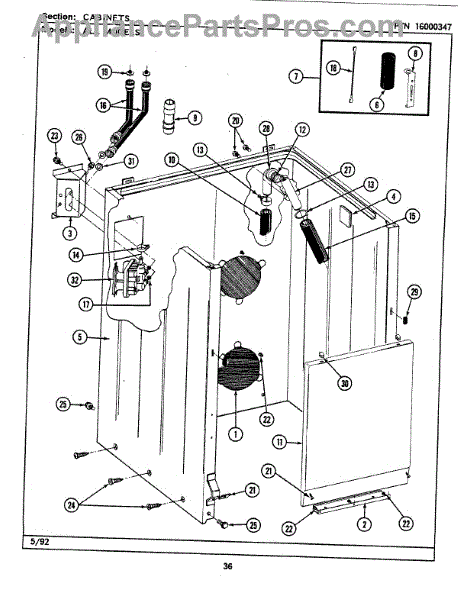

Parts for Maytag LAT9700AAL: 02 - Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This gasket creates a reliable seal between two appliance components. Replacing a worn or damaged gasket helps stop leaks and drafts at the joint, restoring proper performance and preventing moisture, frost, or debris from entering where parts meet.

• Forms a tight seal between mating surfaces to help prevent water or air leaks
• Helps maintain proper temperatures and operation by keeping unwanted air or moisture out
• Reduces vibration at the joint that can cause noise or loosening over time
• Typical failure signs: visible cracks or flattening, seepage or drips at the joint, moisture or frost forming nearby

• Disconnect power and shut off water supply before service
• Photograph the original setup to aid reassembly
• Remove the old gasket and thoroughly clean/dry both mating surfaces; remove any residue
• Seat the new gasket evenly without stretching; tighten fasteners evenly and check for leaks or air gaps after reassembly

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Hose is an OEM part for Whirlpool washing machines. It is responsible for carrying wastewater from the washing machine to the household drain system, ensuring proper removal of water during and after the wash cycle.

Common causes of a bad drain hose include wear and tear over time, blockages from debris or lint, and damage from sharp objects or improper installation.

Symptoms of a bad Drain Hose include:

• Water leaks from the hose
• Slow or incomplete drainage
• Visible cracks, splits, or punctures
• Unpleasant odors from trapped debris

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Hose washer and plastic insert for inlet hose. To order separately: for washer use WPY013783, for strainer use WP22002960.

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

Screw kit for front panel.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Spesc: #12 pozi - drive

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

This factory screw secures appliance components such as panels, brackets, and trim. It replaces missing, stripped, or damaged hardware to restore a tight, rattle-free fit and proper alignment in the specified location for your model.

• Fastens covers, panels, brackets, or trim as specified in the parts diagram
• Restores secure fit when an original screw is missing or damaged
• Helps reduce vibration, rattling, and looseness
• Direct-fit hardware specified by the manufacturer for the original location

• Disconnect power and shut off water/gas before servicing
• Verify the screw's location in your model's parts diagram before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver/bit and avoid overtightening into plastic to prevent stripping

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

The Siphon Break is an OEM part for Whirlpool washing machines. It is a critical safety component that prevents the backflow of contaminated water from the washer into the fresh water supply line. For the gasket use part number [AP6005834], For the siphon elbow use part number [AP4024083]

Causes of a faulty siphon break include physical damage, clogging due to mineral buildup or debris, or general wear and tear over time.

Symptoms of a bad siphon break:

• Water leaks or puddles around the washing machine
• The washer not filling with water properly
• Potential for contaminated water to enter the fresh water supply

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This siphon break elbow is a 90-degree connector used in the drain path to create an air break that helps prevent back-siphoning. Replacing a cracked or obstructed elbow can stop leaks and restore proper draining performance.

• Provides a 90-degree connection between the drain hose and the siphon break/air-gap fitting
• Maintains the atmospheric break that prevents wastewater from siphoning back into the appliance
• Helps route drain flow without kinking or stressing the hose
• Common symptoms: leaking at the elbow area, water backing up through the drain line, slow or incomplete draining, visible cracks or damage

• Disconnect power; turn off water supply if applicable
• Expect residual water—protect the area with towels or a pan
• Release hose clamps, note orientation, fully seat hoses on the new elbow, and secure clamps
• Run a test and check for leaks

This spring fastener applies constant tension to hold a component securely in place inside your appliance, helping prevent looseness, vibration, or gaps. Replacing a fatigued or missing clip restores a tight, reliable fit.

• Provides spring tension to clamp and retain a part, seal, or panel
• Helps maintain alignment and reduce vibration or rattling
• Restores secure attachment when the original clip is bent, stretched, or missing
• Symptoms can include a part not staying put, visible looseness, or a clip that's damaged or gone

• Disconnect power; turn off water supply if applicable
• Use needle-nose pliers or a suitable spring tool; wear gloves and eye protection
• Note the original orientation before removal to ensure proper reinstallation
• Make sure the mating part or seal is fully seated and the fastener is fully engaged before reassembly

This small retaining clip secures components in place inside the appliance, helping prevent movement, vibration, and premature wear. Replace a bent, fatigued, or missing clip to restore a solid, factory-tight hold.

• Holds panels, brackets, or tubing securely in their mounts
• Helps maintain alignment to reduce rattles, rubbing, or intermittent issues
• Common signs of failure: missing clip, loose fit, buzzing/vibration, parts that won't stay seated
• Restores proper retention after service, transport, or vibration-related fatigue

• Disconnect power and shut off gas/water before servicing
• Note the original clip's orientation; remove with needle-nose pliers
• Seat the new clip fully—do not over-bend; spring tension provides the hold
• Test operation before reassembly

The Water Inlet Valve is an OEM replacement part for Whirlpool washing machines. It is responsible for controlling the flow of water into the washer tub, ensuring the proper water level and supply for each wash cycle.

Causes of a bad water inlet valve can include sediment buildup or obstructions, electrical malfunctions, or normal wear and tear over time, leading to valve failure or improper operation.

Symptoms of a faulty water inlet valve include:

• The washer not filling with water or filling slowly
• Incorrect or inconsistent water levels during wash cycles
• Water leaks around the valve or inlet area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.
