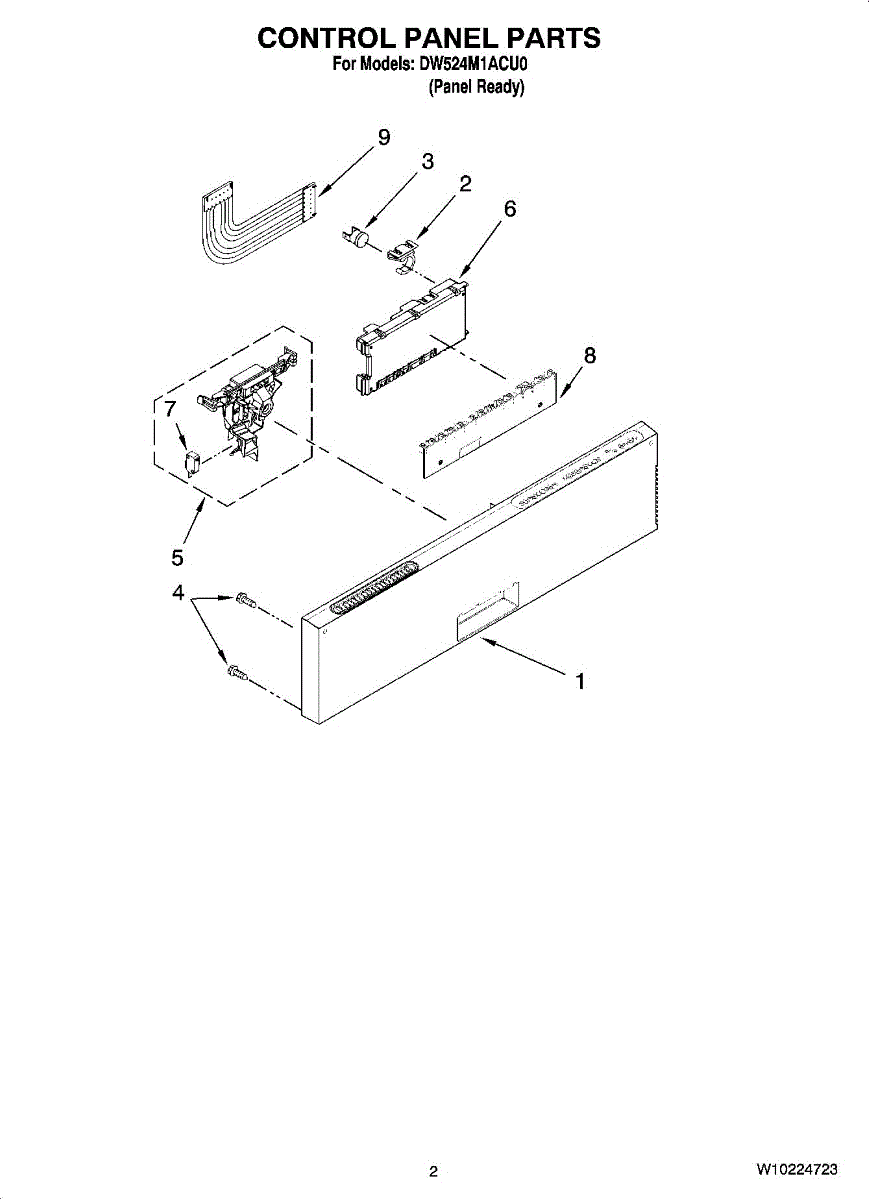

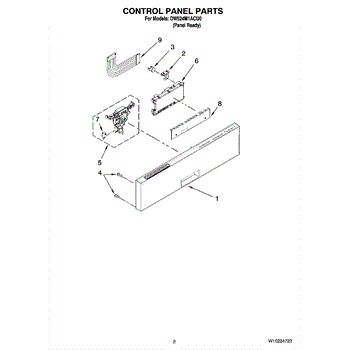

Parts for Whirlpool DW524M1ACU0: 02 - Control Panel Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishwasher won't start or has no power? The thermal fuse cuts power when overheating occurs. Test for continuity with a multimeter. Easy 10-minute fix.

Fixes loose panels, rattling doors, or wobbly components caused by stripped or missing screws. Secures brackets, covers, and mounting hardware. Easy DIY.

Door won't latch or stay closed? This dishwasher door latch assembly fixes latching failures and prevents mid-cycle stops. Moderate DIY repair with video.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

If your dishwasher won't start, stops mid-cycle, or has no display, the control board may have failed. Moderately difficult repair, typically 30 minutes.

Dishwasher won't start or stops mid-cycle? This door switch detects when the door is closed to allow operation. Common DIY fix for no-start issues.

Fix a dishwasher that won't start or respond to buttons. This main electronic control board restores user interface functions and cycle timing. Moderate DIY.

This inner tail ribbon cable transmits signals between the control/display assembly and the main harness, restoring reliable communication for user inputs and display functions. It's a direct replacement designed to match the original connector fit. What it does:

• Carries low-voltage data/signals from the control panel to the main board
• Restores unresponsive or intermittent control panel behavior
• Helps resolve blank or flickering display and erratic touchpad responses
• Maintains proper connector alignment and secure electrical contact

What's included: One inner tail ribbon cable Install notes:

• Disconnect power before beginning any repair to avoid shock or damage
• Handle the cable by the reinforced ends; avoid bending, kinking, or touching exposed contacts
• Ensure connectors are fully seated and retained with original clips or fasteners
