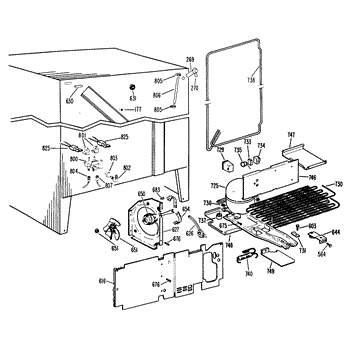

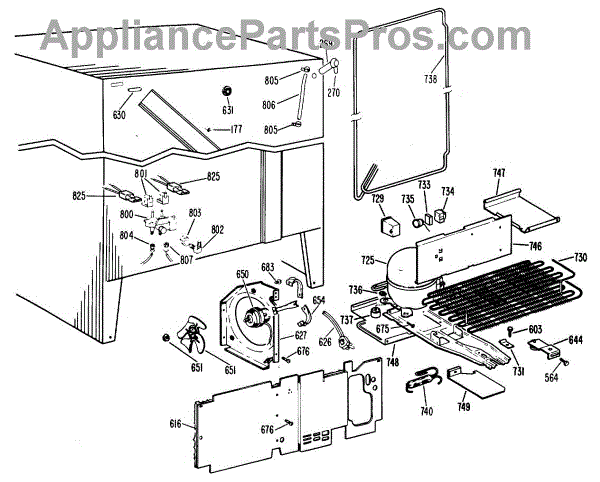

Parts for Ge CSX24DKD: 04 - Section4 Parts

Package of 12

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Supplies electrical power from wall outlet to refrigerator. Replace this cord if cut, frayed, overheated, or damaged to restore safe electrical connection.

Sealer plug for refrigerators. Seals unused holes or openings in cabinet panels. Replace if cracked, broken, or missing to maintain proper appearance.

Refrigerator not cooling or compressor overheating? The condenser fan motor circulates air through coils to dissipate heat. DIY repair in under 30 minutes.

Fix a refrigerator that won't start or clicks repeatedly. This compressor capacitor stores energy to start the motor. DIY repair typically takes 30 minutes.

Refrigerator not cooling or clicking? A faulty start relay prevents the compressor from starting. Easy 15-minute DIY fix stops warm temps and constant cycling.

This condenser loop tube routes refrigerant between the condenser and evaporator to help dissipate heat and keep your refrigerator cooling properly. Replaces a damaged or corroded tube to restore proper refrigerant flow and heat exchange. What it does:

• Carries refrigerant through the condenser loop so the system can release heat.
• Helps maintain proper cooling performance by ensuring correct refrigerant routing.
• Works as a direct replacement component where the OEM part number WR84X46 is specified.

• One (1) condenser loop tube (WR84X46) as shown.

• Handle gently to avoid kinks or damage to the tube and fittings.
• Inspect surrounding fittings and seals; replace any worn gaskets or clamps to ensure a leak-free connection.

This is a small clip used to secure the condenser tubing or coil in place on the back or underside of a refrigerator. It keeps the condenser components properly positioned for efficient heat dissipation. Replace this clip if it is broken or missing, which can allow condenser tubing to shift, vibrate, or contact other parts and cause rattling noises.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front air baffle directs cooled air inside the refrigerator compartment to help maintain even temperatures and proper airflow. Replaces a cracked or broken baffle to restore correct air circulation and door seal alignment. What it does:

• Guides cold air from the evaporator into the fridge compartment for balanced cooling
• Helps maintain proper airflow paths so food stays colder and fresher
• Prevents rattling or obstruction caused by a broken or warped baffle
• Supports proper door closure where applicable

• One front baffle assembly

• Disconnect power to the appliance before beginning any work
• Remove any shelves or door bins that block access to the baffle
• The baffle typically snaps or screws into place; align carefully and secure without forcing

Fix a leaking water valve or non-working ice maker and water dispenser. This dual inlet valve controls water flow to both systems. DIY-friendly repair.

Nut for 1/4 inch tubing.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Plastic water line that connects the water inlet valve to the ice maker. Replace if cracked, leaking, or damaged. Includes installation video.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.
