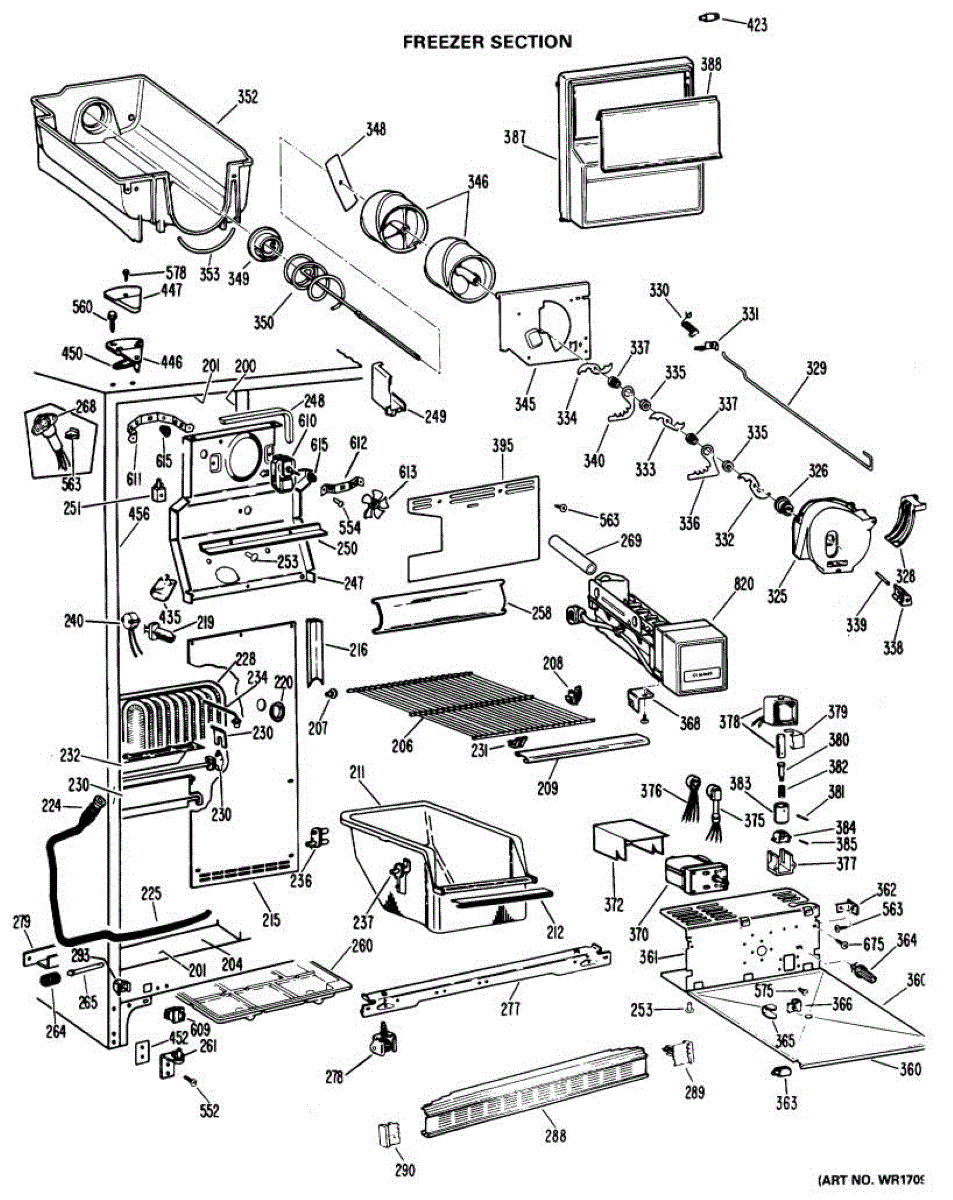

Parts for Ge CSX24DKD: 02 - Freezer Section Parts

This shelf support secures an interior refrigerator shelf in place so food items stay level and storage remains organized. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds a refrigerator shelf or shelf trim in the correct position to prevent sagging or tipping
• Restores stable support for glass or wire shelving that no longer stays seated
• Helps eliminate shelf movement that can cause items to slide or spill
• Works where a broken, chipped, or missing support prevents proper shelf alignment

• Disconnect power to the appliance before starting any repair and empty the shelf area
• Remove the affected shelf or trim to access the support; reinstall shelf to confirm correct seating
• Use basic hand tools as needed and avoid forcing parts to prevent further damage
• Replace all affected pieces for consistent shelf alignment

A direct-fit basket handle that restores a secure grip for removing and carrying refrigerator baskets. Replaces a cracked, broken or missing handle so baskets slide out and lift easily. What it does:

• Provides a strong gripping point to pull, lift and carry refrigerator baskets
• Restores safe basket removal when the original handle is damaged or missing
• Reduces slipping or hand-catching from jagged, broken plastic
• Fits the basket mounting points for a snug, stable fit

• Disconnect power to the appliance or unplug the refrigerator before installing when applicable
• Remove the basket or drawer if needed to access mounting points; keep small fasteners organized
• Use basic hand tools; avoid excessive force when seating the handle to prevent damage

Open - 55, close - 35

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

This replacement crusher dispenser housing restores the outer housing that supports the ice crusher and dispenser chute, helping the dispenser operate smoothly and keep ice contained while in use. What it does:

• Replaces cracked or broken dispenser housing that can allow ice to jam or fall out
• Provides the proper mounting surface for the crusher and chute to align ice flow
• Helps reduce noise and rubbing caused by a misaligned or damaged housing
• Restores the dispenser's outer enclosure for a finished appearance and safe operation

• Disconnect power to the refrigerator before starting any repair.
• Remove ice bin and dispenser components as needed to access the housing; keep track of fasteners.
• Inspect adjacent seals, gaskets and mounting clips and replace if damaged.
• Handle plastic parts carefully to avoid cracking; reassemble components to factory alignment.

Includes 12 washers.

Includes 12 retainer rings.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This replacement part is an ice dispenser deflector, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice dispenser deflectors are found inside of the ice-making assembly and are an important part of many freezers. The ice dispenser deflector allows the ice to come down from the tray into the dispensing area. A new ice dispenser deflector might be needed if the current one has become too brittle and has even cracked or broken. Be sure that the refrigerator is completely powered off before starting this repair. The user must have access to the ice maker assembly and will need common household tools like a screwdriver and pliers. The user might also need working gloves as some parts in and around the assembly have sharp edges or blades.Note that this part is sold individually. This ice dispenser deflector is sourced directly from the manufacturer and is a genuine OEM replacement part.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This blade rest stabilizer supports and centers the blade assembly to keep cutting/wiping components aligned and operating quietly. It helps prevent blade wobble and uneven operation caused by a worn or damaged rest. What it does

• Holds the blade assembly in the correct position so blades remain centered during use
• Reduces vibration, rattling, and uneven motion from a loose or broken rest
• Helps maintain proper clearance between blade and housing for consistent performance
• Restores stable blade engagement after cracks, wear, or deformation

• One blade rest

• Disconnect power (unplug or switch off breaker) before servicing
• Remove surrounding housing or components as needed to access the blade assembly
• Handle blades carefully — they are sharp; use gloves if available
• Follow the appliance manufacturer's instructions and replace only with the correct part number

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

Plate for dispenser.

This replacement part is an ice auger blade, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Ice auger blades are usually found in ice maker assemblies and are used during the ice-making and dispensing process. These blades are what are used when the user is in need of shaved or crushed ice. The mechanism takes full ice cubes and cuts the ice cubes down to create the different types of ice. A new ice auger blade might be needed if the user noticed that the current blades are dull or unable to cut ice. It is possible that the blades become dull over time after many years of use, so replacing them might be a good idea. Be sure the power is completely off before attempting to repair this part.This ice auger blade is sourced directly from the manufacturer and is a genuine OEM replacement part. Note that this part is sold individually.

The Drive Cup is an OEM part for GE refrigerators. This part engages with other parts to drive the ice out of the molds and into the storage bin.

Causes of Drive Cup failure can range from physical wear and tear from regular use, which may lead to cracks or deformities in the part, to accumulation of frost or ice that hinders its movement.

Symptoms of a malfunctioning Drive Cup include:

• The ice maker fails to eject ice properly, leading to clogs or jams within the system.
• Unusual noises during the ice-making cycle, which could indicate that the drive cup is not engaging correctly with other components.
• Decreased efficiency in ice production, as the mechanism struggles to operate smoothly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes ice auger blade. For blade separately use WR2X7783. Please note Due to manufacturer changes they no longer make the auger as shown (helix coil approx 7 1/2") in the photo. The replacement helix coil is now approx. 5". If you have the original as shown in the photo you must order the complete auger/bucket assembly.

This is just the bucket.

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

Includes 12 clips.

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

This part has been discontinued by the manufacturer and is no longer available.

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Includes 12 screws. Size: 8-18 ab.

Package of 12

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
