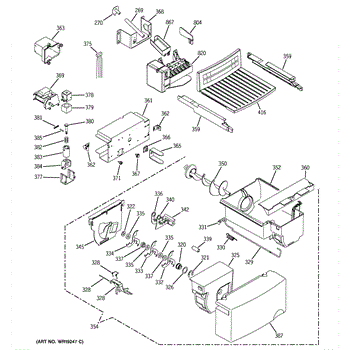

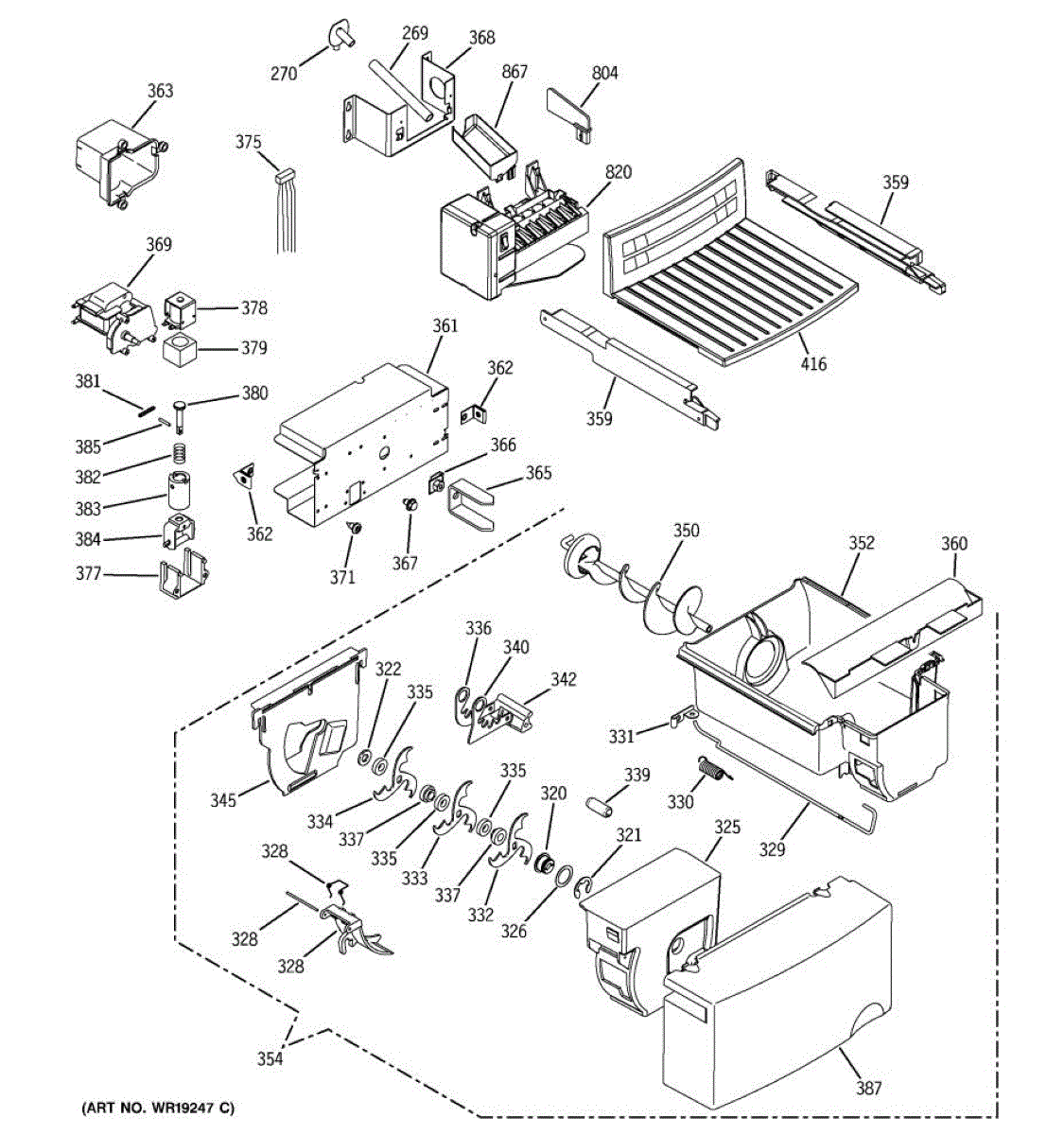

Parts for Ge HSS22IFPACC: 05 - Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice dispenser deflector mounts in the freezer door chute to guide cubes or crushed ice into your glass. Replace a cracked or missing deflector to reduce scatter and keep ice flowing where you want it.

• Directs ice down the dispenser chute toward the glass
• Helps contain spray and bounce-back of cubes
• Restores proper flow when the original deflector is cracked, warped, or missing
• Common symptoms: ice misses the glass, ice scatters on the floor, visible damage to the deflector

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Access the dispenser area per your model's instructions and note the deflector's orientation
• Transfer any screws or clips from the old part; avoid forcing plastic tabs
• Restore power and test ice dispense to confirm proper direction and clearance

This wire actuator operates the refrigerator dispenser mechanism so pressing the dispenser lever completes the circuit that dispenses water or ice. Replaces a bent or broken dispenser actuator to restore normal dispenser lever function. What it does:

• Transfers user push force from the dispenser lever to the internal switch or door mechanism.
• Helps the dispenser activate water or ice when the lever is pressed.
• Commonly fails by bending, breaking, or losing tension, causing the dispenser to not respond or to stick.
• Works with the dispenser lever assembly and internal actuation switch to complete user input.

• One wire actuator (single piece as shown)

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Installation typically requires removing the dispenser bezel and possibly the inner door panel; handle parts carefully to avoid damage.
• Use basic hand tools; keep fasteners organized for reassembly.

The Refrigerator Bucket and Auger Assembly is an OEM part for GE refrigerators. It is responsible for storing ice and dispensing it through the refrigerator's ice maker. The auger, which is part of this assembly, rotates to push ice forward and dispense it when activated. This assembly ensures a consistent supply of ice and smooth dispensing operation.

Over time, the bucket and auger assembly can become worn or damaged. Causes of a bad bucket and auger assembly can include regular wear and tear, cracks or breaks in the bucket, or malfunctioning auger components. These issues can lead to inefficient ice dispensing or no ice being dispensed at all.

Symptoms of a bad refrigerator bucket and auger assembly include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice dispenser area
• Cracks or visible damage to the ice bucket
• Ice jams or blockages in the dispenser chute

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side glide bucket replaces the refrigerator door/bin glide that holds and organizes items while sliding smoothly. Restores proper storage and secure positioning on the door rail for everyday use. What it does:

• Replaces a cracked, broken or worn right-side glide bucket so items stay contained on the door
• Restores smooth sliding action on the door rail for easy access to stored items
• Prevents items from tipping or falling when opening or closing the door
• Matches the OEM shape for proper fit and alignment with the existing rail

• One right-side glide bucket

• Disconnect power to the appliance before performing service as a safety precaution
• Remove items from the door and gently lift/slide out the old bucket per manufacturer guidance
• Inspect door rail and attachment points for damage; replace damaged clips or rails as needed
• Handle carefully to avoid snapping mounting tabs during installation

The Glide Bracket is an OEM part for GE refrigerators. This left bracket supports the refrigerator drawer, allowing it to slide in and out smoothly for easy access to stored items.

Causes of a bad glide bracket can include regular wear and tear, damage from overloading the drawer, or accidental impact that causes the bracket to crack or break.

Symptoms of a bad glide bracket include:

• Difficulty sliding the drawer in and out
• The drawer not aligning properly or coming off its tracks
• Unusual noises when opening or closing the drawer
• Visible cracks or breaks in the bracket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement diverter overflow that helps channel excess water away from the ice maker/water system to reduce pooling and leaks. Restores proper drainage so the refrigerator interior stays dry and operates as intended. What it does:

• Directs overflow or stray water from the ice maker/water area into the drain path
• Helps prevent water pooling or dripping inside the freezer or cabinet
• Use when you notice leaks, water pooling under shelves, or water coming from the dispenser/ice area

• Always disconnect power and shut off the water supply before starting any repair
• Removal of interior shelves/trim or access panels may be required to reach the diverter
• Handle plastic tabs and clips carefully to avoid breakage; replace any damaged fasteners

This shelf bracket secures a refrigerator glass shelf in place so food stays organized and the shelf remains level. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds and supports a glass refrigerator shelf to prevent sagging or shifting
• Replaces a broken or chipped bracket that allows the shelf to drop or sit unevenly
• Restores secure engagement between the shelf and refrigerator liner
• Helps eliminate noise or movement from an unstable shelf

• One shelf bracket

• Remove food and the glass shelf before replacing the bracket; handle glass with care
• Install with the original screws/clips; only use fasteners specified by the manufacturer
• Wear gloves to avoid cuts from glass or sharp edges

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This solenoid saddle is a small mounting bracket that secures a refrigerator solenoid in the correct position. By preventing movement and misalignment, it helps the linked mechanism engage smoothly and consistently.

• Secures the solenoid to its housing or frame to prevent shifting
• Maintains proper alignment for reliable actuation
• A worn or broken saddle can cause buzzing/chattering and intermittent operation
• Restores stable mounting to help the connected mechanism work correctly

• Disconnect power; shut off water supply if working near water lines
• Access the solenoid assembly and note the original saddle's orientation
• Transfer the solenoid into the new saddle and reuse existing fasteners/clips
• Smooth operation before reassembling panels

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
