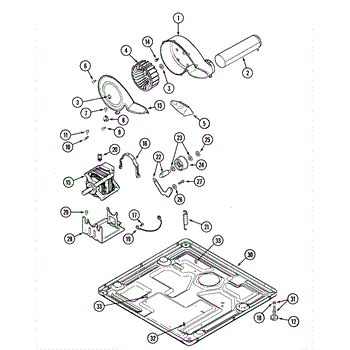

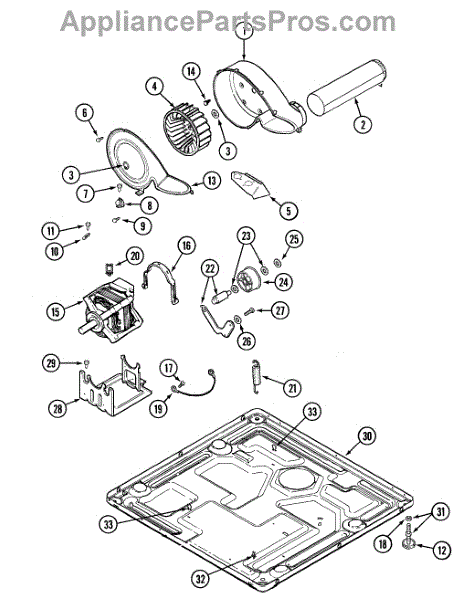

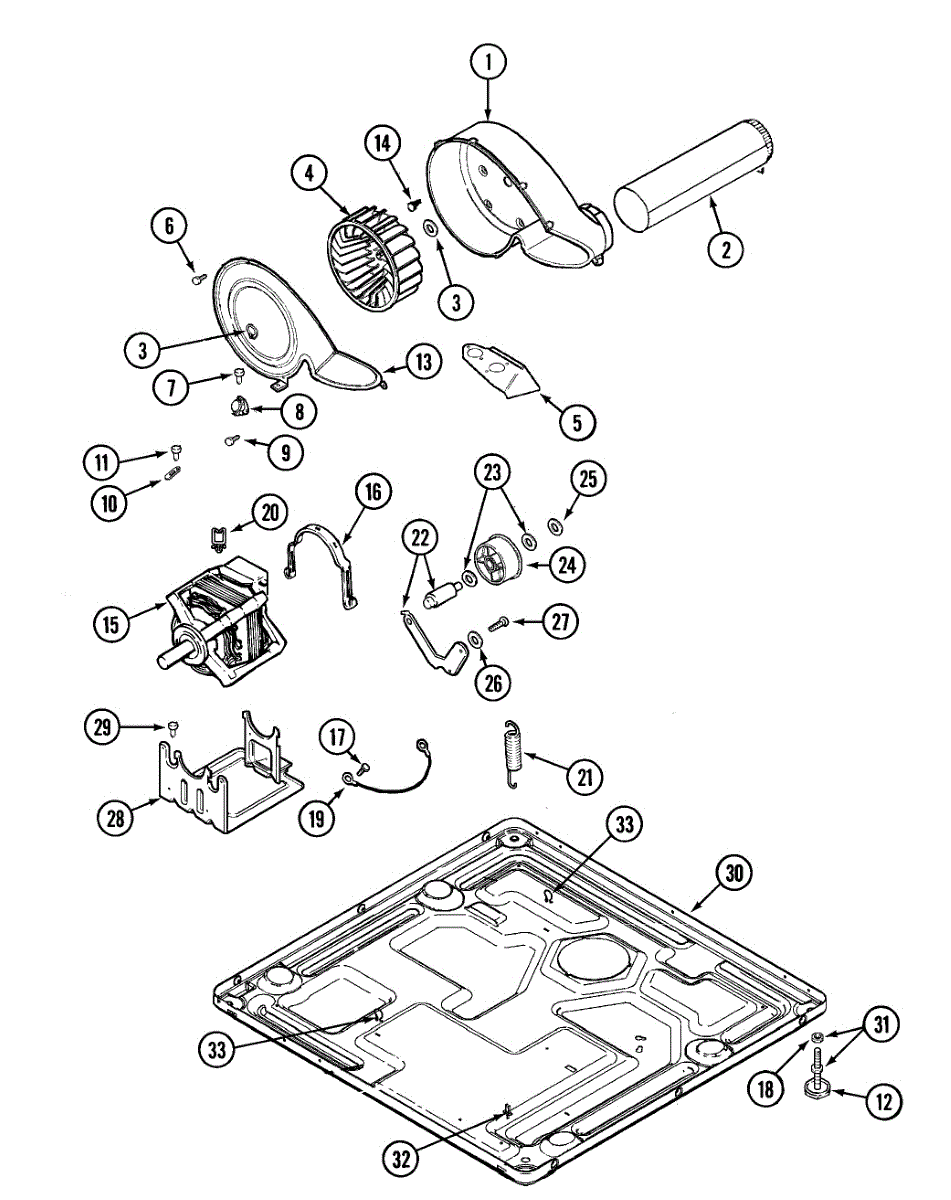

Parts for Maytag MDE16CSDGW: 08 - Motor Drive Parts

This dryer blower housing encloses the blower wheel and directs air from the drum through the lint filter to the exhaust vent. Replacing a damaged housing restores proper airflow for consistent drying and helps keep lint contained within the airflow path.

• Encloses and supports the blower wheel while channeling air from the drum to the exhaust
• Maintains correct airflow and back pressure for efficient drying performance
• Replace if the housing is cracked, warped, melted, or otherwise damaged
• Typical symptoms include weak vent airflow, longer dry times, rattling or scraping from the blower area, or visible lint leakage

• Disconnect power; if gas, also shut off the gas supply
• Access the blower area by removing the lower/front panel and lint ducting as required by your model
• Transfer the blower wheel and any brackets from the old housing; clean lint from ducts before reassembly
• Ensure the housing seats fully and all duct connections are tight; spin the blower by hand to verify clearance before restoring power

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

The Retaining Clip is an OEM part for Whirlpool stand mixers. This small but essential part ensures the stability and secure fitting of various mixer components, contributing significantly to the appliance's overall performance and durability. Its primary role is to hold parts in place, preventing movement that could lead to wear or malfunction during operation.

Stand mixers are subjected to a variety of stresses, particularly when mixing thick doughs or other dense mixtures. The retaining clip's integrity is vital in these situations, as it helps to maintain the correct alignment and functioning of the mixer's moving parts.

Symptoms of a bad Retaining Clip in a stand mixer include:

• Components such as beaters or attachments becoming loose or detaching during use.
• Unusual vibration or noise
• Difficulty in attaching or detaching mixer attachments

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This blower wheel is threaded. For blower wheel for a "D" shaped shaft, order part# {AP4043265}.

Specs: No.8X1/2 HEX WASHER HEAD

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

The Cycling Thermostat is an OEM part for Whirlpool dryers. It regulates and monitors the temperature inside the dryer during the drying cycle. It ensures that the dryer doesn't overheat and prevents potential damage to clothes or the dryer itself.

Causes of a faulty cycling thermostat can include wear and tear over time, electrical issues, or sensor malfunction.

Symptoms of a bad cycling thermostat may include:

• Clothes taking longer than usual to dry
• Inconsistent drying results
• Overheating or burning smell
• The dryer not heating at all

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Screw: 8-16 x 3/8 inch.

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component that prevents the dryer from overheating by cutting off power to the heating element if the temperature exceeds safe levels. This ensures that the appliance operates safely and efficiently.

Causes of a bad thermal fuse can include restricted airflow due to clogged vents or lint buildup, electrical malfunctions, or overheating from heavy usage.

Symptoms of a bad thermal fuse include:

• Dryer not heating
• Dryer not starting
• Dryer stopping mid-cycle
• No power to the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The rubber foot is an OEM replacement part for Whirlpool washing machines. This small but essential component fits beneath the leveling legs, providing stability and preventing the appliance from moving or vibrating excessively during operation. It also protects flooring surfaces from potential scratches or damage.

Symptoms of a bad Leveling Leg Pad include:

• Increased vibration or noise during the wash or spin cycle
• The washing machine wobbling or becoming unsteady
• Visible wear, cracks, or damage to the pad

Causes of a failing Leveling Leg Pad can include wear and tear from prolonged use, exposure to moisture, or excessive weight causing deformation. Replacing worn pads helps maintain the appliance's balance and efficiency.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the leveling leg order W10176519.

Specs: 10 - 16 x .375

This drive motor powers the rotating component in your appliance, restoring smooth, reliable motion when the original motor is worn, seized, or noisy. Use it to fix no-rotation issues and inconsistent operation.

• Converts electrical energy into torque to rotate the attached component as designed for your model
• Helps resolve symptoms like no movement, stalling, or slow/intermittent rotation
• Restores consistent, dependable rotation under normal load

• Disconnect power at the breaker before servicing; appliances may contain sharp edges and high-voltage components—use caution
• Note wire/connector orientation and transfer any mounting grommets or brackets from the old motor
• Ensure the driven component turns freely by hand before restoring power
• After installation, run a short functional test to confirm proper rotation

This genuine replacement part is a drive motor for dryers. The drive motor is the main engine that allows the dryer drum to rotate. If the drum is no longer spinning properly, the drive motor might need to be replaced. Luckily this is a relatively simple process.To replace the drive motor, begin by unplugging the dryer. Once it is powered off, uninstall the front panel of the dryer by removing the screws that attach it. After that, lift the top panel above the drum so that it is vertical and no longer covering the drum. Then disconnect the wires from the moisture sensors with a screwdriver by pressing down on the locking tab. Once the wires have been removed, lift the drum out from the dryer to gain access to the drive motor. Using a socket wrench, remove the blower wheel from the motor assembly. Then remove the old drive motor by unthreading the mounting screws that attach it. Install the new drive motor and reassemble the dryer. This OEM replacement part is sold individually and is compatible with Whirlpools, Maytag, Kitchenaid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand dryers.

This motor clip secures a motor to its mounting bracket or housing, keeping it aligned and stable during operation. Replacing a bent, broken, or missing clip helps stop rattling and prevents the motor from shifting. What it does:

• Retains the motor on its mounting bracket or frame
• Helps maintain alignment to reduce vibration and noise
• Prevents movement that can cause rubbing or wire strain
• Direct replacement when the original clip is damaged or missing

• One motor clip

• Disconnect power before servicing; allow all moving parts to stop
• Access the motor area, note the clip's orientation, and remove the damaged clip
• Seat the motor fully, then install the new clip to secure it to the bracket
• Inspect related mounts/grommets and wiring for wear; verify clearances before restoring power

Size: 8-32 x 1/4 inch.

A replacement 3/8-16 nut that secures fasteners and assemblies on compatible Whirlpool appliances. Restores proper fastening so panels, brackets and components stay tight and aligned during normal operation. What it does:

• Fastens and secures bolts, studs or threaded shafts in appliance assemblies.
• Prevents loose connections that can cause rattling, vibration or misalignment.
• Used where a 3/8-16 threaded nut is required for structural or mounting applications.
• Replaces missing, stripped or corroded nuts to restore reliable mechanical connection.

• Disconnect power and follow all appliance safety procedures before servicing.
• Inspect mating threads and remove debris; replace if threads are damaged.
• Thread onto bolt or stud by hand first, then snug with the correct wrench; avoid overtightening.
• Follow the appliance manufacturer's torque and assembly instructions.

This idler spring maintains proper tension on the dryer's drive belt by pulling the idler arm. Replacing a weak or broken spring restores consistent drum rotation and helps prevent belt slippage and noise.

• Applies tension to the idler pulley arm to keep the drive belt tight
• Helps the motor turn the drum smoothly without belt slip
• A worn, stretched, or broken spring may cause the drum not to turn or the belt to slip off
• Can contribute to squealing or chirping from the belt/pulley area

• Disconnect power; turn off gas supply for gas dryers
• Access the belt path; note belt routing and spring attachment points before removal
• Release belt tension, move the idler arm, attach the new spring, and re-tension the belt
• Rotate the drum by hand to verify belt tracking before reassembly and test run

The Idler Pulley Arm is an OEM replacement part for Whirlpool dryers. As a connecting part, it works to route the drive belt and suspend the idler pulley. Mounted on a pivoting bracket, the durable arm positions the idler pulley to maintain proper belt tension over the lifter roll and drum.

Causes of a bad idler pulley arm can include fatigue from extended use, damage from overtightened belts, or broken welds impairing motion.

Symptoms of a bad idler pulley arm include:

• Slipping or prematurely worn drive belts
• Reduced or inconsistent drum rotation
• Grating noises or abnormal vibrations during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Idler Shaft Washer is an OEM part for Whirlpool dryers. This small but essential component fits on the idler pulley shaft, playing a crucial role in maintaining the alignment and tension of the dryer belt.

Symptoms of a bad Idler Shaft Washer include:

• Squeaking or squealing noises during operation, indicating misalignment or friction.
• The dryer drum failing to turn smoothly or at all.
• Excessive wear or damage to the dryer belt.
• Unusual vibrations during dryer operation.

Causes of a bad idler shaft washer can include wear and tear from regular use, loss of material integrity leading to thinning or breaking, or improper installation that may cause misalignment and increased friction.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Belt Tension Pulley is an OEM part for Whirlpool dryers. It is crucial for maintaining the correct tension on the dryer belt, ensuring that it runs smoothly and the drum turns properly during operation. This pulley helps to keep the belt aligned and prevents it from slipping, which is essential for the efficient performance of your dryer.

Symptoms of a bad Belt Tension Pulley include:

• Unusual noises, such as squeaking or grinding, coming from the dryer when it is running.
• The dryer drum failing to turn, even though the motor is running.
• Excessive wear or damage to the dryer belt.

Causes of a bad belt tension pulley can include wear and tear from regular use, accumulation of lint and debris which may impede the pulley’s movement, or a failing bearing within the pulley assembly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Shaft Retaining Ring is an OEM replacement part for Whirlpool dryers. Also called an "E" ring, it is a sealing gasket positioned between the front and rear housing omponents. Maintaining an airtight seal prevents gas leakage and promotes efficient drying performance.

Causes of a bad retaining ring commonly involve compression loss of the rubber gasket material over many years of heating cycles. Exposure to petroleum-based cleaners may prematurely deteriorate the seal as well.

Symptoms of a failed 'E' ring include:

• Gas leaks emitting foul odors around seams or vents
• Reduced heat conductivity hampering dryer functioning
• Moisture accumulation shortens fabric lifespan
•  Drafts compromising indoor air quality and energy bills

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

Adjustable leveling feet that restore stability and balance to your appliance by letting you fine-tune height at each corner for a flat, wobble-free install—helps reduce vibration and improve door fit and operation. What it does:

• Provides adjustable height to level an appliance on uneven floors.
• Eliminates rocking or wobbling that can cause vibration, noise or movement during operation.
• Helps ensure doors and panels sit flush and seal properly.
• Durable replacement designed for direct fit where the OEM leveling foot is specified.

• Disconnect power and water before performing any work.
• Support the appliance so it cannot tip—use a jack or have a helper hold it while you adjust feet.
• Turn the foot to raise or lower the corner; use hand tools as needed and avoid excessive force.
• After adjusting, check stability and run a short cycle to ensure vibration and alignment are resolved.
