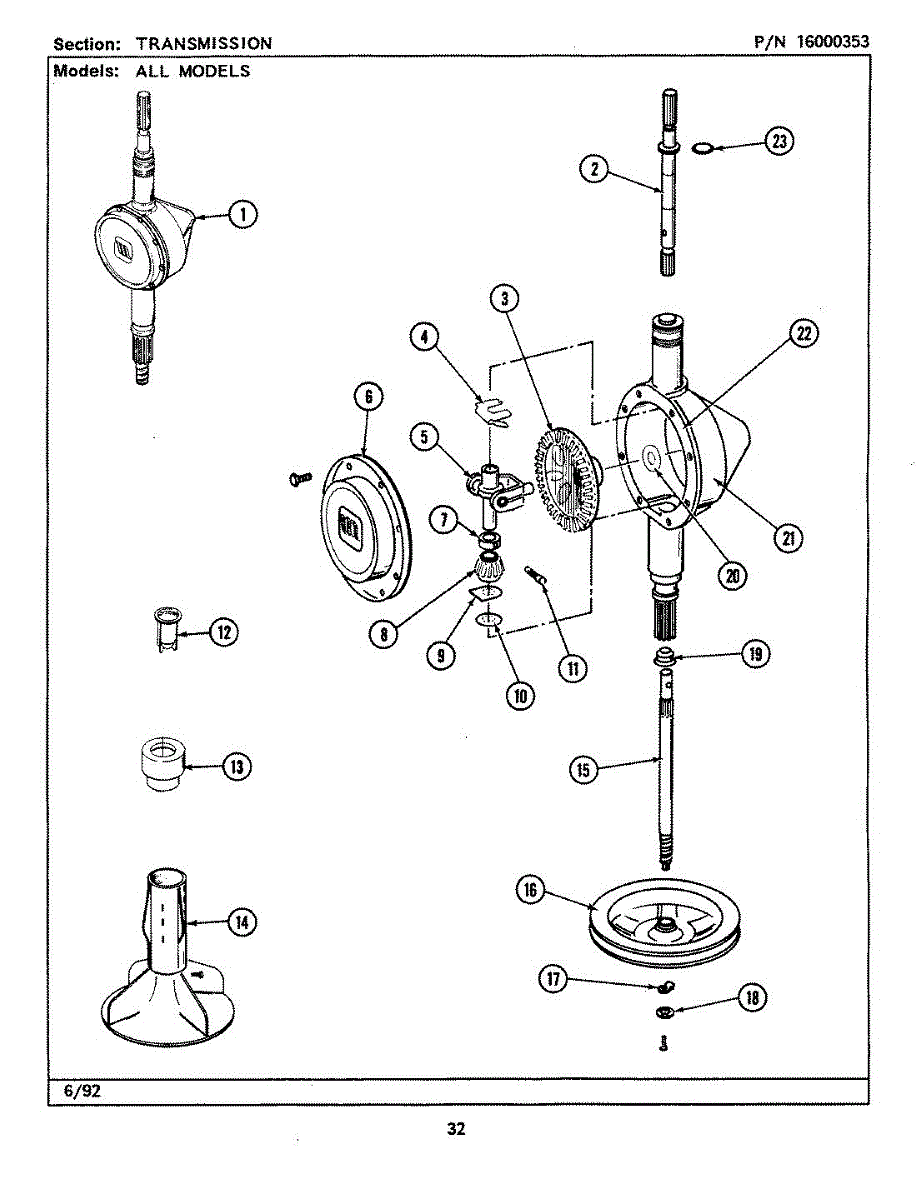

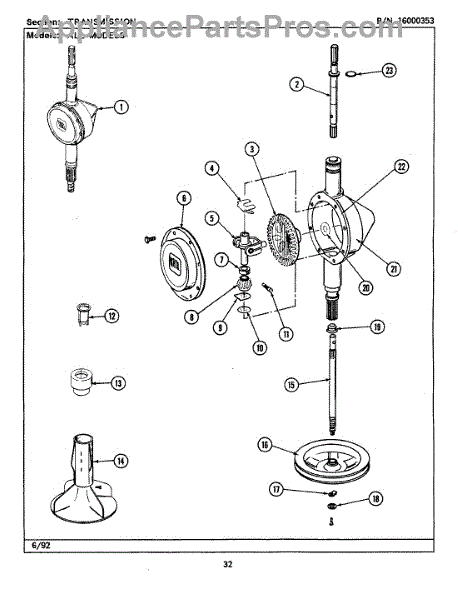

Parts for Maytag LSE9900AEE: 16 - Transmission Parts

This agitator spring maintains the spring tension inside the washer's agitator assembly so the wash action engages reliably. When fatigued or missing, the agitator can slip, feel loose, or make clicking/ratcheting noises during the cycle.

• Provides spring tension within the agitator assembly
• Helps keep agitator components properly engaged for consistent wash action
• Symptom: upper agitator/auger slips or fails to advance
• Symptom: weak or intermittent agitation
• Symptom: clicking/ratcheting noises or a loose-feeling agitator

• Disconnect power and turn off water before servicing
• Remove the agitator cap and bolt/retainer to access internal components
• Note the order and orientation of parts; seat the new spring correctly before reassembly
• Snug the agitator bolt and reinstall caps; run a test cycle to ensure proper agitation

This transmission pinion is the small drive gear inside the gearcase that meshes with the mating gear to transfer motor power through the drive. Replacing a worn pinion restores smooth operation and reliable torque delivery.

• Transfers rotation from the motor through the gear train inside the transmission
• Helps maintain proper speed and torque to the drive output
• Replaces stripped or broken teeth that cause slipping and chatter
• Typical symptoms: grinding/clicking noises, output that stalls or won't turn, metal shavings in grease

• Unplug the appliance before servicing; allow all moving parts to stop
• Access requires opening the drive housing/gearcase; note the orientation of shims, washers, and spacers
• Clean out old grease/debris and re-pack with manufacturer-approved grease
• Inspect mating gears, bearings, and shafts for wear; replace related parts as needed and follow the service manual for alignment

This plate-clutch transfers torque from the washer transmission to the tub so the machine can engage and maintain spin cycles. Replacing a worn plate-clutch helps restore reliable spin performance and reduce slipping or shuddering. What it does:

• Engages the transmission to allow the tub/agitation assembly to spin.
• Helps transfer rotational force for normal spin speeds and load control.
• Commonly replaced when the washer slips out of spin, spins slowly, or shudders during the spin cycle.
• Supports proper clutch engagement to prevent intermittent spin failures.

• Disconnect power and water before beginning any repair.
• Access typically requires removing the washer cabinet and/or agitator; basic hand tools are usually sufficient.
• Inspect surrounding components (drive belt, transmission, clutch housing) for wear while replacing this part.

This small spacer washer fits in the washer's drive assembly to set the correct clearance between mating parts. Proper spacing helps components rotate smoothly and quietly while minimizing metal-to-metal contact and premature wear.

• Maintains the specified gap and alignment within the drive/brake or pulley stack
• Helps reduce friction, rubbing, and vibration
• A worn, distorted, or missing spacer can contribute to scraping or grinding noises and excess play
• Often replaced during service of related drive components to restore correct stack order

• Disconnect power before servicing; shut off water if moving the appliance
• Access and procedure vary by model—refer to your unit's service manual or parts diagram for the correct stack order
• Support the appliance if working from below; remove belt/pulley or related parts as required
• Reassemble in the exact order and orientation; verify free rotation before test-running

This pin collar is a small retaining fastener that secures a shaft or component in place, preventing lateral movement and keeping assemblies aligned for reliable operation. It's a simple replacement to restore proper fit and function. What it does

• Retains shafts, pins, or small components to prevent sliding or separation
• Helps maintain alignment of moving parts for smooth operation
• Commonly replaced when parts shift, wobble, or fall out of position
• Works as a low-profile mechanical stop in various appliance linkages

• Pin collar (single)

• Disconnect power to the appliance before beginning any repair
• Verify orientation and seating against the mating part; install so collar fully engages the shaft or groove
• Use appropriate tools and avoid hammering or forcing the part to prevent damage
• Reinstall retaining rings or additional hardware in the original order

This idler pulley guides and maintains tension on the dryer drive belt to help the drum rotate smoothly. Replacing a worn pulley restores correct belt tracking and reduces noise from rubbing or slipping. What it does

• Guides the dryer drive belt and keeps proper belt tension
• Helps the drum turn smoothly during normal operation
• Commonly used when you hear squeaking, grinding, or belt slipping noises
• Prevents premature belt wear and misalignment

• One idler pulley

• Disconnect power before starting any repair; the appliance is de-energized
• Basic hand tools required; remove the front or access panel and drum as needed per your model's service instructions
• Inspect the belt and bearing surfaces; replace belt if damaged or glazed
• Do not lubricate the pulley unless the OEM specifically directs it; replace if bearing is noisy or seized

A small trim screw designed to secure appliance trim pieces and molding, restoring a finished look and keeping panels held firmly in place. Ideal when a trim piece is loose, missing a fastener, or shows minor rattling. What it does:

• Fastens trim, molding, or decorative panels to the appliance frame
• Restores secure mounting and helps eliminate loose or rattling trim
• Replaces missing or stripped fasteners that cause gaps or poor fit
• Compatible with common trim attachment points where OEM screw is specified

• Disconnect power or unplug the appliance before attempting repairs
• Use the correct screwdriver bit to match the screw head to avoid stripping
• Install by hand to start threads, then tighten snugly—do not overtighten
• Verify trim alignment after installation and test that the panel is secure

Replacement lug stop that limits movement of a mechanical component to prevent over-travel and reduce wear. Restores proper stopping action so doors or internal mechanisms operate more smoothly and safely. What it does:

• Stops or limits travel of a moving part to prevent over-rotation or over-extension.
• Keeps doors, lids or internal linkages from swinging past their intended position.
• Replace if the lug is cracked, worn, broken, missing, or if the mechanism fails to stop or rattles.
• Helps prevent further damage from metal-on-metal contact or excessive movement.

• Disconnect power before starting any repair.
• Basic hand tools and access panel removal may be required to reach the mounting area.
• Inspect adjacent clips, fasteners and mating surfaces; replace any damaged hardware.

This stop lug is a small, molded limiter that prevents over-travel of a moving control or mechanism in your washer, helping components stop in the correct position for consistent, reliable operation.

• Acts as a positive stop to limit movement of a mating part
• Helps maintain proper alignment and protects components from over-rotation
• Symptoms of a worn or missing lug can include excessive play, over-travel, or a control that doesn't stop where it should
• Visible damage or a missing lug indicates replacement is needed

• Disconnect power and water supply before servicing
• Access the mounting area and note the original orientation
• Seat the new lug fully and secure per the original configuration
• Reassemble and test that the mechanism stops at the intended position

The Transmission Lower Lip Seal is an OEM part for Whirlpool washing machines. This seal plays a crucial role in preventing water leakage from the transmission area of the washing machine.

Symptoms of a bad transmission lower lip seal:

• Water leaks or puddles around the base of the washing machine
• Visible wear, cracks, or damage to the seal
• Rust or corrosion around the seal area

Causes of a faulty transmission lower lip seal can include general wear and tear over time, exposure to excessive heat or chemicals, or physical damage from impact or improper handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.
