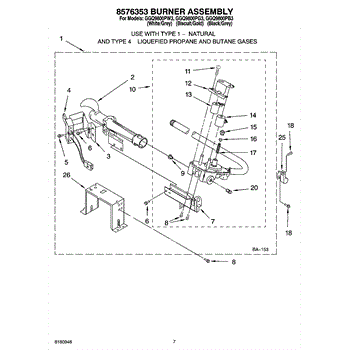

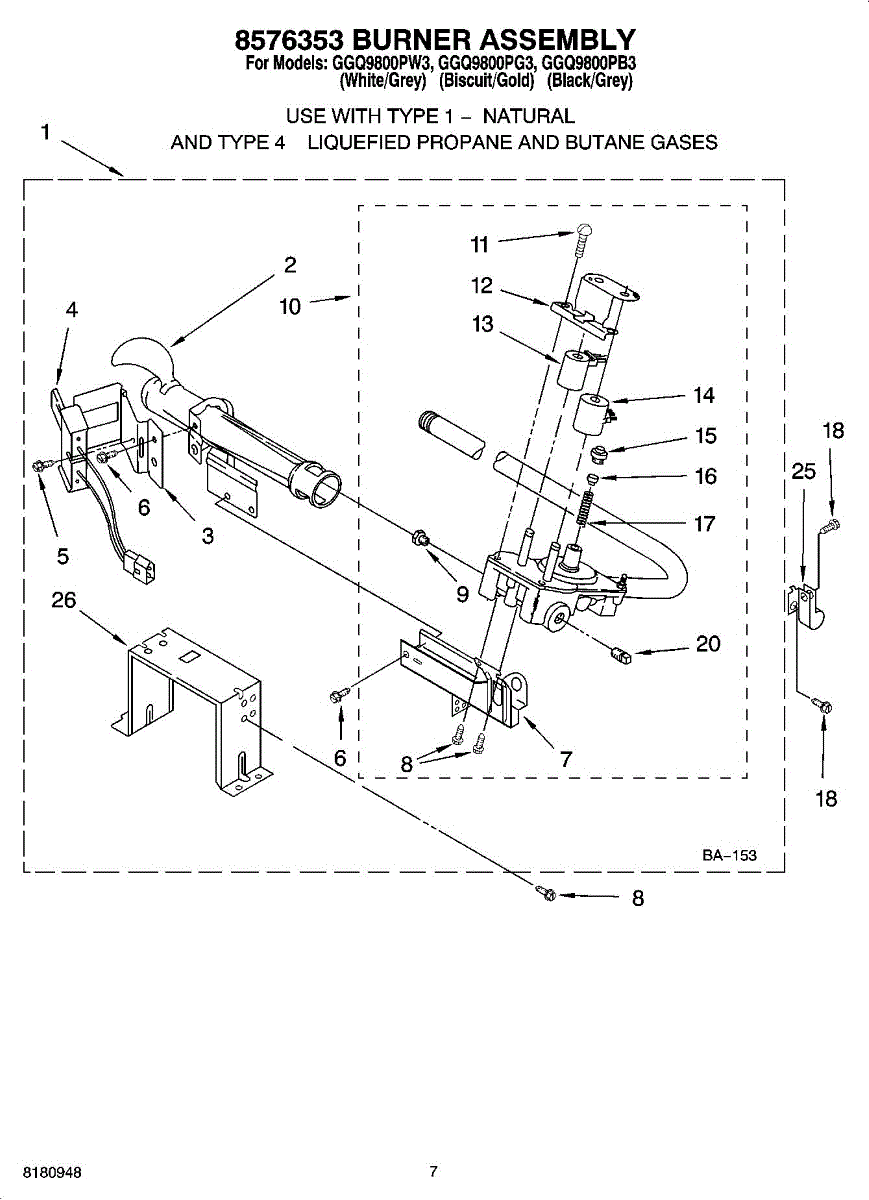

Parts for Whirlpool GGQ9800PG3: 04 - 8576353 Burner Assembly, Optional Parts (Not Included) Parts

This genuine OEM replacement part is a burner and gas valve assembly for dryers. The burner and gas valve assembly is a complete assembly that contains the burner that distributes the gas in a way that creates an even flame allowing for heat to be distributed properly to perform the dryer's essential function. If the dryer is no longer drying clothes effectively or heating properly, then it might be time for it to be replaced. Luckily repairing a gas valve assembly is a relatively simple job.To replace the burner and gas valve assembly, begin by shutting off power to the appliance. Next, pull the dryer away from the wall to gain access to the back panel. Remove the back panel and locate the burner and gas valve assembly. Remove the mounting screws that hold it in place. After removing the screws use both hands to pull and release the old burner assembly. Set it off to the side and proceed to install the new one by refastening the screws that hold it in place.This replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washers.

This burner tube channels the gas-air mixture to the burner and includes an adjustable air shutter to set proper combustion. Replacing a damaged assembly helps restore reliable ignition, stable flame, and consistent heating performance.

• Directs the fuel/air mixture from the gas valve to the burner port
• Integrated adjustable shutter regulates primary air for proper flame
• Helps maintain efficient heat output and reliable burner operation
• Failure can present as no or intermittent heat, burner that lights then goes out, yellow/lazy flame, or soot

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Access the burner compartment and transfer any clips/brackets from the original tube
• Note the current shutter position; after installation, adjust for a steady blue flame
• After reassembly, leak-test gas connections with a soap solution and verify burner operation

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

Specs: 10-16 x 1/2 inch.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This part has been discontinued and is no longer available.

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

The Natural Gas Orifice is an OEM part for Whirlpool dryers. This part regulates the flow of natural gas to the burner, ensuring efficient and safe combustion for proper drying performance.

Causes of a bad natural gas orifice can include buildup of debris or lint, wear and tear over time, or damage from improper handling during maintenance.

Symptoms of a bad dryer natural gas orifice include:

• The dryer not heating up
• Inconsistent or weak flame in the burner
• Longer drying times than usual
• Unusual gas odors or hissing sounds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement gas valve controls gas flow to the burner in a gas dryer, enabling safe ignition and consistent heat. When it fails, the burner may not light and loads can stay damp; replacing it restores proper drying performance.

• Opens and closes gas flow to the burner when heat is called for
• Shuts off gas when the cycle ends or heating is not active
• Common symptoms: dryer runs but has no heat or the burner never ignites
• May present as the ignitor glowing or clicking repeatedly without flame, or intermittent heat

• Disconnect power and shut off the gas supply before servicing
• Work in a ventilated area and allow the dryer and burner to cool
• Use only gas-rated thread sealant on threaded connections
• After installation, turn on gas and check all joints for leaks with a soap-and-water solution

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.

The Natural Gas Regulator is an OEM part for Whirlpool ranges. This regulates the pressure of natural gas entering the appliance, ensuring safe and efficient operation. It maintains a consistent gas flow to the burners and oven, allowing for precise temperature control and optimal cooking performance.

Over time, the natural gas regulator can wear out or become damaged due to exposure to high temperatures, contaminants in the gas supply, or mechanical failures.

Symptoms of a bad natural gas regulator include:

• Inconsistent flame or burner performance
• The oven or burners not igniting or staying lit
• Unusual odors or hissing sounds near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Natural Gas Spring is an OEM part for Whirlpool ranges. This part assists in regulating the flow and pressure of natural gas to the burners, ensuring consistent and safe operation. The spring helps maintain the correct pressure within the gas regulator, which is vital for efficient cooking performance.

Causes of a bad natural gas spring can include wear and tear from prolonged use, exposure to high temperatures, or contamination from particles within the gas line.

Symptoms of a bad natural gas spring include:

• Inconsistent or weak burner flames
• Difficulty in lighting the burners or oven
• Irregular cooking temperatures
• Unusual noises or gas odors near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

The Whirlpool LP gas conversion kit is an OEM replacement part responsible for allowing the conversion of a natural gas-powered dryer to operate on LP (liquid propane) gas. This kit contains the orifice, leak limiter, and an instruction sheet to guide the conversion process. Once the conversion kit is installed, it alters the fuel source of the dryer, allowing it to burn LP gas instead of natural gas. This conversion is necessary when a home or installation site lacks access to natural gas and relies on LP gas as the fuel source for heating appliances

Causes for needing an LP gas conversion kit include relocating the appliance to a home with LP gas, or preferring LP gas over natural gas for cooking efficiency or availability. The conversion process involves changing the orifices and adjusting the gas pressure to suit LP gas requirements.

Symptoms that indicate a need for conversion or issues with the current setup include:

• Improper or uneven flame on the burners
• Difficulty in lighting the burners
• Burners not operating at full power
• Gas smell indicating possible leaks or incorrect gas type

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Dryer Vent Test Kit ensures your dryer's vent system is operating properly. Kit includes two tests depending on the location of your dryer's lint screen: One for the lint screen in the top of your dryer, and one for the lint screen in the front of your dryer. Instructions included.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This Dryer Drying Rack creates a stationary shelf inside the drum so items that shouldn't tumble—like shoes, sweaters, and hats—can dry gently. Replace a missing or damaged rack to restore safe, non-tumble drying capability.

• Provides a stable platform inside the dryer for items that need to stay still while drying
• Helps reduce wear, scuffing, and noise from tumbling delicate or bulky items
• Restores function when the original rack is cracked, warped, or missing
• Common symptoms: rack won't seat/lock, sits unevenly, or items won't stay on the rack

• Disconnect power before installing
• Open the door and seat the rack so the rear support engages the back ledge/slots and the front rests on the door opening
• Ensure the rack is secure and clear of the rotating drum; load items evenly
• Remove the rack before returning to normal tumble cycles

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Silence the squeaks and keep laundry moving - upgrade your dryer with the Whirlpool 4392067 OEM Repair Kit.

Why choose this kit?

• All-in-one fix: OEM belt 661570V, 4 heavy-duty rollers WPW10314173, idler pulley 279640, tri-rings & washer - everything factory-fresh in one box.
• Wide compatibility: Fits 27" Whirlpool-family dryers—Cabrio, Duet, Bravos XL, Thin Twin, Kenmore 110-series, Maytag, Roper, Estate & more.
• Pro-grade durability: Roller bearings & reinforced belt deliver whisper-quiet tumbling and longer service life.

Fixes these common dryer problems

DIY install in about 45 minutes

1. Unplug dryer and remove front panel.
2. Lift drum to release belt; remove old rollers & idler.
3. Install new rollers, pulley & belt following the routing diagram.
4. Re-assemble, run test cycle - enjoy quiet, smooth tumbling.

Note: Belt may differ from your dryer's model—Double-check compatibility before purchase.
