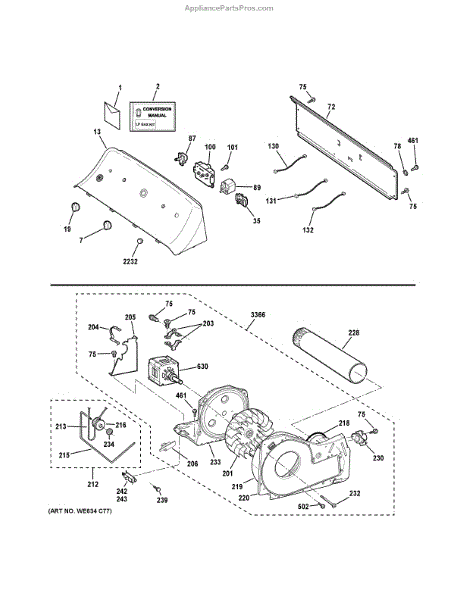

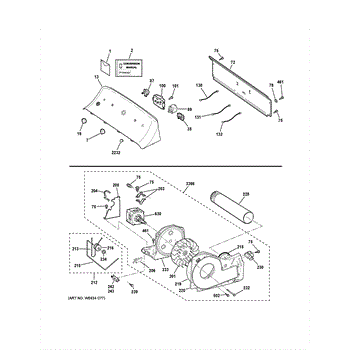

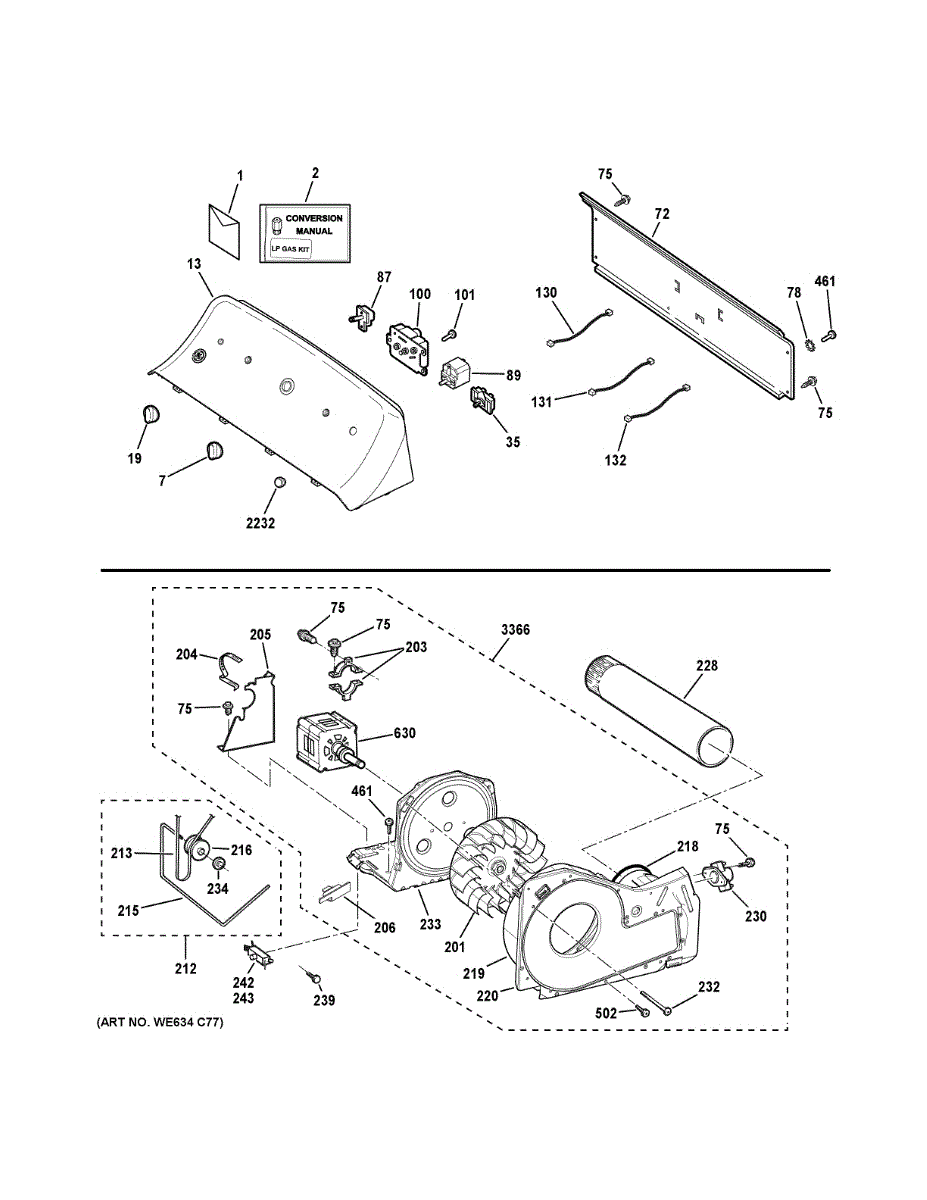

Parts for Ge HTX24GASK1WS: Backsplash, Blower & Motor Assembly Parts

This kit converts a compatible gas dryer from natural gas to liquid propane (LP). Use it when installing the dryer on a propane supply to help ensure proper burner operation, safe ignition, and consistent heat output.

• Converts fuel configuration from natural gas (NG) to liquid propane (LP) for specified gas dryers
• Provides correct burner orifice sizing and setup for propane operation
• Helps maintain proper flame characteristics and drying performance on LP
• Designed for NG-to-LP conversions only

• Installation should be performed by a service professional; follow local codes and the included instructions
• Disconnect electrical power and shut off the gas supply before servicing; allow the dryer to cool
• Replace the burner orifice and adjust the gas pressure regulator as directed; leak-test all gas connections after conversion

The Backsplash Assembly for Dryer is an OEM replacement part for GE electric and gas dryers. It forms the wall at the back of the dryer cabinet, protecting internal components from water, dust, and impact damage. This structural piece is important for dryer integrity.

Causes of a bad backsplash assembly include normal wear and tear, accidental impacts, or rust forming behind the panel if moisture penetrates cracked seals.

Symptoms of a bad backsplash assembly include:

• Visible cracks, warping, or denting of the panel material
• Looseness allowing gaps or movement of the assembly
• Internal rust or component damage over many wash/dry cycles

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore dryer models.

The Rotary Knob is an OEM replacement part for GE or Hotpoint washing machines. It provides the interface for selecting wash cycles and adjusting settings like temperature and spin speed.

Causes of a bad rotary knob include cracking, peeling, or damage to labeling from repeated use over time. The internal mechanisms can also wear out, preventing proper rotation.

Symptoms of a bad rotary knob are:

• Difficulty turning or clicking into set positions
• Loose, wobbly, or disconnected feel during use
• Faded or missing labels make settings unclear

It is also compatible with RCA, Westinghouse, Tappan, and some Kenmore models.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

A replacement rotary control switch that restores user input to a range or cooktop control panel so the appliance responds correctly when selecting heat settings. Installs behind the knob to restore reliable selection of settings. What it does:

• Sends the selected signal from the control knob to the appliance control so the surface element or function changes as expected
• Commonly replaces a worn or faulty switch that causes no response when the knob is turned
• Can resolve symptoms like intermittent operation, stuck settings, or no change in heat level
• Matches OEM mounting and shaft style to fit into the original control stack

• One rotary switch

• Disconnect power to the appliance before beginning any service to avoid shock hazard
• Access the switch from the control panel or console; remove knobs and panel fasteners as needed
• Note and match shaft orientation and wiring locations; replace one-to-one and secure mounting

Fixed buzzer that replaces the appliance's audible tone generator in the control panel, restoring beeps and alerts for cycle completion and fault signals. Simple swap that returns audible notifications used during normal operation. What it does:

• Produces the control panel's audible tones for end-of-cycle alerts and warnings.
• Replaces a buzzer that has stopped sounding or produces weak, intermittent, or distorted beeps.
• Helps restore audible error/fault notifications so you can respond to appliance alerts promptly.
• Works as the control panel's dedicated tone generator — pairs with the appliance's existing electronics.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Access the control panel per your model's service instructions and note wire/harness positions before removal.
• Disconnect the buzzer wiring or harness, remove mounting fasteners, and install the replacement in the same orientation.
• Reassemble panels, restore power, and run a test cycle to audible operation.

The Timer is an OEM replacement part for GE dryers, essential for controlling the duration of drying cycles. This component ensures that your dryer operates efficiently, allowing for customizable drying times based on the type and volume of laundry being dried.

Causes of a bad timer can vary, including electrical issues that prevent the timer from advancing, physical damage from wear and tear, or a malfunction in the internal gears that control the timer's movement.

Symptoms of a bad Timer include:

• The dryer fails to start or stop at the designated times.
• Drying cycles that run too long or not long enough, leading to either under-dried or over-dried clothes.
• Inability to select or change drying cycles, affecting the dryer's versatility and efficiency.
• Unpredictable dryer behavior, which can include random starts or stops.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw fastens appliance panels, brackets, and internal components. Replacing missing or damaged hardware restores a secure fit, reduces vibration and rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, and assemblies as designed for your model
• Replaces missing, stripped, or corroded hardware
• Helps resolve loose panels, vibration/rattling, or misalignment
• Maintains proper fit and function of mounted components

• Disconnect power; shut off gas and water before service
• Match to the original screw and location; order the quantity your model requires
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Refer to your model's parts diagram or service information for exact placement

This wire group assembly routes power and signals between controls and components, restoring reliable electrical connections for proper appliance operation. Fits replacement needs where the original harness is damaged, burnt, or has failed terminals. What it does:

• Replaces the main electrical harness that delivers power and control signals to internal components
• Restores missing or intermittent function caused by broken, frayed, or overheated wires
• Helps resolve symptoms like no power to components, intermittent operation, or visible wiring damage
• Provides factory-style connectors for proper fit and secure connection

• Disconnect all power before starting — risk of shock or injury if energized
• Compare the harness to the original for connector types and routing before installing
• Route wires to avoid sharp edges and hot surfaces; secure with existing clips or ties
• If connectors are damaged or terminals are loose, replace the harness rather than splicing

This black jumper harness is a direct replacement electrical connector that restores wiring continuity between appliance components, helping re-establish reliable power or signal paths and resolving connection-related failures. What it does:

• Provides a prefabricated wiring connection between two appliance components to restore continuity
• Transfers power or control signals where the original harness is damaged or corroded
• Commonly used when worn, melted, or broken leads cause intermittent operation or loss of function
• Helps prevent loose connections that can cause arcing or heat buildup when installed correctly

• Disconnect power to the appliance before inspecting or replacing wiring
• Match connector shapes and wire colors; do not splice unless using proper connectors and insulation
• Route and secure the harness away from heat sources, sharp edges, and moving parts
• Test affected function after installation and restore any removed panels or fasteners

The Blower Wheel is an OEM component specifically designed for GE dryers. It is responsible for circulating air during the drying cycle, directing airflow through lint and clothes to remove moisture. The plastic blades of the blower wheel push air through the dryer and out the vent when the motor is running.

Symptoms of a bad blower wheel include:

• Slow or inefficient drying times even on low moisture loads
• Strange noises from inside the dryer cabinet
• Excessive vibrations felt through the dryer door or cabinet
• Bent or cracked blower wheel blades

Causes can include normal wear and tear over time, accidents that damage the blades, or failures in the secure mounting of the blower wheel.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This idler support bracket holds the dryer idler pulley in the correct position so the drive belt stays routed and tensioned, helping the drum turn smoothly. It replaces a worn or broken bracket to restore proper belt alignment and reduce belt slippage. What it does:

• Secures the idler pulley to the dryer chassis so the drive belt maintains correct tension
• Keeps the belt aligned to prevent rubbing, squealing, or premature wear
• Helps the drum turn freely by maintaining consistent belt routing and tension
• Commonly replaced when the bracket is cracked, bent, or the idler pulley mounting fails

• One idler support bracket

• Disconnect power before starting any repair
• Access typically requires removing the dryer's front or lower access panel; follow model-specific disassembly steps
• Inspect the idler pulley and drive belt; replace any worn components together to ensure reliable operation
• Use basic hand tools; avoid forcing fasteners and follow torque/fastening recommendations in the service manual

This dryer idler arm assembly keeps the drive belt tight and aligned so the drum turns smoothly. A worn or seized idler can cause squealing, belt slippage, or a drum that won't tumble.

• Applies tension to the drive belt and guides it around the motor pulley
• Maintains proper belt alignment for consistent drum rotation
• Common symptoms of failure: squealing/squeaking, belt coming off or wearing quickly, drum not turning, or burning rubber odor
• Pulley should spin freely; roughness or wobble indicates replacement is needed

• Disconnect power; if gas, also shut off gas supply before servicing
• Remove top/front panels as needed, release belt tension, and note belt routing
• Remove the old idler from its mount; transfer spring from the original if required by your model, then install the new assembly and re-route the belt
• Rotate drum by hand to verify belt tracking before reassembly and test run

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This exhaust duct directs hot, moist air from the dryer's blower housing to the external vent. Replacing a cracked or leaking duct restores proper airflow, helps prevent lint leaks, and supports consistent drying performance. What it does:

• Routes exhaust air from the blower housing to the rear outlet and home vent
• Maintains a sealed airflow path for efficient drying and moisture removal
• Helps keep lint contained within the exhaust stream to the vent system
• Common failure symptoms: longer dry times, warm air or lint escaping, or visible cracks/damage to the duct

• 1 exhaust duct

• Unplug the dryer and shut off gas supply for gas models; allow the appliance to cool. Wear cut-resistant gloves.
• Remove the necessary panels to access the duct per your model's service information.
• Transfer and reuse existing screws and any foam seals/gaskets if not supplied; seat the duct fully and tighten fasteners evenly for an airtight fit.
• Vacuum lint from the cabinet and confirm the external vent hose is clear and securely attached before testing.

This dryer thermostat senses exhaust air temperature and opens or closes the heater circuit to keep drying temperatures consistent. Replacing a failed thermostat can restore proper heat control and help prevent overheating that can trip safety devices.

• Regulates dryer heat by cycling power to the heater based on sensed temperature
• Helps protect the appliance by interrupting heat if temperatures rise beyond its calibration
• Common symptoms: no heat or intermittent heat, long dry times, dryer runs too hot, temperature swings
• Replace if it fails continuity checks or is out of spec per your model's service information

• Disconnect power; for gas models, also shut off gas supply
• Allow the dryer to cool before servicing
• Access the thermostat on the blower or heater duct (varies by model); transfer wires one at a time and mount the thermostat flush to the surface
• Clear lint and verify vent airflow before testing operation

This plate motor drives the microwave/oven turntable, keeping the glass tray rotating for even cooking and heating. Replaces a worn or failed motor to restore tray rotation and reduce uneven heating. What it does:

• Turns the glass turntable so food cooks evenly
• Stops rotation or hesitates when motor fails or wears out
• May make buzzing, grinding, or intermittent noises before failing
• Prevents the turntable from rotating if the motor no longer engages

• One replacement plate (turntable) motor

• Disconnect power before servicing to avoid shock; verify unit is fully powered off
• Remove the turntable glass and roller guide to access the motor underneath the oven/microwave floor
• Typical install requires removing interior fasteners and unplugging the motor connector; retain hardware for reassembly

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

Size: 8-32 t. Includes 12 screws.

This GE Motor Drive and Pulley is an OEM part for GE dryers. The motor drive powers the drum, and the pulley system ensures proper tension and alignment of the belt.

The need for replacement can arise from various factors such as prolonged use, electrical issues, or mechanical wear and tear. A failing motor drive and pulley can significantly impact the dryer's performance.

Symptoms of a malfunctioning Motor Drive and Pulley include:

• The dryer drum struggles to turn or doesn't turn at all.
• Unusual noises like humming or grinding during operation.
• The dryer stops unexpectedly during a cycle.
• Overheating of the dryer motor.
• The dryer takes longer than usual to dry clothes.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Start Button is an OEM replacement part for GE dryers. It is the push interface that allows users to initiate wash cycles.

Causes of failure relate to cracks forming from chronic pressing, mineral buildup obstructing contacts, or loosened wires detaching connections over time.

Symptoms involve:

• Inability to activate the drying function regardless of settings
• Display lights functioning but drum failing to rotate
• Door remaining locked requiring manual override

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore model dryers.

The MOTOR & BLOWER ASSEMBLY is an OEM part for GE dryers. It contains both the drive motor that tumbles the dryer drum as well as the blower motor that circulates air through the heating system. This dual-component assembly works together to simultaneously tumble clothes while pushing heated air into the dryer cylinder.

Causes of a bad motor and blower assembly can include failures of either the drive motor or blower motor. Wiring issues or damaged components internal to the assembly housing can also impact performance.

Symptoms of a bad motor & blower assembly include:

• The dryer drum not spinning or tumbling clothes
• Inadequate or no airflow through the dryer
• Dryer not heating or cycles taking excessively long
• Loud buzzing or grinding noises from internal motors

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
