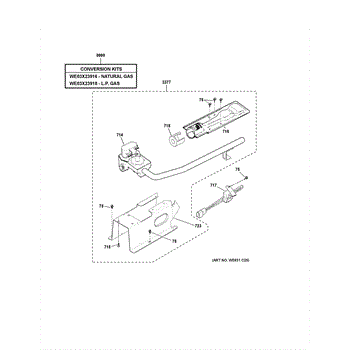

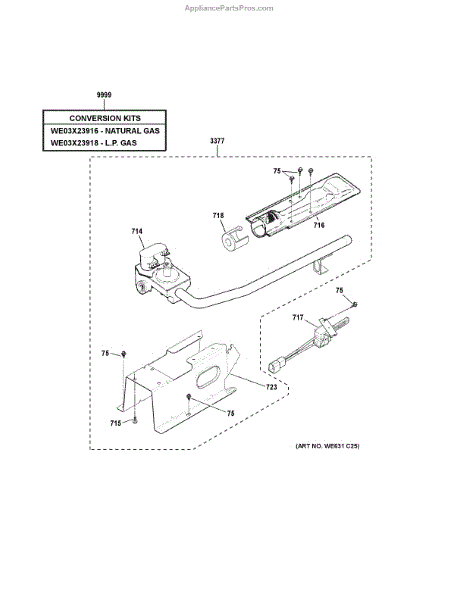

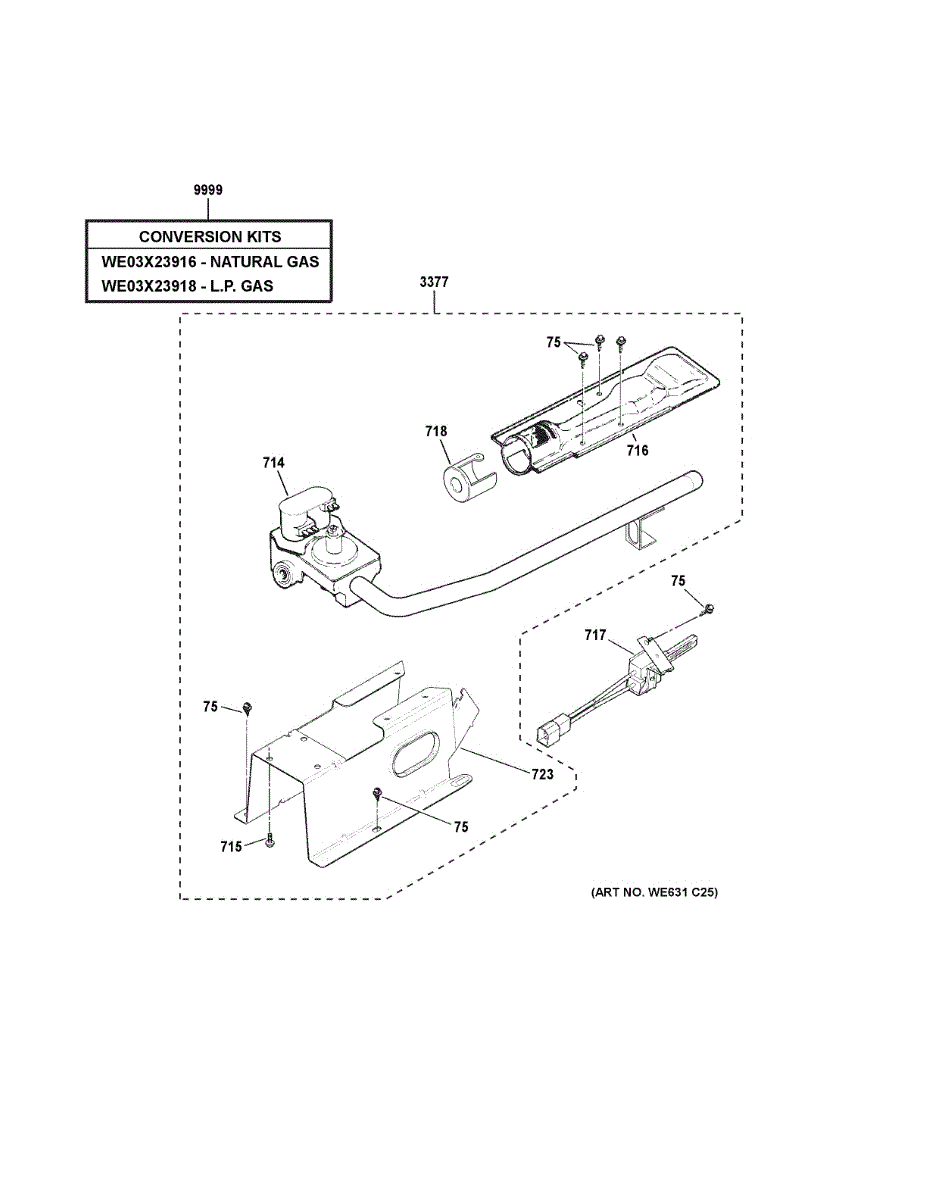

Parts for Ge HTX24GASK1WS: Gas Valve & Burner Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This gas valve assembly regulates the flow of gas to the dryer's burner, enabling safe ignition and steady heat. Replacing a weak or failed valve restores reliable heating performance and helps clothes dry evenly. What it does:

• Opens and closes to control gas flow to the burner for proper ignition and heat.
• A failing valve can cause no heat, the burner not to light, or intermittent heating leading to long dry times.
• Helps ensure gas is shut off when not energized for safety.

• 1 gas valve assembly

• Disconnect electrical power and shut off the gas supply before servicing.
• Work in a well-ventilated area; avoid sparks or open flames.
• Transfer any model-specific fittings or brackets from the original part as directed by your service information.
• After installation, check all gas connections with an approved leak-detection solution and verify proper ignition.

This burner assembly replaces a damaged or worn surface burner on compatible gas ranges to restore even heating and reliable ignition. It's a direct-replacement style part used where the existing burner is cracked, bent, or not heating properly. What it does:

• Provides the heating element and mounting needed for a single surface burner
• Replaces a burner that produces weak or uneven flame or fails to light
• Restores correct gas flow and stable flame shape for better cooking performance
• Works with factory burner cap and grate when properly installed

• Turn off the appliance and disconnect power and gas supply before starting work
• Follow the range service manual for removal and installation steps for your model
• Inspect related components (igniter, burner cap, or gas valve) and replace if damaged

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

This valve and pipe assembly regulates and routes water for the dryer's steam feature. A new assembly restores proper water flow, helping resolve no-steam operation, weak spray, or leaks at the rear water connection.

• Opens and closes to supply water to the steam system when commanded
• Directs water from the household supply through the attached tube to the steam outlet
• Prevents water from entering the dryer when the steam feature is off
• Typical symptoms: steam option won't spray, weak or intermittent mist, dripping into the drum, leaks at the rear inlet, or valve buzzing with no water flow

• Disconnect power and shut off the water supply before servicing
• Pull the dryer forward to access the rear and place a towel to catch residual water
• Note hose orientation; transfer any fittings or clamps from the old part as needed
• Restore water and power, check for leaks, and run a brief steam cycle to verify operation

This valve and pipe assembly regulates and routes fuel through the dryer's system so the burner can ignite and maintain heat. Replacing a failing assembly restores reliable heating performance and consistent drying results. What it does

• Opens and closes to control fuel flow to the burner when heat is called for
• Directs fuel from the inlet to the burner orifice through a rigid manifold/pipe
• Helps maintain safe shutoff when the dryer is idle
• Common symptoms of a failing assembly: no heat, intermittent heat, or burner failing to ignite

• One valve-and-pipe assembly

• Disconnect power and shut off the gas supply before servicing
• Use only gas-rated fittings/sealant as specified by the manufacturer; do not overtighten connections
• After installation, check all joints for leaks with a soap-and-water solution
• Restore power and gas, then verify proper burner ignition and stable heating
