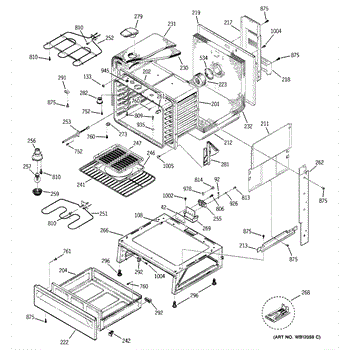

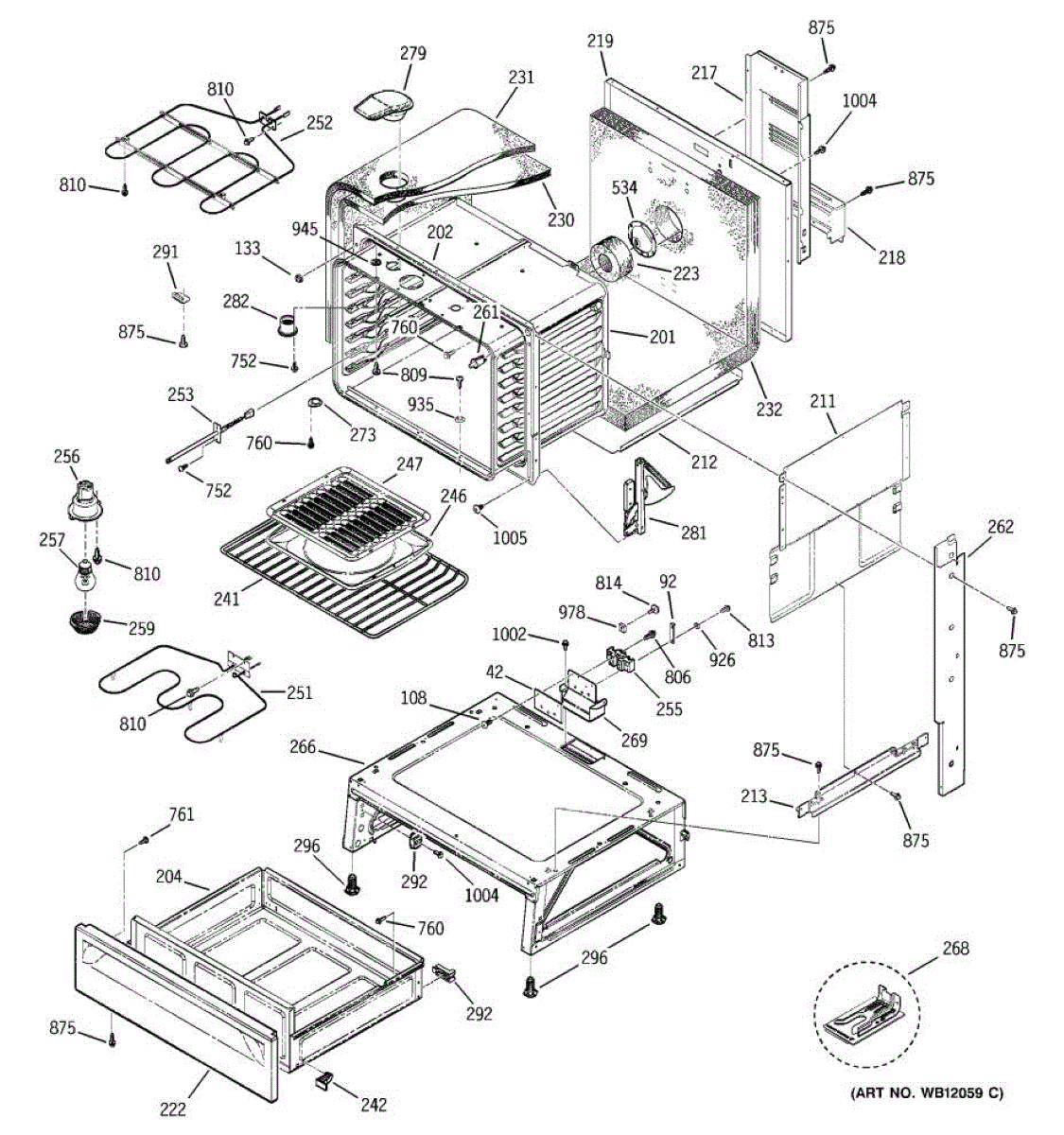

Parts for Ge JSP46CD2CC: 03 - Body & Drawer Parts

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This rear wire cover protects and secures the appliance's wiring at the back, helping prevent abrasion and heat damage for safer operation. Designed to replace a cracked, missing, or damaged rear wire cover. What it does:

• Shields rear wiring from contact with sharp edges, moving parts, and heat sources
• Helps prevent insulation wear that can cause shorts or intermittent electrical issues
• Restores proper routing and support for the rear wiring harness
• Reduces risk of arcing, burning smells, or visible exposed wires

• One rear wire cover

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• You may need to remove the back panel or access cover screws to install; retain original fasteners where applicable
• Handle sharp sheet-metal edges carefully and wear gloves/eye protection
• After installation, restore power and inspect wiring for any remaining damage

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer wedge aligns and stabilizes the lower drawer so it opens and closes smoothly and sits flush. Replacing a worn or missing wedge helps eliminate wobble, rubbing, and gaps for better everyday operation.

• Supports and centers the drawer for proper alignment on the slides
• Acts as a spacer/stop to reduce vibration and metal-to-metal contact
• Helps prevent binding and keeps the drawer from popping off the track
• Common symptoms: drawer crooked or sagging, won't close fully, rattles, or feels loose

• Disconnect power and allow the appliance to cool before servicing
• Pull the drawer out to the stops, release the side track tabs, and remove the drawer
• Note the original wedge's position; remove it and install the new wedge in the same orientation (reuse existing hardware if applicable)
• Reinstall the drawer on the rails and verify smooth operation and proper fit

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Bake Element is an OEM replacement part for GE ovens. Positioned at the bottom of the oven interior, this element is tasked with generating the heat necessary for baking. It converts electrical energy into heat, glowing red hot during operation to raise the oven's internal temperature to the desired setting.

Symptoms of a bad Bake Element include:

• The oven not heating up or heating unevenly
• The element not glowing red or showing visible signs of damage
• Burnt or unusual smells during operation
• The oven taking an extended time to preheat

Causes for a malfunctioning Bake Element can include a burnt-out element, electrical issues affecting power supply, or physical damage preventing effective heat generation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges

The Broiler Assembly is an OEM replacement part for GE range. Located inside the oven, it houses the heating elements responsible for the broil cooking function.

Causes of a bad broiler assembly can include cracked or burnt-out heating elements that no longer ignite, damage from accidentally being cleaned with abrasive chemicals, or warping of metal components from overheating.

Symptoms of a bad broiler assembly include:

• Inability to activate or incomplete activation of the broil setting
• Reduced or uneven heating from compromised elements
• Warping or discoloration visible on assembly surfaces
• Presence of unusual odors from potential heating element failures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Includes: Anti-tip bracket, screws and instruction sheet.

Front

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

8-18 AB IHW 5/8 S

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

10 - 32 Nickel plated

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
