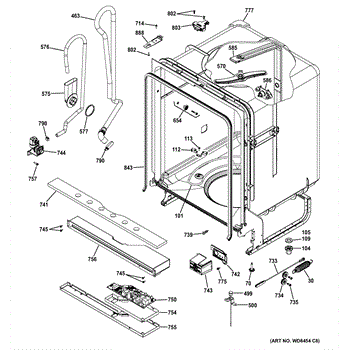

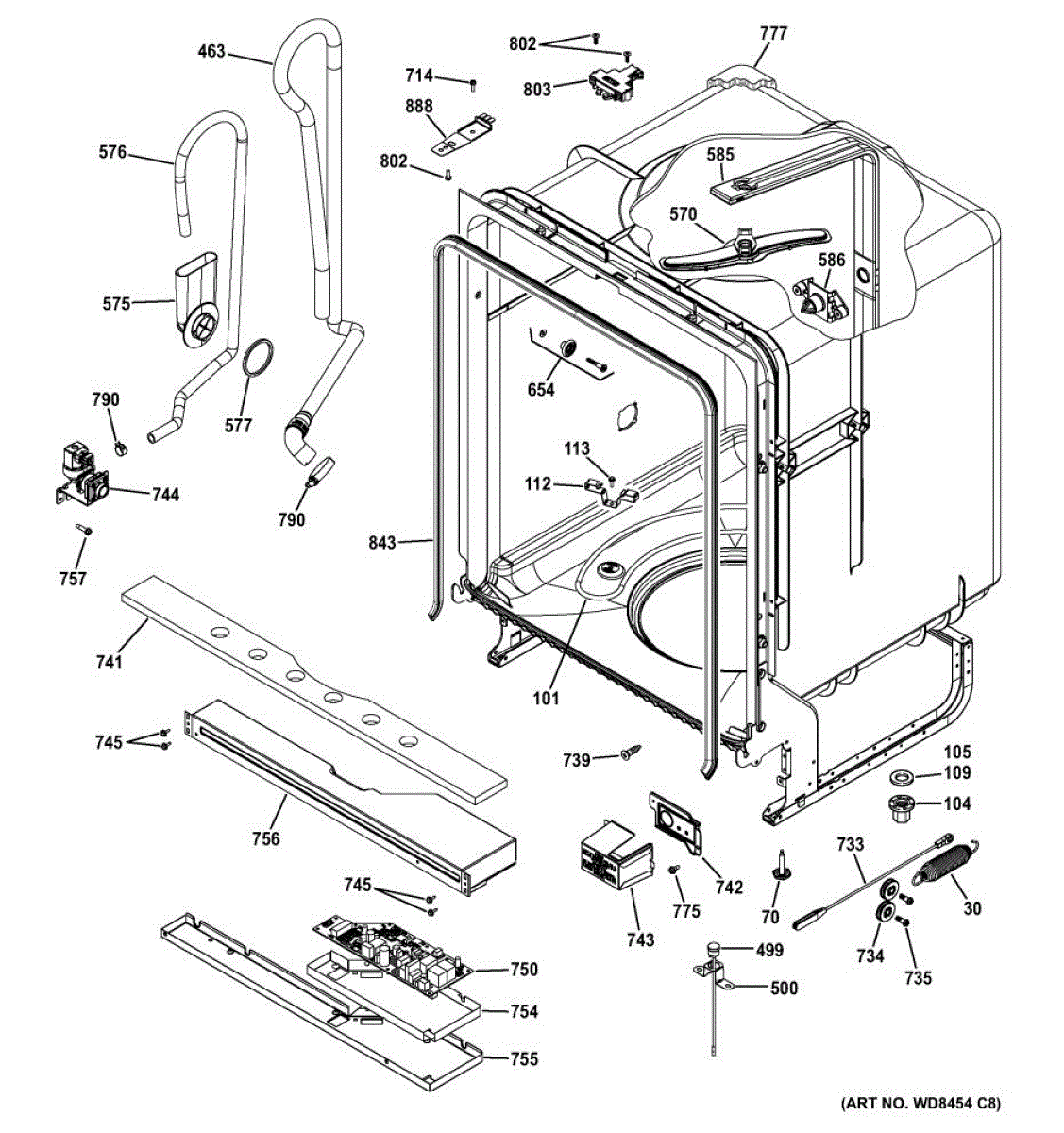

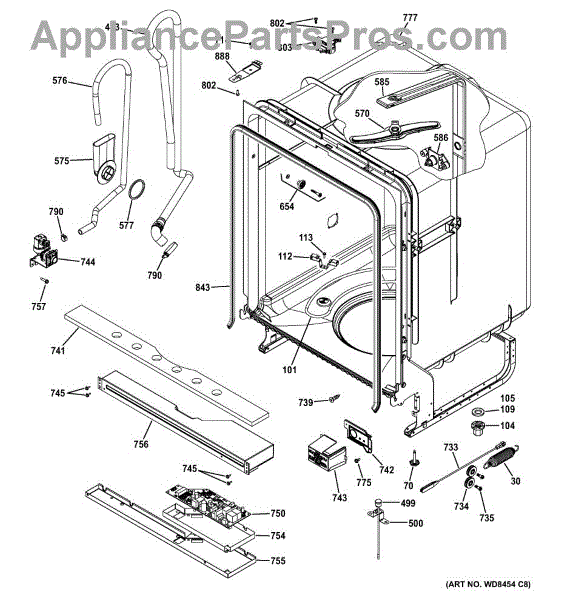

Parts for Ge GDF520PGD0BB: 02 - Body Parts

Parts for Ge GDF520PGD0BB: 02 - Body Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
By: Whirlpool

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30
Best Seller
Product photo
5.0 (1)
By: Ge

Counterbalances your dishwasher door for smooth opening and prevents sudden dropping or slamming. Replace if fatigued, broken, or missing.

More
$8.95
Compare At:
$10.65
You Save:
$1.70

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
70
Best Seller
Product photo
By: Ge

Adjustable leveling leg for dishwashers. Screws into the base frame to set height and stabilize the unit. Replace if worn, broken, or missing.

More
$14.95
Compare At:
$17.79
You Save:
$2.84

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
101
Best Seller
Product photo
4.8 (52)
By: Ge

Dishes not drying or staying wet after cycle? This heating element heats water during wash and dries dishes after rinse. DIY-friendly replacement part.

More
$54.95
Compare At:
$65.39
You Save:
$10.44

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
104
Best Seller
Product photo
5.0 (3)
By: Ge

Secures the dishwasher heating element to the tub from underneath. Replace if cracked, stripped, or missing to prevent leaks at the element mounting point.

More
$7.52
Compare At:
$8.36
You Save:
$0.84

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
113
Best Seller
Product photo
4.9 (16)
By: Ge

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

  • Noises or abnormal sounds coming from inside the tub
  • Intermittent error codes related to moving components
  • Detached or misaligned spray arms or filters
  • Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

More
$9.95
Compare At:
$11.74
You Save:
$1.79

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
463
5.0 (1)
By: Ge
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

499
By: Ge

Fixes dishwasher not draining or draining slowly. This complete pump and motor assembly kit includes circulation pump, drain pump, and wiring harness.

More
$144.46
Compare At:
$173.35
You Save:
$28.89

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
570
Best Seller
Product photo
4.9 (17)
By: Ge

Replacement upper spray arm for dishwashers. Installs at the top of the tub to distribute water across the upper rack. Replace if broken, cracked, or missing.

More
$41.95
Compare At:
$49.92
You Save:
$7.97

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
575
Product photo
By: Ge

Fix leaks at the water inlet with this dishwasher fill funnel. Directs water into the tub and prevents splashing. Includes gasket for secure seal.

More
$63.32
Compare At:
$76.38
You Save:
$13.06

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
577
Product photo
By: Ge

Fix leaks at the water inlet with this dishwasher fill funnel. Directs water into the tub and prevents splashing. Includes gasket for secure seal.

More
$63.32
Compare At:
$76.38
You Save:
$13.06

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
585
5.0 (1)
By: Ge
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

586
By: Ge

Conduit docking port for dishwashers. Connects wiring harness at the base of the unit. Replace if cracked, broken, or connection point is damaged.

More
$6.48
Compare At:
$9.36
You Save:
$2.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
714
Product photo
By: Ge

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

  • Acts as a switching device on control boards to allow or block current flow when signaled.
  • Regulates power delivered to heating elements or motor circuits to enable proper operation.
  • Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
  • Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.
What's included
  • One SCR 8-18 silicon-controlled rectifier (WD02X10160).
Install notes
  • Always disconnect power before servicing the appliance to avoid shock.
  • Handle the part carefully; avoid touching leads and use anti-static precautions if available.
  • Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

More
$8.95
Compare At:
$10.65
You Save:
$1.70

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
733
Best Seller
Product photo
4.9 (10)
By: Ge

Connects dishwasher door to spring mechanism to prevent door from dropping when opened. Replace if cable is broken, frayed, or detached from pulley.

More
$10.95
Compare At:
$13.03
You Save:
$2.08

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
By: Whirlpool

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

739
Product photo
By: Ge

Size: 8-32 t. Includes 12 screws.

More
$27.34
Compare At:
$32.26
You Save:
$4.92

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
743
Product photo
5.0 (2)
By: Ge

Encloses the power-connection compartment at the base of your dishwasher. Replace if cracked, broken, or missing to protect wiring from debris.

More
$31.39
Compare At:
$37.35
You Save:
$5.96

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
744
Best Seller
Product photo
5.0 (6)
By: Ge

Dishwasher not filling with water? A failed water inlet valve is often the cause. This valve controls water flow during wash and rinse cycles.

More
$47.41
Compare At:
$56.42
You Save:
$9.01

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
750
Product photo
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

754
$13.70
Compare At:
$20.30
You Save:
$6.60

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
775
Product photo
5.0 (1)
By: Ge

Size: 10-16 ab.

More
$15.95
Compare At:
You Save:

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
777
Best Seller
Product photo
4.8 (5)
By: Ge

Insulation blanket that wraps around the dishwasher tub to reduce noise and maintain temperature. Replace if damaged, torn, missing, or contaminated.

More
$13.95
Compare At:
$16.46
You Save:
$2.51

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
790
Product photo
5.0 (4)
By: Ge

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

More
$15.95
Compare At:
$18.98
You Save:
$3.03

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
802
Product photo
5.0 (2)
By: Ge

Size: 10-32 GXTT FLP.595 S

More
$7.95
Compare At:
$9.46
You Save:
$1.51

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
803
Best Seller
Product photo
4.8 (90)
By: Ge

Dishwasher won't start or run? A faulty door latch prevents cycles from beginning. This latch assembly secures the door and activates switches. 5-10 min fix.

More
$40.38
Compare At:
$48.05
You Save:
$7.67

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
843
Best Seller
Product photo
4.9 (64)
By: Ge

Seals dishwasher door perimeter to prevent water leaks during operation. Replace if you notice leaking from door sides or bottom. Easy 5-minute install.

More
$23.59
Compare At:
$28.07
You Save:
$4.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
888
Best Seller
Product photo
5.0 (4)
By: Ge

Secure your dishwasher to the underside of countertops with this screw and button plug kit. Replace stripped, missing, or damaged fasteners.

More
$7.95
Compare At:
$9.54
You Save:
$1.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
888
Best Seller
Product photo
4.8 (6)
By: Ge

Secures your dishwasher underneath the kitchen countertop. Replace if the bracket is cracked, broken, bent, or missing from installation.

More
$27.60
Compare At:
$32.84
You Save:
$5.24

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
Best Seller
Product photo
By: Whirlpool

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
