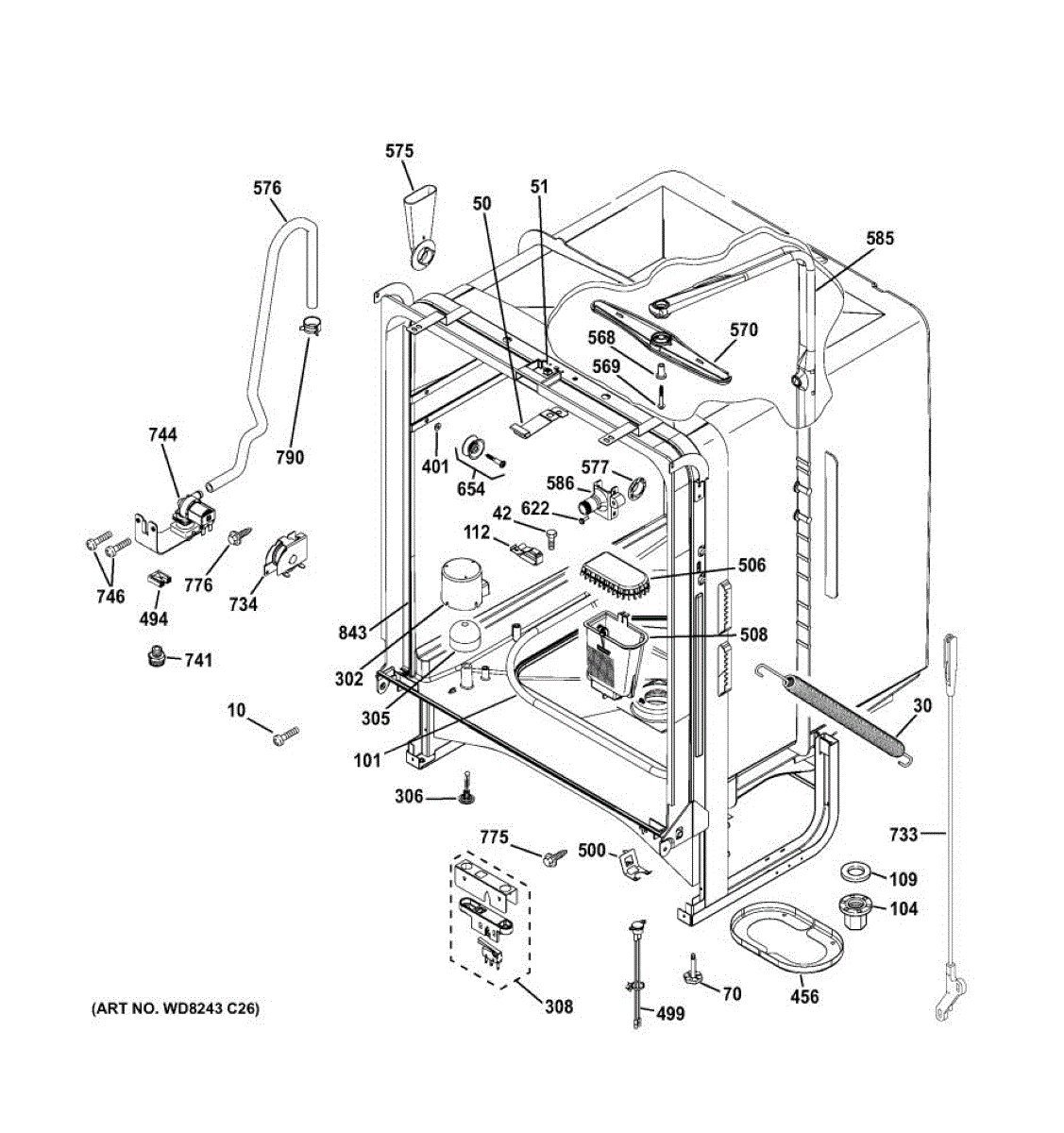

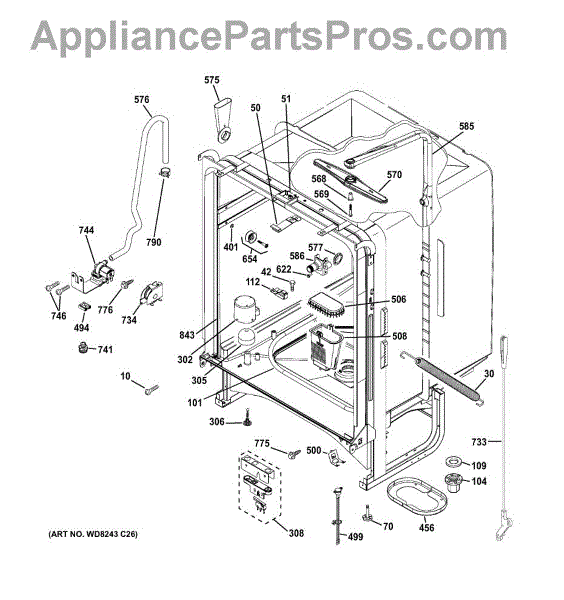

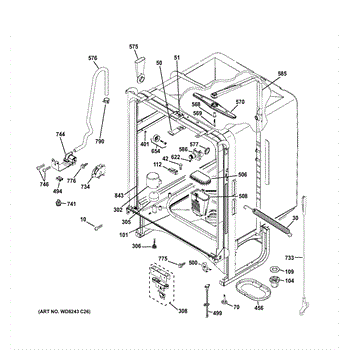

Parts for Ge GLC5604V00BB: 02 - Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Size: 10-32 GXTT FLP.595 S

This is a stainless steel hex washer-head screw used to fasten and secure components. Its integrated washer head provides a broad bearing surface for a tight, durable hold in appliance assemblies.

• Secures panels, brackets, and hardware to prevent looseness and vibration
• Restores proper fastening when originals are stripped, missing, or corroded
• Stainless construction helps resist rust in moisture-prone areas
• Common symptoms of a needed replacement include rattling, loose panels, or missing hardware

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct nut driver or socket for the hex head to avoid stripping
• Replace any damaged or missing fasteners in matched pairs or sets for even clamping
• Do not overtighten; snug to manufacturer torque guidance when available

A 10-24 x 1/2 thread-forming screw used to fasten panels and small components in appliances. Replaces missing or damaged fasteners to restore secure mounting and reduce rattling or misalignment. What it does:

• Secures panels, brackets, or trim to prevent movement and vibration
• Replaces missing, stripped, or damaged screws that allow parts to loosen
• Helps maintain proper alignment of doors and access panels
• Small, general-purpose fastener for a variety of appliance interior and exterior attachments

• Disconnect power to the appliance before beginning any repair
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread damage
• Compare the old screw to length and thread before installing

This leveling screw adjusts your dishwasher's leveling leg so you can set the cabinet height and get the unit perfectly level. Proper leveling helps the door seal correctly, reduces rocking, and cuts excess vibration and noise.

• Threads into the leveling leg to raise or lower the dishwasher for accurate leveling and stability
• Helps prevent rocking or wobbling and supports proper door alignment and sealing
• Can reduce vibration/noise associated with an out-of-level installation
• Replaces a stripped, bent, or missing adjustment screw to restore adjustability

• Disconnect power and turn off the water supply; protect flooring before adjusting or replacing
• Remove the toe-kick/access panel to reach the adjuster; support the dishwasher's weight before turning the screw
• Start threads by hand to avoid cross-threading; do not overtighten
• After adjustment, verify level side-to-side and front-to-back with a level and recheck door operation

This dome float is the replacement water-level float that helps the appliance sense and control the tub's water level, restoring reliable fill and shutoff behavior. Use this OEM-fit float when the original is cracked, stuck, or missing. What it does:

• Moves with rising and falling water to actuate the water-level mechanism and help prevent overfilling.
• Can reduce symptoms such as improper fill levels, continuous filling, or intermittent fill shutoff when the existing float is damaged or obstructed.
• Works as part of the washer's water sensing system—does not include electronic switches or housings unless shown.

• Disconnect power and unplug the appliance before starting any repair.
• Access may require removing the washer top or cabinet; follow your model's service instructions.
• Inspect surrounding hoses and clips; replace any damaged components and ensure the float moves freely.

This float stem is the vertical rod that links the dishwasher's tub float to the float switch. It ensures the fill valve shuts off at the correct level to help prevent overfilling, leaks, and poor cleaning results.

• Transfers the float's up/down movement to the float switch to stop water intake
• Helps maintain proper water level and protect against overfill-related leaks
• Failure may cause continuous filling/overfilling, low water level/poor cleaning, or a float that binds or feels loose
• Replace if the stem is cracked, warped, or missing

• Disconnect power and shut off water before servicing
• Remove the lower rack, take off the float cap, and lift out the float to access the stem
• From below the tub, detach the stem from the switch/retainer and install the new stem in the same orientation
• Ensure the float moves freely and actuates the switch; run a fill test and check for leaks
• Steps can vary by model.

The Flood Switch Assembly is an OEM part for GE dishwashers. This part detects water levels and prevent overfilling by shutting off the water supply if a potential flood condition is detected.

Causes of a bad flood switch assembly can include electrical failures, wear and tear over time, or damage from water exposure.

Symptoms of a bad flood switch assembly include:

• The dishwasher not filling with water properly
• The dishwasher overfilling or leaking
• Error codes related to water levels
• The dishwasher not starting or stopping mid-cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This harness plug connects the dishwasher's wiring to the water inlet valve. Replacing a burnt, brittle, or loose connector restores a solid electrical connection so the valve energizes correctly and the tub fills when the cycle begins.

• Provides a secure, keyed connection between the harness and water inlet valve terminals
• Helps resolve no-fill or intermittent fill caused by heat damage, corrosion, or loose contacts at the connector
• Supports proper valve operation to reduce humming-without-fill complaints
• Useful when replacing a damaged plug during valve or harness service

• Disconnect power at the breaker and shut off water supply before servicing
• Note wire orientation; transfer or splice leads per appliance wiring and connector design
• Seat the plug fully on the valve and ensure tight, insulated connections
• Restore power and run a fill test; check for leaks at the valve and hose connections

This dishwasher thermostat is a temperature-limiting safety switch that prevents overheating and allows proper heater operation during wash and dry. When it fails, the heater may be disabled, leaving dishes wet and cycles extended. What it does:

• Monitors dishwasher temperature and opens the circuit if overheating is detected
• Allows power to the heating element when conditions are within safe limits
• Supports achieving proper wash/rinse temperatures and drying performance
• Common symptoms of a failed thermostat: no heat or dry, sanitize option not completing, cycle taking longer than normal

• 1 thermostat

• Disconnect power at the breaker before servicing; shut off water if moving the unit
• Remove the toe-kick/kickplate to access the thermostat at the base of the dishwasher
• Transfer wires to the new thermostat one at a time and secure the mount firmly
• Restore power and run a heated cycle to normal heater operation

This inlet cover is a replacement trim piece that protects and finishes the washer's water inlet area, restoring a clean appearance and guarding internal inlet components from dirt and accidental contact. What it does

• Covers the water inlet opening and surrounding inlet assembly for a finished look
• Helps shield inlet valves and connections from debris and incidental contact
• Maintains proper alignment and fit of the inlet area trim
• Restores cosmetic appearance after damage or loss of the original cover

• One inlet cover

• Disconnect power and shut off water supply before starting any work
• Access may require removal of the washer top or control console depending on model
• Typically secures with clips or a few screws; have a screwdriver set on hand
• Replace if cracked or broken—do not attempt to use a damaged cover

The Sump Filter and Cover is an OEM part for GE dishwashers. It filters out food particles and debris from the water during the dishwashing cycle, preventing the particles from recirculating and depositing on dishes. The cover ensures that the filter stays in place and also aids in the proper flow of water through the dishwasher.

A well-functioning sump filter and cover are vital for maintaining the cleanliness and efficiency of your dishwasher. Over time, the filter can become clogged with food particles and debris, which can reduce the effectiveness of your dishwasher.

Symptoms of a bad Sump Filter and Cover include:

• Poor cleaning results
• Visible debris on dishes after washing
• Water not draining properly
• Unusual noises during the dishwasher cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Spray Arm Bearing is an OEM part for GE dishwashers. It supports the upper spray arm, allowing it to rotate smoothly and distribute water evenly throughout the dishwasher. This ensures that all dishes receive a thorough cleaning during each cycle.

Over time, the upper spray arm bearing can wear out or become damaged. Causes of a bad bearing can include repeated use, mineral buildup from hard water, or physical damage due to mishandling.

Symptoms of a bad Upper Spray Arm Bearing include:

• The upper spray arm not rotating properly
• Ineffective cleaning of dishes on the upper rack
• Unusual noises during the wash cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Scr 8-16 b hxw 1.08 ss

This upper spray arm assembly delivers a rotating spray pattern to distribute water across the upper rack, restoring proper wash coverage and improving cleaning performance for dishes and glassware. What it does:

• Replaces the upper spray arm to restore rotating water spray across the top rack
• Helps resolve poor cleaning or missed spots on upper-rack items
• Restores proper water distribution when spray arm is cracked, clogged, or not spinning
• Works with the dishwasher's spray system to reach hard-to-clean areas

• One upper spray arm assembly

• Turn off power and water supply before starting any repair
• Remove the upper rack to access the spray arm; follow OEM instructions for removal/replacement
• Inspect and clear any debris from the spray holes and mounting area before re-installing

This fill funnel directs the incoming water into the dishwasher and helps contain the flow to prevent splashing and leaks. Replacing a cracked or worn funnel restores a proper, sealed water path during the fill. What it does:

• Channels incoming water into the dishwasher during the fill
• Helps seal the opening to reduce splashing and external leaks
• Common symptoms include water leaking during fill, moisture around the inlet area, or visible cracks/deformation of the funnel

• 1 fill funnel

• Disconnect power and shut off the water supply before servicing
• Access the funnel at the water entry point for your model
• Remove the old funnel; seat the new funnel evenly and ensure the seal is fully seated
• Reassemble and run a quick fill to check for leaks

This fill funnel gasket seals the water-inlet funnel where water enters the dishwasher tub. Replacing a worn seal helps prevent drips at the inlet and keeps incoming water directed into the tub during the fill cycle.

• Provides a watertight seal between the fill funnel and tub wall
• Helps prevent leaks from the inlet area and under the toe-kick
• Directs incoming water properly into the tub during fill
• Replace if the gasket is cracked, deformed, or leaking

• Disconnect power and turn off the water supply before servicing
• Access the fill funnel area; remove the old gasket and clean the sealing surfaces
• Seat the new gasket evenly and ensure the funnel fully engages the opening
• Reassemble and run a short fill to check for leaks

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Inlet Valve is an OEM part for GE dishwashers. This component controls the flow of water into the dishwasher, functioning to ensure the right amount of water is supplied during each wash cycle. The valve operates via electronic controls from the dishwasher, responding to the needs of various cycles and adjustments in water pressure.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water leaking from underneath the dishwasher
• Unusual noises, such as humming or buzzing, coming from the valve area

Causes of a bad water inlet valve can include sediment build-up which can obstruct the flow or prevent the valve from closing, wear and tear over time leading to leaks, or electrical failures that affect the valve’s operation.

This replacement part is also compatible with certain models of Hotpoint, RCA, and Kenmore dishwashers, enhancing its versatility and utility in home appliance repair.

This is a replacement fastener screw used to secure panels and components on compatible appliances, restoring proper fit and reducing movement. It's a simple, direct replacement when an original screw is missing or damaged. What it does:

• Secures access panels, covers, or internal components to prevent rattling and movement
• Helps maintain proper alignment of parts so doors and panels close correctly
• Replaces missing, stripped, or broken screws that can cause loose parts or noise
• Restores the appliance's original fit where a matching OEM fastener is required

• One replacement screw

• Turn off and unplug the appliance before starting any repair
• Use the correct driver and avoid over-tightening to prevent stripping threads
• If the original screw was holding electrical components, ensure power is disconnected and follow OEM safety instructions

This 10-32 hex head screw secures appliance panels and components where a small machine screw is required. It provides a durable, threaded fastening point for repair or reassembly. What it does:

• Fastens panels, brackets, and small components using a 10-32 machine thread
• Hex head accepts a 7/16" socket or wrench for positive torque application
• Replaces worn or damaged screws that cause loose or rattling parts
• Compatible with common metal-to-metal and tapped-hole connections

• One 10-32 hex head screw with 7/16" socket head

• Use the correct 7/16" socket or wrench to avoid rounding the head
• Thread engagement should match the appliance's threaded insert; do not force if resistance is felt
• Follow manufacturer service manual for torque specs and installation sequence
• Disconnect power and follow safety procedures before servicing the appliance

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Tub Gasket is an OEM part for GE dishwashers. This gasket provides a watertight seal between the dishwasher tub and the door, preventing water from leaking out during the wash and rinse cycles.

Symptoms of a failing Tub Gasket include:

• Water leaking from the bottom or sides of the dishwasher door
• Visible wear, cracks, or tears in the gasket material
• The door not closing properly or feeling loose
• Increased moisture or water damage around the dishwasher area

Causes of a bad tub gasket can include wear and tear from regular use, exposure to high temperatures and detergents that degrade the material, or physical damage from improperly loading or unloading the dishwasher.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
