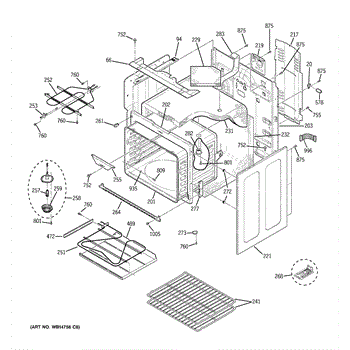

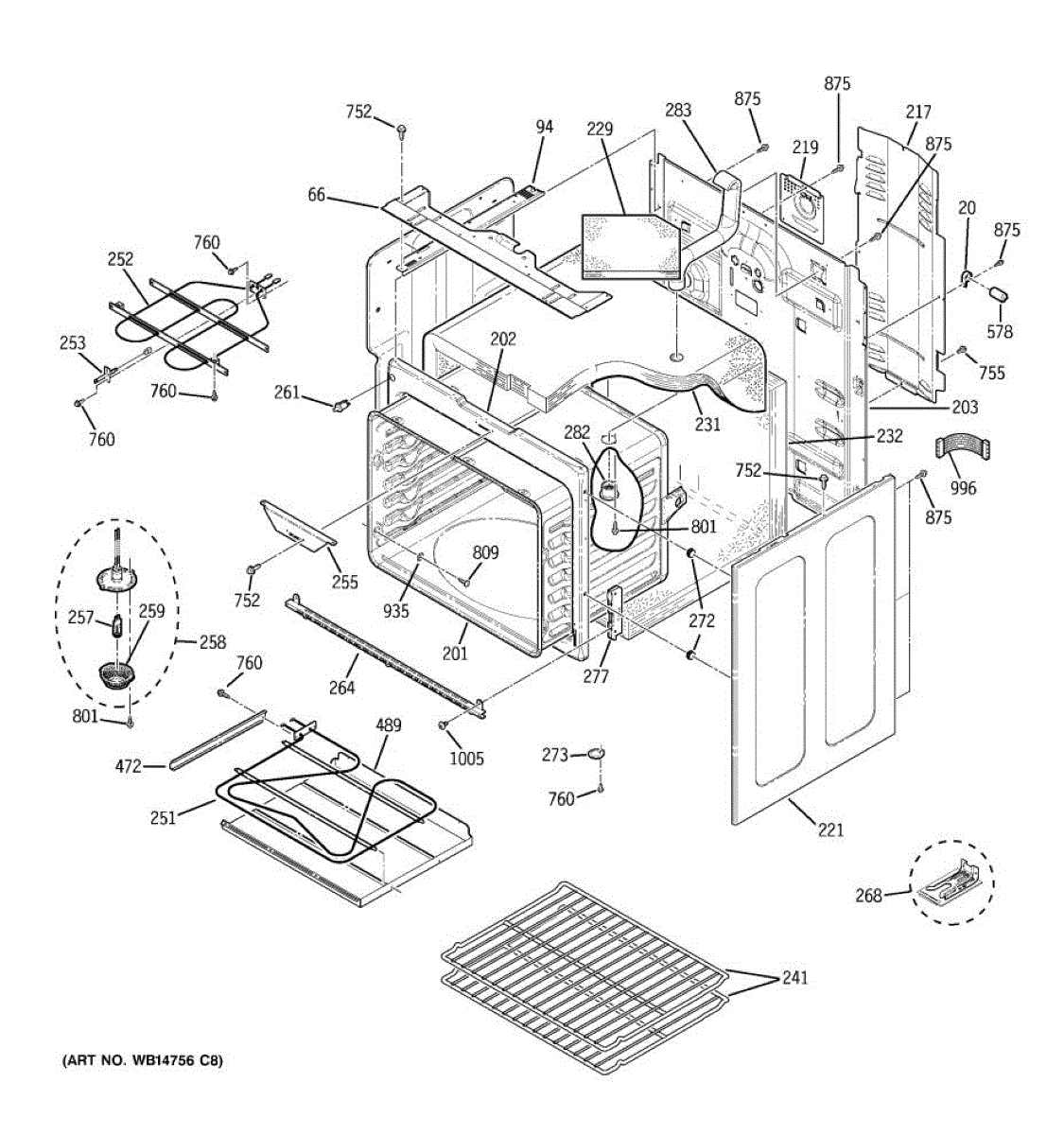

Parts for Ge JB705DT2BB: 03 - Body Parts

This back cover is the rear panel that protects a range or oven's internal components and wiring, helping keep debris and heat away from sensitive parts for safer, more reliable operation. What it does:

• Shields control modules, wiring, and electrical connections from dust, spills, and physical contact
• Helps contain and direct appliance heat and airflow away from external surfaces
• Reduces risk of accidental contact with live components for improved user safety
• Prevents debris buildup that can lead to malfunctions or odor issues

• One back cover

• Disconnect power (unplug or switch off breaker) before removing or installing the cover
• Remove screws or fasteners securing the old panel; keep hardware for reuse only
• Watch for sharp edges; wear gloves to protect your hands
• Reinstall all fasteners securely and restore power; test appliance function after installation

This white refrigerator side panel restores the cabinet's finished appearance and protects internal components from dust and damage. It's a direct-fit exterior panel designed to match the original cabinet look. What it does:

• Replaces a dented, scratched, or rusted side panel to renew exterior appearance
• Protects internal insulation and wiring from exposure and debris
• Helps maintain a smooth mounting surface for adjacent trim and components
• Restores proper cabinet coverage after collision or panel corrosion

• Disconnect power before starting and move the appliance to a clear work area if needed.
• Removal/installation may require removing adjacent trim, kick plate, or access screws—keep fasteners organized.
• Handle panel edges carefully; use pads to protect finish and avoid scratching painted surfaces.
• Reinstall hidden clips or insulation in original positions to maintain fit and seal.

This replacement part is a vent tube insulation, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Vent tube insulation is an important part of many ovens or ranges. This insulation will prevent air loss during the use of the appliance. This means that while the oven is heating, the hot air will not escape and the home will stay cool. Insulation also helps prevent the buildup of condensation in situations where moisture is present.A new vent tube insulation might be needed if the current one is worn down or damaged in any way. It is possible that the insulation can become thin over time and might need to be replaced after years of use. Be sure the oven or range is completely powered down and cooled before attempted this repair. The user must have access to the back of the appliance, and standard household tools are needed. This part is a genuine OEM replacement and is sold individually. This vent tube insulation is sourced directly from the manufacturer.

This oven rack restores usable shelf space inside the oven so cookware sits level for baking and roasting. It replaces a missing, bent, or worn rack and helps pans slide in and out on the factory supports. What it does:

• Provides a stable shelf for cookware and bakeware during cooking
• Replaces bent, warped, or missing oven racks that cause uneven cooking or tipping
• Slides into existing oven rack supports to restore original shelf positions
• Helps maintain proper airflow and clearance for even baking when installed correctly

• One oven rack

• Allow the oven to cool and disconnect power before servicing
• Slide the rack into the factory rack supports until fully seated; do not force
• Inspect rack supports and slides for damage before installing; replace any damaged guides
• Use manufacturer instructions for safe handling and to avoid burns or injury

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

This broil element assembly restores the intense top heat your oven needs for broiling. Replacing a worn or failed element brings back fast, even browning and searing performance when you select Broil.

• Provides direct, radiant heat from the top of the oven during Broil
• Typical failure signs: broiler won't heat or the element won't glow red
• Can cause weak/uneven broiling or unusually long broil times
• Often shows visible damage such as breaks, blisters, or burned spots
• A shorted element may trip a breaker when Broil is turned on

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely; wear gloves and eye protection
• Note wire positions and transfer them one at a time to the new element; avoid bending the element
• Reuse existing mounting hardware; ensure terminals are fully seated and secure before restoring power

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This halogen lamp assembly replaces a worn or broken oven/range interior light to restore clear, bright illumination so you can check cooking progress without opening the door. Designed to fit OEM lamp housing and connector. What it does:

• Provides bright, halogen interior illumination so food is easy to see while baking or roasting
• Replaces a burned-out, flickering, dim, or cracked oven light assembly
• Restores proper light function when the oven lamp fails to turn on
• Fits into the lamp housing and connects to the existing oven wiring harness

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the oven to cool completely before accessing the lamp
• Avoid touching the bulb glass with bare hands; use gloves or a clean cloth to prolong bulb life

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
