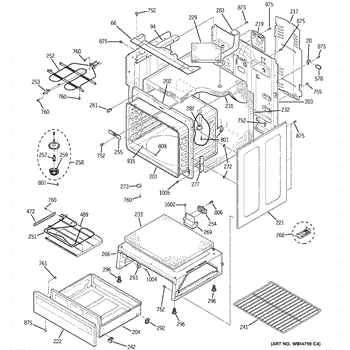

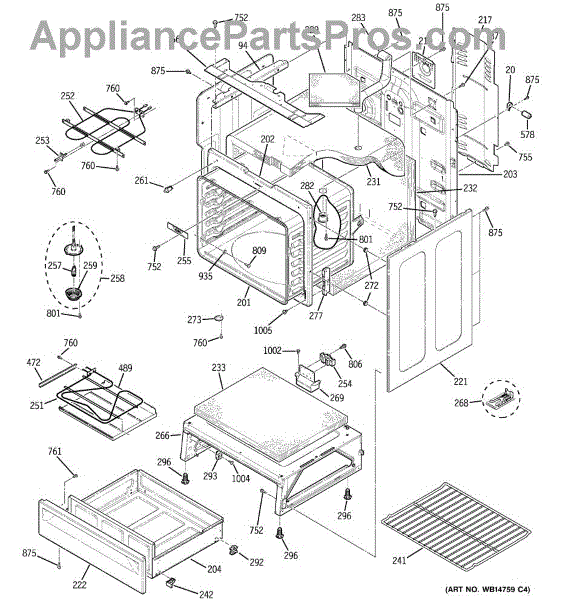

Parts for Ge JB840DP2BB: 03 - Body Parts

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Rangetop enclosure housing for ranges. Covers and protects internal components beneath the cooktop surface. Replace if cracked, warped, or damaged.

Replace your range's oven body frame assembly if the main structural cabinet is cracked, damaged, or compromised. Restores the oven's outer housing.

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

White side panel for electric ranges. Replaces cracked, scratched, or rusted exterior panels. Restores cabinet appearance and protects internal parts.

White

Insulation wrap for range vent tubes. Prevents heat transfer to cooktop surface. Replace if damaged, torn, or missing after rodent damage or wear.

Wire oven rack restores shelf space inside your electric range. Replaces missing, bent, or worn racks. Slides on factory supports for stable cookware placement.

Oven slow to heat or not heating at all? This hidden bake element delivers consistent bottom heat for proper baking. Moderate DIY, about 1 hour.

Broiler quit heating? This upper broil element restores intense top heat for fast, even browning and searing. Easy DIY replacement in about 20 minutes.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replace a broken range trim latch that won't secure trim panels properly. This latch keeps decorative trim aligned and in place on your range exterior.

Replace your oven's halogen bulb when the interior light burns out or dims. Illuminates the oven cavity so you can monitor cooking without opening the door.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Terminal block mount for electric ranges. Secures the terminal block connection housing. Replace if cracked, broken, or damaged. Direct fit installation.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural sup

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Secures the oven door hinge to the range cabinet frame. Replace if cracked, bent, or damaged to restore proper door alignment and closure fit.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Reflector pan sits under the bake element in your electric range oven cavity. Replace if cracked, warped, or rusted to restore proper heat direction.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor mo

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it co

ST10-16 X 7/16"

8-18 AB IHW 5/8 S

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Black. 8-18 AB HXW 3/8

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
