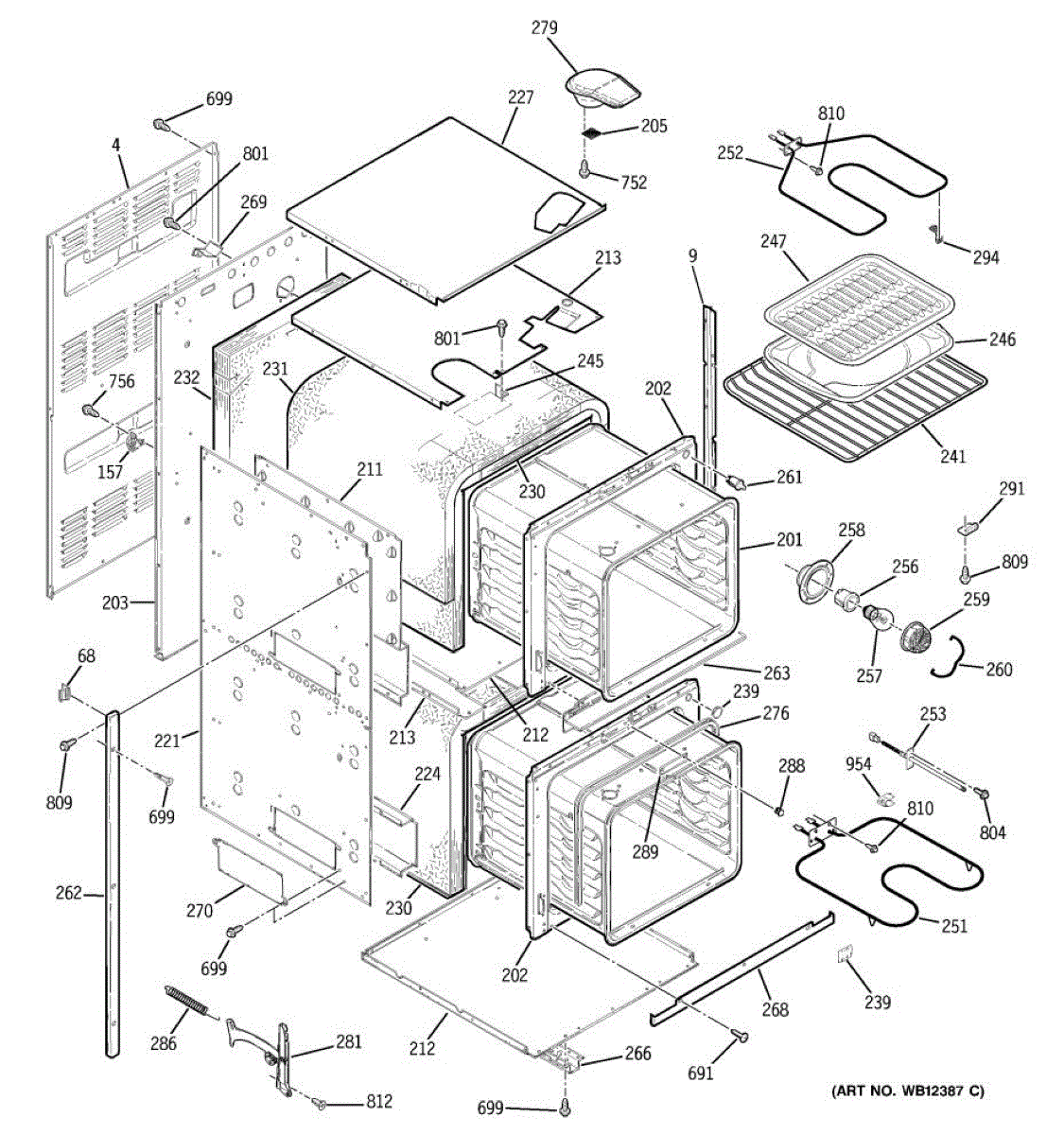

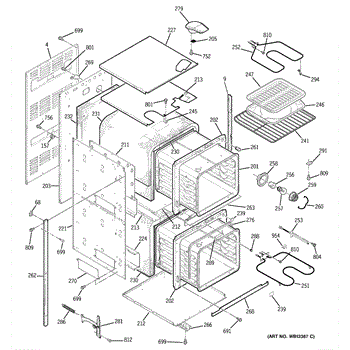

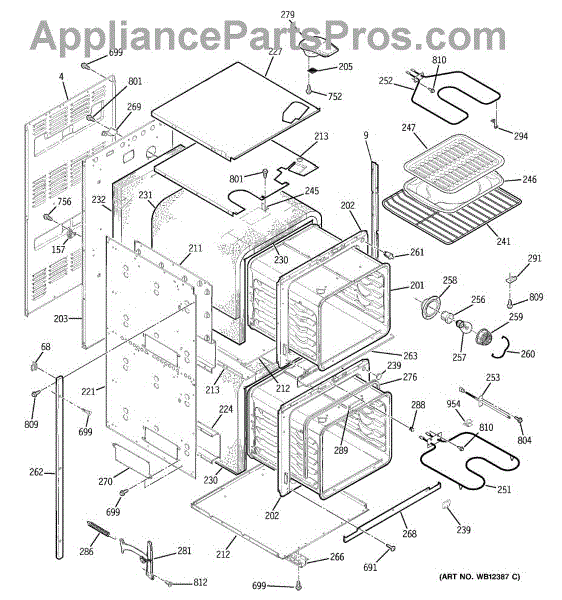

Parts for Ge JRP24BD2BB: 02 - Body Parts

The Oven Rack is an OEM part for GE ovens. This sturdy and durable rack is designed to fit securely in the oven's interior, providing a stable surface for baking and roasting. It is adjustable, allowing you to customize the cooking space to accommodate various dish sizes and ensure even heating.

Common causes of a bad oven rack include warping from prolonged exposure to heat, bending under heavy cookware, or rust and corrosion from moisture.

Symptoms of a bad oven rack include:

• Difficulty in sliding the rack in and out
• Warped or bent rack affecting stability
• Rust or corrosion on the rack's surface
• Inconsistent cooking results due to uneven rack positioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This lower bake element installs in the bottom of the oven cavity. It replaces a failed element to restore even oven heating, reliable preheating, and consistent baking results for your range.

• Provides the primary heat during Bake mode from the bottom of the oven
• Common symptoms of failure: no heat on Bake, very slow preheat, uneven or undercooked results
• Visible damage such as blisters, breaks, or burn spots on the element is a strong indicator it needs replacement
• Direct wire-on replacement designed to mount to the rear oven wall on applicable models

• Disconnect power at the breaker before servicing; verify the oven is de-energized
• Remove racks, take out the rear mounting screws, gently pull the element forward, and transfer the two wires one at a time
• Support wires so they don't retract into the insulation; avoid stressing terminals
• Ensure the element isn't touching the oven floor or sides before restoring power and testing Bake

The Oven Bake Element is an OEM part for GE ovens. This component is located at the bottom of the oven cavity and is responsible for generating the heat needed for baking. By converting electrical energy into heat, the bake element ensures even temperature distribution throughout the oven, allowing for consistent cooking results.

Causes of a malfunctioning Oven Bake Element may involve visible signs of wear or damage, like blistering or holes, a break in the element that hinders proper heating, and burnout or malfunctioning resulting from age or excessive use.

Symptoms of a failing Oven Bake Element include:

• The oven not heating to the set temperature
• Uneven baking results
• No visible glow from the element when the oven is turned on
• The oven taking longer than usual to preheat

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broil Element is an OEM part for GE ovens. This element is located at the top of the oven and is crucial for the broiling function, providing high heat for cooking dishes such as meats and vegetables directly under the heat source. The broil element glows red hot when in use, creating the necessary temperature to sear food and lock in flavors.

Symptoms of a failing Broil Element include:

• The element not heating up when the broil setting is activated
• Uneven cooking or lack of browning on food intended to be broiled
• Visible damage to the element, such as blistering, bubbling, or breaks in the element coil
• No visible glow from the element during operation

Causes of a bad broil element often involve burnout from regular use, electrical issues such as faulty wiring or a malfunctioning thermostat that doesn't cycle the heat correctly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven lamp holder is the replacement socket that secures and powers the interior oven light, restoring safe illumination for checking food without opening the door. Designed to fit industry-standard oven lamp bulbs. What it does:

• Provides a secure electrical connection and mounting point for the oven light bulb
• Enables interior oven illumination so you can monitor cooking without opening the door
• Commonly replaces cracked, burned, or loose lamp sockets that cause the light to flicker or not work
• Works with the oven's existing wiring and bulb type

• Disconnect power to the appliance at the breaker before servicing to avoid shock
• Replace only when the oven is cool; use gloves to protect hands and bulb surfaces
• Inspect wiring and connectors for damage; replace any damaged wiring per OEM guidance

This oven light cup is the interior housing that supports and shields the oven lamp and lens. Replacing a damaged cup keeps the light assembly secure and properly aligned so you can clearly see inside the oven during cooking.

• Mounts inside the oven cavity to support the light assembly
• Shields the lamp area from heat and splatter
• Provides the proper seat/retention for the light lens/cover
• Common symptoms: light cover won't stay in place, light assembly feels loose, visible damage or missing cup

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access
• Remove the lens/cover and bulb to access the cup; transfer and reuse existing fasteners
• Ensure the cup is fully seated and oriented correctly before restoring power

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vertical side trim is a factory-style exterior trim piece that restores the finished edge of the refrigerator cabinet and improves the appearance where the door meets the cabinet. It replaces a cracked, dented, or missing side trim. What it does

• Covers and protects the outer cabinet edge for a clean, factory look
• Hides gaps and worn cabinet finishes that catch dirt or moisture
• Helps maintain proper door alignment appearance without altering function
• Commonly replaced when trim is cracked, dented, warped, or missing

• One vertical side trim piece

• High-level replacement — typically removes and installs with basic hand tools
• Follow manufacturer instructions for trim removal to avoid scratching adjacent finishes
• Disconnect power only if required by your model's disassembly instructions; this trim replacement is usually cosmetic

This I-brow trim is a replacement cosmetic trim piece that restores the finished appearance of the refrigerator door opening and control area. It helps cover gaps and worn edges for a clean, factory look. What it does:

• Replaces a damaged or faded I-brow trim piece to improve appearance
• Covers the edge between the cabinet and the control/door area
• Helps maintain a uniform finish at the refrigerator's top/front opening
• Common symptom: trim is cracked, scratched, loose, or discolored

• Intended as a direct-fit replacement; remove old trim and snap or screw new trim into place
• Disconnect power to the appliance before starting work if trim removal exposes electrical components
• Use care to avoid scratching adjacent surfaces during installation

This light cup support secures the interior lighting assembly and helps position the light socket and lens for reliable illumination. It restores proper alignment and contact for the refrigerator or freezer interior light. What it does:

• Holds the light socket and lens in place to prevent shifting or detachment
• Ensures consistent light alignment so the bulb illuminates the interior correctly
• Addresses symptoms like a loose or hanging light, intermittent contact, or misaligned lens
• Compatible with common GE refrigerator interiors where the original cup support is used

• One light cup support

• Disconnect power before accessing the interior light assembly to avoid shock
• Remove the old cup support by unsnapping or unfastening retaining tabs as required
• Press the replacement into position until retaining tabs engage; test light function before reassembling shelves

This cover plate is a replacement console trim piece that restores the appliance's finished appearance and protects control components from dust and spills. It helps keep the control area clean while maintaining proper fit with surrounding panels. What it does:

• Covers and protects the control/module opening to prevent dirt, grease, and moisture intrusion
• Restores the appliance's exterior appearance after damage or wear
• Keeps buttons, switches and electronic components shielded from direct contact
• Provides a stable mounting surface for adjacent trim and hardware

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing a few screws or clips; save fasteners for reassembly
• Handle with care to avoid scratching the finished surface; align tabs/holes before tightening

Right hand side. For left hand use WB14K5007

Left hand side. For right hand use WB14K5006

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation
