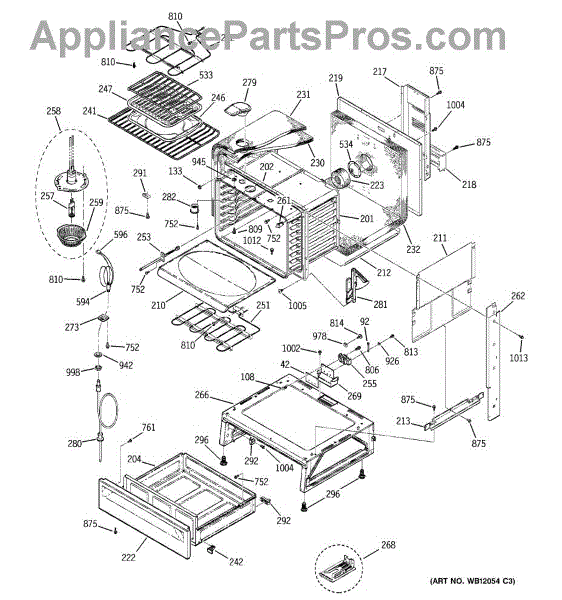

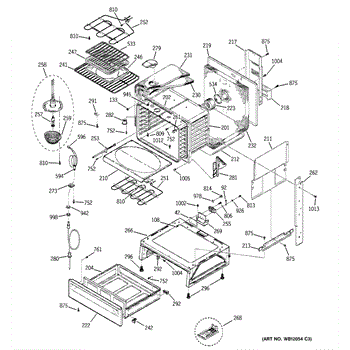

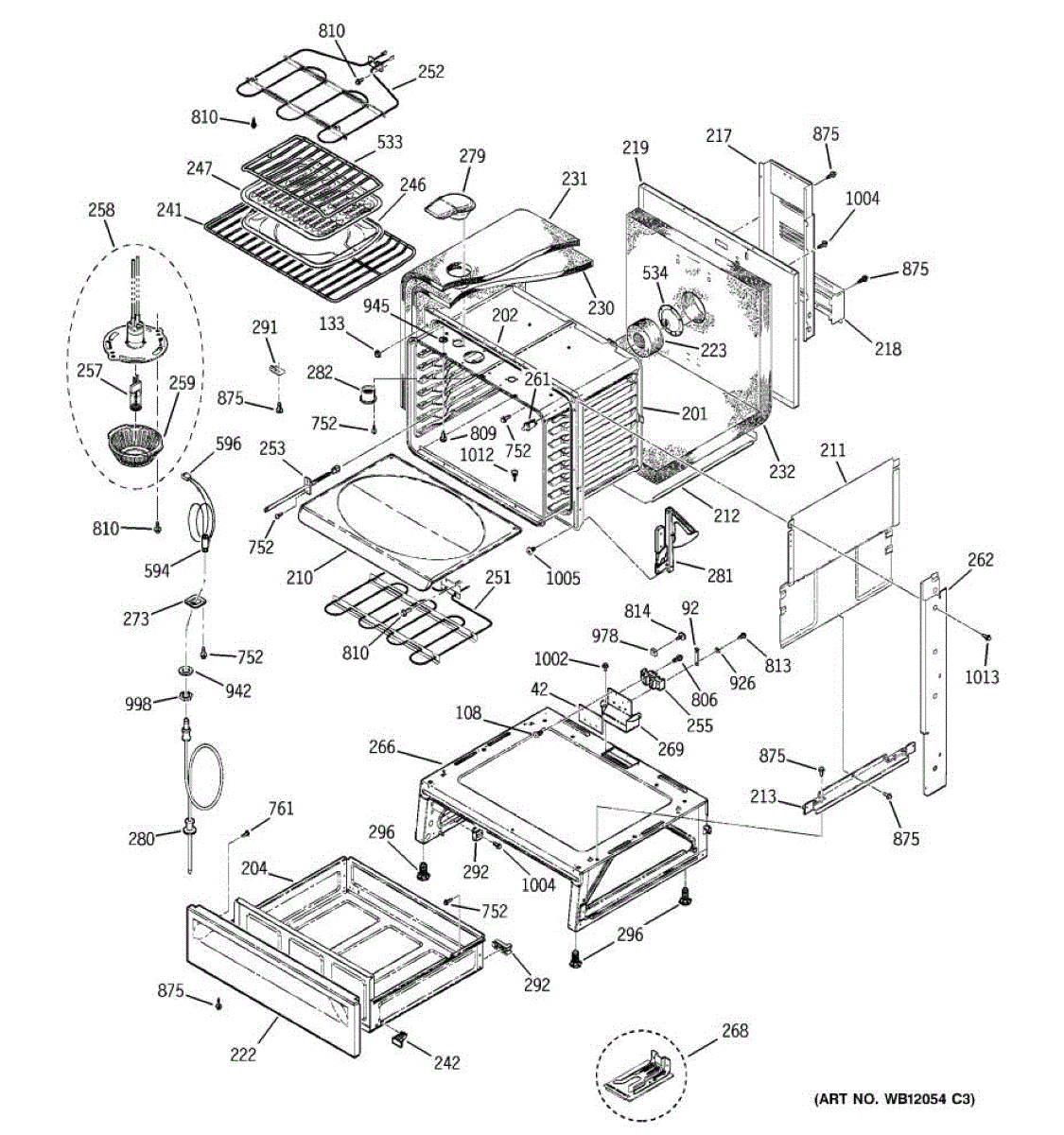

Parts for Ge JS966TD1WW: 03 - Body Parts

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This bottom false assembly replaces the lower interior trim piece that covers the refrigerator base, restoring a finished look and preventing items from falling behind the cabinet. It helps maintain proper airflow paths and interior appearance. What it does

• Covers and protects the lower interior area of the refrigerator, concealing components and providing a finished appearance.
• Helps keep stored items from sliding into gaps at the base.
• Restores a secure trim piece if the original is cracked, broken, or missing.
• Reduces visible gaps that can allow dirt or debris to collect beneath the cabinet.

• Disconnect power to the appliance before starting work and remove food/items from the area for safe access.
• Remove any drawers, shelves, or kick plates that block access to the lower interior before replacing the assembly.
• Handle the plastic trim carefully to avoid cracking; retain and reuse original fasteners unless replacements are supplied.
• Follow the manufacturer's service instructions for removal and installation.

White

The Oven Rack is an OEM part for GE ovens. This sturdy metal rack provides a stable surface for cooking or baking, fitting inside the oven's interior to support cookware and bakeware. The rack measures 24 inches in width and 14 inches in depth,

Causes of a bad oven rack can include warping or bending from heavy loads, rust or corrosion from exposure to moisture, and general wear and tear from frequent use. Physical damage or accidental mishandling can also affect its condition.

Symptoms of a bad oven rack include:

• The rack not fitting properly or sliding in and out smoothly
• Warped or bent sections that prevent even cooking
• Rust or corrosion on the metal surface
• The rack feeling unstable or collapsing under weight

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer wedge aligns and stabilizes the lower drawer so it opens and closes smoothly and sits flush. Replacing a worn or missing wedge helps eliminate wobble, rubbing, and gaps for better everyday operation.

• Supports and centers the drawer for proper alignment on the slides
• Acts as a spacer/stop to reduce vibration and metal-to-metal contact
• Helps prevent binding and keeps the drawer from popping off the track
• Common symptoms: drawer crooked or sagging, won't close fully, rattles, or feels loose

• Disconnect power and allow the appliance to cool before servicing
• Pull the drawer out to the stops, release the side track tabs, and remove the drawer
• Note the original wedge's position; remove it and install the new wedge in the same orientation (reuse existing hardware if applicable)
• Reinstall the drawer on the rails and verify smooth operation and proper fit

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This lower bake element restores proper heat in bake mode. Replace a burned-out element to help your oven preheat reliably and maintain set temperatures for consistent cooking results.

• Provides the primary heat source during Bake cycles
• Failure may cause no heat in Bake, long preheat times, or uneven baking
• Visible cracks, blisters, or breaks in the coil indicate replacement is needed
• A shorted element can arc or trip the household circuit breaker

• Disconnect power at the breaker; allow the oven to cool completely
• Remove oven racks; take out the element's mounting screws and gently pull the element forward
• Transfer the wire leads to the new element one at a time; do not let wires retract into the back panel
• Reinstall mounting screws, restore power, and test Bake before replacing racks

The Broiler Assembly is an OEM replacement part for GE range. Located inside the oven, it houses the heating elements responsible for the broil cooking function.

Causes of a bad broiler assembly can include cracked or burnt-out heating elements that no longer ignite, damage from accidentally being cleaned with abrasive chemicals, or warping of metal components from overheating.

Symptoms of a bad broiler assembly include:

• Inability to activate or incomplete activation of the broil setting
• Reduced or uneven heating from compromised elements
• Warping or discoloration visible on assembly surfaces
• Presence of unusual odors from potential heating element failures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Halogen Bulb Kit is an OEM replacement part for GE ranges. It includes replacement halogen light bulbs that illuminate the interior of the range. P

Causes of bad bulbs can include normal burnout over the lifespan of the bulbs or damage from excessive heat. Halogen bulbs are prone to fail after a few years of use in the hot oven environment.

Symptoms of bad or burnt out bulbs include:

• Dark or poor interior lighting inside the oven
• Inability to see food cooking clearly through the window
• Burned or blackened bulb elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lamp Halogen is an OEM part for GE ovens. It illuminates the oven interior, allowing you to clearly see the food while it cooks. This light is particularly useful for monitoring the progress of your baking or roasting without opening the oven door and losing heat.

Causes of a bad halogen lamp can include regular wear and tear, electrical surges, or damage from high temperatures. Over time, the filament within the halogen lamp can degrade, leading to a loss of illumination.

Symptoms of a bad halogen lamp include:

• The oven light not turning on
• Flickering light inside the oven
• Dim illumination that affects visibility
• The light bulb appearing dark or burned out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Includes: Anti-tip bracket, screws and instruction sheet.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hinge assembly is an OEM component specifically designed for GE electric ranges. This left hinge assembly supports and allows for the controlled opening and closing of the range oven door.

Causes of a bad hinge assembly can include wear and tear from repeated use over time, excess weight or stress placed on the door during opening and closing, or damage due to impact or mishandling.

Symptoms of a bad hinge assembly include

• difficulty opening or closing the range door
• lack of stability when the door is open
• sagging or misalignment of the door,
• Squeaking or grinding noises coming from the hinge area.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Front

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This roast rack is an oven insert that holds roasts and pans above the oven floor to improve air circulation and promote even browning. It restores proper clearance for drip pans and helps keep food out of accumulating juices. What it does

• Supports roasts, poultry and bakeware above the oven floor so hot air circulates evenly
• Prevents food from sitting in drippings for crisper browning and better roasting results
• Replaces bent, warped or missing oven racks that interfere with cookware stability
• Fits into oven side supports for secure placement during roasting

• One roast rack

• Allow the oven to cool and disconnect power before handling or replacing parts
• Slide the rack into the oven side supports until secure; ensure it sits level before use
• Use oven mitts when placing or removing hot cookware from the rack
• Clean by hand washing with warm, soapy water; avoid abrasive cleaners that can damage the finish

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

8-18 AB IHW 5/8 S

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This is a 10-16 shoulder-type A screw used to fasten appliance panels and components, providing secure assembly and stable operation. It replaces worn or missing screws to stop rattling and restore proper fit. What it does:

• Secures control panels, trim pieces, and mounting brackets
• Helps prevent loose or vibrating panels and noisy operation
• Keeps electrical or mechanical assemblies held in correct position
• Restores proper alignment after disassembly or repair

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Keep removed hardware organized for reassembly
