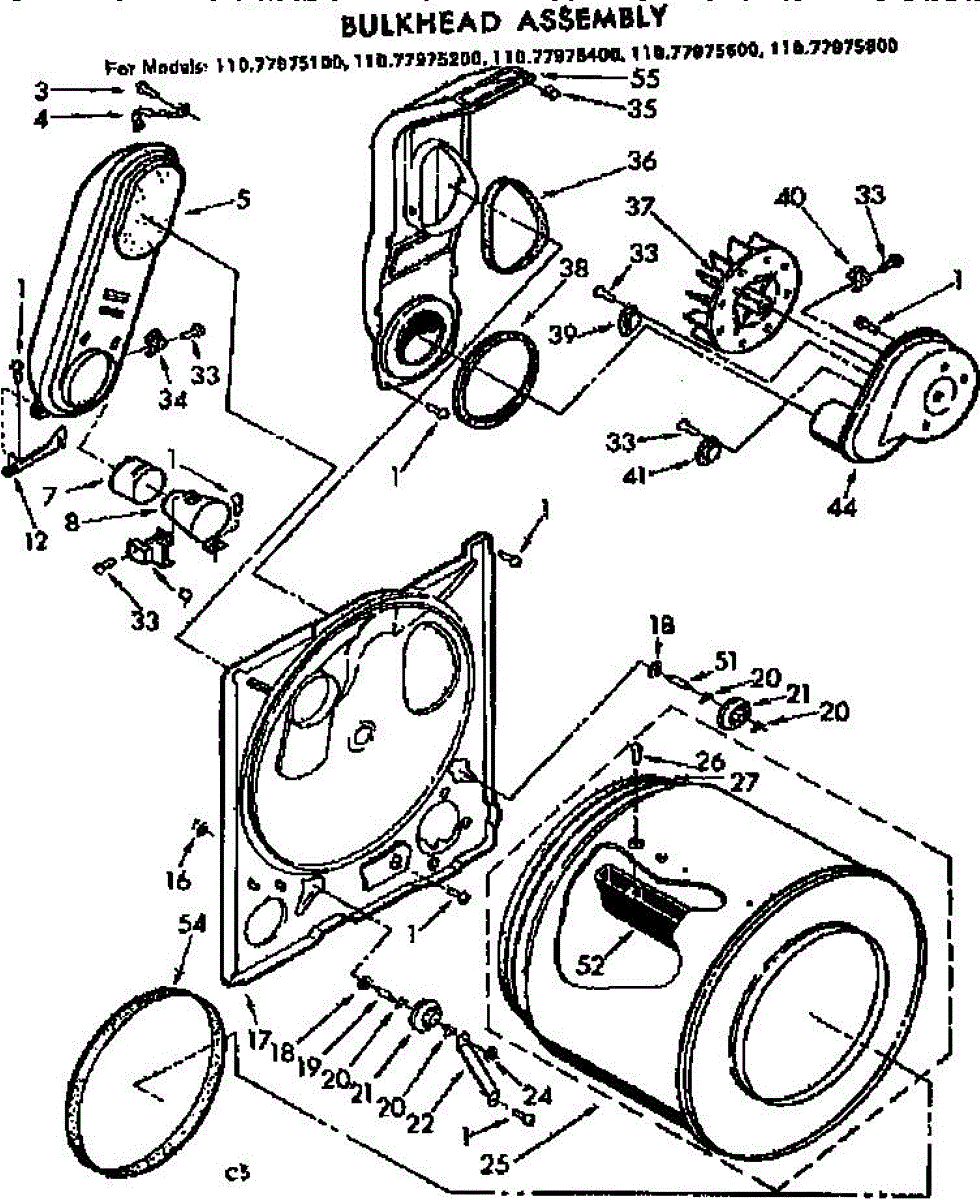

Parts for Kenmore 110.77975400 (11077975400, 110 77975400): Bulkhead Assembly Parts

Specs: 10-16 x 1/2 inch.

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This is the heater housing box that directs heated air from the heating element into the dryer drum. It forms an enclosed duct pathway to ensure proper airflow during the drying cycle. Replace this part if the dryer is not heating efficiently, takes too long to dry clothes, or the housing is cracked, warped, or damaged from excessive heat.

This is the heater housing box that directs heated air from the heating element into the dryer drum. It forms an enclosed duct pathway to ensure proper airflow during the drying cycle. Replace this part if the dryer is not heating efficiently, takes too long to dry clothes, or the housing is cracked, warped, or damaged from excessive heat.

This is the heater housing box that directs heated air from the heating element into the dryer drum. It forms an enclosed duct pathway to ensure proper airflow during the drying cycle. Replace this part if the dryer is not heating efficiently, takes too long to dry clothes, or the housing is cracked, warped, or damaged from excessive heat.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

Left-side shaft that supports the drum roller assembly in your dryer. Replace if worn, bent, or damaged to restore proper drum rotation and alignment.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Rear drum support roller kit for dryers. Mounts behind the drum to maintain alignment and smooth rotation. Replace when rollers are worn or damaged.

This is the main rotating drum inside the dryer where clothes tumble during the drying cycle. It includes the cylindrical drum body that holds the laundry load as it turns. Replace the drum if it is cracked, warped, has damaged baffles or lifters, or if you notice excessive noise, wobbling, or clothes snagging during operation.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Seals the rear drum opening to prevent air leaks and reduce noise. Replace if worn, frayed, or causing rattling sounds. Confirm fit with your model number.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

L205-40. Dryer

Seals the lint screen housing to prevent air leaks and maintain proper airflow. Replace if damaged, missing, or causing lint buildup. Verify fit.

This is the blower wheel that mounts on the motor shaft inside the dryer and circulates heated air through the drum and out the exhaust vent. It draws moist air away from clothes to facilitate drying. Replace this part if the dryer is noisy, makes a rattling or squealing sound, takes too long to dry clothes, or if the blower fins are cracked or broken.

This is a foam seal that fits around the dryer's blower housing or lint chute area, creating an airtight connection to prevent air leaks. It helps maintain proper airflow through the dryer's exhaust system for efficient drying. Replace this seal if you notice longer drying times, warm air escaping from areas other than the vent, or if the existing seal is crumbling, compressed, or deteriorated.

This temperature-sensitive switch cycles the heating element on and off to maintain proper drying temperature throughout the cycle. Replace if clothes come out too hot, cycles run too long, or the dryer overheats and shuts down.

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right-side shaft for dryer drum support roller. Replace if worn, bent, scored, or damaged to restore proper drum rotation. Installs on right side of cabinet.

Replacement drum baffle that lifts and tumbles clothes inside the dryer drum. Needed when original is cracked, broken, or missing from the drum wall.

Supports the front drum edge for smooth, quiet rotation. Replace when worn to stop scraping noises or drum wobble. Confirm fit with your model number.

Lint chute directs lint and debris from the dryer drum to the lint screen. Replace if cracked, broken, or clogged to maintain proper airflow.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch-up paint for appliances in new avocado color. Covers chips, scratches, and worn spots on exterior surfaces. Includes brush applicator.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
