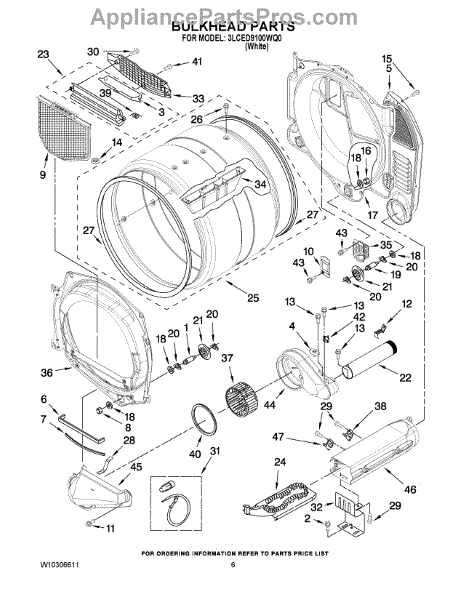

Parts for Whirlpool 3LCED9100WQ0: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This outer refrigerator door restores the appliance's sealed front and appearance so the fridge closes properly and keeps food cold. It replaces a damaged or dented exterior door panel to regain proper sealing and look. What it does

• Replaces a cracked, dented or warped outer door panel that affects appearance or sealing
• Helps the door close evenly to maintain internal temperature and prevent cold air loss
• Restores attachment points for handles and trim so hardware functions correctly
• Reduces drafts, moisture buildup, and increased energy use caused by a damaged door

• Recommended for experienced DIYers; door panels are heavy and may require a second person to handle safely
• Disconnect power to the appliance and remove contents before starting work
• Keep track of fasteners and trim; align door on hinge pins before securing to avoid misalignment
• Check gasket and hinge condition while replacing the door; replace any worn parts for a complete repair

This air duct collar channels dryer exhaust to the external vent connection. It provides a secure, sealed outlet for the vent hose to help maintain proper airflow, reduce leaks, and support consistent drying performance.

• Directs exhaust air from the blower/outlet to the rear vent connection
• Provides a stable connection point for the vent hose
• Helps maintain airflow and drying efficiency
• Common symptoms: vent hose won't stay attached, heat or lint leakage at the back of the dryer, longer dry times, visible cracks/warping at the outlet

• Disconnect power; for gas dryers, also shut off gas supply
• Pull the dryer forward and detach the vent hose
• Remove mounting screws/clips, replace the collar, and reuse existing hardware
• Clear lint from ducting, reattach the vent hose securely, and verify strong airflow at the exterior vent

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

This lens covers and diffuses an appliance light source, protecting it from heat, grease, and moisture while delivering even illumination. Replacing a cracked or yellowed cover restores brightness and a clean, finished look.

• Shields the bulb or LED from debris, grease, and impact
• Diffuses light for more even, glare-free illumination
• Helps maintain the appearance of the light area
• Common symptoms: cracked, broken, missing, discolored, or loose lens

• Disconnect power and let the lamp/surface cool before servicing
• Support the old lens while removing any retaining screws or clips
• Align tabs or holes carefully; seat the new lens fully and evenly
• Do not overtighten fasteners to avoid cracking the lens

Small replacement clip that secures panels or small internal components to restore a snug fit and reduce rattling or misalignment. Use this clip when a worn or broken retainer lets trim or parts sit loose. What it does:

• Holds trim, panels or other small appliance components in place to maintain correct alignment.
• Helps eliminate rattling, vibration noise or gaps caused by a missing or damaged clip.
• Restores secure fit where a broken clip allows parts to shift or separate.
• Simple, low-profile replacement part used in affected Whirlpool appliances.

• Disconnect power (unplug or shut off breaker) before servicing any appliance.
• Small part; keep track of screws and retainers during disassembly.
• Basic hand tools may be required; trim or panel removal might be necessary to access the clip.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The outlet housing is the molded duct that channels flow out of its assembly and provides a sealed handoff to the next hose or duct. Replacing a cracked or warped housing restores proper sealing, flow, and overall performance. What it does:

• Directs flow from the component to the outlet path
• Maintains a sealed connection to adjoining ducting/hoses to prevent leaks
• Helps preserve proper flow/pressure for efficient operation
• Damage can cause leaks, reduced flow, longer cycles, or unusual noise

• 1 outlet housing

• Disconnect power; if your model uses a water supply, shut it off before servicing
• Refer to your model's diagram for fastener locations and orientation; take photos during disassembly
• Inspect and reinstall/replace any model-specific gaskets, O-rings, or clamps to ensure a proper seal
• After reassembly, run a test cycle to check for leaks or vibrations

The Heating Element is an OEM part for Whirlpool dryers. This part generates the heat necessary to dry clothes during the drying cycle. The element is designed to heat up when electricity passes through it, producing the warmth required to effectively dry laundry.

Causes of a bad heating element include wear and tear over time, electrical issues such as short circuits or power surges, and physical damage from overloading the dryer or mishandling the appliance.

Symptoms of a bad heating element include:

• The dryer not producing heat
• Clothes taking longer to dry than usual
• The dryer overheating or shutting off mid-cycle
• Unusual noises or burning smells during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

This spring clip secures small panels, brackets, or trim inside your appliance to maintain a snug fit and prevent movement. Replacing a fatigued clip helps restore proper alignment and reduce unwanted vibration or rattling. What it does:

• Provides spring tension to hold a component firmly in place
• Helps prevent vibration, rattling, or shifting during operation
• Replaces a bent, worn, corroded, or missing clip
• Common symptoms: loose or misaligned panel/trim, recurring rattles, or parts that won't stay secured

• 1 spring clip

• Disconnect power (and gas, if applicable) before servicing
• Access the clip location per your model's service/parts diagram
• Note the clip's orientation and attachment points before removal
• Use needle-nose pliers carefully to avoid bending adjacent tabs or brackets

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This Heater Box Bracket secures the dryer's heater housing to the cabinet, keeping the heating assembly firmly mounted and aligned. Replace a bent, cracked, or missing bracket to restore stable support and reduce vibration around the heater area.

• Anchors the heater housing/box to the cabinet frame
• Maintains proper alignment and clearance for the heating element assembly
• Helps prevent rattling or rubbing noises from a loose heater housing
• A damaged bracket may leave the heater housing loose, cause vibration, or contribute to intermittent heating issues

• Disconnect power; if gas, shut off gas supply and allow the unit to cool completely
• Access the heater housing; note bracket orientation and reuse existing fasteners
• Support the heater housing and keep wiring clear while removing/installing the bracket
• After installation, verify the housing sits square and clear of the drum and wiring before restoring power

The Lint Screen Grille is an OEM part for Whirlpool dryers. It works with the lint screen to capture and collect lint during the drying cycle, preventing it from clogging the vent and ensuring proper airflow.

A bad dryer lint screen grille can be caused by regular wear and tear, accumulation of debris, or accidental damage. If the grille becomes cracked, broken, or warped, it can lead to lint escaping from the lint screen or obstructed airflow.

Symptoms of a bad dryer lint screen grille include:

• Lint escaping from the lint screen area.
• Reduced drying efficiency or longer drying times.
• Visible damage or warping of the grille.
• Excessive lint buildup in the venting system.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This mounting bracket provides a secure support point inside the appliance to hold panels or components in place, restoring proper fit and reducing movement. It's a simple replacement when a worn or broken bracket causes loose parts. What it does:

• Supports and anchors interior panels or components to the appliance frame
• Restores proper alignment and eliminates rattling or shifting parts
• Replaces cracked, bent or missing brackets that prevent secure mounting
• Helps maintain normal operation by keeping parts positioned correctly

• One mounting bracket

• Always disconnect power and water before starting repairs
• Verify bracket orientation against the original part; keep hardware or replace with matching screws
• Use common hand tools; avoid over-tightening fasteners to prevent cracking

The Blower Wheel is an OEM part for Whirlpool dryers. This part circulates the air through the dryer drum and the exhaust vent, ensuring efficient drying of clothes.

Causes of a bad blower wheel can include accumulation of lint and debris, wear and tear over time, or physical damage from foreign objects.

Symptoms of a bad blower wheel include:

• Longer drying times
• Dryer overheating
• Unusual noises during operation
• Reduced airflow from the dryer vent

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Cutoff is an OEM part for Whirlpool dryers. It is a safety component designed to prevent the dryer from overheating by cutting off power to the heating element if the temperature exceeds a safe level.

Causes of a bad thermal cutoff can include overheating due to lint buildup, restricted airflow, or a malfunctioning thermostat. These issues can cause the thermal cutoff to blow, preventing the dryer from heating to avoid potential fire hazards.

Symptoms of a bad thermal cutoff include:

• Dryer not heating
• Dryer shutting off prematurely
• Unusual dryer cycle times
• Error codes related to overheating

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore smooth operation of your dryer's lint screen cover with this lint screen door spring. It provides the correct tension so the cover opens and closes properly and the lint screen seats securely for reliable lint collection.

• Applies spring tension to the lint screen door/cover hinge
• Helps the lint screen and cover stay properly positioned
• A worn or broken spring may cause the cover to feel loose, pop open, or not stay closed
• May make inserting or removing the lint screen difficult

• Disconnect power; for gas dryers, also shut off gas supply
• Access the lint screen door area per your model's service information
• Note the original spring orientation; transfer the new spring carefully using needle-nose pliers
• Check cover operation and lint screen seating before restoring power

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Thermistor is an OEM part for Whirlpool brand dryers. It is a temperature-sensing resistor that monitors air temperature changes during the drying cycle. The thermistor provides feedback to the control board on heating element performance and internal air condition.

Symptoms of a failed thermistor include:

• Inaccurate temperature readings and selections
• Improper or incomplete drying
• Safety issues from overheating due to lack of feedback
• Error codes displayed on the control panel

Causes can be related to normal wear and environmental exposure over time. Failure prevents the dryer from achieving optimal drying conditions.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This blower housing directs dryer airflow from the drum to the exhaust for proper ventilation and consistent drying performance. It replaces a cracked or damaged housing to restore airflow and reduce noise. What it does:

• Channels heated air from the drum to the exhaust vent to maintain drying efficiency
• Helps support the blower wheel and keeps the wheel aligned for smooth operation
• Commonly replaced for reduced airflow, longer dry times, or unusual noise from the rear of the dryer
• Can prevent overheating caused by restricted or leaking airflow

• Disconnect power (and gas supply if applicable) before beginning repair
• Handle edges carefully; wear gloves to avoid cuts and protect the blower wheel
• Reassemble panels and test dryer on a short cycle to confirm airflow and quiet operation

This heater box is the protective housing that encloses and supports the heating element in your appliance. Replacing a warped or damaged housing helps restore safe, efficient heating and protects nearby components from excessive heat.

• Holds the heater element securely and maintains proper spacing from surrounding parts
• Shields adjacent wiring and components from direct heat
• Helps maintain consistent heating performance when the original housing is heat-damaged or cracked
• Common symptoms include visible melting/warping, loose element fitment, burning odors, or repeated safety shutoffs

• Disconnect power (and gas supply, if applicable) and allow the unit to cool completely before service
• Take photos of the existing layout to aid reassembly and wire routing
• Transfer the heater element and any model-specific hardware to the new housing in the same orientation
• Ensure wiring is clear of sharp edges and heat sources; reassemble and test for proper operation

This high-limit thermostat helps stop overheating by opening the heater circuit at preset temperatures, protecting the appliance and improving safety. Replace a failed thermostat to restore proper over-temperature shutoff. What it does:

• Opens the heating circuit at its rated temperature to prevent excessive heat buildup
• Stops the heater from running if the appliance overheats
• Common symptoms: appliance overheating, no heating or intermittent heating, or heat cycling off unexpectedly
• Used as a safety cutoff in the appliance's heating system

• Disconnect power before inspecting or replacing the thermostat
• Handle terminals carefully and note wiring locations for correct reassembly
• Verify operation only after proper installation and restoring power
