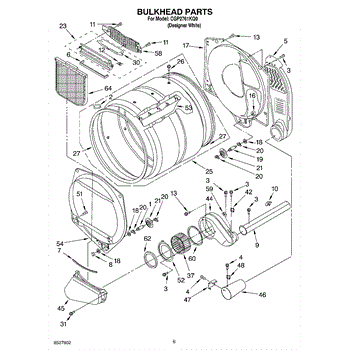

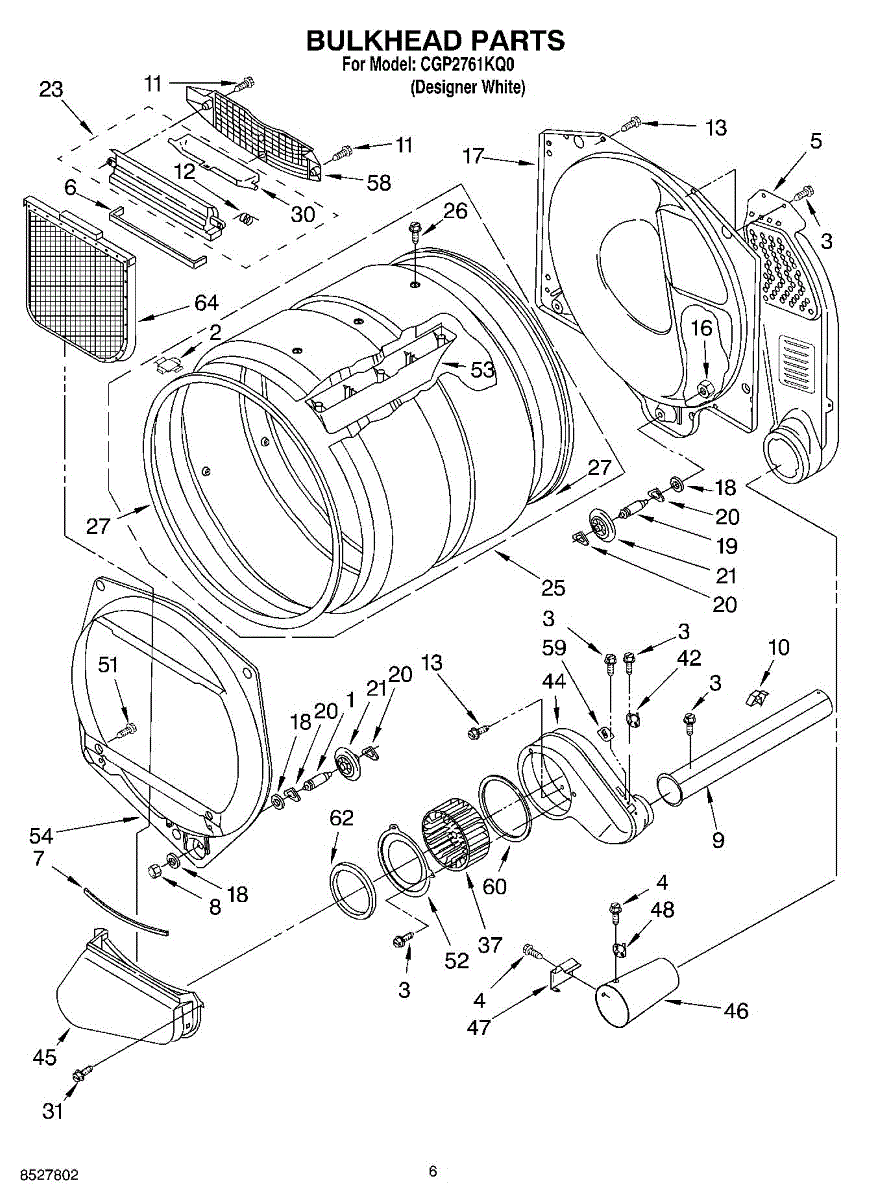

Parts for Whirlpool CGP2761KQ0: 04 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

Directs exhaust airflow from your dryer to the external vent. Replace this duct pipe if worn, damaged, cracked, or missing to restore proper ventilation.

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Restores proper tension to your dryer's lint screen door for smooth opening and closing. Replace if the cover is loose or won't stay closed securely.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Front interior panel that supports the drum and directs airflow. Replace if worn, cracked, or causing drum misalignment. Confirm fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Houses and secures the lint filter in your dryer. Replace if cracked, warped, or broken to prevent lint bypass and maintain airflow. Verify fit by model.

Replace a worn or damaged dryer drum that's causing noise, poor tumbling, or clothing snags. Sheet metal construction holds laundry during cycles.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

Dryer lint screen door provides access to the lint filter. Replace if cracked, broken, or won't close properly. Verify fit with your model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

This internal-bias thermostat controls exhaust temperature in your dryer, cycling the heat on and off to maintain proper drying temperatures. Replacing a failed thermostat can restore consistent drying performance and help protect the dryer from overheating shutdowns.

• Monitors exhaust air temperature and opens/closes the heating circuit to regulate heat
• Provides the bias function used by automatic cycles for correct temperature control
• Failure symptoms can include no heat or low heat, long dry times, overheating or high-limit trips, and inconsistent cycling temperatures
• Helps prevent thermal cutoffs caused by restricted airflow or faulty temperature regulation

• Disconnect power before servicing; for gas models, also shut off the gas supply
• Access location is typically on the blower/exhaust housing; note wire positions and transfer one at a time
• Ensure the thermostat mounts flush for proper sensing; tighten screws securely
• After replacement, verify good airflow and clear venting to prevent repeat failures

Blower housing assembly that directs airflow from the drum to the exhaust vent. Replace if cracked, damaged, or causing excessive noise in your dryer.

This replacement burner funnel directs and contains the flame and heat from a gas cooktop burner for proper combustion and more consistent heating. It restores correct burner alignment and helps prevent uneven flames and cooking performance. What it does:

• Positions the burner head and ports to promote even flame pattern and reliable ignition
• Channels heat and combustion upward for stable cooking performance
• Helps contain spills and drips away from internal burner components
• Reduces sputtering or partial flames when damaged or misaligned

• One replacement burner funnel

• Turn off gas supply and electrical power to the appliance before beginning work
• Remove burner cap and burner head; lift old funnel out and set new funnel into place—no special tools typically required
• Do not force the part; ensure proper seating and alignment before reassembling burner components

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Dryer won't heat or shuts off early? The high limit thermostat monitors temperature and cuts power when overheating occurs. DIY repair in 30 minutes.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Encloses the blower wheel and seals the housing for efficient airflow. Replace if cracked, broken, or missing to restore proper air movement.

Replaces a cracked, broken, or missing dryer drum baffle. Installs inside the drum to lift and tumble clothes during the drying cycle. Easy repair.

This front drum bulkhead is the stationary front panel that supports the dryer drum and seals the drum opening to maintain proper airflow and drum alignment for reliable drying performance. What it does:

• Provides a mounting surface and seal for the front of the dryer drum to help maintain correct drum alignment
• Directs airflow from the drum into the exhaust plenum for consistent drying
• Reduces rubbing and wear on the drum edge and front roller or glide surfaces
• Can help stop visible grinding, scraping or excess vibration when worn or cracked

• One front drum bulkhead

• Turn off power and disconnect the dryer before beginning service
• Handle plastic parts carefully to avoid cracking; check surrounding seals and rollers during replacement
• Some models require removal of the front panel and drum for access; keep fasteners organized for reassembly

Plastic grille that covers and secures the lint screen in your dryer. Replace if cracked, broken, or damaged from regular use or impact.

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

Seals the joint between the lint screen housing and blower assembly. Replace when worn to prevent lint buildup in cabinet. Confirm fit by model number.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.
