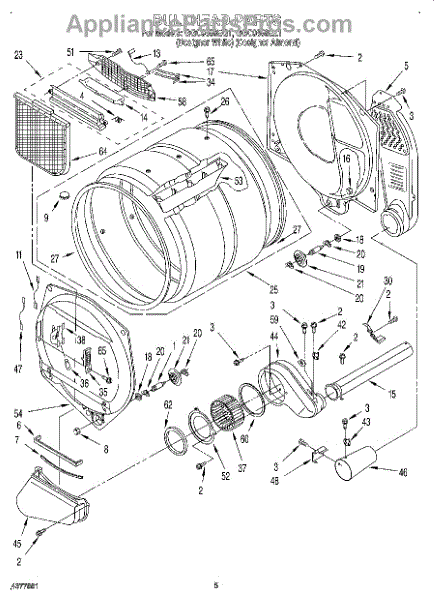

Parts for Whirlpool GGC9858EQ1: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Restore smooth operation of your dryer's lint screen cover with this lint screen door spring. It provides the correct tension so the cover opens and closes properly and the lint screen seats securely for reliable lint collection.

• Applies spring tension to the lint screen door/cover hinge
• Helps the lint screen and cover stay properly positioned
• A worn or broken spring may cause the cover to feel loose, pop open, or not stay closed
• May make inserting or removing the lint screen difficult

• Disconnect power; for gas dryers, also shut off gas supply
• Access the lint screen door area per your model's service information
• Note the original spring orientation; transfer the new spring carefully using needle-nose pliers
• Check cover operation and lint screen seating before restoring power

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

The Lint Screen Door is an OEM part for Whirlpool dryers. It is located at the front of the dryer and provides easy access to the lint screen. It helps to trap lint and debris from the drying process, preventing it from entering the dryer vent and potentially causing clogs or fire hazards.

Causes of a faulty or damaged lint screen door can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as difficulty in opening or closing the door, a loose or insecure fit, or reduced effectiveness in capturing lint.

Symptoms of a bad lint screen door may include:

• Difficulty in opening or closing the door
• Loose or wobbly door fit
• Lint bypassing the lint screen and accumulating in the dryer vent

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This out exhaust pipe directs a dryer's exhaust airflow from the appliance to the home vent, helping remove moisture and lint from the dryer cabinet. Durable replacement for worn or damaged exhaust tubing. What it does:

• Channels hot, moist air from the dryer to the external vent to prevent moisture buildup
• Helps maintain proper airflow for efficient drying and reduces lint accumulation inside the cabinet
• Replaces cracked, crushed, or disconnected exhaust connections that cause poor venting or air leaks
• Works as a direct-fit plumbing piece when original exhaust piping is damaged

• One out exhaust pipe

• Disconnect power to the appliance before installing; for gas dryers, turn off gas supply and pilot per manufacturer instructions
• Ensure the pipe fits securely to the dryer outlet and the wall vent; use manufacturer-recommended clamps or fasteners
• Inspect and clean the vent path and lint screen while replacing the pipe to ensure safe airflow

This bulkhead is the front interior panel that supports the drum and helps direct dryer airflow for efficient tumbling and exhaust. It restores proper drum alignment and airflow when the original panel is worn or damaged. What it does:

• Provides a stable mounting surface for the drum and front bearing/glide assembly
• Helps channel air from the drum to the exhaust path for consistent drying
• Prevents drum wobble and rubbing that can cause noise or fabric wear
• Reduces air leaks and hot spots that can extend dry times or trigger heat issues

• One bulkhead panel

• Disconnect power and venting before beginning any repair
• Removing the front panel and drum is typically required to access and replace the bulkhead
• Inspect drum seals, rollers, and bearings while the dryer is open; replace any worn components
• Use appropriate tools and follow OEM instructions.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Lint Screen Housing is an OEM part for Whirlpool dryers. This part holds the lint screen in place, ensuring that lint is effectively captured during the drying cycle. This housing helps maintain dryer efficiency by preventing lint from entering the exhaust system, which can cause blockages and reduce performance.

Causes of a bad lint screen housing can include frequent use, accidental impacts, or heat-related degradation over time.

Symptoms of a bad lint screen housing include:

• Difficulty fitting the lint screen securely
• Lint escaping into the dryer drum or exhaust system
• Visible cracks or breaks in the housing
• Reduced drying efficiency and longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement dryer drum that holds and tumbles laundry so air circulates evenly for efficient drying. Restores a smooth rotating drum surface to prevent fabric damage and improve drying performance. What it does:

• Houses and tumbles clothes while allowing heated air to pass through the load.
• Replaces a dented, cracked or scored drum that can catch or abrade fabric.
• Stops metal-on-metal scraping or grinding noises caused by a damaged drum surface.
• Helps eliminate uneven drying caused by a misshapen or warped drum.

• One replacement drum.

• Disconnect power (and gas supply for gas models) before starting any repair.
• Drum removal usually requires loosening the front panel and supporting the drum; consider a second person—the drum is heavy and awkward.
• Inspect and replace related components if worn to prevent repeat failures.
• Test-run the dryer after installation to ensure smooth rotation and proper clearance.

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

The Moisture Sensor Bar is an OEM replacement part for Whirlpool dryers. It is a component located inside the dryer drum that senses the moisture level of clothes during tumble drying cycles. The moisture sensor bar utilizes sensors or probes to gauge how dry clothes are getting and signals the dryer to shut off once clothes reach the desired dryness level selected by the user.

Symptoms of a bad moisture sensor bar include:

• Dryer failing to shut off automatically at the end of cycles, leaving clothes over-dried
• Cycles taking excessively long to complete
• Dryer not sensing moisture levels properly to allow automatic ending of cycles

Causes of a faulty moisture sensor bar are usually due to normal wear and tear over time. Dust or lint buildup can also affect its ability to provide accurate readings.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is essential in the dryer's air system, as it is responsible for moving air through the drum and out the vent. The blower wheel works by pulling air over the heating element, circulating it through the clothes, and expelling the moist air outside, which assists in the efficient drying of laundry.

Symptoms of a failing Blower Wheel include:

• Reduced airflow, resulting in clothes not drying properly or increased drying times
• Unusual noises like rattling or thumping, suggesting the wheel may be loose or damaged
• Excessive vibration of the dryer, especially if the blower wheel is unbalanced
• The dryer overheating due to restricted airflow if the wheel is clogged or malfunctioning

Causes of a bad blower wheel typically involve objects getting caught in the wheel, lint build-up that unbalances the wheel, or wear and tear that leads to the wheel's fins breaking or deforming.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Dryer Cycling Thermostat is an OEM replacement part for Whirlpool dryers. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results.

Symptoms of a bad cycling thermostat include:

• The dryer not heating or heating inconsistently
• Frequent trips of the circuit breaker
• Slower than normal drying times
• Burned clothes due to overheating

Causes of failure may be related to normal wear over time, dust buildup affecting sensor readings, or incorrect thermostat calibration.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The High Limit Thermostat Kit is an OEM replacement part for Whirlpool dryers. This kit includes a thermostat that is designed to prevent the dryer from overheating by monitoring the temperature inside the dryer drum. If the temperature exceeds a safe level, the high limit thermostat cuts off power to the heating element, ensuring the appliance operates within safe parameters and protecting it from potential damage.

Over time, the high limit thermostat can wear out or fail due to repeated cycling and exposure to high temperatures. Electrical surges, buildup of lint and debris, or faulty wiring can also cause the thermostat to malfunction, potentially leading to overheating or inadequate drying performance.

Symptoms of a bad high limit thermostat include:

• The dryer not heating or only producing intermittent heat
• The dryer shutting off unexpectedly during a cycle
• Clothes taking longer than usual to dry
• The dryer running excessively hot or not hot enough
• Error codes related to temperature issues appearing on the display panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This blower housing directs dryer airflow from the drum to the exhaust for proper ventilation and consistent drying performance. It replaces a cracked or damaged housing to restore airflow and reduce noise. What it does:

• Channels heated air from the drum to the exhaust vent to maintain drying efficiency
• Helps support the blower wheel and keeps the wheel aligned for smooth operation
• Commonly replaced for reduced airflow, longer dry times, or unusual noise from the rear of the dryer
• Can prevent overheating caused by restricted or leaking airflow

• Disconnect power (and gas supply if applicable) before beginning repair
• Handle edges carefully; wear gloves to avoid cuts and protect the blower wheel
• Reassemble panels and test dryer on a short cycle to confirm airflow and quiet operation

This replacement burner funnel directs and contains the flame and heat from a gas cooktop burner for proper combustion and more consistent heating. It restores correct burner alignment and helps prevent uneven flames and cooking performance. What it does:

• Positions the burner head and ports to promote even flame pattern and reliable ignition
• Channels heat and combustion upward for stable cooking performance
• Helps contain spills and drips away from internal burner components
• Reduces sputtering or partial flames when damaged or misaligned

• One replacement burner funnel

• Turn off gas supply and electrical power to the appliance before beginning work
• Remove burner cap and burner head; lift old funnel out and set new funnel into place—no special tools typically required
• Do not force the part; ensure proper seating and alignment before reassembling burner components

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dryer blower cover encloses the blower wheel and seals the housing so air moves efficiently from the lint screen to the exhaust. Replacing a cracked or missing cover restores airflow for consistent drying performance and helps keep lint contained.

• Covers the blower wheel and seals the blower housing
• Directs air from the lint screen through the exhaust duct
• Helps maintain proper airflow and drying performance
• Damage or gaps may cause reduced airflow, longer dry times, vibration/noise, or lint leaking inside the cabinet

• Unplug dryer and let components cool before servicing
• Access the blower housing; front or rear access varies by model
• Clean lint from housing and ducts; inspect the blower wheel and any gasket/seal
• Seat cover squarely and tighten fasteners evenly; verify the blower turns freely and no air leaks are present

This drum baffle restores proper tumbling by lifting and separating laundry as the dryer drum rotates. It helps improve drying performance and reduces garment bunching. What it does:

• Lifts and tumbles clothes so air flows more evenly through the load
• Helps prevent garments from clumping or wrapping around the drum
• Can reduce rubbing, thumping, or scraping noises caused by a loose or damaged lifter
• Restores consistent drum contact and improves drying efficiency

• Disconnect power before starting any repair to avoid shock or injury
• Access typically requires opening the dryer cabinet or front panel; small tools may be needed
• Align the baffle with factory mounting holes and secure with existing fasteners; use correct screws if replacements are required
• Inspect and replace worn drum or support parts as needed for reliable operation

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gasket fits between the dishwasher's transition duct and its cover plate. It creates a tight barrier that helps keep wash water and steam contained, protecting the door cavity from moisture intrusion.

• Seals the joint between the transition duct and cover plate in the inner door vent path
• Helps prevent water or steam leakage from the vent area
• Replace if the seal is torn, deformed, brittle, missing, or leaking around the vent

• Disconnect power and turn off the water supply before servicing
• Remove the outer door panel to access the transition duct and cover plate
• Note the seal's orientation, remove the old gasket, and clean mating surfaces
• Seat the new seal evenly and reassemble; test a short cycle to check for leaks

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
