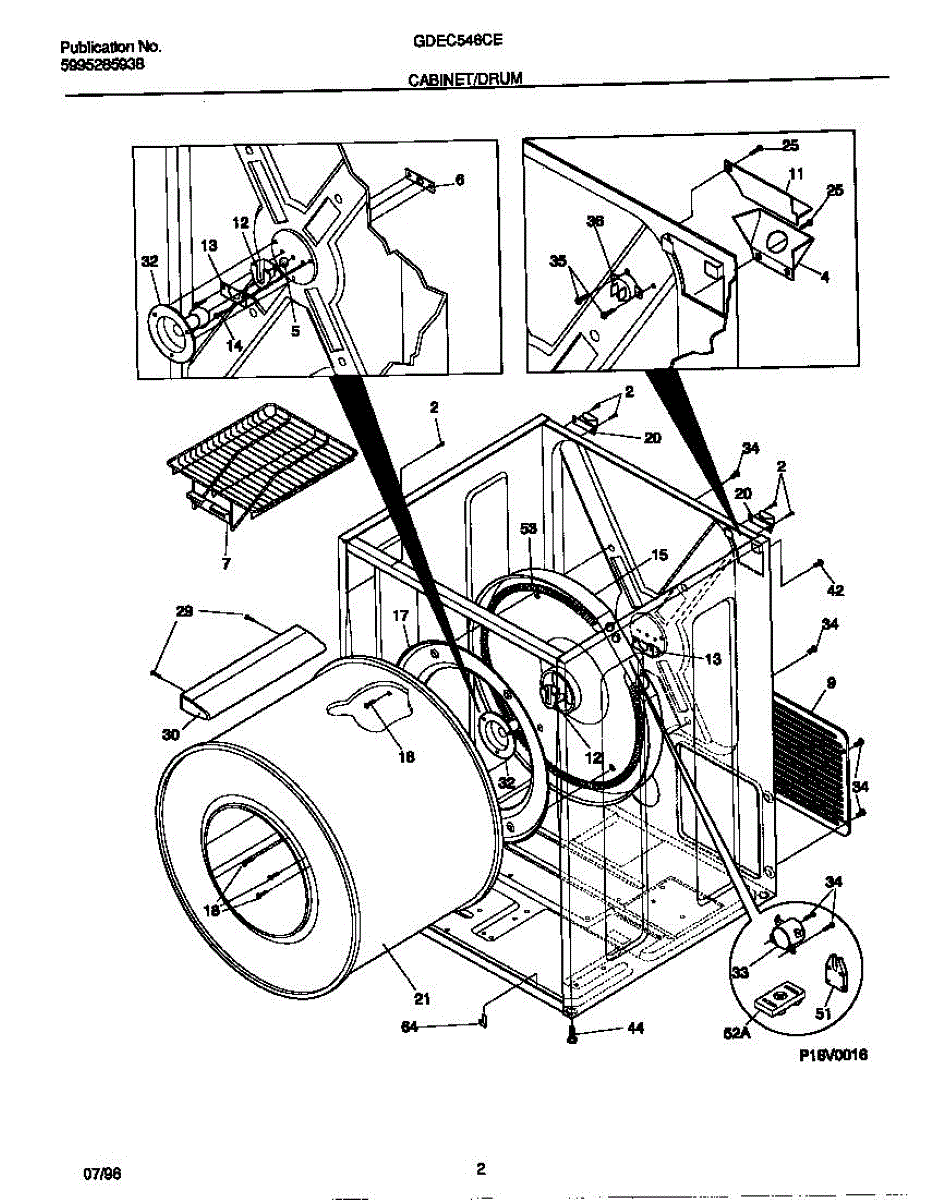

Parts for Frigidaire GDEC546CES0: 02 - Cabinet / Drum Parts

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Ball is an OEM part for Frigidaire dryers. This part helps the drum to rotate smoothly and evenly. It provides a stable and low-friction contact point, allowing the drum to turn efficiently during drying cycles. This is a drum-bearing ball only. For a complete drum bearing and shaft kit order 5303281153.

Causes of a bad ball can include regular wear and tear, friction from continuous drum rotation, or physical damage.

Symptoms of a bad dryer ball include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming unbalanced
• Increased friction leading to higher energy consumption
• Visible wear or damage to the ball

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

For a complete drum bearing and shaft kit order 5303281153.

The Dryer Drum Bearing is an OEM part for Frigidaire dryers. It supports the dryer drum, ensuring smooth rotation during the drying cycle. This part attaches to the inside of the rear panel of the cabinet, offering support to the dryer drum.

You should replace the drum bearing if it becomes worn out or damaged. Causes of a bad drum bearing can include normal wear and tear, overloading the dryer, or lack of lubrication.

Symptoms of a bad drum bearing include:

• Loud squeaking or grinding noises during operation
• The drum not turning smoothly or becoming misaligned
• Increased friction causing overheating or burning smells
• The dryer not tumbling clothes properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drum Bearing Bracket is an OEM replacement part for Frigidaire dryers. It holds and supports the drum bearing, which allows the dryer drum to spin smoothly during the tumbling and drying cycle.

Causes of failure can be cracking or breaking of the bracket over time due to constant use and stress. Improper installation that puts strain on the bracket may also lead to issues.

Symptoms of a bad drum bearing bracket include:

• Excessive vibration or shaking during operation
• Loud grinding or scraping noises
• The dryer drum not spinning properly or at all
• Premature wear of the drum bearing

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

A replacement bracket screw used to fasten internal brackets and panels to the appliance frame, restoring secure mounting and reducing rattling or misalignment caused by stripped, corroded, or missing fasteners. What it does

• Secures mounting brackets, panels or trim to the appliance chassis.
• Restores proper alignment and prevents movement or vibration-related noise.
• Use when the original screw is stripped, rusted, broken, or missing.
• Square-drive head provides a reliable engagement for positive tightening.

• Disconnect power to the appliance before servicing to avoid electrical hazard.
• Use the correct square (Robertson) driver to avoid cam-out and head damage.
• Tighten until snug; avoid over-tightening which can strip threads or crack panels.
• If threads are damaged, replace with the matching screw size and type or repair threads before reuse.

The Heating Element Assembly is an OEM replacement part for Frigidaire dryers that is responsible for generating the heat necessary for drying clothes. This assembly converts electrical energy into heat and creates the warm air that circulates within the drum to dry clothes efficiently.

Symptoms of a bad Dryer Heating Element Assembly include:
Clothes remain damp after a full drying cycle.
The dryer takes longer than usual to dry clothes.
No heat is produced, resulting in cold air circulating within the drum.

Causes of failure can include overuse, a surge in electrical power, or lint buildup causing overheating and damage to the components.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Includes rear housing with the element and insulators already attached. For the element only order 5300622034. For the insulators order 131472100.

This heater baffle mounts near the heating element to deflect and distribute radiant heat. It helps protect nearby surfaces and wiring while promoting more even temperatures and reliable performance inside the appliance.

• Directs and diffuses heat from the element to reduce hot spots
• Acts as a heat shield to protect the liner and adjacent components from direct radiant heat
• Helps maintain proper clearance and airflow around the element
• Damage or a missing baffle can lead to uneven temperatures, localized discoloration/scorching, or a burning smell

• Disconnect power at the breaker or unplug the appliance; allow it to cool completely
• Access the heater area; remove the screws or clips securing the existing baffle and retain the hardware
• Position the new baffle in the same orientation; ensure it does not contact the heating element
• Restore power and test operation

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This replacement screw secures appliance panels and components to restore proper fit and reduce movement. It's a simple, direct fix when small fasteners are missing, worn, or stripped and panels sit loose or rattle. What it does:

• Secures trim, panels, or internal components to keep parts aligned
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or damaged screws that prevent proper panel attachment
• Restores a safe, snug fit for covers and access panels

• Disconnect power or fuel supply before accessing the appliance for safety.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent damage to threads or housing.
• Keep small parts away from children and pets during installation.

The Rear Drum Support Shaft is an OEM part for Frigidaire dryers, specifically designed to ensure the stability and smooth rotation of the dryer drum. This component plays a pivotal role in the dryer's operation by supporting the rear of the drum, allowing it to turn evenly and quietly during cycles. Note: The rear drum bearing kit is 5303281153.

The causes behind these issues often stem from normal wear and tear, excessive loads that strain the dryer's components, or lack of regular maintenance. Over time, the support shaft can wear down, become loose, or even corrode, leading to operational inefficiencies and potential damage to the dryer.

Symptoms of a failing Rear Drum Support Shaft include:

• Unusual noises, such as thumping or squeaking, during operation
• The dryer drum struggling to rotate or not rotating at all
• Increased wear on other components, such as the belt or motor, due to improper drum alignment

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Thermal Limiter is an OEM part for Frigidaire dryers. It acts as a safety feature, designed to prevent the dryer from overheating by shutting down the appliance when the internal temperature exceeds safe limits.

Symptoms of a failing Thermal Limiter include:

• The dryer failing to start or stopping abruptly during a cycle
• No heat being generated while the dryer is running
• The dryer overheating or feeling excessively hot

Common causes for a bad thermal limiter include restricted airflow due to a clogged lint filter or venting system, component failure from age or faulty manufacturing, and unusually high operating temperatures from overloading the dryer or mechanical failures elsewhere in the system. When a thermal limiter trips or fails, it must be replaced to restore functionality to the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

Sold individually.

Ceramic dryer heating element housing insulator.

Ceramic dryer heating element terminal block.

Terminal Size: 1/4 inch. For the 5/16 inch terminal size order 5300622034. This electric dryer heating element restring coil does not include the heater housing insulators 131472100 or the terminal block 3202786.

The Rear Drum Bearing Kit is an OEM replacement part for Frigidaire dryers. It contains a set of parts responsible for supporting the rear end of the dryer drum, allowing it to rotate smoothly and efficiently during the drying cycle.

Symptoms of a faulty Rear Drum Bearing Kit include:

• Excessive noise or grinding sounds coming from the rear of the dryer
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear or damage on the existing bearings
• Increased vibrations or shaking during the drying cycle

Causes of needing to replace the rear drum bearing kit can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryer models.

NOTE: The metal plate holes are not threaded. Use the self-tapping screws provided in the kit to thread the plate.
