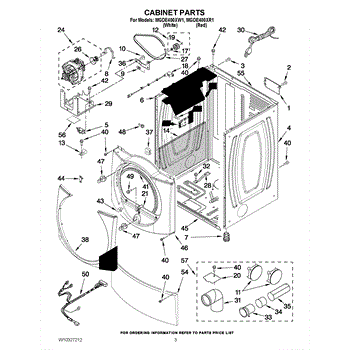

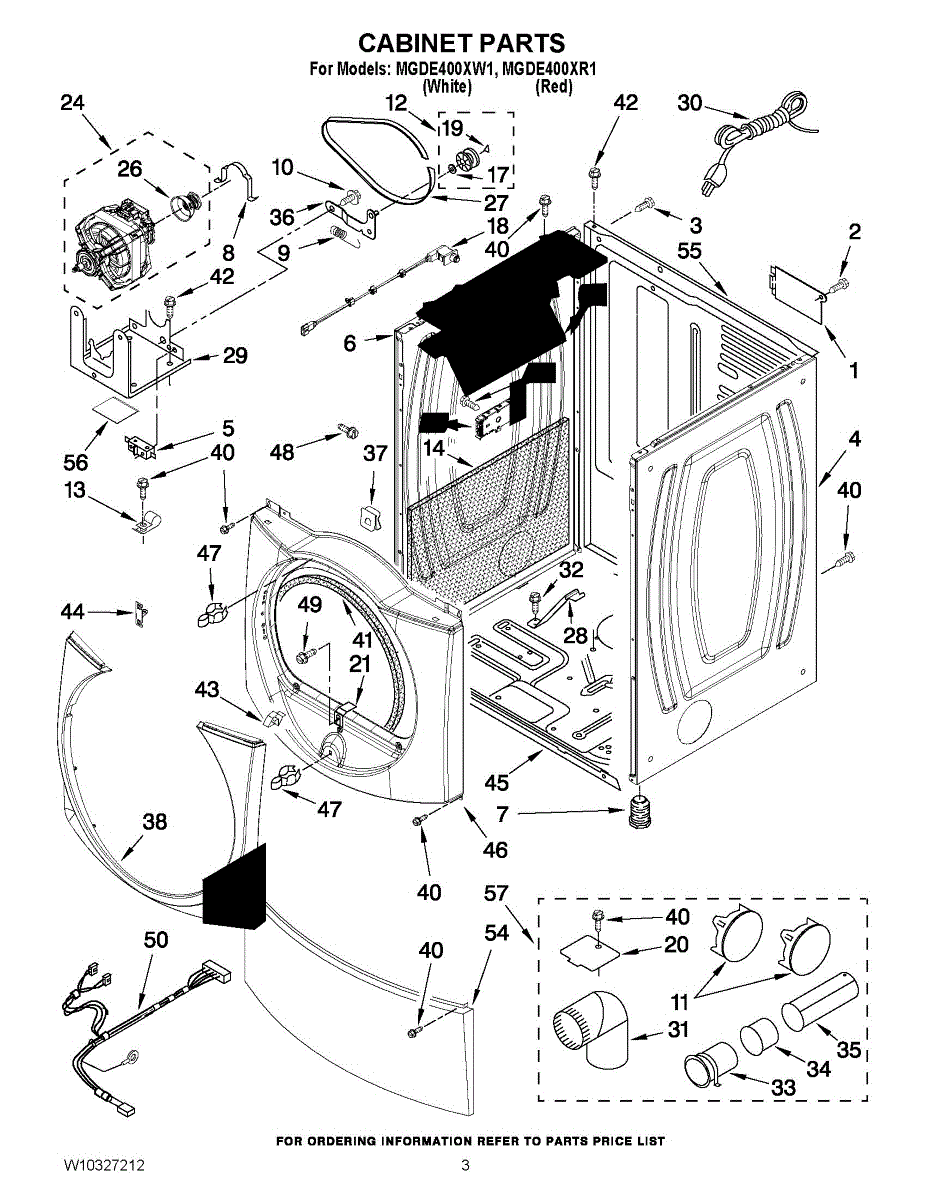

Parts for Maytag MGDE400XW1: 02 - Cabinet Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

Color: White

This broken belt switch monitors drive belt tension and cuts power to the motor if the belt snaps or slips. Replacing a faulty switch restores proper start/run operation and maintains the dryer's built-in safety shutoff. What it does:

• Monitors belt tension through the idler mechanism
• Opens the motor circuit if the belt is broken or loses tension
• Helps prevent the motor from running when the drum isn't turning
• Failure symptoms include: dryer won't start, stops soon after pressing Start, or no motor sound while controls have power

• Includes 1 broken belt switch

• Disconnect power; turn off gas supply for gas models
• Access the switch near the belt/idler area; many models require removing the front panel and drum
• Note wire locations; move connectors to the new switch and secure in the original orientation
• Inspect belt and idler for wear; ensure correct belt routing/tension before reassembly

Color: White

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

The Idler Pulley is an OEM replacement part for Whirlpool dryers. This essential component plays a crucial role in the drum drive system, helping to guide and maintain proper tension on the dryer belt.

Causes of a faulty idler pulley in a dryer can include normal wear and tear over time, improper belt tensioning leading to bearing failure, or physical damage from impact or debris buildup.

Symptoms of needing to replace the idler pulley include:

• Squeaking or grinding noises from the driveability area
• The dryer drum not spinning or rotating properly
• Excessive vibration or shaking during the dryer cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This replacement washer is a small hardware component used in appliance assemblies to provide a stable bearing surface and proper spacing. Replacing a worn or missing washer helps maintain alignment, reduce vibration, and protect mating parts from damage.

• Distributes load under a nut, bolt, pin, or shaft to protect mating surfaces
• Maintains correct spacing and alignment within stacked components
• Helps reduce friction, vibration, and noise in moving assemblies
• Worn or missing washers can contribute to looseness, wobble, rattling, or premature wear

• Disconnect power and shut off gas/water before servicing
• Note the original order and orientation of parts during disassembly
• Inspect fasteners, shafts, and bushings; replace any that show wear or damage
• Tighten fasteners securely per the service manual; do not overtighten

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is responsible for turning the drum and the blower wheel, which allows for effective drying and air circulation within the dryer.

Over time, the drive motor can wear out or fail due to mechanical stress, electrical issues, or general wear from regular use. Causes of a bad drive motor include motor burnout, worn bearings, or issues with the electrical connections.

Symptoms of a bad dryer drive motor include:

• The dryer drum not spinning
• The dryer making unusual noises such as humming, buzzing, or grinding
• The dryer starting but then stopping shortly after
• A burning smell coming from the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool Motor Pulley is an OEM part for Whirlpool clothes dryers. It is the component located on the dryer drum motor that transmits power to spin the dryer cylinder and tumble clothes during operation. It allows the belt to grip effectively for transmission of torque from the motor.

Symptoms of a bad Motor Pulley include:

• The dryer drum failing to spin and tumble clothes during cycles
• Abnormal squealing, grinding or belt slipping noises from inside the dryer
• Minimal air flow and prolonged drying times

Causes of failure can include cracks or deterioration of the pulley edge from prolonged use, the belt wearing grooves into the pulley, or loose mounting bolts allowing wobbling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM part for Whirlpool dryers, engineered to connect the dryer drum to the motor, allowing it to turn. This component is essential for the proper operation of your dryer, ensuring clothes are dried evenly and efficiently. Made from durable materials, the drive belt is designed to withstand the constant motion and heat of the dryer, but over time, it can wear out or break, necessitating a replacement to keep your dryer running smoothly.

The primary cause of drive belt issues is wear and tear from regular use. Over time, the belt can stretch, lose its tension, or break, resulting in a drum that no longer turns. Regularly inspecting and maintaining the drive belt can help extend its life and the overall functionality of your dryer.

Symptoms of a failing Drive Belt include:

• The dryer drum not turning, even though the motor is running
• A squealing or rubbing noise coming from the dryer when it is in use
• The dryer stopping unexpectedly during a cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This exhaust pipe routes exhaust air from the appliance to the home vent, restoring proper airflow for safe, efficient operation. Use when the original pipe is cracked, bent, or leaking. What it does:

• Channels exhaust gases and lint from the appliance to the external vent
• Prevents exhaust leaks that can cause poor drying or cooking performance
• Helps maintain correct airflow to reduce overheating and moisture buildup
• Fits where a damaged or corroded exhaust connection needs replacement

• One exhaust pipe

• Disconnect power (and gas if applicable) before servicing; follow appliance safety procedures
• Inspect surrounding seals and clamps; replace clamps or ducting if damaged
• Secure pipe with OEM-recommended fasteners and ensure vent path is clear

This exhaust pipe directs heated air from the dryer drum to the household vent, restoring proper airflow for efficient drying and reduced lint buildup. It's a direct-fit replacement designed to match the OEM airflow path. What it does:

• Channels dryer exhaust from the appliance to the external vent to maintain proper airflow.
• Helps prevent lint accumulation in the cabinet by providing a sealed exhaust path.
• Can reduce long dry times and overheating caused by restricted or damaged venting.
• Addresses symptoms such as poor drying performance, hot dryer cabinet, or noticeable burning/overheating smells near the dryer vent area.

• One exhaust pipe.

• Disconnect power (and gas, if applicable) before starting work; the appliance is fully de-energized.
• Wear gloves to avoid sharp edges; remove old pipe and clean vent connections before installing the replacement.
• Secure with appropriate clamps or fasteners and ensure a continuous, unobstructed path to the exterior vent.
• After installation, run a short cycle to check for leaks.

This exhaust pipe vents hot, moist air from the dryer to the home venting system, helping the appliance dry clothes efficiently and reduce indoor humidity. Replace a damaged or restricted pipe to restore proper airflow. What it does:

• Channels dryer exhaust air safely from the appliance to the exterior vent
• Helps prevent overheating and long dry times caused by restricted airflow
• Reduces lint buildup in the appliance by providing a clear vent path
• Commonly replaced when cracked, crushed, kinked, or badly corroded

• Disconnect power to electric dryers; shut off gas supply and disconnect for gas dryers before servicing
• Inspect existing vent path for additional damage or lint buildup and clean before installing
• Position pipe without sharp bends or kinks and secure with appropriate clamps or fasteners

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

Specs: 10-16 x 1/2 inch.

This small retaining clip secures internal trim, panels, or wiring runs to keep components in place and prevent rattles or loose connections. It restores proper fit and helps maintain safe, quiet operation. What it does:

• Holds panels, trim pieces, or wiring harnesses in position to prevent movement
• Stops rattling and wear from vibration or loose parts
• Helps maintain correct alignment of surrounding components
• Useful when replacing damaged or missing fasteners during repairs

• Disconnect power to the appliance before starting any repair
• Access may require removal of trim, panels, or other parts; retain screws and fasteners
• Clip installs by snapping into a mating hole or channel; avoid forcing to prevent breakage
• Use appropriate-size trim tools to avoid scratching surrounding surfaces

This metal retaining clip secures components or trim in place within your appliance. Replacing a damaged or missing clip restores a snug fit, prevents rattles, and helps keep panels and parts properly aligned.

• Provides spring tension to hold mating parts or panels in position
• Helps maintain alignment and reduce vibration-related noise
• Restores retention when the original clip is bent, fatigued, or lost
• Typical symptoms: loose or sagging trim/panel, buzzing/rattling noises, parts not staying seated

• Disconnect power before servicing; allow hot surfaces to cool
• Wear cut-resistant gloves—clip and sheet-metal edges can be sharp
• Note the clip's orientation before removal; take a reference photo
• Use needle-nose pliers to release/install; avoid over-bending the clip

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Control Board is an OEM part for Whirlpool dryers. It controls and regulates the dryer's various functions and cycles. The control board receives input from sensors and user controls, processes this information, and sends signals to different components such as the motor, heater, and drum to execute the desired drying operations.

Causes of a bad Control Board can include power surges, electrical shorts, or simply wear and tear over time.

Symptoms of a bad Control Board include:

• The dryer not turning on or responding to user input
• Erratic behavior or error codes displayed on the control panel
• Individual components like the motor or heater not functioning properly
• Unexplained shut-offs or resets during the drying cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rear panel replaces the back cabinet cover on compatible Whirlpool dryers, protecting internal components and helping direct vent airflow. It restores a secure, finished exterior and keeps wiring and controls shielded. What it does:

• Covers and protects the dryer's internal components at the rear, including wiring and control assemblies
• Helps maintain proper venting path and airflow by providing the correct rear opening and mounting surface
• Prevents debris, pets, and accidental contact with internal parts
• Stops rattling or flexing caused by a bent or damaged back panel

• Disconnect power (and gas supply on gas models) before starting any repair
• Remove the dryer from the wall and disconnect the vent to access and replace the rear panel
• Use appropriate hand tools to remove and reinstall mounting screws; retain hardware if reusing
• Handle edges carefully to avoid cuts; secure all fasteners before returning dryer to service

Side and bottom exhaust kit.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
