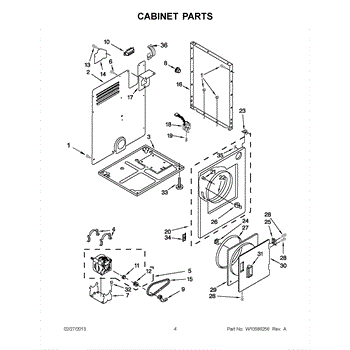

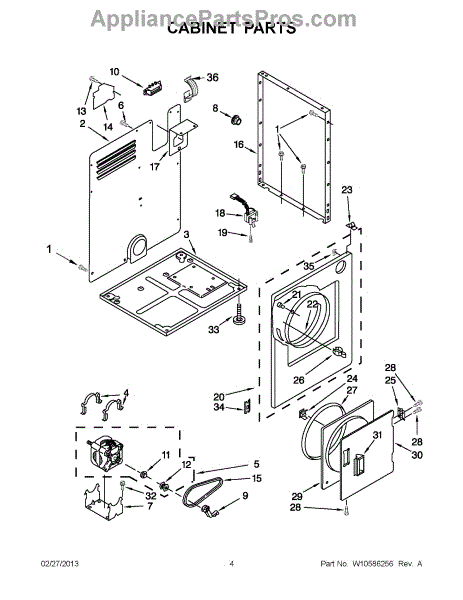

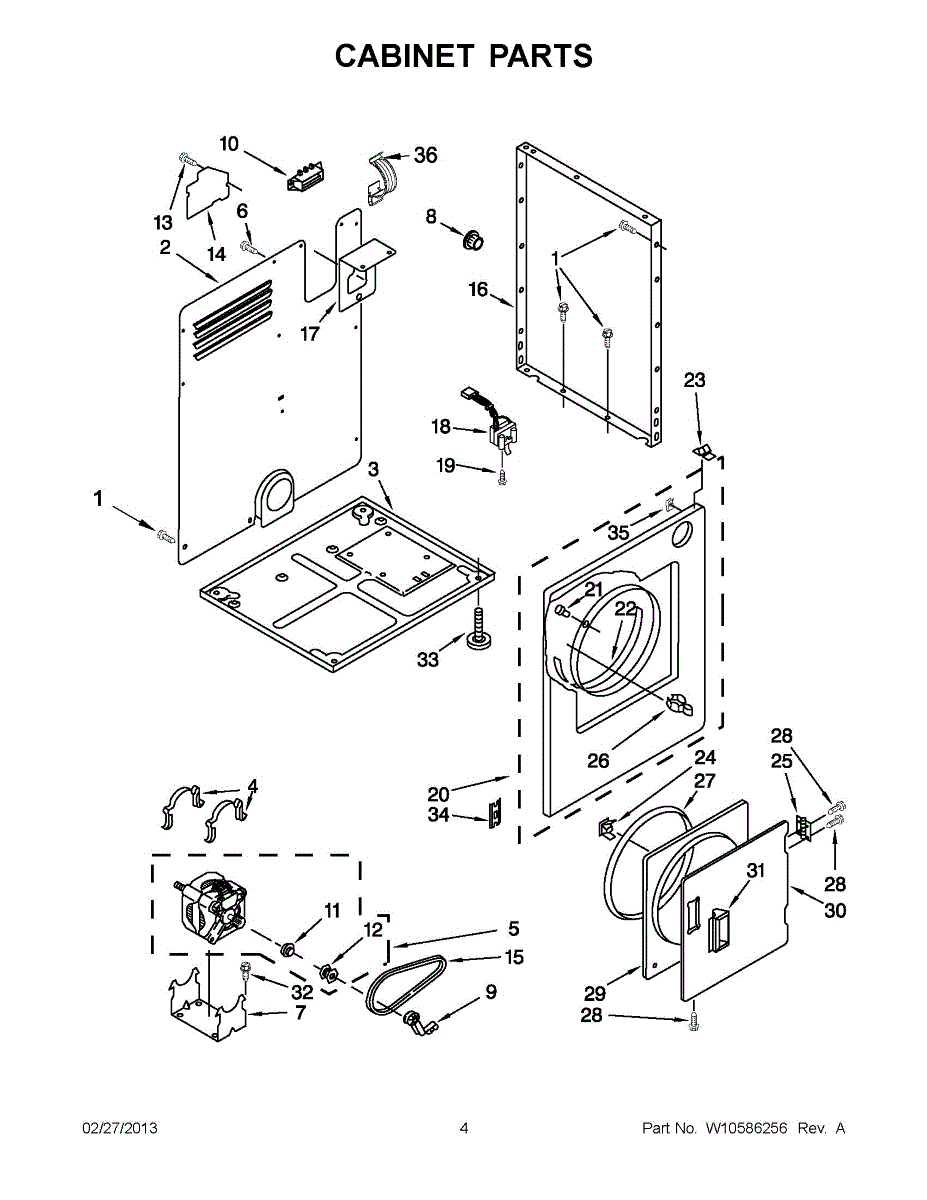

Parts for Whirlpool LER3622PQ3: 02 - Cabinet Parts

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Dryer Belt (length 79-1/8 inches) is an OEM part for Whirlpool dryers. This belt wraps around the drum, the motor pulley, and the idler pulley to enable the drum to rotate during the drying cycle. It ensures that clothes are tumbled and dried evenly. Also available in repair kit AP3109603

Over time, the dryer belt can become worn or snap due to the constant tension and friction it endures. When the belt fails, the drum will no longer spin, and the dryer will be unable to dry clothes effectively.

Symptoms of a bad dryer belt include:

• The dryer drum not turning
• A burning smell from the dryer
• Unusual noises during operation
• The dryer running but not tumbling clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Door Switch Assembly is an OEM part for Whirlpool dryers. This component is responsible for detecting when the dryer door is open to prevent the dryer from operating during this state. It ensures safety and energy efficiency by halting the drying cycle if the door is accidentally opened, preventing heat loss and potential hazards.

Causes for a malfunctioning dryer door switch assembly include physical damage from slamming the dryer door, wear and tear from regular use, or electrical issues that impair its function.

Symptoms of a bad Dryer Door Switch Assembly include:

• Dryer not starting when the door is closed
• Dryer continuing to operate when the door is opened
• The dryer starting intermittently or requiring the door to be slammed to start

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This control panel is the front user interface that holds the appliance's buttons, displays and trim, restoring a clean, functional console and the unit's finished appearance. What it does

• Replaces cracked, bent or cosmetically damaged front panels
• Houses the touchpads, buttons and display area so controls are accessible
• Helps stop loose or rattling components in the console area
• Restores a factory look when the original panel is dented or scratched

• One control panel

• Disconnect power to the appliance before starting any work
• Handle edges and clips carefully to avoid cuts or damage to adjacent parts
• Keep track of screws and mounting clips for reassembly; test controls before finishing

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

The Front Bearing and Seal Kit is an OEM replacement part for Whirlpool dryers. This kit includes the front bearing and seal for the dryer drum, which work together to provide smooth operation and prevent premature wear.

Causes of a bad front bearing and seal can include regular wear and tear from normal use, heavy loads that place extra strain on the bearings, or debris accumulation causing increased friction.

Symptoms of issues include:

• Noisy or grinding sounds coming from the drum area
• Vibration noticed during the operation
• Difficulty turning or rotating the dryer drum by hand
• Reduced efficiency and longer drying times

This OEM replacement kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This top front lock secures the front edge of a lift-up range cooktop to the cabinet frame. Replacing a worn lock restores a flush, stable fit so the cooktop stays closed during everyday cooking and cleaning.

• Locks the cooktop down to prevent unintended lifting during use or cleaning
• Maintains alignment so the front edge sits flush and stable
• Reduces vibration and rattling from a loose or misaligned top
• Common symptoms: cooktop won't latch or stay down, front gap, rattling or movement

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Lift the cooktop to access the front frame, remove the old lock, and install the new lock in the same orientation
• Secure with the original fasteners and verify the lock fully engages the mating catch
• Close the cooktop and confirm a flush, stable fit

The Female Dryer Door Catch is an OEM part for Whirlpool dryers. It secures the dryer door in the closed position during operation, ensuring that the door remains firmly shut while the dryer is running. This catch works with the male door strike to provide a reliable latching mechanism.

Common causes of a bad door catch include repeated use leading to wear and tear, physical damage, or misalignment. A faulty door catch can prevent the dryer from operating correctly and may pose a safety hazard.

Symptoms of a bad female dryer door catch include:

• The dryer door not staying closed
• The dryer not starting due to the door not latching properly
• Difficulty in opening or closing the dryer door
• Visible damage to the door catch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge pin assembly secures and guides a refrigerator or freezer door, restoring proper alignment and smooth opening. It replaces worn or bent pins so the door closes evenly and reduces rubbing or sagging. What it does:

• Acts as the pivot point for the appliance door, supporting door weight and movement
• Restores correct door alignment to improve sealing and reduce gaps
• Reduces rubbing, scraping, or uneven closing caused by a worn or bent hinge pin
• Helps prevent accelerated wear to door seals and hinge components when functioning properly

• One hinge pin assembly

• Disconnect power and remove food/contents from the door area before starting
• Support the door while removing or installing the hinge to prevent dropping or injury
• Typical installation uses basic hand tools; do not force parts—inspect mating hinge surfaces for damage

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This heat-resistant fiberglass oven door gasket seals the oven cavity perimeter, helping keep heat inside for consistent temperatures and efficient cooking. Replace a worn, frayed, or flattened seal to restore proper door sealing performance. What it does

• Forms a heat-resistant seal around the oven opening to minimize heat loss
• Helps maintain set temperature and overall cooking performance
• Can help address long preheat times, uneven baking, and hot air leaking around the door
• Replace if the gasket is frayed, brittle, compressed, or falling out of its channel

• Includes: 1 fiberglass door gasket

• Disconnect power and allow the oven to cool completely before service
• Remove the old gasket from its mounting slots or clips; clean the channel of debris
• Install the new gasket without stretching; seat it evenly around the perimeter with ends routed as originally positioned
• Close the door and check for uniform contact all around; adjust seating if needed

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This white front door panel replaces a damaged or worn exterior door and restores the appliance's appearance and sealing surface. It matches the original panel shape and finish for a factory look. What it does

• Replaces a cracked, dented, chipped or otherwise damaged front door panel
• Restores the appliance's exterior finish and helps maintain proper door alignment
• Provides the factory surface for attaching original trim, hinges and handles
• Improves appearance after impact or long-term wear

• One white front door panel

• Disconnect power and water before beginning work
• Some trim, handles or hinges may need to be transferred from the old door; inspect fasteners and hardware
• Handle panels carefully to avoid scratching the finish during installation
• Tighten fasteners to manufacturer torque specs and check door alignment after installation

This genuine replacement door handle restores a secure grip and smooth opening for your appliance door. It replaces damaged, cracked or loose handles so you can open and close the door safely and comfortably. What it does:

• Provides a firm, ergonomically-shaped grip for opening and closing the appliance door
• Replaces broken, cracked or loose handles that no longer secure properly
• Restores normal operation and reduces risk of the door slipping from your hand
• Matches OEM fit and mounting points for a direct replacement

• One replacement door handle

• Disconnect power (and water for refrigerators with dispenser) before servicing the appliance
• Remove any trim or access panels per your appliance service instructions to access mounting screws
• Align handle with mounting points, secure with original hardware; do not overtighten to avoid cracking

10 - 16 x 1/2

The Front Leveling Foot is an OEM part for Whirlpool washing machines. It is designed to support and stabilize the washer by allowing users to adjust the height and level the appliance on uneven floors. Proper leveling ensures smooth operation and minimizes vibrations and noise during wash cycles.

Causes of a bad Front Leveling Foot can include physical damage from excessive force, wear and tear from frequent adjustments, or corrosion due to exposure to water or laundry chemicals. Over time, these factors can compromise the foot’s ability to maintain stability, leading to operational issues.

Symptoms of a bad Front Leveling Foot include:

• The washing machine rocking or wobbling during operation
• Increased vibration and noise
• The washer being unlevel, affecting wash performance
• Difficulty in adjusting the foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold
