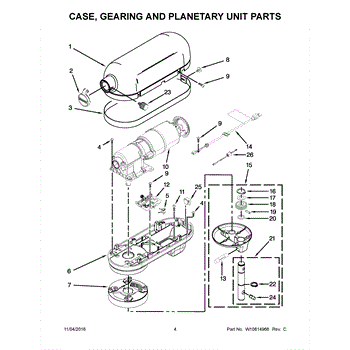

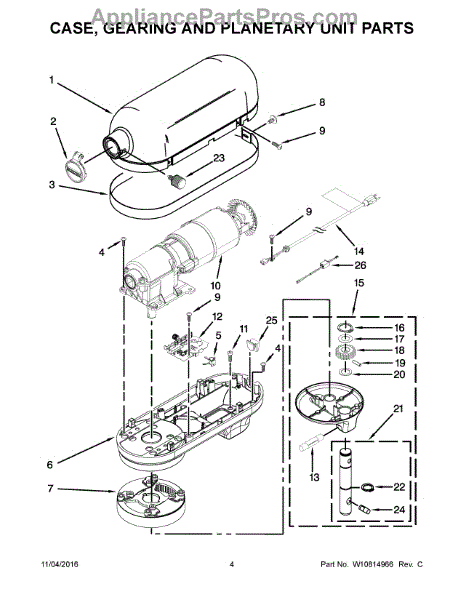

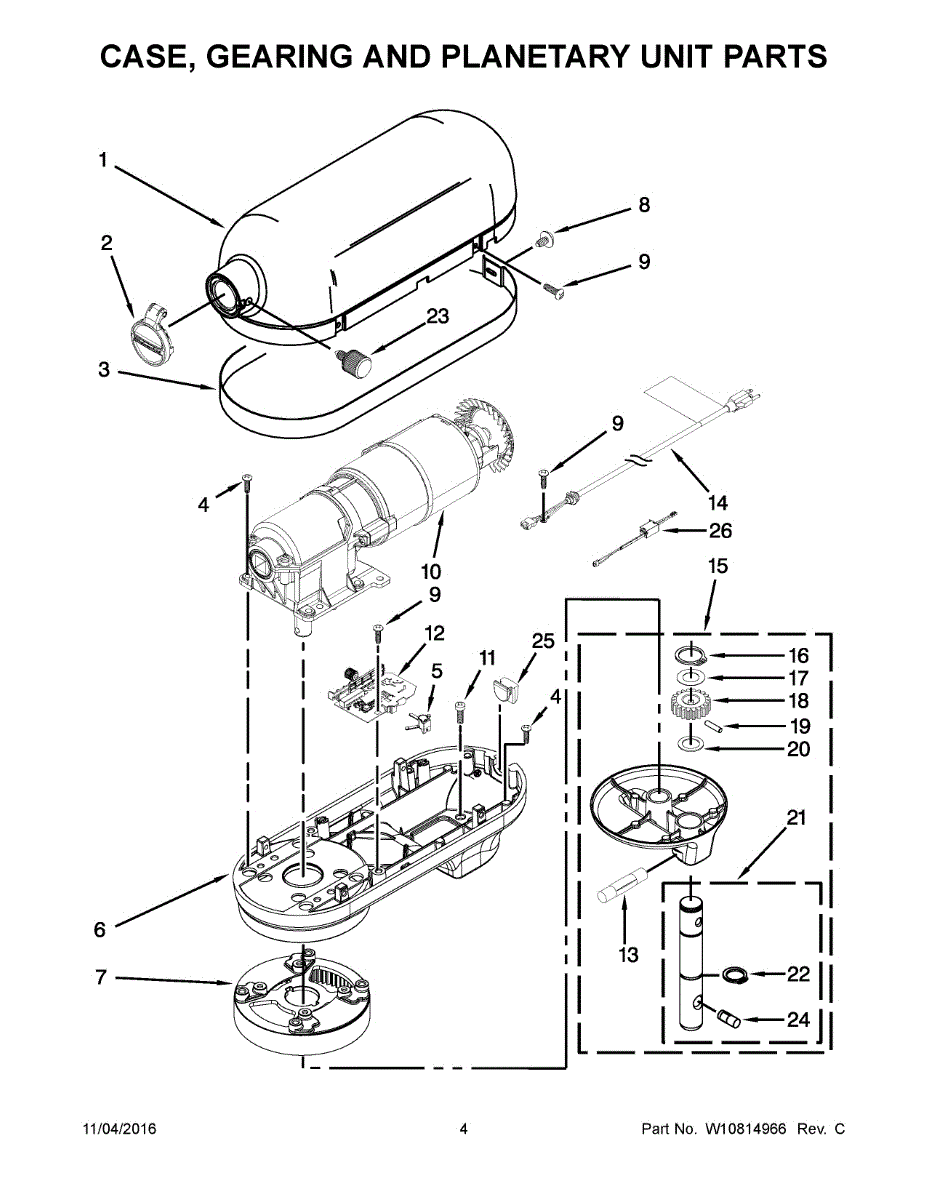

Parts for Whirlpool 5KSMC895EFP0: 03 - Case, Gearing And Planetary Unit Parts

Covers and protects the stand mixer hub for a finished look. Replace if cracked, broken, or missing to hide the hub fastener and prevent dirt buildup.

Replacement mounting screw for stand mixers. Secures internal components and housing parts. Order a new screw if yours is stripped, missing, or damaged.

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

Stand mixer won't run or makes grinding noises? This motor assembly restores full mixing power. Moderate DIY repair with proper disassembly steps.

Replacement mounting screw for stand mixer panels, brackets, and trim. Secures internal components to keep parts aligned. Replace if missing, stripped, or rusted.

Fix a mixer that won't change speeds or runs at wrong speeds with this speed control. Regulates motor voltage for proper mixing at all settings.

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

This is a snap retaining ring that holds the drum support roller in place on its shaft inside the dryer. It prevents the roller from sliding off the axle during operation. Replace this clip if the drum support roller is loose, the dryer makes thumping or rumbling noises, or if the original retaining ring is missing or damaged during a roller replacement.

Small flat washer used in KitchenAid stand mixer assemblies. Provides proper spacing and load distribution between fastened components.

Fix a stand mixer that won't turn beaters or rotates unevenly. This planetary pinion gear restores smooth rotation when teeth are worn or stripped.

Mixer makes growling noise but beater won't spin? This steel retaining pin locks drive components in place. Moderate repair; disassembly required.

This flat washer is a small hardware component used inside a stand mixer to provide spacing and reduce friction between moving parts. It helps ensure smooth operation and proper alignment of internal assemblies. Replace this washer if it becomes worn, cracked, or deformed, which can cause wobbling, unusual noises, or looseness in the mixer's mechanical components.

If your mixer beater stopped spinning or spins loosely, this agitator shaft assembly transfers motor power to turn attachments. Moderate DIY repair.

Mixer making noise or shaft loose? This retaining ring locks gears in place on the drive shaft. Moderate DIY repair with snap ring pliers required.

This is a small knurled screw used to secure components on a stand mixer. The knurled design allows for hand-tightening without the need for tools. Replace this screw if it is stripped, corroded, or missing, which can cause parts to become loose during operation.

If your stand mixer components are loose or misaligned, this grooved retaining pin secures parts together for smooth, quiet operation. Easy fix.

This small replacement clip secures appliance components and helps keep wiring and trim fastened so panels stay flush and parts stay in position. It restores proper fit and reduces rattles or loose pieces. What it does:

• Holds wiring, hoses or trim in place to prevent rubbing or pinching
• Keeps panels and covers aligned to reduce noise and vibration
• Prevents connectors and small parts from shifting during operation
• Helps maintain safe routing of wires and hoses

• Disconnect power (and water if applicable) before starting any repair
• Remove any trim or access panels that block the clip location
• Use needle-nose pliers or a flat screwdriver to remove the old clip and press the new clip into place
• Inspect surrounding harnesses and fasteners for wear while installing
