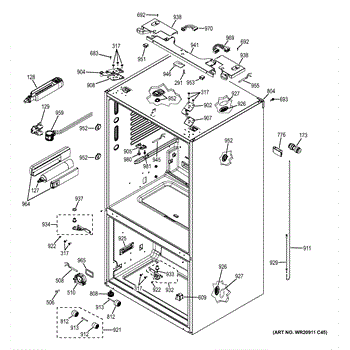

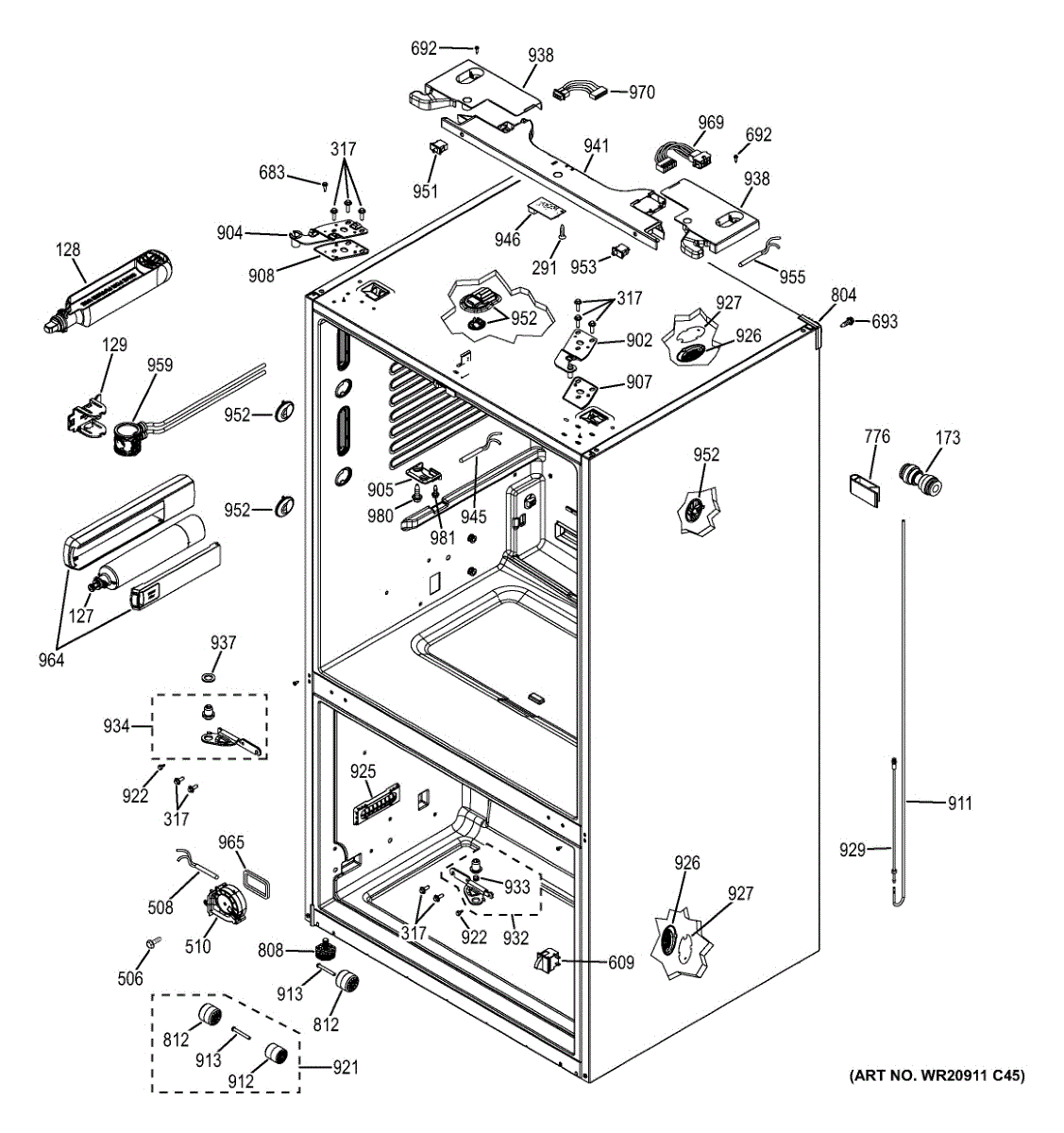

Parts for Ge PFE28RSHCSS: Case Parts

The Water Filter Bypass Plug is an OEM part for GE refrigerators. It allows the refrigerator to operate without a water filter by creating a direct connection for the water flow.

Causes of a bad Water Filter Bypass Plug can include wear and tear from regular use, damage from improper installation or removal, and degradation of the sealing components that ensure a tight fit.

Symptoms of a bad Water Filter Bypass Plug include:

• Water leaks from the filter housing
• Reduced or no water flow to the dispenser or ice maker
• Error messages related to the water filter on the control panel
• Improper fit or difficulty in installing the bypass plug

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 1/4-20 hex washer head screw secures panels and components in place, restoring proper fit and eliminating movement. It fits common appliance assemblies that use a 7/8" long, 1/4-20 threaded fastener. What it does:

• Fastens panels, brackets, and assemblies that use a 1/4-20 thread
• Restores secure fit when original screw is missing, stripped, or loose
• Helps stop rattling, vibration, and misalignment caused by loose hardware
• Matches common OEM head style for tool-ready installation with a socket or wrench

• Disconnect power to the appliance before servicing where applicable
• Use the correct 1/4-20 socket or wrench; install hand-tight then snug—do not overtighten
• Replace like-for-like: head style, thread size, and length before installing
• If fastener holes or threads are damaged, repair or retap before reuse

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This case corner cap is a molded corner cover that restores the finished appearance of a refrigerator cabinet and protects edges from dings and wear. It replaces a cracked, chipped or missing corner and helps keep cabinet panels aligned. What it does

• Covers and protects the cabinet/door corner from impact damage and wear
• Restores a uniform finished appearance for cosmetic repair
• Helps maintain panel alignment at the corner to reduce gaps and rubbing
• Commonly replaced when the corner is cracked, broken, loose or missing

• Disconnect power and remove food from the area before starting repairs.
• Remove any trim or fasteners securing the old cap; install the replacement by snapping or fastening into place as designed.
• Avoid forcing the cap; ensure clips or tabs align to prevent damage.
• If clips or underlying trim are damaged, replace those parts as needed for a secure fit.

This wheel overmold assembly replaces a worn front wheel to restore smooth drum rotation and reduce noise. It mounts to the dryer front support to help the drum roll evenly and prevent metal-on-metal wear. What it does:

• Provides a cushioned wheel surface that supports the dryer drum and improves rotation
• Reduces squeaking, scraping and grinding caused by a worn or damaged front wheel
• Helps maintain proper drum alignment for even tumbling and reduced wear on seals
• Extends the life of the front support by preventing direct metal contact

• Disconnect power before beginning repair to avoid electrical hazard
• Access the front support assembly per your dryer's service instructions; inspect adjacent rollers and glides for wear
• Fit the overmold onto the wheel hub and secure per OEM guidance; verify smooth drum rotation before reassembly
• If other support components show wear, replace them to prevent premature failure

The Mullion Striker is an OEM part for GE refrigerators responsible for securing the mullion or flipper door in place when it is closed, ensuring a tight seal and temperature inside the refrigerator.

A bad mullion striker can be caused by normal wear and tear over time, damage due to excessive force or impact, or misalignment of the mullion assembly. If you notice that the mullion door does not stay securely closed, causing a gap or allowing warm air to enter the refrigerator, it may indicate a problem with the mullion striker.

Symptoms of a bad mullion striker include:

• Difficulty in keeping the mullion door closed
• Visible gaps or improper sealing when the door is closed
• Condensation or frost buildup around the mullion area
• Unusual noises from the mullion assembly

Replace your faulty mullion striker with this genuine OEM part to restore your refrigerator. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This top hinge assembly replaces a worn or broken left-side pad hinge to restore proper door support and alignment. It's the left-side hinge used where the door meets the cabinet top for smooth opening and secure closing. What it does:

• Replaces a cracked, warped, or missing top hinge pad assembly to stop door sag and uneven gaps
• Restores proper door alignment so the door seals and closes evenly
• Reduces rubbing or catching that can occur when the hinge pad is damaged
• Helps eliminate noise from a loose or worn hinge area during opening and closing

• Disconnect power to the appliance or unplug before starting work
• Support the door while removing or installing the hinge to prevent dropping or damage
• Use the original mounting screws or OEM-recommended fasteners; torque to manufacturer guidance
• Inspect adjoining hinge hardware and door alignment after installation; adjust as needed for an even seal

This painted 8-32 x 5/8 inch screw secures trim and panels on appliances, providing a concealed, rust-resistant fastener that keeps exterior parts aligned and stable. Use it when a small painted fastener is missing or damaged. What it does

• Fastens trim, panels, and light-duty interior/exterior components
• Matches painted finish to blend with appliance surfaces
• Prevents rattling or gaps caused by missing or stripped screws
• Suitable where a 8-32 thread and ~5/8" length are specified

• Use the correct size Phillips or compatible driver to avoid cam-out
• Start threads by hand to avoid cross-threading
• Tighten snugly but avoid over-tightening to prevent stripped threads or damaged trim
• Disconnect power and move any panels/panels safely before servicing nearby components

This louver duct channels return air in the freezer to the ice maker area, helping maintain proper airflow for ice production and consistent freezer temperatures. A direct-fit replacement for the freezer ice maker return duct. What it does:

• Directs cold airflow from the freezer to the ice maker/ice bin area
• Helps prevent localized frost buildup by controlling air movement
• Supports consistent ice production and even freezer cooling
• Replaces cracked, broken or missing ducts that cause air leakage or noise

• One louver duct (ice maker return)

• Disconnect power to the appliance before servicing
• Remove freezer liner or access panels as needed to reach the duct
• Handle plastic components carefully to avoid cracking; use the OEM fasteners where required

A left-hand hinge center assembly that secures the refrigerator door at the center hinge to restore proper support and alignment. Replaces a worn or damaged hinge center to reduce door sagging and improve smooth opening. What it does:

• Provides a stable pivot point at the door's center hinge for correct alignment and support.
• Helps stop door binding, uneven gaps, and rubbing by restoring proper hinge geometry.
• Transfers load between upper and lower hinge halves so the door closes and seals correctly.
• Designed as a direct-replacement service part matching OEM fit and function.

• Support the door before starting—remove or brace the door to prevent it from falling.
• Disconnect power to the appliance if working near electrical components or the light switch.
• Remove hinge fasteners and replace with the new hinge center; tighten hardware securely but do not over-torque.
• Check door alignment and operation after installation; adjust hinge mounting as needed for an even gap.

This middle door cover is the molded interior trim piece that restores the refrigerator door's appearance and protects internal components and insulation. Replacing a damaged cover improves fit and looks without changing door function. What it does:

• Covers and protects internal door cavities, wiring and insulation behind the middle section
• Restores a secure mounting surface for door bins and shelves
• Replaces cracked, warped or cosmetically damaged trim that allows gaps or loose fittings
• Helps maintain a proper door seal by ensuring correct bin/shelf alignment

• One middle door cover (dark gray)

• Disconnect power to the appliance before servicing
• Remove door bins/shelves and any fasteners that secure the cover; keep hardware for reuse
• Align tabs and screw holes, then install using the original fasteners; do not force the part into place

The Door Light Switch is an OEM part for GE refrigerators. It is located near the top of the refrigerator compartment, and it is activated by the door's movement. When the door is opened, the switch is triggered, turning on the interior light to provide visibility. When the door is closed, the switch is released, turning off the light to conserve energy.

Causes of a faulty or damaged door light switch can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as the interior light not turning on or off properly, or the light staying illuminated even when the door is closed.

Symptoms of a bad door light switch may include:

• The interior light not turning on when the door is opened
• The interior light not turning off when the door is closed
• Inconsistent or flickering operation of the interior light

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The LED Cover is an OEM part cfor GE refrigerators. It is responsible for protecting and diffusing the light from the LED bulbs inside the refrigerator. It helps create a well-lit interior, allowing you to easily see and locate your food and beverages.

A bad LED cover can be caused by accidental damage or regular wear and tear. If the cover becomes cracked, discolored, or damaged in any way, it can affect the quality and distribution of light inside the refrigerator.

Symptoms of a bad LED cover include:

• Dim or uneven lighting inside the refrigerator.
• Flickering or intermittent illumination.
• Dark spots in certain areas of the refrigerator.
• Visible cracks or damage to the cover.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Manifold is an OEM replacement part for GE refrigerators. Its primary function is to channel and distribute water from the external water supply to the refrigerator's water dispenser and ice maker. This manifold serves as a connection point for the water filter, ensuring that water is properly filtered before reaching the dispenser and ice maker.

Causes of a bad filter manifold can include wear and tear from repeated filter changes, cracks or breaks due to impact, or leaks from deteriorated seals.

Symptoms of a bad filter manifold include:

• Leaks around the water filter area
• Reduced water flow or pressure
• The water filter not fitting securely
• Unusual tastes or odors in the filtered water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
