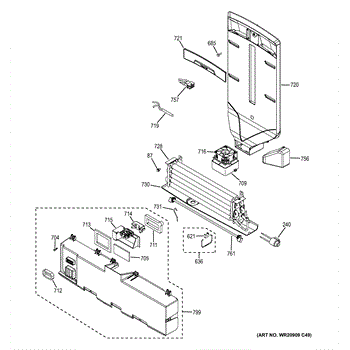

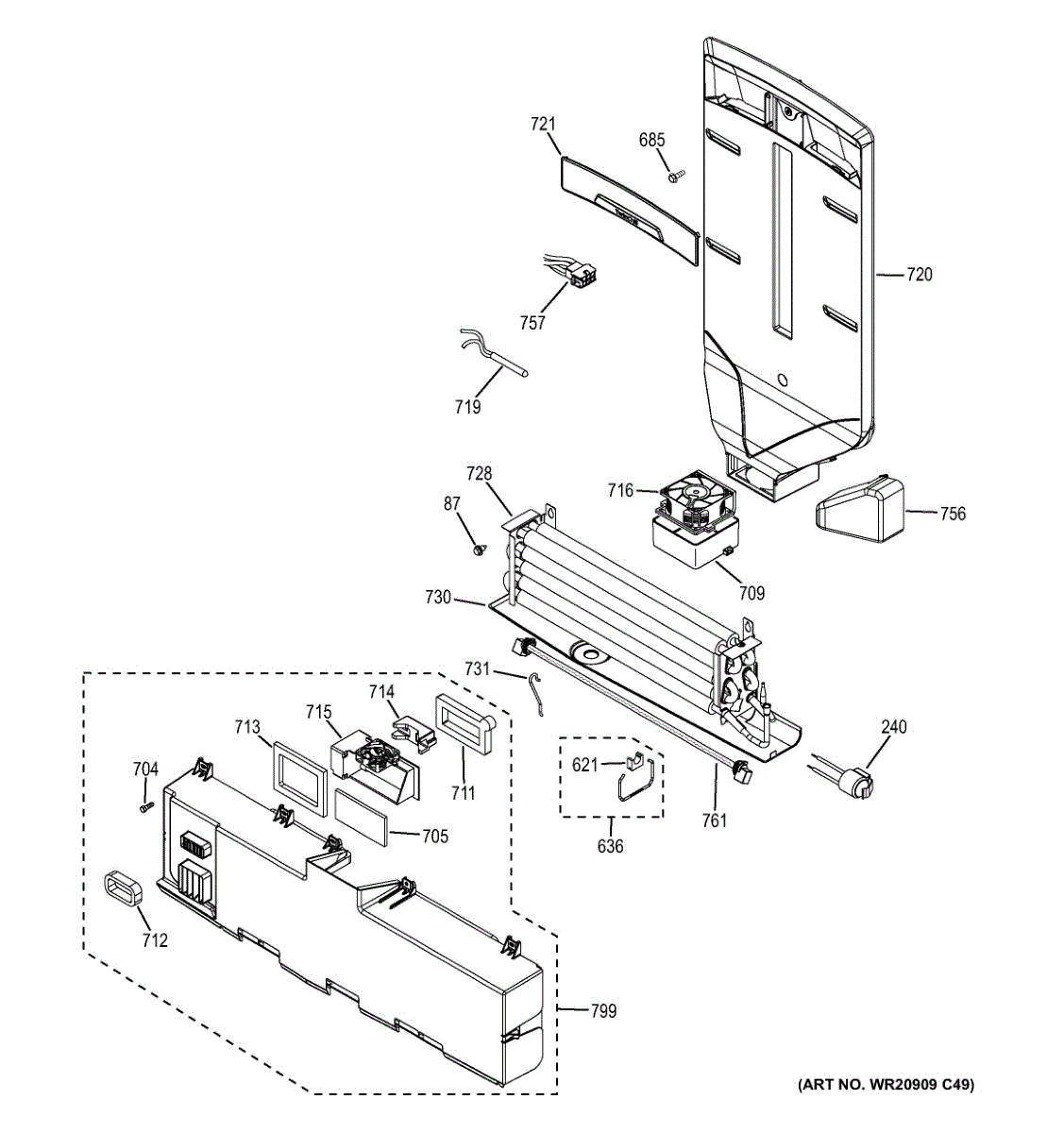

Parts for Ge PFE28RSHCSS: Fresh Food Section Parts

The Evaporator Motor Mounting Seal is an OEM part for GE refrigerators, designed to ensure a secure and airtight seal around the evaporator motor. This small but critical component helps to minimize the escape of cold air and the entry of warm air into the evaporator area, enhancing the efficiency of the refrigerator's cooling system.

Causes of a bad evaporator motor mounting seal can include deterioration over time, damage due to improper installation or handling, and wear and tear from continuous operation. A compromised seal can lead to the motor shifting or vibrating excessively, which can affect the efficiency of the cooling system and cause further damage to the motor or surrounding components.

Symptoms of a bad Evaporator Motor Mounting Seal include:

• Noticeable frost build-up in the freezer compartment
• The refrigerator or freezer section not cooling adequately
• Unusual noises due to air leakage that affects fan operation
• Increased energy consumption as the refrigerator works harder to maintain the desired temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This diverter and badge assembly replaces the dispenser diverter on compatible refrigerators, restoring proper flow direction and the finished exterior badge for the dispenser area. It helps stop leaks and stabilizes the dispenser trim. What it does:

• Directs dispenser water/ice flow through the correct outlet to prevent misdirected dispensing
• Secures the dispenser badge/trim to the appliance front for a finished appearance
• Helps stop leaks or drips caused by a damaged or worn diverter
• Reduces wobble or looseness at the dispenser face when the badge/clamp is intact

• One diverter & badge assembly

• Disconnect power (and water supply if applicable) before beginning work
• Access may require removing the dispenser bezel or door trim—follow your model's service instructions
• Handle plastic components gently to avoid cracking; replace any damaged fasteners or seals

This trough drain directs defrost water from the evaporator to the refrigerator drain system, helping prevent water buildup and puddling inside the freezer compartment. It's a direct-fit replacement for the damaged or cracked drain trough. What it does:

• Channels defrost and condensation water away from the evaporator area to the main drain
• Prevents ice buildup and water pooling that can lead to floor or compartment leaks
• Restores proper drain flow when original trough is cracked, warped, or clogged
• Works with the refrigerator's defrost cycle to keep the compartment dry

• One trough drain piece

• Disconnect power to the appliance before starting any work
• Remove stored food and secure shelving or trim that blocks access to the evaporator area
• Inspect and clear the drain path and drain tube while installing the new trough

This cover connector secures the fan housing and wiring in the refrigerator's fan assembly, helping protect components and maintain proper airflow. It's a direct-fit replacement designed to restore correct fan enclosure alignment. What it does

• Holds the fan housing and wiring connectors in place to prevent rubbing or disconnection
• Protects fan assembly wiring from damage and helps maintain reliable airflow
• Can address symptoms such as intermittent fan operation, unusual fan noise from misalignment, or airflow-related cooling issues
• Works as part of the fan enclosure to keep components positioned for proper function

• Disconnect power before beginning any service to avoid shock or injury
• Installation typically requires removing the fan housing or access panel; handle plastic parts carefully to avoid breaking tabs
• Inspect adjacent wiring and fan blades for damage while replacing the connector

This heater harness installs in the refrigerator's fresh food section. It provides defrost heat and the correct wiring connections to clear frost from the fresh food evaporator, restoring airflow so the compartment cools evenly and reliably.

• Delivers defrost heat to the fresh food evaporator to melt frost and ice
• Includes the correct harness/wiring for a precise, plug-in connection
• Helps restore proper airflow and temperature regulation in the refrigerator compartment
• Symptoms include heavy frost on the fresh food evaporator cover or back wall
• Also presents as a warm fridge (with normal freezer) or fan noise from ice contact

• Disconnect power before servicing; use cut-resistant gloves
• Access is behind the fresh food evaporator cover; protect delicate fins and sensors
• Route the harness exactly as the original and fully seat all connectors/clips
• After reassembly, ensure the drain path is clear and the fan spins freely

This evaporator cover is the molded housing that protects the freezer evaporator and helps direct airflow for proper defrosting and cooling performance. It replaces a damaged or cracked cover to restore proper airflow management. What it does:

• Shields the evaporator coil and fan area from debris and direct contact
• Helps direct airflow through the evaporator for even cooling
• Supports proper defrost drainage and reduces ice buildup when functioning correctly
• Can reduce unusual noises caused by loose or broken cover components

• Requires access to the freezer interior and removal of shelves/panels; follow manufacturer service manual for disassembly steps
• Power off and unplug appliance before starting work and allow any accumulated frost to thaw safely
• Inspect associated gaskets, fasteners, and the evaporator fan while replacing the cover; replace any damaged parts as needed
