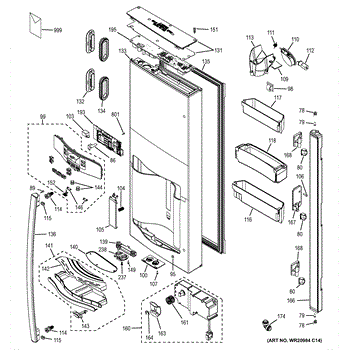

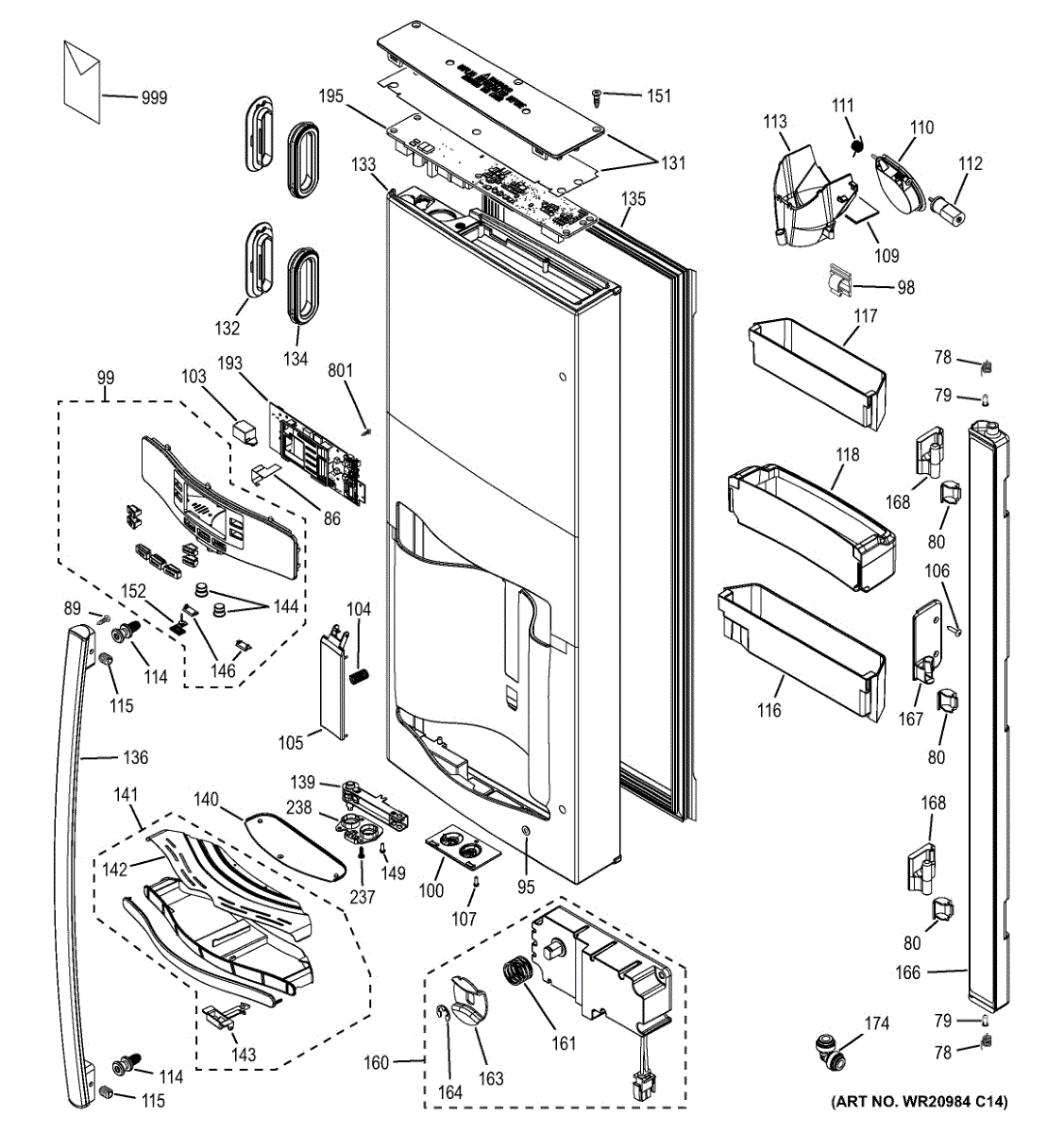

Parts for Ge PFE28RSHCSS: Dispenser Door Parts

The Flapper Door Spring is an OEM part for GE refrigerators. It ensures the proper operation of the ice dispenser's flapper door by providing the necessary tension for the door to open and close correctly. This helps in maintaining the internal temperature and preventing warm air from entering the freezer.

You should replace the flapper door spring if it becomes worn out or damaged. Over time, the spring can lose its tension due to constant use, become bent or broken from mishandling, or suffer from rust and corrosion.

Symptoms of a bad flapper door spring include:

• The ice dispenser flapper door not closing properly
• Warm air entering the freezer compartment
• Increased frost buildup around the ice chute
• Unusual noises when the ice dispenser is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge cap is the small trim piece that covers your refrigerator door hinge. Replacing a cracked or missing cap protects the hinge from dust and restores a clean, finished look to the door area.

• Covers and protects the door hinge hardware from dust and debris
• Restores a clean, factory-finished appearance
• Helps keep the hinge area clear for smooth door movement
• Replace when the original cap is cracked, loose, discolored, or missing

• Disconnect power before servicing the appliance
• Support the door to prevent movement while working near the hinge
• Remove the old cap; align and press the new cap onto the hinge until fully seated; reuse the original fastener if your model uses one
• Verify the cap is secure and does not rub as the door opens/closes

The LED and Cover Assembly is an OEM part for GE refrigerators. This component illuminates the interior compartments and includes light-emitting diodes (LEDs) with a protective transparent cover. It provides enhanced visibility of stored items through energy-efficient white lighting.

Causes of failure can be related to the electronic operation of the LEDs themselves wearing out over the lifespan of many on/off cycles. The cover plastic may develop cracks or scratches from regular cleaning.

Symptoms include:

• Dimming or flickering lights that no longer shine brightly
• Discoloration of the cover material obstructing light transmission
• Loose or detached cover that won’t stay securely fastened

This GE OEM replacement restores clear illumination for stored items. With long-lasting LED technology behind a shatter-resistant shield, it ensures dependable visibility during nighttime fridge access. Compatible with later produced Hotpoint, RCA, and Kenmore refrigeration models as well.

This is a replacement #8-18 by 1/2-inch appliance screw used to secure panels, trim, and internal components. It restores proper fastening where the original screw is missing, stripped, or corroded. What it does:

• Fastens panels, brackets, trim pieces, and small components
• Restores secure mounting when a screw is missing or worn
• Stops rattling and vibration caused by loose or stripped fasteners
• Compatible with applications that call for a #8-18 x 1/2" screw

• One screw (8-18 x 1/2 in)

• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug to prevent damage
• If screw threads are damaged, replace with the correct thread size rather than forcing
• Disconnect power before working on electrical components or panels that expose wiring

This duct door assembly is the refrigerator's air damper door. It opens and closes to control cold-air flow from the freezer into the fresh-food compartment, helping maintain stable temperatures and reduce warm spots or localized frosting.

• Regulates airflow between freezer and refrigerator compartments
• Helps the unit reach and maintain set temperatures
• Seals the duct when closed to limit moisture and frost migration
• Also called an air diffuser/damper door; failure may show as poor airflow, fridge too warm, items freezing near the vent, or clicking from the damper area

• Disconnect power to the refrigerator before servicing
• Access the air duct/diffuser in the fresh-food section and remove its cover as needed
• Note the door's orientation; transfer any reusable seals or clips from the original if applicable
• After installation, the door moves freely and the vent path is unobstructed

This Duct Door Spring returns the dispenser ice chute door to the closed position and helps maintain a tight seal at the dispenser opening, reducing warm-air leaks, frost buildup, and melting or clumping ice.

• Provides the return tension for the dispenser duct/ice chute door after dispensing
• Helps keep cold air in and warm air out to limit frost and condensation at the dispenser
• Can reduce frost in the ice chute or ice clumping caused by air leaks

• Disconnect power to the refrigerator before servicing the dispenser
• Access the dispenser assembly; remove front panel/trim as required by your model
• Note spring orientation and engage it correctly on the duct door and pivot
• After installation, verify the door moves freely and seals fully before reassembly

The Motor Duct Door is an OEM part for GE refrigerators. It is the cover that houses the evaporator fan motor and ductwork in the refrigerator. The motor and ductwork circulate cold air throughout the unit to maintain even temperatures for food storage.

Causes of a bad motor duct door can include failed seals that compromise cooling performance or damage to the door and hinges that prevent proper opening and closing.

Symptoms of a bad motor duct door include:

• Warm or lukewarm air inside the refrigerator sections
• Improper airflow causes warmer or colder spots
• Difficulty opening or closing the duct door

Replacing with this genuine GE OEM part allows for optimal air circulation throughout the refrigerator. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Ice Door Bin is an OEM replacement part for GE side-by-side refrigerators. It consists of a detachable ice storage bin along with the hinged door that provides access. This component plays an important role in containing and supplying ice from the icemaker.

Causes of a bad ice door bin can include damage to the plastic material over time from repeated openings/closings. The internal ice scoop mechanism may become stuck or obstructed. Hinge or mounting components may become loose.

Symptoms of a bad ice door bin include:

• Difficulty opening or closing the ice door
• Ice cubes scattering out of the bin when accessed
• Inability to contain or guide ice for easy removal
• Leaks that allow water to pool underneath

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This grill recess tray replaces the recessed trim panel that sits behind the toe kick or under the appliance grill, keeping the cavity tidy and protecting underlying components from debris and drips. Restores finished appearance and helps maintain airflow. What it does:

• Covers the grill recess area to block dirt, dust and small debris from entering the cavity.
• Protects internal components and wiring located behind the kick plate or lower grill.
• Helps maintain correct airflow by keeping the recess clear of obstructions.
• Can restore a clean, finished look to the appliance front after damage or loss.

• 1 grill recess tray

• Designed to drop into or fasten behind the lower grille; follow OEM alignment and fastener locations.
• Use basic hand tools; verify correct orientation before tightening fasteners.
• Disconnect power at the breaker before removing kick plate or working around internal components.
• Inspect surrounding clips and screws and replace if damaged to ensure secure fit.

This LED light shield protects and diffuses the refrigerator's LED lighting, restoring even illumination and preventing direct exposure to the lamp. Replace a cracked, yellowed, or missing shield to improve light distribution and appearance. What it does:

• Covers and protects the LED light assembly from damage and debris.
• Diffuses LED output for softer, more even interior lighting.
• Replace if the shield is cracked, broken, warped, or discolored.
• Helps prevent direct glare from exposed LEDs for safer visibility.

• One LED light shield / cover.

• Disconnect power to the appliance before starting any work.
• Handle the shield carefully—plastic can crack; avoid overtightening fasteners.
• Install by aligning with existing mounting points or clips; do not force into place.
• Inspect the LED module and wiring.

This USB port cover replaces a broken or missing cover on the appliance control panel to protect the USB connector from dirt and moisture. It restores a finished appearance and helps keep the port functional. What it does:

• Covers and protects the appliance USB port from dust, moisture, and accidental contact
• Prevents debris from entering the connector, reducing risk of connectivity issues
• Restores the control-panel appearance when the original cover is cracked or lost

• Disconnect power to the appliance before servicing to avoid shock or damage
• Accessible from the control panel; typically snaps into place or secures with small fasteners
• Inspect surrounding trim for damage and replace any broken clips to ensure a secure fit

Ice bucket and motor kit replaces a worn or cracked ice bin and its drive motor so your refrigerator can collect and advance ice properly. Restores ice storage and rotation for reliable dispensing. What it does:

• Holds and stores produced ice in the freezer's ice compartment.
• Drive motor rotates the bucket to advance ice toward the dispenser or ice chute.
• Replaces a cracked or damaged bin that leaks or chips ice.
• Helps stop symptoms such as a non-turning bucket, ice not dispensing, or unusual motor noise.

• Disconnect power to the appliance before starting any repair.
• Handle the bin and motor carefully to avoid damaging mounting tabs and electrical connections.
• Use basic hand tools; follow the OEM service manual or exploded parts diagram for correct removal and reassembly.
• After installation, reconnect power and cycle the ice maker to verify proper rotation and ice delivery.

This clutch spring restores proper tension in the dispenser drive so the auger can engage and disengage as designed. Replacing a fatigued or broken spring helps bring back smooth, reliable ice dispensing performance. What it does:

• Maintains the correct preload on the dispenser clutch for positive auger engagement
• Allows controlled slip to protect the auger motor during jams
• Can address loud clicking/grinding from the ice dispenser when activated

• 1 clutch spring

• Disconnect power before servicing; remove the ice bin to access the auger/clutch area
• Note the spring's orientation during disassembly for correct reinstallation
• Control small retainers/clips that may be released when removing the clutch components
• After installation, rotate the auger by hand to ensure smooth clutch action before restoring power

This is the hinge for the refrigerator door mullion—the folding center rail (flipper) between the doors. It lets the mullion pivot smoothly and seal the door gap, helping prevent air leaks, condensation, and poor door closure.

• Allows the mullion to fold open and closed with door movement
• Helps maintain an even, airtight center seal between doors and gaskets
• Common fix for a broken/loose flipper or a mullion that won't pivot or return
• Resolve doors not closing fully, air leaks, or condensation along the center rail

• Unplug the refrigerator before servicing
• Support the door and mullion to avoid stressing hinges and gaskets
• Note hinge orientation and screw locations during removal; reuse existing hardware
• After installation, verify smooth mullion action and a proper center seal

This 90° connector redirects a 5/16 in. line to a right-angle orientation for a neater, space-saving fit and a secure tube connection. Designed to restore proper routing where a straight join won't fit. What it does:

• Provides a right-angle connection for 5/16 in. tubing or line runs
• Keeps tubing routed close to the appliance to avoid kinks and strain
• Helps maintain a sealed joint to reduce risk of leaks at the turn
• Used where space constraints require a compact, 90° tube connection

• Shut off the water supply (and power if working near electrical components) before replacing the part.
• Inspect tubing ends and replace any damaged or corroded sections before installing the connector.
• Hand-start fittings, then tighten per manufacturer guidance; avoid over-tightening which may damage tubing.
• After installation, restore supply and check the joint for leaks before returning the appliance to normal use.

This is an LED display board that has been manufactured by General Electric for use with refrigerators. The LED display board displays the temperature of the refrigerator as well as the different selection options. Over time, the LED board might become faulty, preventing it from lighting up or showing any sort of display. In such cases, it will need to be immediately replaced. Since the refrigerator will need to be powered off to replace this part, make sure to safely store perishable foods to prevent them from deteriorating during the repair process. As a genuine OEM part, this LED display board has been sourced directly from the manufacturer and is sold individually. This LED display board is manufactured from high-quality and durable materials. It is intended for users with refrigerators manufactured by General Electric, Hotpoint, and RCA.

The Door Board is an OEM component designed for GE bottom-mount refrigerators. Located inside refrigerator doors, it operates essential LED functions for interior lighting and temperature displays. Properly illuminated shelves and accurate temperature readings depend on a functioning door board.

Causes of failure can include loose wiring connections from repeated door openings, fluid damage allowing corrosion over time, or failure of electronic components on the printed circuit board.

Symptoms of a defective door board are:

• Dim or unlit interior lighting
• Inoperative temperature display
• Strange odor or sparks coming from the door area

Replacing with this genuine GE part restores bright illumination and easy temperature monitoring. Compatible with Hotpoint, RCA, and Kenmore side-by-side models as well.
