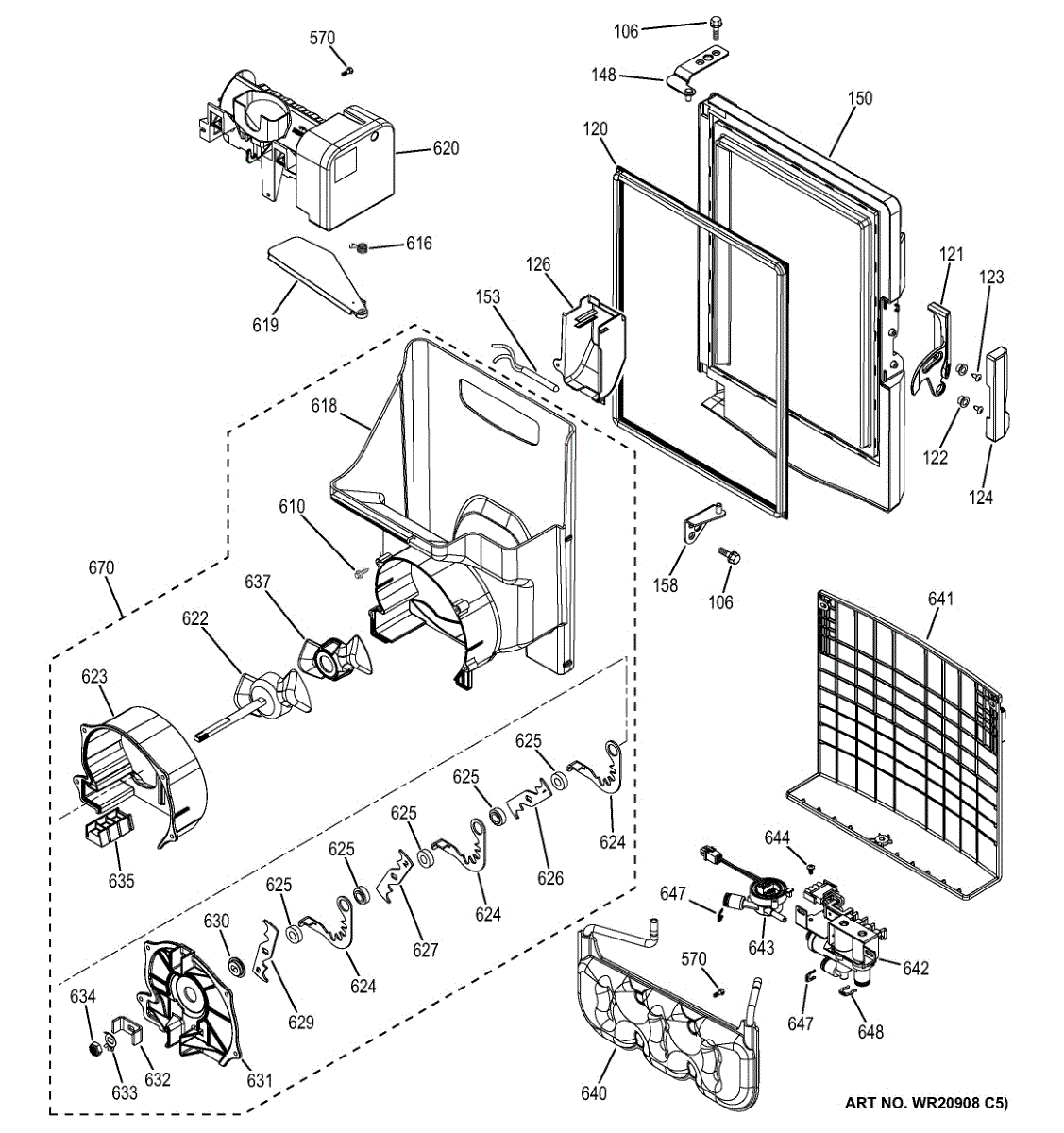

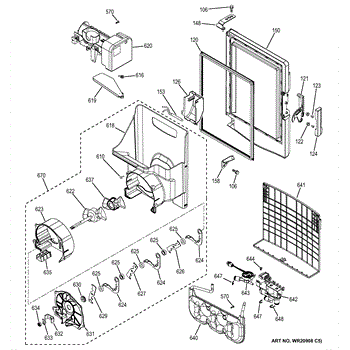

Parts for Ge PFE28RSHCSS: Ice Maker & Dispenser Parts

This is a replacement #8-18 by 1/2-inch appliance screw used to secure panels, trim, and internal components. It restores proper fastening where the original screw is missing, stripped, or corroded. What it does:

• Fastens panels, brackets, trim pieces, and small components
• Restores secure mounting when a screw is missing or worn
• Stops rattling and vibration caused by loose or stripped fasteners
• Compatible with applications that call for a #8-18 x 1/2" screw

• One screw (8-18 x 1/2 in)

• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug to prevent damage
• If screw threads are damaged, replace with the correct thread size rather than forcing
• Disconnect power before working on electrical components or panels that expose wiring

This latch bushing is a small sleeve used in the refrigerator's latch mechanism. It supports the latch pivot, reduces wear, and helps the latch engage smoothly so doors, bins, or covers close securely and stay in place.

• Provides a smooth, low-friction pivot surface for the latch pin/shaft
• Helps maintain proper latch alignment and engagement
• Reduces play and noise within the latch mechanism
• Symptoms of a worn bushing can include a loose or sticky latch, difficulty latching, or squeaking/grinding in the latch area

• Disconnect power to the refrigerator before servicing
• Access the latch assembly; note the orientation of the existing bushing and any spring/pin
• Press the new bushing into place without forcing or deforming the housing
• Reassemble and test for smooth latch operation; inspect related parts (pin, spring) and replace if worn

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This ice maker feeler arm senses the ice level in the bin and controls when the icemaker starts and stops. Replacing a bent, missing, or stuck arm restores correct shutoff and helps prevent overfilling or no-ice conditions.

• Monitors the ice bucket level and raises/lowers to start or stop ice production
• Shuts the icemaker off when the bin is full; allows production when lowered
• Common symptoms: ice maker won't stop making ice/overflows, no ice when the arm is stuck up, loose or missing arm
• Restores proper on/off control of the icemaker cycle

• Disconnect power and turn off the water supply before servicing
• Remove the ice bin and, the icemaker assembly to access the arm
• Transfer any reusable hardware; seat the arm fully in its pivot points so it moves freely
• Restore power, lower the arm to the On position, and allow time for the icemaker to cycle

Cold water tank assembly stores and supplies chilled water to the refrigerator's dispenser and related water channels. Replacing a damaged reservoir helps stop leaks and restore reliable chilled water flow. What it does

• Holds chilled water for the dispenser and downstream water paths
• Routes supply and return lines through built-in inlet/outlet ports
• Common symptoms: leaking reservoir, little or no water from the dispenser, slow or inconsistent flow
• Use as a direct replacement when the existing tank is cracked, warped, or otherwise damaged

• Disconnect power and shut off the water supply before beginning service
• Drain the reservoir and place towels or a pan to catch residual water when removing the old tank
• Access may require removing interior panels or shelving; retain or inspect mounting hardware and seals for reuse

This quick-connect clip secures 5/16-inch water tubing in push-to-connect fittings to prevent accidental release and leaks at the joint. Restore a reliable hold on dispenser and icemaker lines when the original clip is missing or damaged. What it does:

• Locks the release ring (collet) on a 5/16-inch quick-connect fitting to retain tubing
• Helps prevent water drips or leaks at the connector
• Keeps tubing from slipping out, supporting steady water flow to dispenser/ice maker
• Common symptoms: leak at fitting, loose/disconnected tubing, no/low water or ice

• 1 quick-connect clip (5/16)

• Unplug the appliance and shut off the water supply; dispense water to relieve line pressure
• Ensure the tubing end is cut square; push it fully into the fitting until seated
• Insert the clip beneath the fitting's collet to lock; tug gently to verify retention
• Restore water and power, then check all connections for leaks

• Designed for 5/16-inch OD water tubing quick-connect fittings
