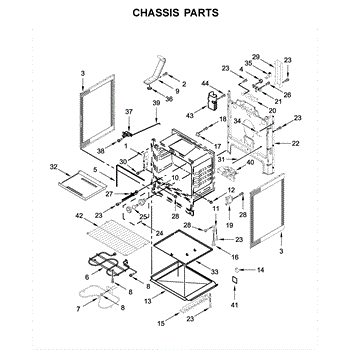

Parts for Whirlpool WFE515S0EB2: Chassis Parts

Parts for Whirlpool WFE515S0EB2: Chassis Parts

Location on Diagram
Part Description
Price & Availability
1
Best Seller
Product photo
5.0 (6)
By: Whirlpool
Part Number: W10647259

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP3196154

Ground wire screw secures grounding conductor to range chassis for electrical safety. Simple 5-minute repair with basic tools. Fits most models.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3B
Product photo
By: Whirlpool
Part Number: W10162246
$82.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3A
By: Whirlpool
Part Number: W11727013
$137.40

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
3
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11730303

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

More
$79.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
4
Product photo
By: Whirlpool
Part Number: WP3400968

Speed nut secures oven components in electric and gas ranges. Replace if nut is stripped, missing, or no longer holds parts firmly in place.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: W11542153

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

More
$40.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Best Seller
Product photo
4.9 (16)
By: Whirlpool
Part Number: WPW10583047

Broiler won't heat or element burned out? This upper broil element restores intense top-down heat for even browning. DIY-friendly repair in under an hour.

More
$83.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP9755770

Oven won't heat or takes too long to preheat? A failed bake element is the most common cause. This lower heating coil restores proper baking temperature.

More
$79.40

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
By: Whirlpool
Part Number: WP3196174

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
Product photo
By: Whirlpool
Part Number: WPW10134285
$159.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Best Seller
Product photo
4.5 (11)
By: Whirlpool
Part Number: W10763667

Replace broken or worn drawer glides that cause wobbly drawers or difficulty opening and closing your range storage drawer. Verify fit by model number.

More
$58.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
Best Seller
Product photo
4.8 (4)
By: Whirlpool
Part Number: WPW10341186

Front leveling foot adjusts range height for stability. Replaces cracked, broken, or missing feet. Ensures proper leveling to reduce vibration.

More
$23.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: WPW10067840

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

  • Fastens panels, brackets, or trim to the appliance cabinet/frame
  • Replaces damaged, rusted, or missing hardware
  • Helps eliminate vibration noises, gaps, and loose-fitting parts
  • Supports proper alignment of adjoining components
What's included: Includes one screw. Installation notes:
  • Disconnect power; turn off gas/water supplies where applicable.
  • Match to the original screw from your model's parts diagram before installation.
  • Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
  • Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
13
By: Whirlpool
Part Number: W10134121

Secures and aligns the oven door on your electric range. Replace this retainer if it's cracked, broken, or missing to properly hold door components in place.

More
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Product photo
By: Whirlpool
Part Number: W10137382
$34.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Whirlpool
Part Number: W11818353
$37.64

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
15A
By: Whirlpool
Part Number: W11818353
$37.64

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
16
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPW10058460

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

More
$9.63

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
17
Best Seller
Product photo
4.9 (9)
By: Whirlpool
Part Number: WP3196548

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

More
$34.75

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
Product photo
By: Whirlpool
Part Number: 3196172

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

More
$14.21

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
20
By: Whirlpool
Part Number: W11763591

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

More
$45.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
21
Best Seller
Product photo
4.8 (36)
By: Whirlpool
Part Number: WPW10245259

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

  • Burnt or scorched connections
  • Intermittent power loss to the range
  • Difficulty in the range heating up properly
  • Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
23
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
24
Best Seller
Product photo
4.8 (33)
By: Whirlpool
Part Number: W11594027

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

More
$66.78

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
25
Best Seller
Product photo
5.0 (4)
By: Whirlpool
Part Number: WPW10571723

Replace your burned-out range light bulb to restore interior illumination. Swap in when bulb fails to see contents clearly. Verify fit by model number.

More
$22.53

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
26
Product photo
By: Whirlpool
Part Number: WP3400016

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
27
Best Seller
Product photo
4.9 (97)
By: Whirlpool
Part Number: WPW10181986

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

More
$74.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
28
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP3196557

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

  • Fastens brackets, panels, trim, or components to the appliance chassis
  • Helps correct loose or missing hardware after vibration or service
  • Replaces stripped, rusted, or broken screws
  • Can reduce rattling noises or misaligned parts caused by missing fasteners
What's included: One screw Install notes:
  • Disconnect power; for gas appliances, also shut off the gas supply
  • Support the part being fastened; start threads by hand to avoid cross-threading
  • Use the correct driver size; tighten snugly without overtightening
  • Replace hardware with the exact part number to ensure proper fit

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
29
Product photo
By: Whirlpool
Part Number: WPW10326122

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

More
$67.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
30
Best Seller
Product photo
4.8 (4)
By: Whirlpool
Part Number: W10777162

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

  • Loose or unstable components within the range
  • Difficulty in securing parts during maintenance or repair
  • Visible damage or wear on the screw
  • Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

More
$7.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
31
Product photo
By: Whirlpool
Part Number: 9757239

Replace a broken or missing door switch actuator rod on your range. This small rod engages the door switch to detect open/closed positions and control the interior light.

More
$55.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
32
By: Whirlpool
Part Number: W10183712

Replace your range's damaged or missing baking tray. This oven tray installs inside the oven cavity for standard baking needs. Order now if worn or cracked.

More
$89.10

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
33
By: Whirlpool
Part Number: W10134125

Secures and holds components in place on your electric range. Replace this retainer if it's cracked, broken, or missing to restore proper assembly.

More
$74.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
34
Product photo
By: Whirlpool
Part Number: WP9757262

Oven light not turning on when door opens? This door-activated switch detects door position and controls interior lighting. Easy push-in installation.

More
$76.79

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
35
Product photo
By: Whirlpool
Part Number: WPW10281322

Fix loose or burnt wire connections in your range with this wire connector. Essential for restoring power to burners or oven elements. Simple repair.

More
$6.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
36
By: Whirlpool
Part Number: W11268772
$79.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP9761013

This latch mechanism secures the oven door in the closed position on electric and gas ranges. It engages when the door is shut to hold it firmly against the gasket for proper heat retention. Replace when the oven door won't stay closed, pops open during cooking, or the latch handle feels loose or broken.

More
$107.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
38
Product photo
By: Whirlpool
Part Number: W11169708

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

More
$12.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
39
Product photo
By: Whirlpool
Part Number: W10078380

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

More
$28.33

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
40
Best Seller
Product photo
4.9 (17)
By: Whirlpool
Part Number: WPW10107820

This assembly includes the motorized latch mechanism and integrated switches that lock and unlock the oven door during the self-cleaning cycle. It secures the door shut when the oven reaches high temperatures and signals the control board when the door is properly latched. Replace this part if the oven door won't lock or unlock, the self-clean cycle won't start, or you receive a door lock error code.

More
$134.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
41
By: Whirlpool
Part Number: W10646923
$14.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
42
Best Seller
Product photo
5.0 (46)
By: Whirlpool
Part Number: W11520287

Replace your cracked, warped, or missing oven rack. This sturdy metal rack provides a reliable cooking surface inside your range oven cavity.

More
$51.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
43
By: Whirlpool
Part Number: W11135752

Small snap-in retainer that secures spring or linkage components in your range. Replaces cracked, broken, or missing anchor tips to restore proper alignment.

More
$97.55

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
44
Product photo
By: Whirlpool
Part Number: W11135756

Replacement Torx screw for securing range panels and components. Needed when original fasteners are stripped, missing, or damaged during repairs.

More
$21.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11684917

Insulation panel for electric range oven doors. Installs between door panels to provide heat retention. Replace if cracked, deteriorated, or missing.

More
$53.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W11684918

Fiberglass insulation installs behind oven and broiler walls to contain heat within the cavity. Replace if worn, compressed, damaged, or missing for safety.

More
$21.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
Product photo
5.0 (1)
By: Whirlpool
Part Number: W11161831

Insulation blanket lines the range cavity to limit heat transfer and dampen sound. Replace if torn, burnt, or water-soaked. Verify fit by model number.

More
$56.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
