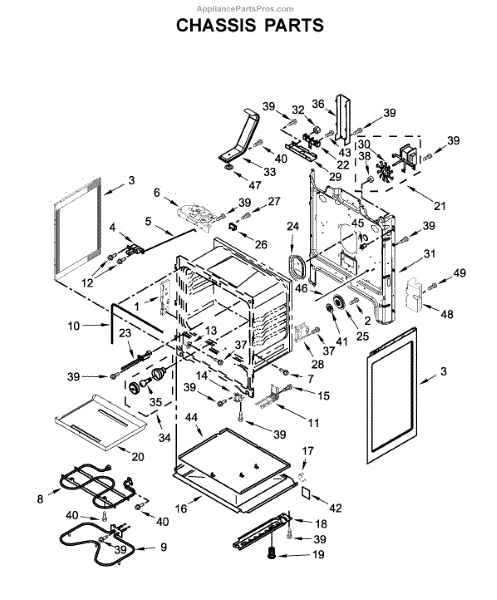

Parts for Whirlpool WFE520S0FS2: Chassis Parts

Parts for Whirlpool WFE520S0FS2: Chassis Parts

Location on Diagram
Part Description
Price & Availability
1
Best Seller
Product photo
5.0 (6)
By: Whirlpool
Part Number: W10647259

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
5.0 (5)
By: Whirlpool
Part Number: WP4449809

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

More
$7.94

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11730303

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

More
$79.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP9761013

This latch mechanism secures the oven door in the closed position on electric and gas ranges. It engages when the door is shut to hold it firmly against the gasket for proper heat retention. Replace when the oven door won't stay closed, pops open during cooking, or the latch handle feels loose or broken.

More
$107.38

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Product photo
By: Whirlpool
Part Number: W10078380

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

More
$28.33

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Best Seller
Product photo
4.9 (17)
By: Whirlpool
Part Number: WPW10107820

This assembly includes the motorized latch mechanism and integrated switches that lock and unlock the oven door during the self-cleaning cycle. It secures the door shut when the oven reaches high temperatures and signals the control board when the door is properly latched. Replace this part if the oven door won't lock or unlock, the self-clean cycle won't start, or you receive a door lock error code.

More
$134.95

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Product photo
By: Whirlpool
Part Number: WPW10067840

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

  • Fastens panels, brackets, or trim to the appliance cabinet/frame
  • Replaces damaged, rusted, or missing hardware
  • Helps eliminate vibration noises, gaps, and loose-fitting parts
  • Supports proper alignment of adjoining components
What's included: Includes one screw. Installation notes:
  • Disconnect power; turn off gas/water supplies where applicable.
  • Match to the original screw from your model's parts diagram before installation.
  • Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
  • Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Best Seller
Product photo
4.9 (11)
By: Whirlpool
Part Number: W10856603

Broil element burnt out or not heating? This top heating element provides intense direct heat for broiling. Takes 15-20 minutes to replace yourself.

More
$134.65

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP9755770

Oven won't heat or takes too long to preheat? A failed bake element is the most common cause. This lower heating coil restores proper baking temperature.

More
$79.40

IN STOCK
Ships Today Guaranteed
Add to Cart
10
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: W11542153

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

More
$40.95

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: W11169708

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

More
$12.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
By: Whirlpool
Part Number: W10807823

Replace worn range drawer glides to restore smooth sliding and eliminate sticking or rattling. Supports proper drawer alignment and movement. Confirm fit.

More
$12.95

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Best Seller
Product photo
4.8 (4)
By: Whirlpool
Part Number: WPW10341186

Front leveling foot adjusts range height for stability. Replaces cracked, broken, or missing feet. Ensures proper leveling to reduce vibration.

More
$23.61

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: WP7101P485-60

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

More
$28.43

IN STOCK
Ships Today Guaranteed
Add to Cart
16
By: Whirlpool
Part Number: W10134121

Secures and aligns the oven door on your electric range. Replace this retainer if it's cracked, broken, or missing to properly hold door components in place.

More
$25.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
Product photo
By: Whirlpool
Part Number: W10137382
$34.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
By: Whirlpool
Part Number: W11818353
$37.64

IN STOCK
Ships Today Guaranteed
Add to Cart
18A
By: Whirlpool
Part Number: W11818353
$37.64

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPW10058460

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

More
$9.63

IN STOCK
Ships Today Guaranteed
Add to Cart
20
By: Whirlpool
Part Number: W10183712

Replace your range's damaged or missing baking tray. This oven tray installs inside the oven cavity for standard baking needs. Order now if worn or cracked.

More
$89.10

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
Product photo
By: Whirlpool
Part Number: W11582241

Fix uneven baking and roasting with this convection fan motor assembly. Restores proper air circulation when your oven fan stops working or makes noise.

More
$62.61

IN STOCK
Ships Today Guaranteed
Add to Cart
22
Best Seller
Product photo
4.8 (36)
By: Whirlpool
Part Number: WPW10245259

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

  • Burnt or scorched connections
  • Intermittent power loss to the range
  • Difficulty in the range heating up properly
  • Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Best Seller
Product photo
4.9 (98)
By: Whirlpool
Part Number: WPW10181986

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

More
$74.95

IN STOCK
Ships Today Guaranteed
Add to Cart
24
By: Whirlpool
Part Number: W10134126
$25.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Whirlpool
Part Number: WPW10134124
$30.26

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
Best Seller
Product photo
4.9 (9)
By: Whirlpool
Part Number: WP3196548

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

More
$34.75

IN STOCK
Ships Today Guaranteed
Add to Cart
27
Product photo
By: Whirlpool
Part Number: 3196172

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

More
$14.21

IN STOCK
Ships Today Guaranteed
Add to Cart
28
By: Whirlpool
Part Number: W10404688

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

More
$11.36

IN STOCK
Ships Today Guaranteed
Add to Cart
29
By: Whirlpool
Part Number: W11763591

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

More
$45.30

IN STOCK
Ships Today Guaranteed
Add to Cart
30
Product photo
By: Whirlpool
Part Number: W10758272

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

More
$10.71

IN STOCK
Ships Today Guaranteed
Add to Cart
32
Product photo

Nut

5.0 (1)
By: Whirlpool
Part Number: WP3400029

Size: 10-32

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
33
Product photo
By: Whirlpool
Part Number: WPW10134285
$159.07

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
34
Best Seller
Product photo
4.8 (33)
By: Whirlpool
Part Number: W11594027

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

More
$66.78

IN STOCK
Ships Today Guaranteed
Add to Cart
35
Best Seller
Product photo
5.0 (4)
By: Whirlpool
Part Number: WPW10571723

Replace your burned-out range light bulb to restore interior illumination. Swap in when bulb fails to see contents clearly. Verify fit by model number.

More
$22.53

IN STOCK
Ships Today Guaranteed
Add to Cart
36
Product photo
By: Whirlpool
Part Number: WPW10326122

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

More
$67.95

IN STOCK
Ships Today Guaranteed
Add to Cart
37
Best Seller
Product photo
4.6 (8)
By: Whirlpool
Part Number: WP3196175

Size: 8-18 x 1/2 inch.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
38
Product photo
By: Whirlpool
Part Number: W11548755

This is a hex nut used in wall oven assembly to secure various internal components and mounting hardware. It provides a threaded fastening point that holds parts firmly in place during operation. Replace this nut if it is stripped, corroded, or missing, which can cause loose components or rattling during use.

More
$21.46

IN STOCK
Ships Today Guaranteed
Add to Cart
39
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Today Guaranteed
Add to Cart
40
Product photo
By: Whirlpool
Part Number: WP3196174

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
41
Product photo
By: Whirlpool
Part Number: WP3400968

Speed nut secures oven components in electric and gas ranges. Replace if nut is stripped, missing, or no longer holds parts firmly in place.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
42
By: Whirlpool
Part Number: W10646923
$14.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
43
Product photo
By: Whirlpool
Part Number: WP3400016

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
44
By: Whirlpool
Part Number: W10134125

Secures and holds components in place on your electric range. Replace this retainer if it's cracked, broken, or missing to restore proper assembly.

More
$74.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
45
Product photo
By: Whirlpool
Part Number: WP9757262

Oven light not turning on when door opens? This door-activated switch detects door position and controls interior lighting. Easy push-in installation.

More
$76.79

IN STOCK
Ships Today Guaranteed
Add to Cart
46
Product photo
By: Whirlpool
Part Number: 9757239

Replace a broken or missing door switch actuator rod on your range. This small rod engages the door switch to detect open/closed positions and control the interior light.

More
$55.30

IN STOCK
Ships Today Guaranteed
Add to Cart
47
By: Whirlpool
Part Number: W11268772
$79.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
48
By: Whirlpool
Part Number: W11135752

Small snap-in retainer that secures spring or linkage components in your range. Replaces cracked, broken, or missing anchor tips to restore proper alignment.

More
$97.55

IN STOCK
Ships Today Guaranteed
Add to Cart
49
Product photo
By: Whirlpool
Part Number: W11135756

Replacement Torx screw for securing range panels and components. Needed when original fasteners are stripped, missing, or damaged during repairs.

More
$21.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
By: Whirlpool
Part Number: W10326347

Insulation panel that wraps or lines the oven cavity to contain heat. Replace if worn, damaged, or missing to restore proper heat retention.

More
$86.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
Product photo
By: Whirlpool
Part Number: WPW10281322

Fix loose or burnt wire connections in your range with this wire connector. Essential for restoring power to burners or oven elements. Simple repair.

More
$6.95

IN STOCK
Ships Today Guaranteed
Add to Cart
NI
By: Whirlpool
Part Number: W11684918

Fiberglass insulation installs behind oven and broiler walls to contain heat within the cavity. Replace if worn, compressed, damaged, or missing for safety.

More
$21.38

IN STOCK
Ships Today Guaranteed
Add to Cart
NI
Product photo
5.0 (1)
By: Whirlpool
Part Number: W11161831

Insulation blanket lines the range cavity to limit heat transfer and dampen sound. Replace if torn, burnt, or water-soaked. Verify fit by model number.

More
$56.34

IN STOCK
Ships Today Guaranteed
Add to Cart
NI
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10170531

This kit includes the orifice spuds and components needed to convert a natural gas range to liquid propane (LP) operation. The orifices regulate the gas flow to the surface burners for proper flame size and safe combustion. This kit is required when switching fuel types - without the correct orifices, burners may produce irregular flames, soot, or fail to ignite properly.

More
$82.95

IN STOCK
Ships Today Guaranteed
Add to Cart
NI
Best Seller
Product photo
5.0 (4)
By: Whirlpool
Part Number: W11126051

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

  • Inability to ignite bake/broil burners
  • Erratic or intermittent baking temperatures
  • Uneven cooking due to improper burner positioning
  • Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

More
$107.38

IN STOCK
Ships Today Guaranteed
Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
