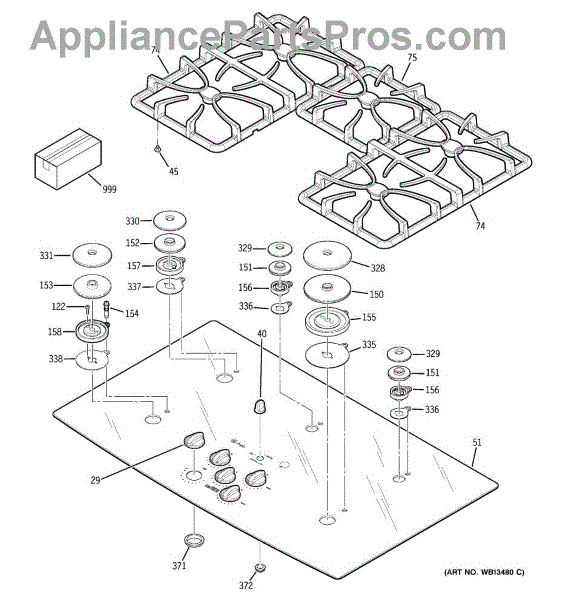

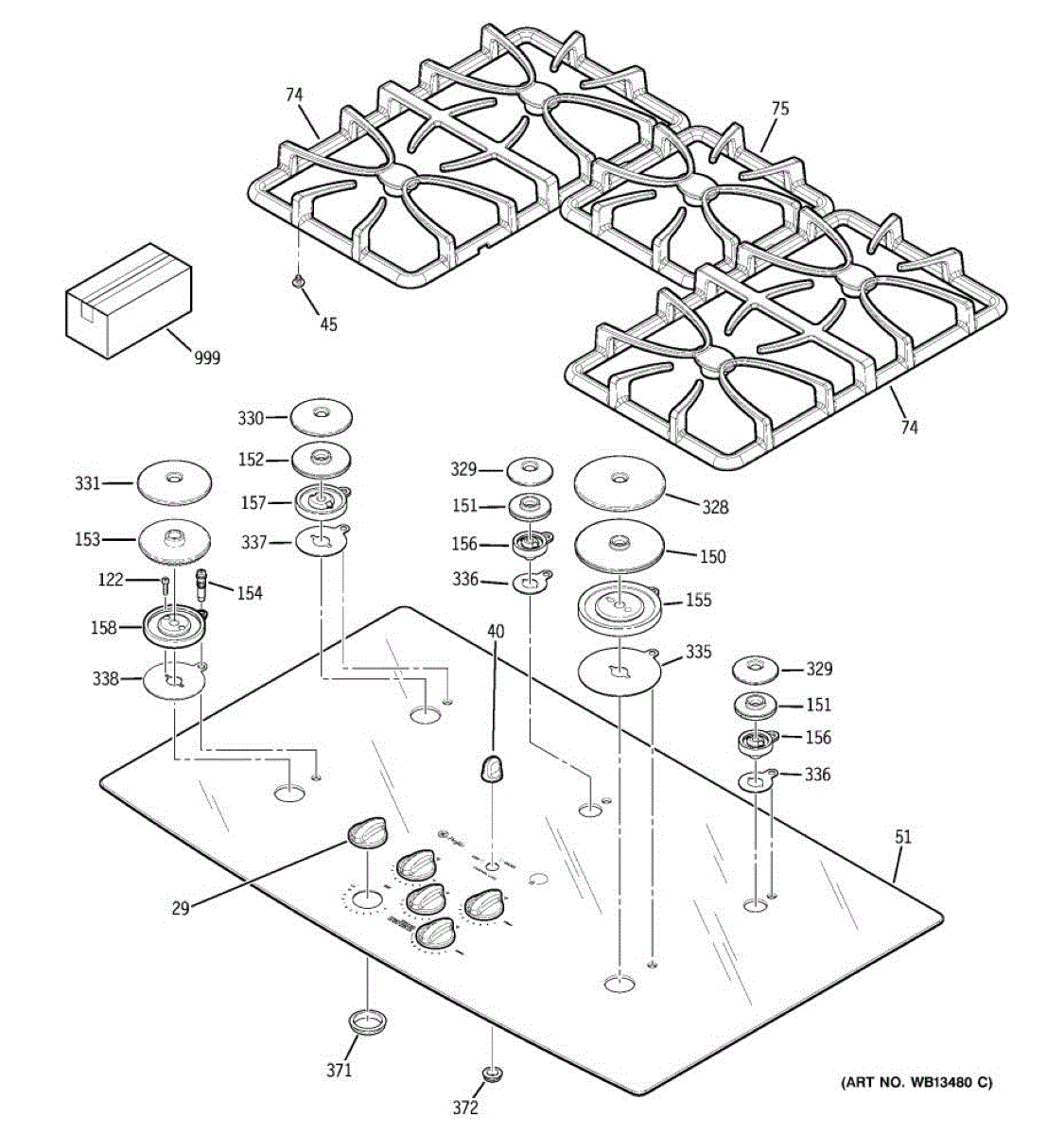

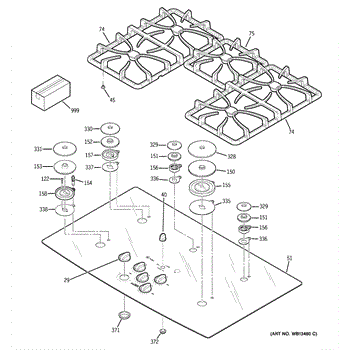

Parts for Ge JGP970BEK1BB: 01 - Control Panel & Cooktop Parts

A profile black gas valve control knob that restores tactile, reliable burner control. Replaces a cracked, stripped, loose or missing knob so you can adjust the gas valve smoothly while cooking. What it does:

• Fits onto the burner gas valve stem to provide a user-friendly control surface
• Replaces damaged or worn knobs that don't fully engage the valve splines
• Helps when a knob is loose, cracked, stripped, missing, or difficult to turn
• Restores consistent tactile feedback for accurate burner adjustment

• Always turn off the appliance and gas supply before servicing
• Pull the old knob straight off the valve stem; align the new knob's splines and push on until fully seated
• Use only the exact knob design intended for your valve to ensure proper fit and safe operation

Color: brushed chrome. Measures about 2 inches in diameter.

Color: glossy black. Measures about 1 inch in diameter, and 1 inch deep.

The Selector Knob is an OEM part for GE ranges. This knob allows users to select various cooking settings and temperatures by turning it to the desired position on the control panel.

Causes of a bad selector knob can include regular wear and tear, cracks or breaks from excessive force, and damage from heat exposure over time.

Symptoms of a bad selector knob include:

• The knob not turning smoothly or getting stuck
• Cracks or visible damage on the knob
• Difficulty selecting or changing settings
• The knob coming off easily or not staying securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Cooktop grate assembly that supports cookware over gas burners, restoring a stable, level cooking surface and proper burner contact. Replaces damaged or warped grates to help reduce wobbling and improve cooking consistency. What it does:

• Provides a stable platform for pots and pans above gas burners
• Positions cookware for correct flame contact and more even heating
• Replaces cracked, chipped, or warped grates that can cause wobbling or unstable cookware
• Helps prevent pans from tipping and keeps the cooktop surface functioning as intended

• Allow the range and burners to cool completely before removing or installing the grate
• Typically installs by lifting the old grate off and seating the replacement into place—no special tools required
• Verify correct seating around the burner caps so flames are not obstructed

This grate assembly replaces a worn or damaged cooktop grate to restore stable pan support and proper airflow for safe, even cooking. It matches OEM fit and form for compatible gas cooktops. What it does:

• Supports cookware over the burner for safe, stable cooking
• Restores correct clearance and airflow for even flame distribution
• Replaces cracked, warped, or chipped grates that can cause instability
• Helps prevent cookware from contacting burners or igniters

• One grate assembly

• Turn off gas supply and allow cooktop to cool completely before handling
• Remove old grate and set new grate into position; no special tools typically required
• Inspect surrounding porcelain/enamel surfaces for damage; clean as recommended by manufacturer

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

D burner

H Burner

B Burner

C burner

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Black. D Burner

Grey. D Burner

Black. D Burner

Black. H Burner

Grey. H Burner

Black. H Burner

Grey. B Burner

Black. B Burner

Black. B Burner

Grey. C Burner

Black. C Burner

Black. C Burner

Note: The part is approximately 4" in diameter.

Small

Note: The part is approximately 2-3/8" in diameter.

Note: The part is approximately 3" in diameter.

Grey

Black

This burner wire harness assembly routes power and signals between the control and the burner components so your range or oven can ignite and operate correctly. It replaces a damaged or corroded wiring harness to restore reliable ignition. What it does:

• Carries electrical connections from the control/igniter to the burner for proper ignition and heating
• Replaces broken, melted, or corroded wires that can cause intermittent or failed ignition
• Helps stop sparking issues or burners that don't light when the control calls for heat
• Restores secure connector fit and proper wire routing to prevent shorts or arcing

• One burner wire harness assembly

• Disconnect power (and gas supply for gas ranges) before starting any repair
• Handle connectors gently and match connector shapes; ensure all plugs seat fully
• Route and secure the harness away from high-heat surfaces and moving parts
