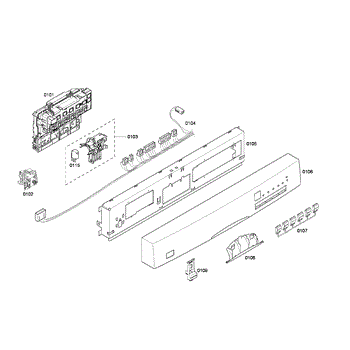

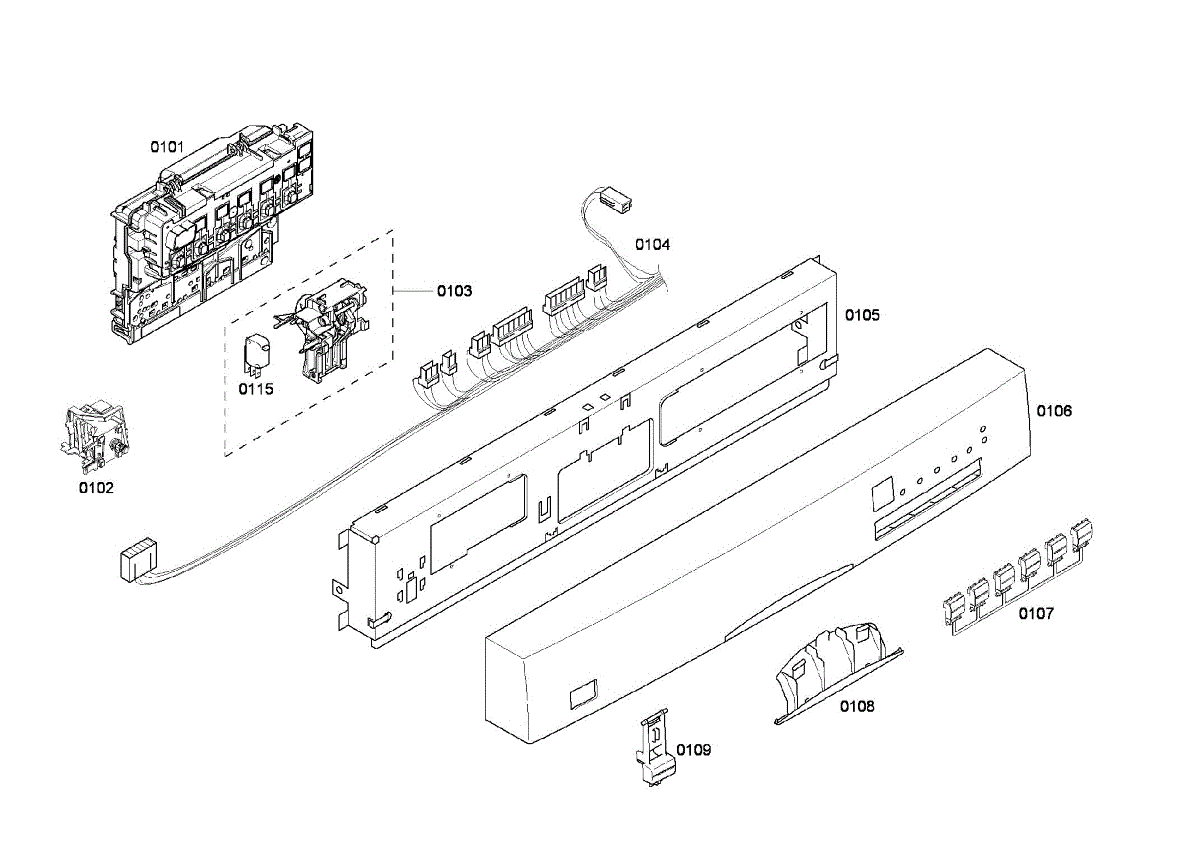

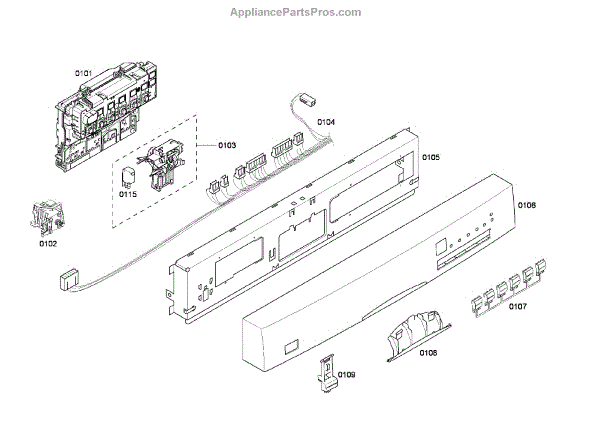

Parts for Bosch SHE45M06UC/56: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Control Unit is an OEM component specially designed for select Bosch dishwashers. As the appliance's main processor, it directs all wash cycles, temperatures, times, and auxiliary features.

Integrated circuitry executes complex programs with precision to thoroughly clean varied loads efficiently. Sensors monitor functions and provide cycle status updates to the control panel interface.

Symptoms indicating control unit replacement include:

• Cycles failing to start or responding incorrectly to input selections
• Error codes displayed without reason or resolution through reset
• Inoperative auxiliary settings like speed adjustment or half-loads

Causes stem from degradation over decades of continuous thermal and electronic stresses. Water intrusions pose risks as circuit boards are fragile to short circuits.

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore dishwashers utilizing identical cycles and diagnostics systems. Reinstallation ensures continued intended cycle performance.


The On/Off Switch is an OEM part for Bosch dishwashers. It provides the function of powering the unit on or off with the press of a button.

Causes can be normal wear over thousands of cycles or moisture damage compromising electronics. Physical impact could also affect switch operation over time.

Symptoms of a bad on/off switch include:

• The dishwasher failing to start wash cycles when the switch is engaged
• Washers inadvertently stopping mid-cycle or short cycling irregularly
• The control panel lighting/interface malfunctioning or unresponsive

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Latch is an OEM part for Bosch dishwashers. This part securely closes the dishwasher door, ensuring that it locks in place during operation. The latch mechanism works by engaging with the door strike, preventing the door from opening while the dishwasher runs, which is essential for both the safety and proper functioning of the appliance.

Causes for replacement often include normal wear and tear from regular use, accidental damage, or a malfunction that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dishwasher door doesn't stay shut or locks intermittently.
• The dishwasher fails to start due to the door not being recognized as properly closed.
• Visible signs of damage or wear on the latch mechanism.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This cable harness routes power and signals between components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent operation and eliminates exposed or broken wiring that can cause component failures. What it does

• Reconnects power and control signals between appliance modules and components.
• Replaces damaged, frayed or burned wiring that can cause shorts or loss of function.
• Commonly fixes intermittent operation, components that do not power on, or complete failure of a circuit.
• Maintains correct wire routing and secure terminals for safe, reliable operation.

• Disconnect all power before starting work to avoid shock or injury.
• Compare the harness to the original and follow the OEM wiring diagram for correct routing and terminal locations.
• Securely seat all connectors and use proper strain reliefs; avoid pinching wires when reassembling panels.

This control panel frame supports the user interface assembly and front fascia, keeping buttons and display properly aligned. Replacing a cracked or warped frame restores a secure console fit and consistent control response.

• Provides the structural housing and mounting points for the control/user interface assembly
• Maintains alignment of buttons, display, and touchpad overlay for reliable operation
• Secures the console and covers internal control components
• Typical signs of failure: loose or sagging control panel, broken tabs, gaps at the console, buttons sticking or misaligned

• Disconnect power before servicing; verify no voltage is present
• Support the console while removing screws/clips to protect wiring and connectors
• Transfer the user interface, control board, and hardware from the old frame to the new one one-for-one
• Ensure all tabs engage and do not overtighten screws to avoid cracking the frame

The Facia Panel is an OEM part for Bosch dishwashers. This part is the front-facing control interface of the dishwasher, housing the buttons and display used to operate the appliance.

Causes of a bad facia panel can include physical damage such as cracks or breaks, wear and tear from frequent use, or malfunctioning electronic components behind the panel.

Symptoms of a bad facia panel include:

• Buttons not responding when pressed
• Display malfunctioning or not lighting up
• Visible cracks or damage to the panel
• Difficulty in selecting or changing cycles

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Button is an OEM component specifically designed for select Bosch dishwasher control panels. It initiates cleaning cycles upon end-user selection.

Reinforced polymer caps withstand millions of presses without cracks or splits. Gold-plated contacts provide dependable electrical pathways starting wash sequences.

Causes requiring replacement commonly relate to prolonged use over decades of wearing through water-resistant barriers. Direct impacts could also unsettle attachment boards necessitating full assembly swapping.

Symptoms  of a bad button include:

• Failure to register selections or improperly engaged cycles
• Loosened fasteners no longer securely mount interface points
• Cracked or distorted housings exposing internal switch mechanisms

Note: In some cases, the buttons are not all the same and it matters which location/order you put them.

This OEM Bosch replacement button is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on electronically controlled sequences. Proper installation restores intended cycle initiation capabilities.

The Door Handle is an OEM component specifically designed for Bosch dishwashers. This handle allows for smooth, intuitive opening and closing of the dishwasher door. Over time, door handles can become worn, loose, or damaged through repeated use. The stress of opening and closing puts strain on this high-touch point.

Causes of a faulty door handle include cracks, breaks or looseness caused by excessive force or impact. Normal wear and tear over thousands of uses can also degrade plastic and mechanics.

Symptoms of a bad door handle include:

• Difficulty opening or closing the door
• The handle wobbling or coming loose from the assembly
• Cracks or splits in the plastic casing
• Improper alignment preventing full closure of the door seal

This part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This is a button. This is a genuine OEM part made by Bosch and has been sourced directly from the manufacturer. This part is intended to replace a broken or defective button on certain different makes and models of dishwashers.This button attaches to the front panel of the dishwasher and is needed for powering on and off the dishwasher. Over time and with regular use, buttons can become worn or broken and stop working. This part requires proper tools for replacement. Before starting, disconnect the dishwasher completely from both power and water hookups. Please follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install this button, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this button is suitable for use on several different models of dishwashers manufactured by Bosch, Thermador, and Gaggenau. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

This replacement switch restores reliable electrical control within your appliance. It opens and closes an electrical circuit to signal the control system, so power and functions respond consistently when the switch is actuated.

• Opens/closes an electrical circuit when the actuator is engaged
• Sends an on/off or selection signal to the control or main board
• Helps address: no response or no start, intermittent operation, stuck on/off state, or heat-damaged/burned terminals
• Direct replacement for the original switch on applicable units

• Disconnect power at the breaker and unplug the unit before servicing
• Access the control area to reach the switch; note wire locations or take a photo
• Transfer wires one at a time for correct orientation; ensure snug terminal connections
• Reinstall mounting hardware, reassemble panels, restore power, and test operation
