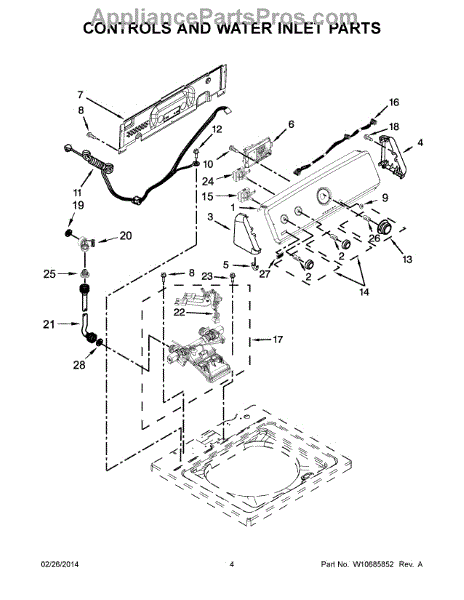

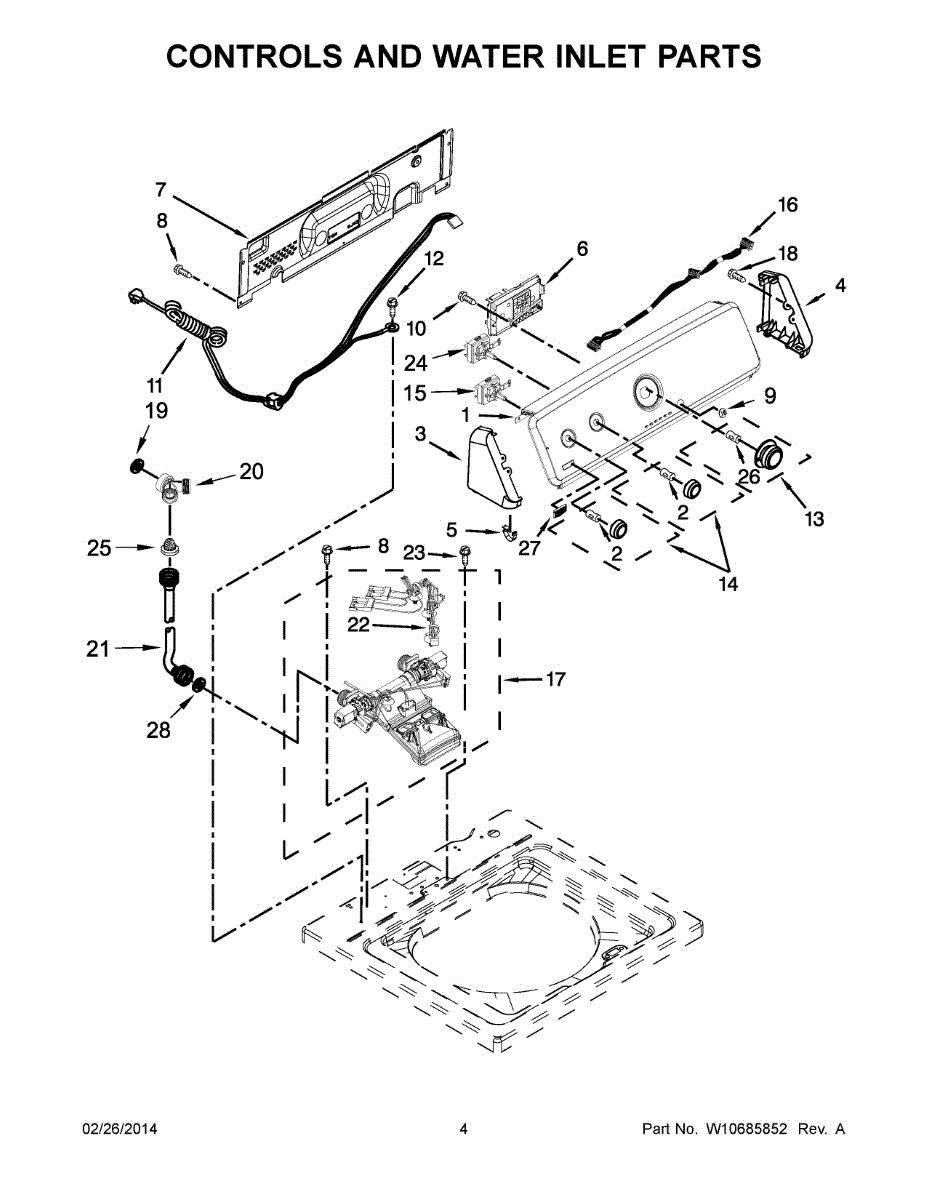

Parts for Maytag 4KMVWC100BQ0: 03 - Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left-hand end cap assembly restores a secure, finished mounting point on the appliance cabinet and helps keep internal components aligned and protected from friction or debris. Ideal when the original end cap is cracked, warped, or missing. What it does:

• Replaces a damaged or worn left-hand end cap to maintain proper alignment of adjacent components
• Provides a protective cover to prevent contact, rubbing, or debris entry at the cabinet edge
• Helps reduce vibration-related noise caused by loose or misaligned parts
• Fits into the original mounting location and matches OEM fit where specified

• Disconnect power to the appliance before starting any repair
• Verify left/right orientation by comparing to the removed part prior to installation
• Typical install requires removal of the adjacent trim or panel; handle parts gently to avoid damaging clips
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners

This right-side endcap assembly replaces a damaged or missing trim piece to restore a clean finished edge and secure adjacent panels. It helps keep the appliance sealed at the outer edge and prevents rubbing or gaps. What it does:

• Replaces the right-side exterior endcap/trim on the appliance
• Holds adjoining panels in proper alignment and reduces edge movement
• Helps prevent debris and moisture from entering the seam at the appliance edge
• Stops rattling or scraping caused by a broken or loose endcap

• Disconnect power to the appliance before starting any work.
• Access may require removing the cooktop, control panel, or adjacent trim—refer to the model service manual.
• Handle edges and painted surfaces carefully to avoid scratches; use gloves if needed.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This grommet fits around the start/pause pushbutton to cushion the button, keep it aligned, and help block moisture and debris from entering the control console. It restores reliable button feel and appearance. What it does:

• Cushions and centers the start/pause pushbutton for smooth operation
• Helps seal the control panel around the button to reduce moisture and debris intrusion
• Prevents button wobble and improves tactile feedback when pressing start/pause
• Common symptom: button sticks, feels loose, or the console shows wear around the button

• One start/pause button grommet

• Disconnect power to the appliance before starting any work
• Access usually requires removing the control console or panel
• Snap the grommet into the control panel and reinstall the button; avoid stretching or using solvents
• If the button or switch shows damage, inspect those components as well before finishing reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement knob-dial assembly that restores reliable manual control of your appliance's settings. Use this direct-fit knob to replace cracked, stripped or missing dials so you can accurately select cycles, heat levels or timer positions. What it does:

• Rotates to engage the control shaft and select the appliance setting.
• Provides a clear indicator for position alignment to improve user accuracy.
• Replaces worn, cracked or loose knobs that slip or spin on the shaft.
• Helps restore normal operation when the original knob is missing or broken.

• Disconnect power to the appliance before starting any repair.
• Most models use a push-on fit; align splines and press straight onto the control shaft. Some models may use a retaining screw—refer to the appliance's service instructions.
• After installing, restore power and test the knob through its range of motion; do not operate the appliance if controls are loose or binding.

Rotary encoder that restores precise cycle selection and reliable knob feedback on the control panel. Replaces a worn or unresponsive cycle switch so the control board can detect the chosen program correctly. What it does:

• Senses knob/shaft position and sends cycle-selection signals to the control board.
• Restores tactile detents and accurate position indexing for the user control knob.
• Commonly fixes symptoms like the control not recognizing selected cycles, intermittent cycle changes, or a loose/unresponsive selector.
• Works as the electronic/mechanical cycle switch used by the control assembly to select programs.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the control knob and control panel—note screw and connector locations during disassembly.
• Handle the part and nearby PCB/terminals carefully to avoid bending contacts or ESD damage.
• Reassemble panels and test cycle selection through several positions to confirm correct operation before finishing.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This washer hose adapter provides a secure connection between the machine inlet and external water supply fittings on export-style washers. It restores a proper water feed and helps stop leaks at the hose-to-appliance connection. What it does:

• Adapts the washer's inlet to match export-style water supply hoses and fittings.
• Creates a watertight seal at the hose-to-appliance connection to prevent leaks.
• Restores proper water flow when the original adapter is damaged, cracked, or missing.
• Helps eliminate intermittent filling or slow-fill symptoms caused by a poor hose connection.

• One washer hose adapter (export) as pictured.

• Turn off water supply and unplug the washer before installing.
• Hand-tighten connections, then give a quarter-turn with pliers if needed; avoid overtightening.
• Inspect inlet and hose threads/seals for damage and replace if worn.

This Y-shaped connector hose diverts water between two inlet lines to route supply where needed. It restores proper water flow paths and replaces damaged or leaking split-connection plumbing on compatible appliances. What it does:

• Splits a single water inlet into two outlets so water can serve two components
• Provides a sealed path to prevent cross-flow between lines
• Commonly replaced when the connector leaks, cracks, or becomes brittle
• Helps restore normal water delivery when a split supply is required

• Turn off the appliance and shut off the water supply before beginning.
• Inspect mating fittings and replace any damaged clamps or seals.
• Hand-start fittings to avoid cross-threading, then tighten securely; check manufacturer torque guidance if available.
• After installation, restore water and power and check all connections carefully for leaks.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This main wire harness routes power and signals between the appliance control and internal components to restore proper electrical connections and operation. It's a direct-fit replacement when the original harness is damaged. What it does:

• Connects control board, motors, switches and sensors so circuits receive power and communicate correctly
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation or component failure
• Helps stop issues like no power to controls, intermittent runs, or unexpected shutdowns when caused by damaged wiring
• Maintains factory routing and connector types for reliable electrical connections

• One main wire harness

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness
• Compare harness and connectors to the original and route wires following factory paths to prevent chafing
• Secure connectors fully until they click; avoid stretching wires when reinstalling

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

The Inlet Hose Screen and Gasket is an OEM part for Whirlpool washing machines. This component is designed to filter debris from the water entering the machine and ensure a tight seal between the hose and the water inlet valve. By preventing debris from entering the washing machine, it helps to maintain the appliance's performance and longevity.

Causes of a bad inlet hose screen and gasket can include clogging from mineral deposits or debris, wear and tear over time, or damage due to improper installation or removal. A compromised screen or gasket can lead to reduced water flow and potential leaks.

Symptoms of a bad inlet hose screen and gasket include:

• Reduced water flow into the washing machine
• Visible debris or buildup on the screen
• Water leaks at the hose connection
• The washing machine not filling properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A
