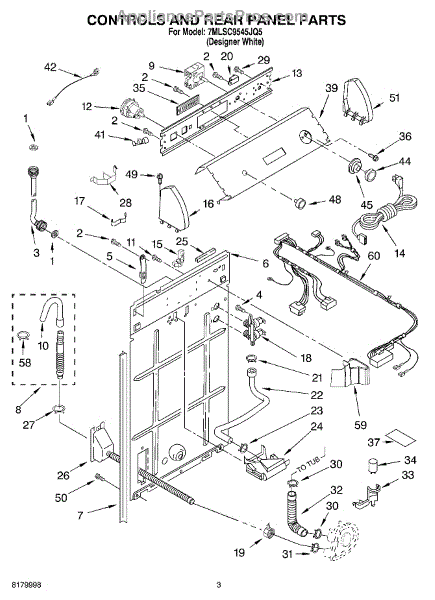

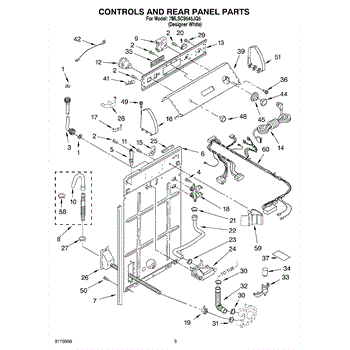

Parts for Whirlpool 7MLSC9545JQ5: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

21-inch drain hose extension for washers. Extends existing drain hose when original is too short to reach standpipe. Includes clamp for secure fit.

Replace a cracked, leaking, or worn washer drain hose. 48 inches long with clamp included. Installs between pump and standpipe for proper drainage.

The Timer is an OEM part for Whirlpool washing machines. It controls the electrical components and the sequence of operations during the wash cycle, ensuring each phase of the cycle occurs at the right time.

Causes of a bad timer include electrical issues such as short circuits or power surges, wear and tear of internal mechanical components over time, and exposure to moisture or detergent, which can lead to corrosion.

Symptoms of a bad timer include:

• The washer not advancing through cycles
• Cycles taking longer than usual
• The washer skipping cycles
• The machine stopping mid-cycle or not starting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Drain hose nozzle that attaches to the end of your washer's drain hose. Replace if cracked, broken, or missing to ensure proper hose connection.

Size: 10-24 x 3/8 inch.

Washer not filling properly or overfilling? A faulty water level pressure switch fails to signal correct fill levels. DIY repair in about 1 hour.

Washer won't fill or drips water after cycle? The water inlet valve controls hot and cold water flow. DIY-friendly repair with video guide included.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces the vacuum break inlet hose connecting the water inlet to your washer tub. Needed when original hose is cracked, burst, leaking, or damaged.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Washer slowly filling or dripping when off? A faulty vacuum break allows water to siphon back into the drum. Takes 30 minutes with our video guide.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Internal drain hose assembly routes water from washer tub to drain pump. Replace if cracked, split, leaking, or connector is broken or damaged.

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Used on the pressure switch hose harness.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Replacement drain hose connecting washer tub to pump assembly. Replace if cracked, split, leaking, or worn. Carries water from tub during drain cycle.

Washer just hums but won't start? The motor capacitor enables your washer to start and run. Easy 10-minute fix with our installation video guide.

Fixes loose or wobbly timer controls by securing the timer assembly to its mounting bracket. Simple 5-minute repair restores proper cycle operation.

Secures hoses and prevents leaks in dryers, washers, and laundry centers. Replace when connections loosen or drips appear. Verify fit by model.

The Knob is an OEM part for Whirlpool washers. This part allows users to select and control the various wash cycles and settings by turning the knob to the desired position. It fits securely onto the washer's control shaft, providing an intuitive and reliable interface for managing the washing machine's functions.

Causes of a bad knob can include regular wear and tear, damage from repeated use, or breakage due to accidental impact.

Symptoms of a bad knob include:

• The knob not turning smoothly or becoming difficult to turn
• The knob slipping off or not staying securely on the control shaft
• Inaccurate or unresponsive cycle and setting adjustments
• Visible cracks, breaks, or wear on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace your washer's timer dial if cracked, broken, or missing. Installs behind the knob with gray indicator to help select wash cycles correctly.

The Control Knob is an OEM part for Whirlpool washers and dryers. It attaches to the selector switch, enabling users to choose various settings such as wash or drying temperature, fabric type, and spin speed.

The most common causes of a defective control knob include internal stripping that prevents secure engagement with the selector shaft, wear and tear from frequent use, accidental impacts leading to cracks or breakage, and aging of the knob's material.

Color: White

Symptoms of a malfunctioning control knob include:

• Difficulty selecting or changing cycle settings
• The knob spins freely without engaging the selector switch
• Cracks, looseness, or broken parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washers and dryers.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

10 - 16 x 1/2

Leaking washer during drain cycle? This drain hose clamp secures the connection to prevent water leaks and hose pull-off from vibration or pressure.
