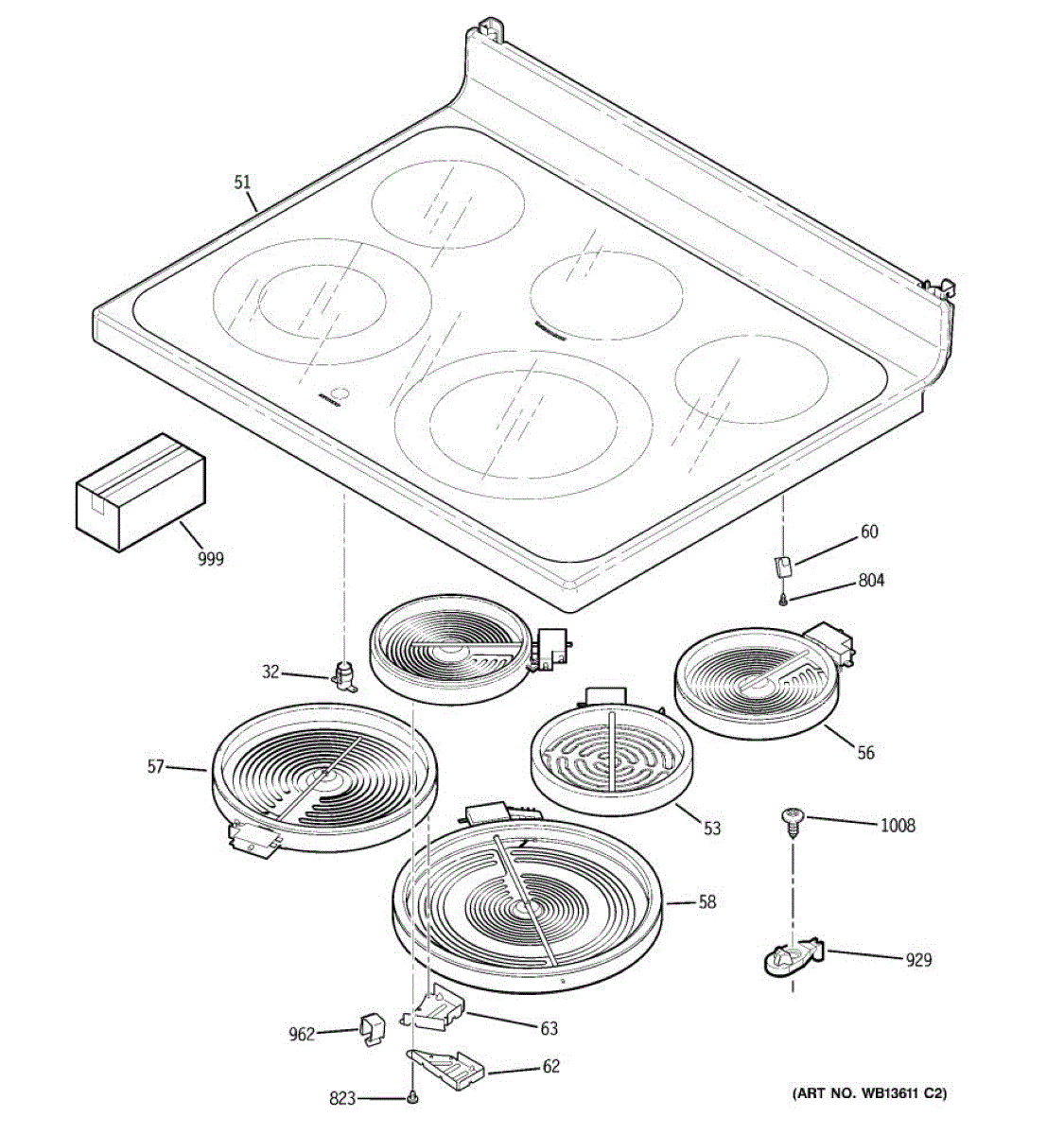

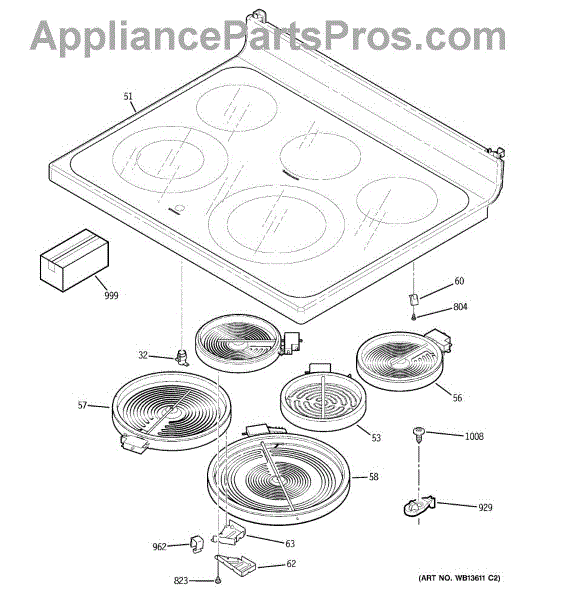

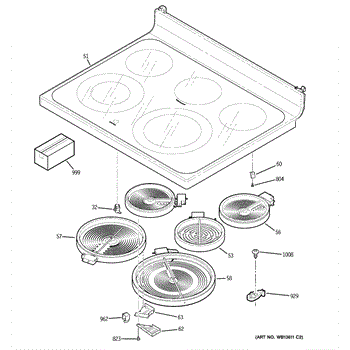

Parts for Ge JCBP77DM2BB: 02 - Cooktop Parts

This indicator light is a small panel-mounted lamp that illuminates to show when a heating circuit is active. Replacing a failed indicator restores a clear visual cue so you know when the appliance is operating. What it does

• Lights when the corresponding function or element is energized
• Provides a visual status cue during operation
• Common symptoms: light won't come on, stays on continuously, flickers or is dim, or shows physical damage

• One indicator light assembly

• Disconnect power at the breaker before servicing
• Access the rear of the console/control area; note wire positions and transfer one at a time
• Secure the new light in the panel opening per design (snap-in or nut-mounted)
• Restore power and test operation before reassembly

Warming Element

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

The Element Haliant 12 Inch is an OEM part for GE ranges. This radiant heating element is designed to provide even and consistent heat for cooking on your stovetop. It ensures efficient transfer of heat to your cookware, allowing for precise temperature control.

Over time, heating elements can wear out or become damaged due to repeated use, exposure to high temperatures, or accidental impact. If the element becomes faulty, it can result in uneven heating or failure to heat up entirely.

Symptoms of a bad element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burn marks on the element
• Sparking or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This radiant element bracket secures the oven's radiant cooktop element, keeping it properly positioned for reliable heat transfer and safe operation. A worn or broken bracket can allow the element to sag or shift, causing noise or uneven heating. What it does:

• Supports and centers the radiant heating element under the cooktop
• Keeps the element stable to prevent movement, rattling, or contact with other components
• Helps maintain consistent heat distribution across the cooking surface
• Reduces risk of abrasive wear to element leads and connection points

• Disconnect power to the appliance before attempting any repair
• Inspect mounting area and hardware; replace any damaged screws or clips
• Ensure bracket seats fully and the element is properly aligned before restoring power

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

This maintop strike is the small latch plate the cooktop engages with to stay secured and aligned. Replacing a bent or missing strike restores a snug-fitting main top and proper engagement with the latch mechanism.

• Provides the engagement point for the main top's latch mechanism
• Helps keep the cooktop seated and aligned to reduce movement and rattling
• Can correct issues like the top not staying down or visible gaps at the front edge
• Supports proper actuation of any associated latch/safety switch, when applicable

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Open/raise the cooktop per the unit's design and support it safely
• Remove the old strike and align the new strike in the same position; reuse existing mounting hardware if applicable
• Tighten fasteners securely and test latch engagement before restoring power

A small replacement cable clip that secures an appliance wiring harness to the cabinet or chassis, helping prevent wire rubbing and vibration. Replacing a broken clip keeps wiring routed and reduces loose, rattling wires. What it does:

• Secures wiring harnesses to the cabinet or chassis to keep wires in place and routed away from moving parts.
• Reduces wire chafing and abrasion that can cause exposed conductors or intermittent connections.
• Helps eliminate rattling noise caused by loose or vibrating wires.
• Keeps harnesses positioned to reduce stress on connectors and wiring runs.

• Always unplug the appliance or shut off power at the breaker before inspecting or replacing wiring hardware.
• Remove the old clip and press the replacement into the same mounting slot or stud until it snaps into place; light tool assistance (small flat screwdriver) can help in tight locations.
• Inspect nearby wiring and connector insulation for damage; repair or replace any frayed wires rather than relying on the clip alone.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8-18 BA POR 3/4 SN
