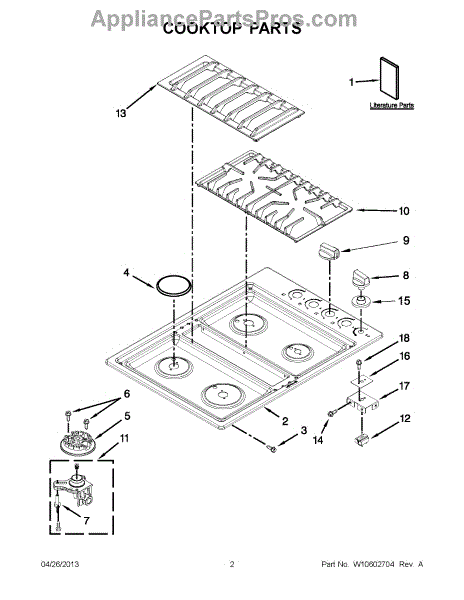

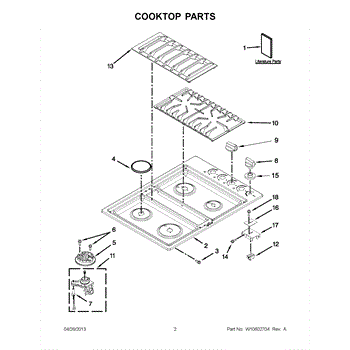

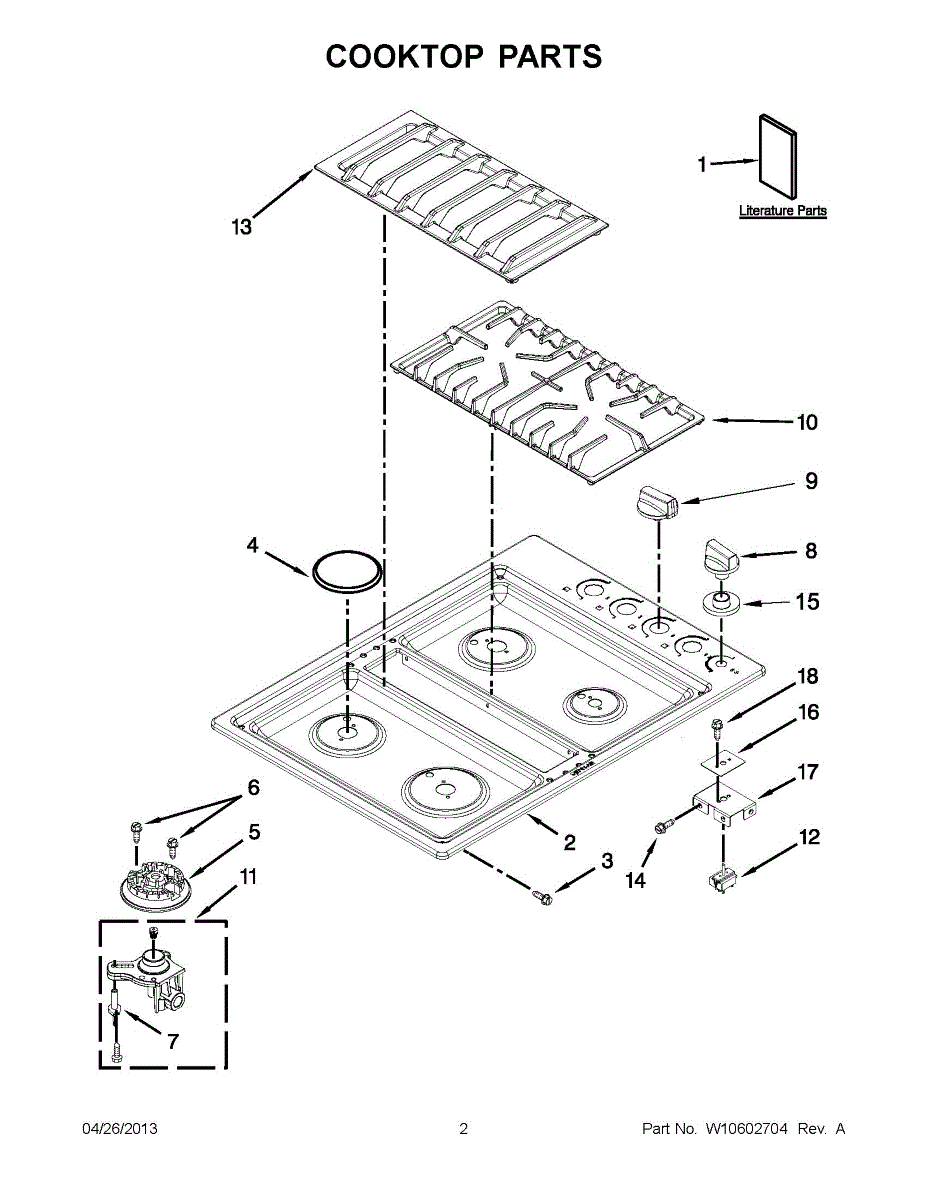

Parts for Maytag JGD3430BB00: 01 - Cooktop Parts

Color: Black

Color: White

Color: Stainless

Color: Wetstone

Color: Wetstone

Color: Wetstone

Color: Black

Color: Black

Color: Black

This small surface burner assembly replaces a worn or damaged top burner on your gas range or cooktop, restoring quick ignition and an even flame so the small burner heats predictably for simmering and everyday cooking.

• Distributes gas through the burner ports to create a steady, controllable flame at the small-burner position
• Works with the igniter/orifice holder to light reliably
• Common symptoms: burner won't light or only clicks, weak or uneven flame, yellow tips, delayed ignition, or flame that sputters out
• Visible cracks, warping, or heavy corrosion on the burner head

• Shut off gas supply and power; allow the cooktop to cool completely before servicing
• Remove grate and cap, then take out the old burner assembly; retain any screws or brackets as required by your model
• Align the new assembly over the orifice and igniter; seat fully and secure per the manufacturer's instructions
• Restore gas and power, then check for proper ignition and flame; verify there are no gas leaks

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Black

Color: White

Color: Stainless

Color: White

Color: Black

Color: Stainless

Color: Wetstone

Color: Black

This orifice holder secures the gas orifice in a cooktop/range burner assembly to keep the burner positioned for proper gas flow and ignition. It helps restore stable burner operation after a damaged or missing holder. What it does:

• Holds the burner orifice steady in the burner tube so gas flows through the correct opening
• Helps maintain a consistent flame; a worn or broken holder can cause weak or uneven flames
• Keeps the orifice aligned for reliable ignition and burner lighting
• Prevents orifice movement that can lead to noisy or irregular burner performance

• Turn off gas supply and power to the appliance before servicing
• Handle orifice and holder carefully to avoid damage to small parts and threads
• Clean surrounding burner parts and replace any damaged orifices or gaskets as needed

This orifice holder secures the gas orifice for a 17K burner, ensuring consistent fuel delivery for reliable burner operation. It replaces worn or damaged holders to restore proper gas flow and stable flames. What it does:

• Holds the burner orifice in the correct position for consistent gas flow to the burner
• Helps maintain an even, steady flame and predictable heat output
• Can address symptoms like weak or uneven flames or burners that fail to light reliably
• Works with the corresponding burner assembly to prevent orifice movement or leakage

• One orifice holder (17K) as shown

• Turn off gas supply and disconnect power before servicing the range
• Handle gas fittings carefully; confirm proper seating of the orifice in the holder
• If you smell gas, stop immediately
• Use manufacturer diagrams to verify fit

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This orifice holder secures the gas orifice at the burner tube, maintaining correct gas flow for reliable ignition and steady flames. It's used on compatible gas cooktop/range burners to restore proper burner performance. What it does

• Holds the burner orifice in the correct position so gas flows evenly to the burner ports
• Helps restore steady, even flame size and consistent ignition
• Commonly replaced when the orifice or holder is damaged, corroded, or misaligned
• Works with 12.5k orifices designed for specified burner output

• One orifice holder (12.5k)

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner grates and caps to access the holder; handle parts carefully to avoid damage
• Reinstall securely so the orifice seats correctly; check for proper ignition and flame pattern after reassembly

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

Color: Black

Color: Wetstone

Color: White

This black grommet seals and cushions a gas cooktop component to protect wiring and prevent chafing, helping maintain safe operation and reduce vibration noise. Designed as a direct-fit replacement for the original equipment part. What it does:

• Provides a protective barrier where wires or tubing pass through metal openings to prevent abrasion and shorting
• Cushions components to reduce vibration and rattling during operation
• Helps maintain a gas appliance's original routing and secure fit for ignition/wiring assemblies
• Commonly replaced when the grommet becomes cracked, split, hardened, or missing

• One black grommet

• Disconnect power and shut off gas supply before servicing the appliance
• Inspect surrounding wiring and tubing; replace damaged wiring or loose clamps as needed
• Press the grommet into the mounting hole until fully seated; ensure wiring/tubing pass cleanly through

Color: Stainless

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents
