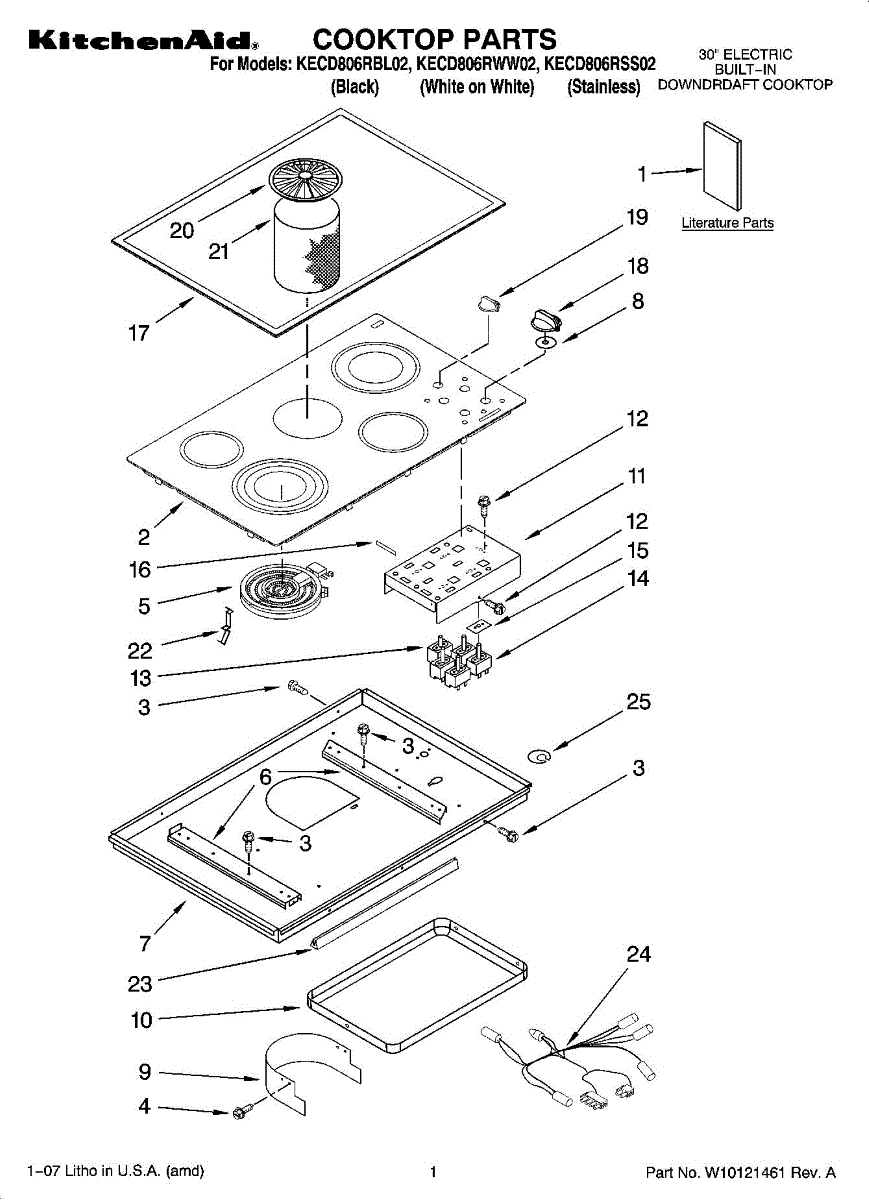

Parts for Kitchenaid KECD806RSS02: 01 - Cooktop Parts

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This replacement knob grommet cushions and centers a control knob on the console, helping reduce wobble and protect the panel from wear for smoother, more secure knob operation. What it does

• Centers and cushions the control knob for proper alignment and tactile feel.
• Helps reduce knob wobble, rubbing, and wear on the control panel.
• Can address symptoms like loose, uneven-feeling, or noisy knobs when turning.
• Fits the knob mounting on compatible Whirlpool control panels for a restored fit.

• Disconnect power to the appliance before servicing.
• Remove the control knob, press the grommet into the panel opening, then reinstall the knob; generally requires no special tools.
• Inspect the knob and shaft—replace if damaged, as a damaged shaft can prevent a secure fit.
• Reconnect power and confirm proper knob alignment and operation after installation.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This blower speed switch lets you select the blower/fan speed to restore proper airflow control in your appliance. It replaces a worn or faulty speed selector so the blower will respond correctly when you change settings. What it does:

• Controls the blower/fan speed so the appliance can run at selectable airflow levels
• Replaces a switch that is stuck, unresponsive, or only running at one speed
• Restores reliable electrical connection between the control circuit and blower motor
• Helps eliminate intermittent fan operation or loss of speed selection

• Disconnect power to the appliance before starting any repair.
• Verify wiring placement and retain original fasteners; wiring diagram for correct connections.
• Handle terminals carefully to avoid bending or damaging contacts.

This dual infinite switch controls power to a dual surface burner on an electric range or cooktop. Replacing a failed switch restores smooth heat control and proper inner/outer ring selection for accurate simmer-to-boil performance. What it does:

• Regulates power sent to the inner and outer sections of a dual surface element
• Provides variable heat levels from low to high
• Lets you select small (inner) or large (dual-ring) cooking zones
• Common failure symptoms: burner stuck on high or won't turn off, won't heat or heats erratically, cannot switch between inner-only and dual-ring modes

• 1 dual infinite surface element control switch

• Disconnect power at the breaker before servicing
• Access the control panel; remove the knob and switch mounting hardware as required by your model
• Label or photograph wiring and transfer each wire to the same terminal on the new switch
• After reassembly, test both inner-only and dual-ring settings to ensure proper operation

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This triple infinite surface element switch regulates power to a 3-size radiant burner on your cooktop. It lets you choose the small, medium, or large ring and adjust heat smoothly, restoring precise size selection and temperature control.

• Directs power to the inner, middle, and outer rings of a triple radiant surface element
• Cycles power to provide variable heat at the selected size
• Safe symptoms: burner won't change sizes or only one ring heats
• Safe symptoms: temperature stuck on high/low, won't turn off, or no heat

• Disconnect power before servicing
• Remove the knob/panel as needed; photograph wiring and transfer wires one at a time to matching terminals
• Secure the switch to the control panel, align the shaft, and reinstall the knob/panel
• Restore power and test all three element sizes across several heat settings

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

The Control Knob is an OEM part compatible with Whirlpool cooktops. It is a crucial component that allows you to control and adjust the temperature or heat settings of individual burners or heating elements on the cooktop surface.

Symptoms of a bad Control Knob include:

• Difficulty turning or adjusting the knob
• Knob feeling loose or wobbly
• Incorrect temperature or heat settings when using the knob
• Knob falling off or detaching from the control panel

Causes of a bad control knob can include general wear and tear over time, physical damage from impact or excessive force, or issues with the internal mechanisms or connections that facilitate the knob's operation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooktops and ranges.

This is the black control knob that mounts on your range or cooktop's control shaft, letting you select heat levels and settings with a clear, factory look. Replacing a worn knob restores proper grip and accurate pointer alignment.

• Mounts on the control shaft to select burner or function settings
• Restores smooth turning and positive indexing
• Ideal replacement for cracked, stripped, loose, or missing knobs
• Helps ensure settings are clearly indicated and easy to adjust

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the new knob with the shaft and press firmly until fully seated
• After installation, verify smooth operation and correct pointer alignment

This replacement blower switch knob gives your appliance a usable, easy-to-turn control for fan/blower speed selection and restores lost or damaged control styling. It's a direct-fit control knob that snaps onto the factory shaft to replace a cracked, stripped, or missing knob. What it does:

• Provides a tactile grip for turning the blower/fan speed selector
• Restores clear position selection when the original knob is worn or broken
• Prevents slipping on the shaft caused by stripped or damaged knobs
• Helps avoid accidental changes by fitting securely to the control shaft

• One replacement blower switch knob

• Disconnect power before servicing to avoid electrical hazard
• Pull off the old knob straight from the control shaft; align and push the new knob onto the splined shaft until fully seated
• Do not force or hammer the knob onto the shaft; confirm correct orientation of the spline
• If the control shaft is damaged, replace the shaft assembly rather than forcing the knob

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram
