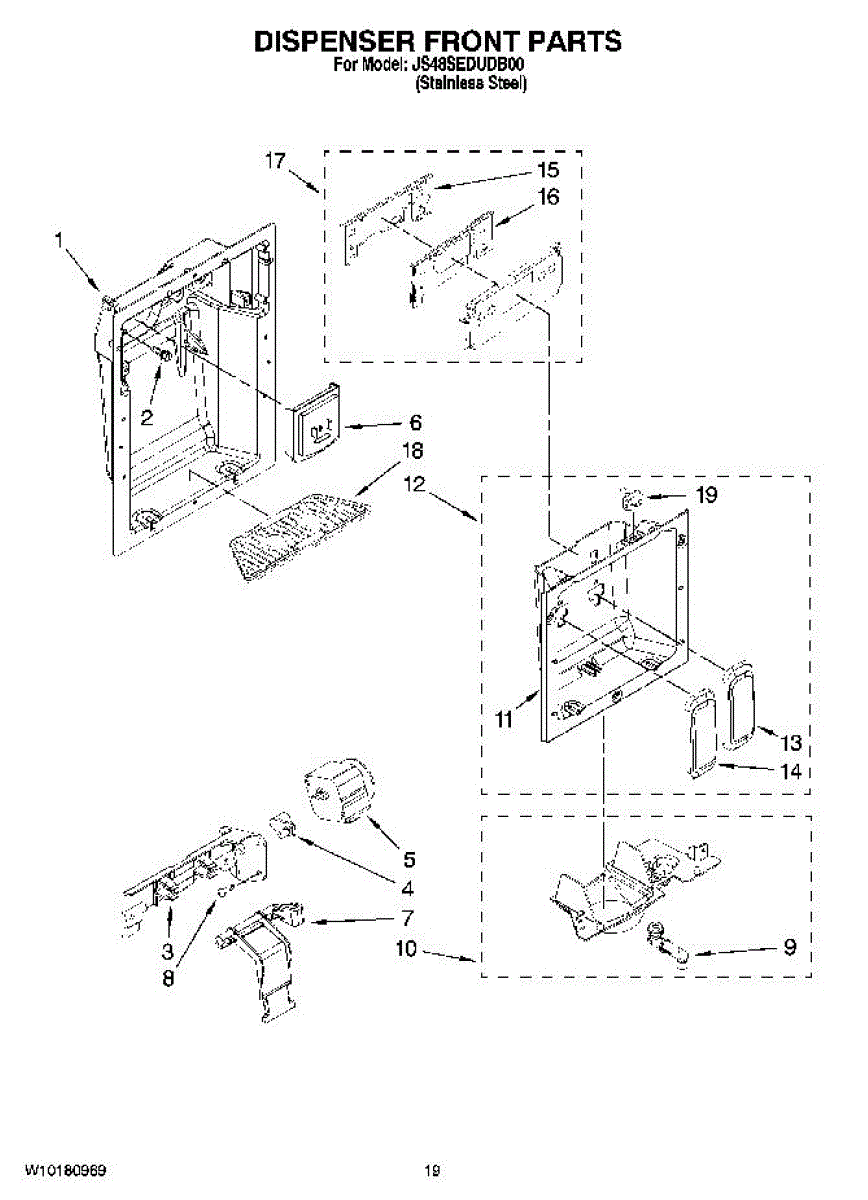

Parts for Maytag JS48SEDUDB00: 12 - Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Ice Door Motor and Bracket Assembly is an OEM part for Whirlpool refrigerators. This part ensure that the ice dispenser operates smoothly, preventing room-temperature air from entering the freezer and maintaining the ice in its solid state.

Causes of a bad Ice Door Motor and Bracket Assembly can range from mechanical wear and tear on the motor itself, damage to the bracket that affects the door's alignment, or electrical issues that prevent the motor from receiving the correct signals.

Symptoms of a malfunctioning Ice Door Motor and Bracket Assembly include:

• The ice dispenser door not opening or closing properly
• Ice melting or clumping due to air leaks
• Unusual noises when attempting to dispense ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

The Ice Door Motor and Bracket Assembly is an OEM part for Whirlpool refrigerators. This part ensure that the ice dispenser operates smoothly, preventing room-temperature air from entering the freezer and maintaining the ice in its solid state.

Causes of a bad Ice Door Motor and Bracket Assembly can range from mechanical wear and tear on the motor itself, damage to the bracket that affects the door's alignment, or electrical issues that prevent the motor from receiving the correct signals.

Symptoms of a malfunctioning Ice Door Motor and Bracket Assembly include:

• The ice dispenser door not opening or closing properly
• Ice melting or clumping due to air leaks
• Unusual noises when attempting to dispense ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for control panel.

Fix weak water flow or dripping at your refrigerator dispenser with this spigot assembly. Routes water from supply line to dispenser outlet.

Molded baffle that positions internal components in your refrigerator's ice dispenser. Replace if cracked, broken, or missing to restore alignment.

Replace your refrigerator's ice dispenser housing assembly. Mounts on the freezer door exterior. Order a new one if cracked, broken, or discolored.

Replaces a cracked, worn, or unresponsive dispenser pad on your refrigerator door. Installs in the front dispenser housing for water and ice.

Replaces a cracked, worn, or unresponsive dispenser pad on your refrigerator door. Installs in the front dispenser housing for water and ice.

Dispenser not responding or looking damaged? This refrigerator touchpad cover protects electronics and restores appearance. Simple DIY installation.

Catches drips and condensation from your refrigerator's dispenser area. Replace this tray if cracked, broken, or missing to prevent water puddles and stains.

Control panel indicator light for refrigerators. Replace when dim, flickering, or non-illuminating to restore status feedback. Verify fit with your model.

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
