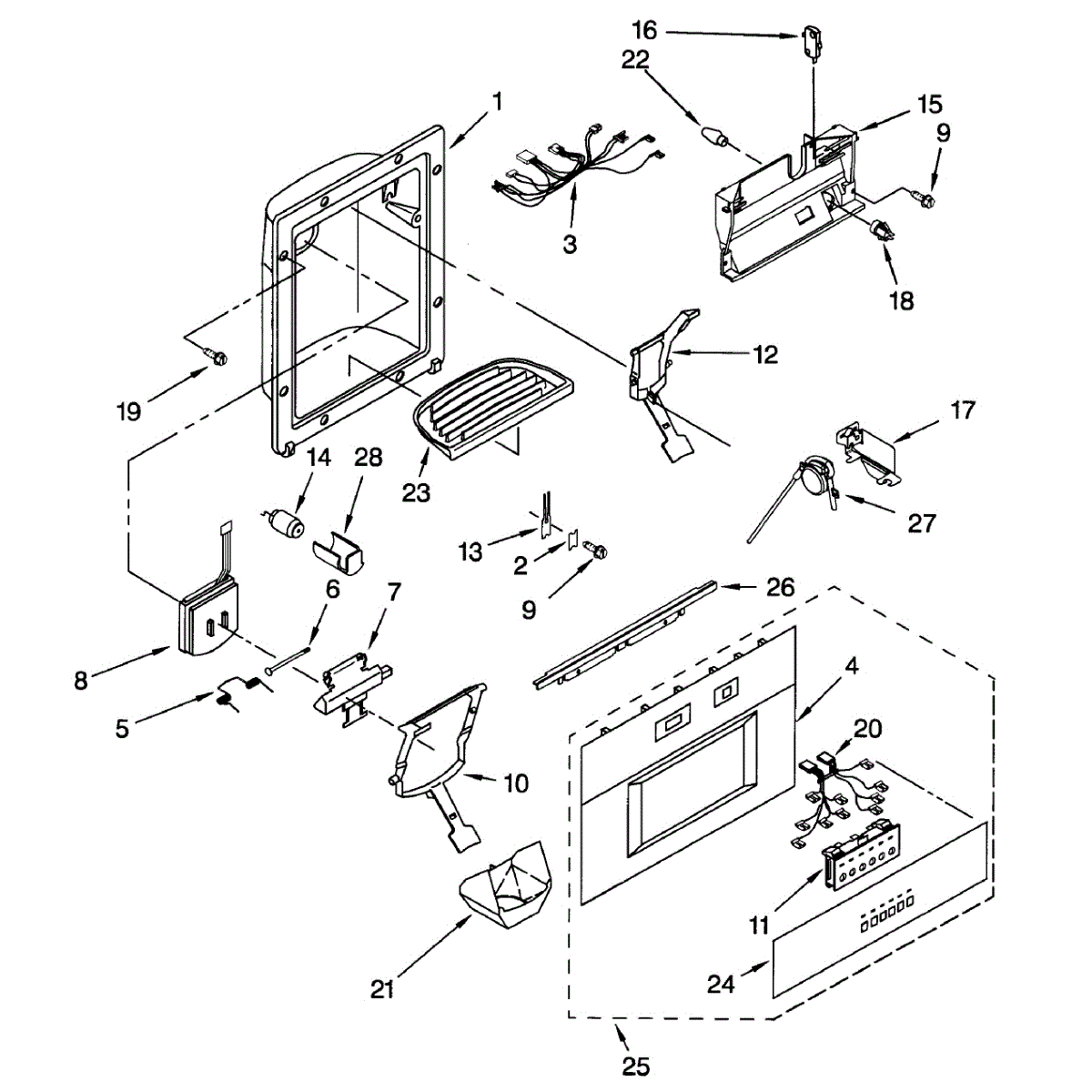

Parts for Dacor EF48DBSS: Dispenser Parts

The Dispenser Arm Strain Relief is an OEM replacement part for Whirlpool side-by-side refrigerators. It connects the water and ice dispenser arm to the fridge cabinet, absorbing tension during use.

Causes of a bad strain relief involve wear and flexing fatigue of the plastic over extensive dispensing cycles. Exposure to moisture or liquid damage inside the fridge liner may prematurely degrade connecting parts as well.

Symptoms of a bad strain relief include:

• Cracks, splits, or tears in the relieving plastic material
• Dispenser arm separation from the cabinet opening
• Missing pieces that compromised structural integrity
• Difficulty accessing or using the refrigerator's water/ice functions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerator models.

For the complete ice door kit order W10823377.

Ice dispenser won't close or dispenses continuously? This dispenser door pin kit restores proper flapper operation. Easy DIY repair with video guide.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.

Fix a sticking or jammed dispenser lever with this refrigerator dispenser arm actuator. Restores smooth, reliable water and ice dispensing operation.

Loose or non-functioning water dispenser? This retainer secures the lever and restores spring-loaded action. Simple 5-10 minute DIY repair with video.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Control bracket secures switches and components in your refrigerator door dispenser panel. Replace if cracked, broken, or switch pins are damaged.

Fix a refrigerator water or ice dispenser that won't activate or keeps running continuously. This micro switch controls dispenser operation. DIY-friendly.

Secures the anti-drip valve behind your refrigerator's dispenser faceplate. Replace if the bracket is loose, cracked, or has enlarged mounting holes.

This light socket is the replacement lamp holder for a range/oven interior light assembly, restoring a secure connection for the oven light bulb so you can see cooking status and check food without opening the door. What it does:

• Holds and connects the oven/cooktop interior light bulb to the appliance wiring
• Restores power to a bulb that's not lighting due to a failed socket
• Prevents loose or intermittent lamp connections that cause flickering
• Replaces sockets that appear burned, cracked, or corroded

• Disconnect power at the breaker or unplug the appliance before starting
• Handle the bulb and socket carefully; wear gloves to protect the bulb and yourself
• Inspect wiring and connectors for damage; replace damaged wiring or connectors as needed

Screw: 8-16 x 3/8 inch.

Guides ice from the bucket through the dispenser chute. Replace if cracked, broken, or missing to prevent ice jams and ensure smooth dispensing.

Color: black. It measures about 10 inches wide by 3 inches deep.

This motor support component helps operate the ice chute door in your refrigerator's dispenser system. It ensures smooth opening and closing of the ice delivery door. Replace if ice won't dispense properly, the door gets stuck, or you hear grinding noises during operation.
