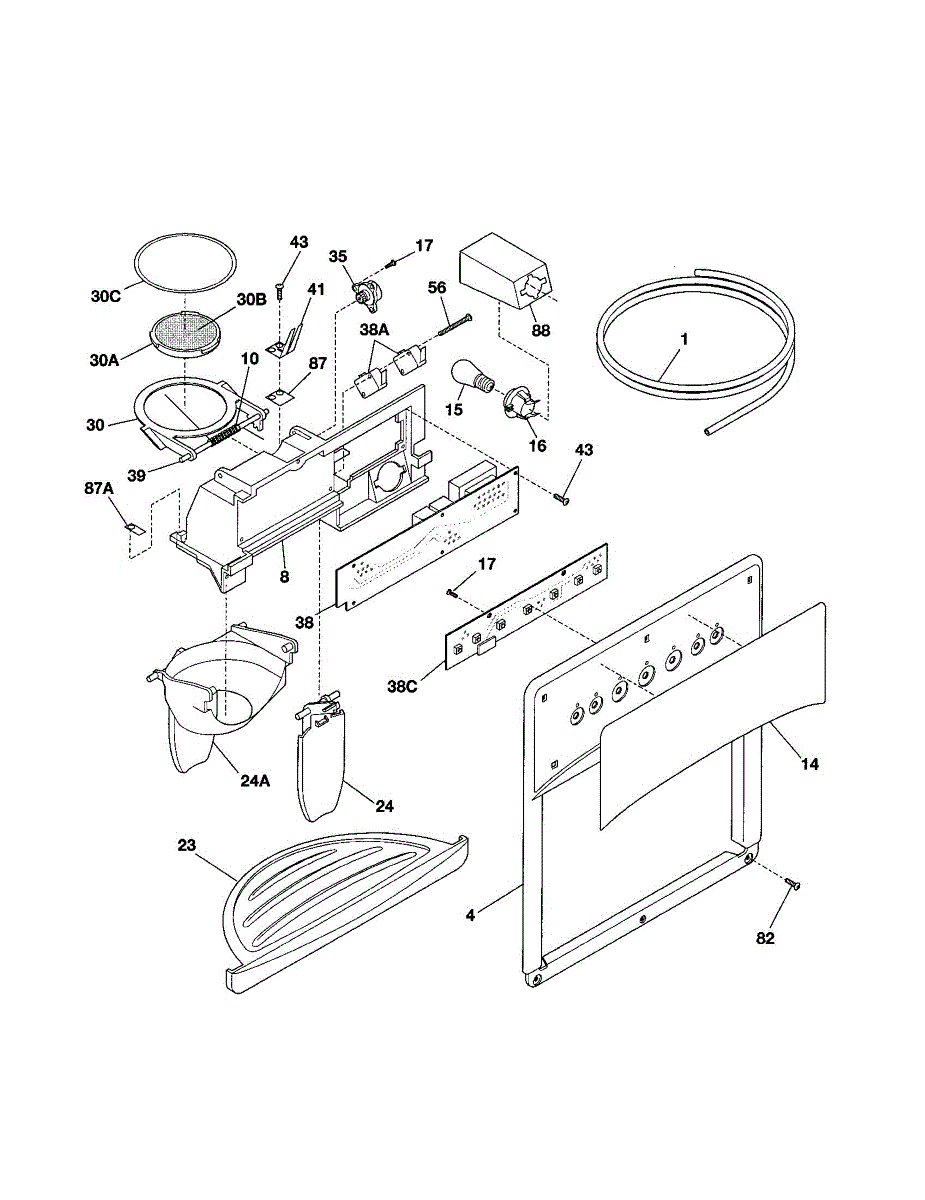

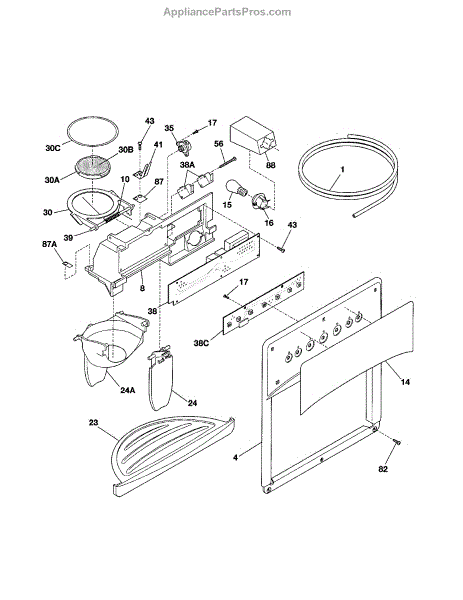

Parts for Kenmore 253.51232106 (25351232106, 253 51232106): Dispenser Parts

Inlet valve to door

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

Replacement water inlet tube that connects the water valve to the inline filter. Needed when tube is cracked, leaking, or damaged. Runs along refrigerator back wall.

Water inlet tube connects the water valve to your ice maker. Replace if cracked, leaking, or damaged. Installs at the back of your refrigerator.

Water supply tube that routes water through your refrigerator to the ice maker and dispenser. Replace if cracked, leaking, or damaged during moving.

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Torsion spring that returns the dispenser ice chute door to closed position. Replace if broken, weak, or missing to restore proper door closure.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Refrigerator not cooling properly? This heat exchanger kit improves cooling efficiency in the sealed system. Moderate difficulty repair for side-by-side models.

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

What's included: 1 light bulb Install notes:

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

Fix a refrigerator light that won't turn on with this interior light socket replacement. Restores reliable bulb connection for proper lighting. DIY-friendly.

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.

Single mounting screw for securing refrigerator panels, brackets, and trim pieces. Replaces worn, stripped, or missing screws to restore proper fit.

Ice spilling inside freezer or dispenser not working? This ice container deflector guides cubes into the chute. Simple snap-in installation fix.

This fitting connects water supply tubes within the refrigerator's water system. Located behind the refrigerator or inside access panels, it ensures secure water line connections. Replace if you notice water leaks, reduced water flow to the dispenser, or if the fitting appears cracked or corroded.

Fix ice maker overfilling, water spillage, or no ice production. Includes cover, fill cup, bail arm, and harness. Easy 5-10 minute DIY install.

Includes both lighted water and ice arms.

Includes both lighted water and ice arms.

This ice chute assembly includes the funnel and actuating lever that directs ice from your refrigerator's dispenser to your glass or container. It ensures ice flows smoothly and activates the dispensing mechanism when you press your container against the lever. Replace this assembly if ice doesn't dispense, gets jammed in the chute, or if the lever doesn't activate the dispenser.

Insulating foam that installs on the ice chute door to prevent warm air and moisture around the dispenser. Replace if compressed, cracked, or missing.

Rubber ice dispenser door center seals the ice chute on your refrigerator. Replace if cracked, worn, missing, or not sealing properly to stop frost buildup.

Rubber seal for the ice dispenser door on side-by-side refrigerators. Replaces cracked, worn, or missing seals that allow warm air into the freezer.

This is the ice chute door assembly that covers the dispenser opening on the front of the refrigerator. It acts as a flap that opens when ice or water is dispensed and closes afterward to prevent warm air from entering the freezer compartment. Replace this part if the chute door is cracked, stuck, or no longer sealing properly - symptoms include frost buildup inside the dispenser area or ice melting and refreezing around the chute.

Fix a refrigerator that won't cool, has erratic temperature, or displays error codes with a new main control board. Moderate DIY repair in 1-2 hours.

Fix a dispenser that won't stop running water or ice, or won't dispense at all. This switch controls water and ice flow. Moderate DIY repair.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

Small spring that provides return tension for refrigerator actuator lever mechanisms. Replace if spring is broken, stretched, missing, or lost during repair.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Pan head

Bearing plate for refrigerators. Provides structural support for rotating components. Replace if cracked, warped, or damaged to restore stability.

Bearing plate for side-by-side refrigerators. Mounts and supports rotating components. Replace if cracked, worn, or broken to restore stability.
