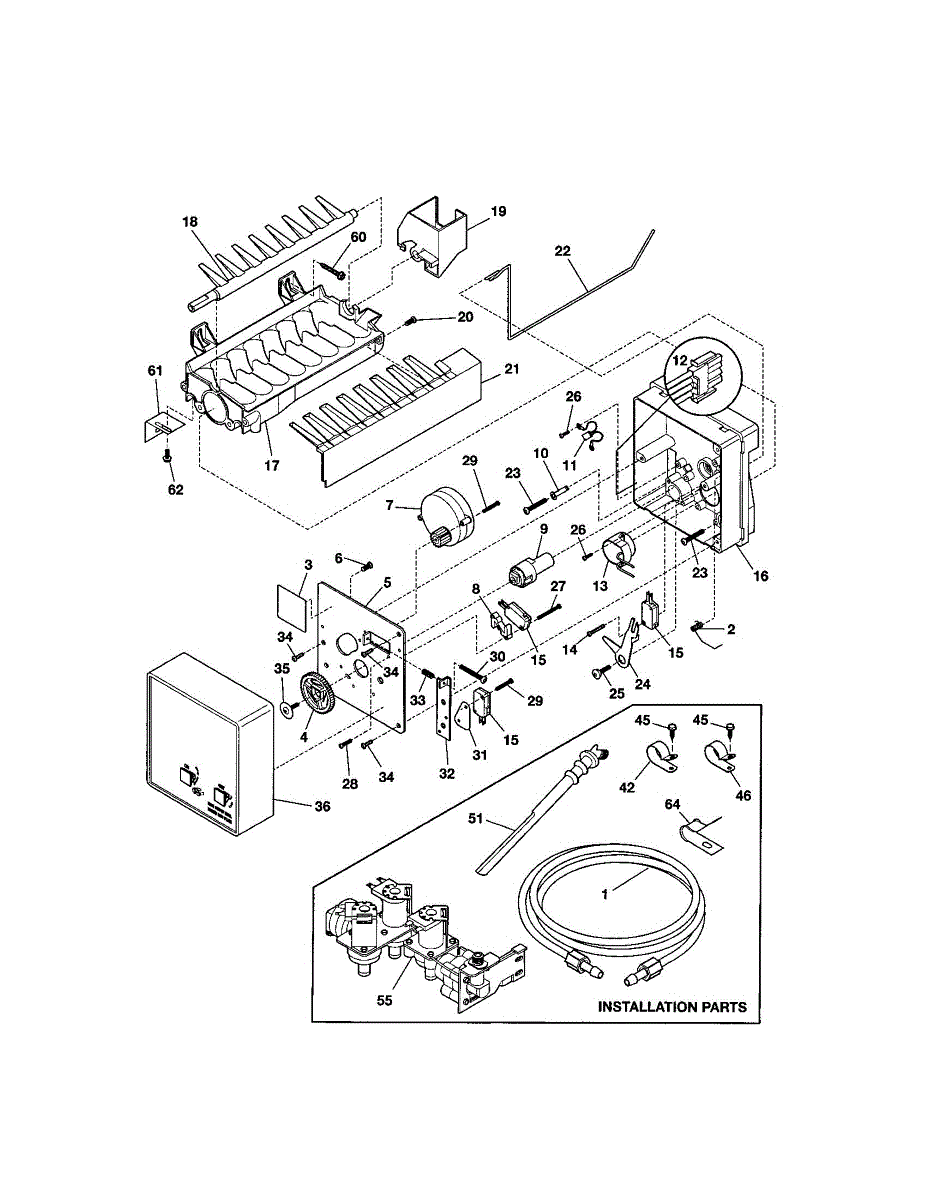

Parts for Kenmore 253.51232106 (25351232106, 253 51232106): Ice Maker Parts

Inlet valve to door

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

Replacement water inlet tube that connects the water valve to the inline filter. Needed when tube is cracked, leaking, or damaged. Runs along refrigerator back wall.

Water inlet tube connects the water valve to your ice maker. Replace if cracked, leaking, or damaged. Installs at the back of your refrigerator.

Water supply tube that routes water through your refrigerator to the ice maker and dispenser. Replace if cracked, leaking, or damaged during moving.

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Ice maker clicking or not producing ice? A worn drive gear with stripped teeth is often the cause. This 5-minute fix restores normal ice production.

Mounting plate secures the ice maker assembly inside your refrigerator. Replace if cracked, warped, or broken to restore proper ice maker support.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.

Spacer component for refrigerator hold switch assembly. Replaces worn, cracked, or missing spacers. Installs between hold switch and mounting plate.

The refrigerator icemaker thermal cut-off protects the icemaker from overheating by shutting off power when temperatures exceed safe limits. Located within the icemaker assembly, replace it when ice production stops completely or the icemaker appears to have no power.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Refrigerator not cooling or running too warm? A faulty thermostat prevents proper temperature regulation. This control cycles the compressor to maintain set temps.

Refrigerator not cooling properly? This heat exchanger kit improves cooling efficiency in the sealed system. Moderate difficulty repair for side-by-side models.

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

Ice won't dispense through the door? A broken auger or cracked ice bin causes this. This complete ice container assembly is a simple slide-in fix in 5 minutes.

Ice spilling inside freezer or dispenser not working? This ice container deflector guides cubes into the chute. Simple snap-in installation fix.

Ice maker stopped making ice? This complete ice maker assembly resolves no ice production and leaking issues. Easy DIY install with video guide included.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

The bearing and inlet assembly supports the dryer drum's rotation and allows air intake into the system. Located at the rear of the drum assembly, it ensures smooth operation and proper airflow. Replace when you hear grinding noises, the drum wobbles, or clothes take longer to dry.

This fitting connects water supply tubes within the refrigerator's water system. Located behind the refrigerator or inside access panels, it ensures secure water line connections. Replace if you notice water leaks, reduced water flow to the dispenser, or if the fitting appears cracked or corroded.

Fix ice maker overfilling, water spillage, or no ice production. Includes cover, fill cup, bail arm, and harness. Easy 5-10 minute DIY install.

Secures the ice mold assembly to the support bracket in your ice maker. Replace this mounting screw if it's stripped, missing, or broken during service.

Ice maker not shutting off or making too much ice? A worn lever arm prevents proper shutoff. Simple replacement takes under an hour to restore function.

Specs: 4 - 40 x 0.375

Specs: 4 - 24 x 0.750

Fix water dispensing issues or ice maker problems with this valve switch plate. Controls water flow to dispensers and ice makers in most refrigerators.

This is a Plazcrew #8-10 screw used to fasten appliance panels, trim and components. It replaces lost or damaged screws to restore secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces and small appliance components
• Restores proper alignment and prevents vibration-related noise
• Replaces missing or stripped fasteners that cause loose or wobbly parts
• Matches OEM fit for repair and maintenance where this screw is specified

• Disconnect power and follow appliance safety procedures before working
• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Keep small parts away from children and work over a tray to avoid loss

Replaces your refrigerator's ice maker cover if cracked, broken, or missing. This protective cap installs on the ice maker assembly in your freezer.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Secures water, drain, and refrigerant tubing to prevent movement and wear. Replace if tubes are loose, vibrating, or damaged. Verify fit with model number.

Replaces cracked, frozen, or leaking ice maker fill tube. Directs water from supply line into ice maker tray. Common replacement for damaged tubes.

Water valve cap for side-by-side refrigerators. Covers and protects the water inlet valve connection. Replace if cracked, broken, or missing.

Ice maker stopped working or water dispenser not flowing? This refrigerator water valve controls water to both. Easy 10-20 minute DIY fix with video.

Ice maker stopped working or water dispenser not flowing? This refrigerator water valve controls water to both. Easy 10-20 minute DIY fix with video.

Ice maker stopped working or water dispenser not flowing? This refrigerator water valve controls water to both. Easy 10-20 minute DIY fix with video.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Leveling bracket that mounts and supports the ice maker assembly inside your refrigerator. Replace if bracket is cracked, broken, or missing.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.
