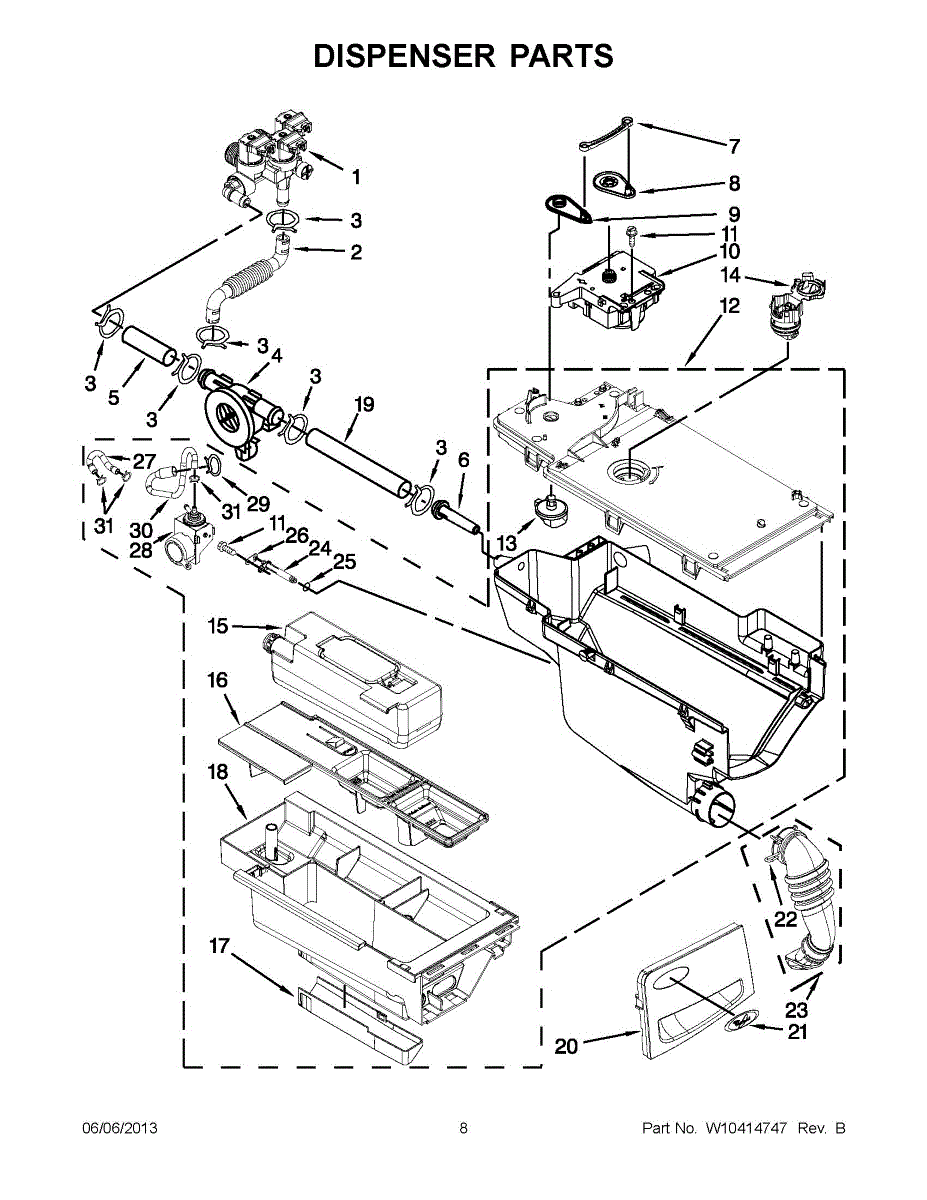

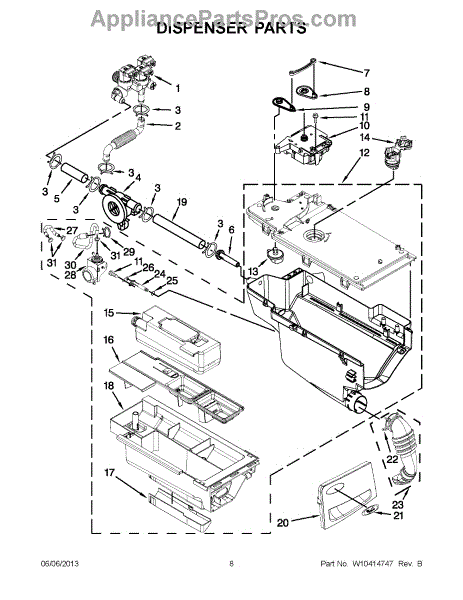

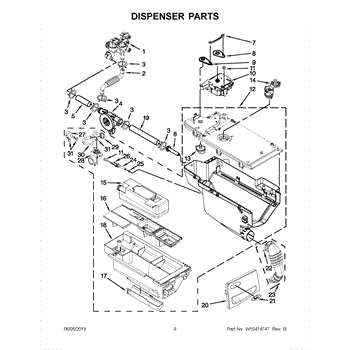

Parts for Whirlpool WFW97HEXW2: 04 - Dispenser Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Water Inlet Valve is an OEM component for Whirlpool and KitchenAid washing machines. As part of the water supply system, the water inlet valve controls the flow of water into the washer during fill cycles.

Causes of a bad water inlet valve include mineral buildup or sediment accumulation inside the valve mechanism over time. This can restrict its ability to open and close properly.

Symptoms of a bad water inlet valve are:

• The washer fails to fill or fills slowly
• Water leaking from the valve area
• Loud knocking or clanking sounds coming from the valve

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement hose routes fluid or air within your appliance, providing a secure, leak-resistant path between components. A cracked, brittle, or kinked hose can cause leaks or performance issues—replacing it helps restore proper operation.

• Provides a sealed pathway for water or air between internal components
• Supports correct fill, circulation, draining, or pressure sensing as designed
• Prevents leaks at connections when properly clamped and routed
• Common symptoms: visible cracks or kinks, water leaks, standing water, or related fault/error codes

• Disconnect power; shut off the water supply
• Place towels or a pan to catch residual water before removal
• Note hose routing and clamp positions; take photos for reference
• Reuse or replace clamps as needed; secure connections and check for leaks after reassembly

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Flow Meter is an OEM part for Whirlpool washing machines. It is responsible for monitoring and regulating the flow of water entering the washing machine during the fill cycle, ensuring the correct amount of water is added for efficient and effective cleaning.

Causes of a faulty Water Inlet Flow Meter include sediment buildup, physical damage, or electrical issues with the meter's sensors or connections.

Symptoms of a bad Water Inlet Flow Meter include:

• Incorrect water levels in the wash tub
• Washing machine not filling properly with water
• Error codes related to water inlet flow or water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drain hose carries wastewater away from the appliance so it can drain properly and avoid leaks or standing water. It restores proper water flow and helps prevent spills and floor damage when functioning. What it does:

• Routes wastewater from the appliance to the household drain or pump
• Enables normal drain cycles and prevents water from backing up
• Helps stop leaks and puddling caused by damaged or disconnected hoses
• Common symptom: visible leaks, poor or slow draining, or water on the floor

• One drain hose

• Disconnect power and turn off the water supply before beginning any repair
• Inspect hose ends and clamps; replace clamps if corroded or damaged
• Ensure hose is routed without kinks and secured to the drain or pump to prevent leaks
• Test the appliance through a full drain cycle after installation and check for leaks

This nozzle directs and focuses water flow inside the dishwasher so dishes get a thorough rinse. Replaces a worn, cracked, or clogged nozzle to restore spray coverage and help prevent poor cleaning performance. What it does

• Channels water from the spray arm or manifold to create a targeted spray pattern
• Helps maintain even water distribution across racks for better cleaning
• Clogs, cracks, or damage can cause weak spray or spotty wash results
• Compatible with systems that use a snap- or press-fit nozzle on the spray assembly

• Disconnect power and water supply before starting any repair
• Remove the spray arm or access panel as needed to reach the nozzle
• Inspect mating surfaces for debris; press or snap the new nozzle into place until seated

This replacement lever is a small mechanical link that engages or releases its mating mechanism inside the appliance. Replacing a worn or broken lever restores crisp actuation and reliable operation of the related control or latch. What it does:

• Transfers motion from a button, handle, or cam to the connected mechanism (such as a latch, switch, or dispenser component)
• Ensures the mechanism moves fully and smoothly
• Wear or breakage can cause a loose feel, incomplete travel, or no response when pressing/pulling the control
• Visible cracks, missing tabs, binding, or intermittent operation are common signs it needs replacement

• 1 lever

• Disconnect power before servicing; also turn off water supply
• Access the assembly for your model per the service/parts diagram
• Note orientation of any springs or clips connected to the original lever; transfer them if present
• Reinstall with existing fasteners and test operation before reassembly

This replacement cam is a small drive component that converts rotational input into controlled movement inside the appliance mechanism. It helps the linked assembly engage in the correct sequence for smooth, reliable operation.

• Guides and times movement of the connected parts for proper engagement
• Restores smooth operation when the original cam is worn, cracked, or stripped
• Helps address binding, clicking/popping noises, intermittent operation, or parts not actuating
• Helps maintain alignment to reduce wear on mating components

• Disconnect power to the appliance; also shut off water supply
• Access the mechanism per your model's service information; note the cam's orientation before removal
• Transfer any springs, clips, or spacers from the original cam as needed
• Inspect mating followers/pivots for wear; test movement by hand before reassembly

Distribution lever replacement that operates the dispenser/linkage inside the appliance, restoring proper mechanical movement and reliable dispenser operation. Use when the original lever is cracked, worn, or no longer moves freely. What it does:

• Replaces the plastic lever that routes motion within the dispenser/distribution assembly.
• Helps the dispenser or internal linkage open and move correctly during cycles.
• Common symptoms: dispenser won't open, linkage binds or hangs, or inconsistent dispensing.
• Works with the existing mounting points and clips in the dispenser assembly.

• Disconnect power (unplug or shut off breaker) and water supply before starting any work.
• Remove the dispenser or access panel to reach the lever; take care with plastic clips and tabs—do not force them.
• Inspect and replace any worn clips, springs, or adjoining parts to ensure proper function.
• Test dispenser operation through a short cycle before reassembling panels.

The Dispenser Actuator is an OEM part for Whirlpool washing machines. It is responsible for controlling the release of detergent and fabric softener during the wash cycle, ensuring that these cleaning agents are dispensed at the correct times.

Causes of a bad dispenser actuator can include wear and tear over time, damage from detergent residue build-up, or electrical faults within the actuator mechanism. If the actuator fails, it can disrupt the washing cycle and prevent proper dispensing of cleaning agents.

Symptoms of a bad dispenser actuator include:

• Detergent or fabric softener not being dispensed
• The washer displaying error codes related to the dispenser
• Intermittent or inconsistent dispensing
• Unusual noises during the dispensing phase

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance components and panels so they stay aligned and rattle-free during operation. Replace stripped, missing, or corroded hardware to restore a tight fit and dependable performance. What it does

• Fastens brackets, panels, and internal sub-assemblies in the appliance
• Helps maintain alignment to reduce vibration and rattling
• Replaces missing, rusted, or stripped screws that no longer hold
• Useful when a part won't mount securely or a screw backs out during use

• One screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Compare to the original for length and thread style for the location
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Do not overtighten; if the mounting hole or clip is worn, replace it

This distribution nozzle directs water from the dishwasher's supply to the spray arm to maintain an even spray pattern during cycles. Replacing a damaged or clogged nozzle helps restore proper spray coverage and cleaning performance. What it does:

• Directs and focuses water flow to the spray arm for consistent wash coverage.
• Prevents weak or uneven spraying that can cause poor cleaning results.
• A cracked, clogged, or worn nozzle can reduce water pressure or divert spray.
• Works as part of the dishwasher's water distribution/manifold system.

• Disconnect power and water supply before beginning any service.
• Access typically through the lower tub area after removing the lower spray arm and/or access panels.
• Inspect mating surfaces for debris and ensure the nozzle seats fully to prevent leaks.

Angular magnetic sensor that detects when a door or panel is closed and tells the appliance control. Replacing a worn or failed sensor restores reliable door-sensing so cycles, lights, and safety features respond correctly. What it does:

• Detects the magnet/strike position and signals the control board that the door or panel is closed.
• Allows the control to enable or disable functions tied to door position (cycles, interior lights, locks).
• Common symptoms it can fix: appliance won't start, door-related error codes, interior light not responding, or door lock not engaging.
• Intermittent or failed sensors can cause erratic operation or prevent normal cycle starts.

• Disconnect power to the appliance before starting any repair.
• Remove and replace the sensor in the same orientation; ensure the magnet/strike aligns with the sensor for reliable operation.
• Handle the sensor and connector carefully; avoid bending contacts or pulling on wires.

This dishwasher detergent dispenser stores detergent and releases it at the correct time in the cycle for consistent cleaning results. Replacing a worn dispenser restores reliable dosing so each wash performs as designed. What it does:

• Holds detergent and keeps it contained until dispensing
• Opens the detergent cup door at the programmed time in the cycle
• Directs detergent into the wash stream for even distribution
• Helps prevent poor cleaning caused by early loss or failure to dispense

• 1 detergent dispenser assembly

• Disconnect power and turn off water supply before servicing
• Remove the inner door panel to access the dispenser; support wiring and insulation as you work
• Release mounting tabs/screws, transfer the wiring connector, seat the new dispenser evenly, and tighten fasteners uniformly
• Run a quick cycle to check for leaks

This funnel directs liquid fabric softener and bleach from the dispenser into the wash tub to ensure proper dispensing and reduce splashing. Fits into the washer dispenser assembly to restore correct chemical flow during cycles. What it does:

• Channels liquid fabric softener and liquid bleach from the dispenser to the wash tub
• Prevents splashing and spilling inside the dispenser area
• Helps ensure timed delivery of additives during the correct cycle
• Commonly replaced when the funnel is cracked, clogged, or missing

• One fabric softener and bleach fill funnel

• Disconnect power to the washer before servicing to avoid shock or injury
• Remove the dispenser or control console as required to access and snap the funnel into place
• Inspect surrounding dispenser components and gaskets; replace if damaged
• No special tools required for most installations.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This dispenser drawer holds and guides detergent, bleach, and fabric softener into the washer at the correct cycle time. Replacing a worn drawer helps prevent leaks, residue buildup, and improper dispensing that can affect wash results.

• Channels detergent, bleach, and softener from the 3-compartment tray into the wash
• May help when detergent remains in the drawer, leaks from the tray, or additives dispense inconsistently
• Restores smooth opening/closing and proper alignment of the dispenser tray

• Unplug the appliance and shut off water supply before servicing
• Pull the drawer out and release the locking tab to remove; reverse to install
• Transfer any reusable inserts from the old drawer if applicable
• Check for residue in the dispenser housing and clean before reinstalling

This replacement hose clamp secures flexible water or drain hoses to fittings to help prevent leaks and keep connections tight. Durable metal construction provides reliable grip where hose-to-barb connections need fastening. What it does

• Secures a flexible hose to a barb or fitting to maintain a watertight connection
• Stops hose slippage that can cause leaks or intermittent water loss
• Helps stabilize hose routing to reduce chafing and wear
• Works on common appliance drain and supply hoses where a clamp is required

• One metal hose clamp

• Disconnect power and shut off water before servicing the appliance
• Position clamp over the hose barb and compress/turn as required using pliers or a screwdriver type matching the clamp style
• Tighten until snug—avoid over-tightening to prevent hose damage
• Inspect for leaks after restoring power and water

This direct hose assembly routes water or drain flow to restore proper operation and stop leaks caused by cracked or worn tubing. Designed to replace a damaged hose and help prevent water damage and poor drainage. What it does:

• Directs water or drain flow between appliance components to maintain proper plumbing function.
• Stops leaks and reduces the chance of water pooling or unintended discharge from worn or cracked hoses.
• Common symptoms addressed: visible leaks, water under or around the appliance, slow or inconsistent draining.

• Disconnect power and shut off the water supply before starting any repairs.
• Inspect hose ends and connections for damage; replace clamps or seals if corroded or worn.
• Secure hose with appropriate clamps and route to avoid kinks or pinch points.
• After installation, restore power and water, run a short cycle, and check all connections for leaks.

This is a replacement tube that restores correct fluid routing in compatible Whirlpool appliances, helping stop leaks and re-establish proper water flow where the original tube is damaged or worn. It fits the OEM mounting points for a direct swap. What it does:

• Channels water or drain flow between factory components to prevent leaks and ensure normal operation
• Replaces cracked, split or collapsed tubing that can cause visible leaks or poor water delivery
• Helps stop intermittent or constant dripping near the affected connection
• Restores a secure, sealed connection when the original tube has deteriorated

• One replacement tube as shown

• Turn off and unplug the appliance and shut off the water supply before starting
• Inspect connections and seals; replace any worn clamps or gaskets for a leak-free repair
• Use common hand tools; avoid stretching or kinking the tube during installation

This door-mounted dispenser stores and releases detergent and rinse aid at the correct times during the cycle, helping restore consistent cleaning and drying results. Replace a worn or damaged unit to fix soap door and rinse aid issues.

• Holds detergent for the main wash and opens the cup during the programmed step
• Meters rinse aid into the final rinse to reduce spotting and improve drying
• Helps resolve symptoms like detergent left in the cup, soap door won't latch/open, leaking rinse aid, or poor cleaning performance
• Direct replacement for the original door dispenser assembly

• Disconnect power to the dishwasher before servicing
• Remove the inner door panel to access the dispenser; disconnect the wire harness
• Release the retaining tabs/screws, remove the old dispenser, and clean the sealing surface
• Seat the new dispenser flush, tighten mounting screws evenly, reconnect wiring, and run a test cycle to check for leaks and proper operation

This door-mounted dispenser stores and releases detergent and rinse aid at the correct times during the cycle, helping restore consistent cleaning and drying results. Replace a worn or damaged unit to fix soap door and rinse aid issues.

• Holds detergent for the main wash and opens the cup during the programmed step
• Meters rinse aid into the final rinse to reduce spotting and improve drying
• Helps resolve symptoms like detergent left in the cup, soap door won't latch/open, leaking rinse aid, or poor cleaning performance
• Direct replacement for the original door dispenser assembly

• Disconnect power to the dishwasher before servicing
• Remove the inner door panel to access the dispenser; disconnect the wire harness
• Release the retaining tabs/screws, remove the old dispenser, and clean the sealing surface
• Seat the new dispenser flush, tighten mounting screws evenly, reconnect wiring, and run a test cycle to check for leaks and proper operation

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
