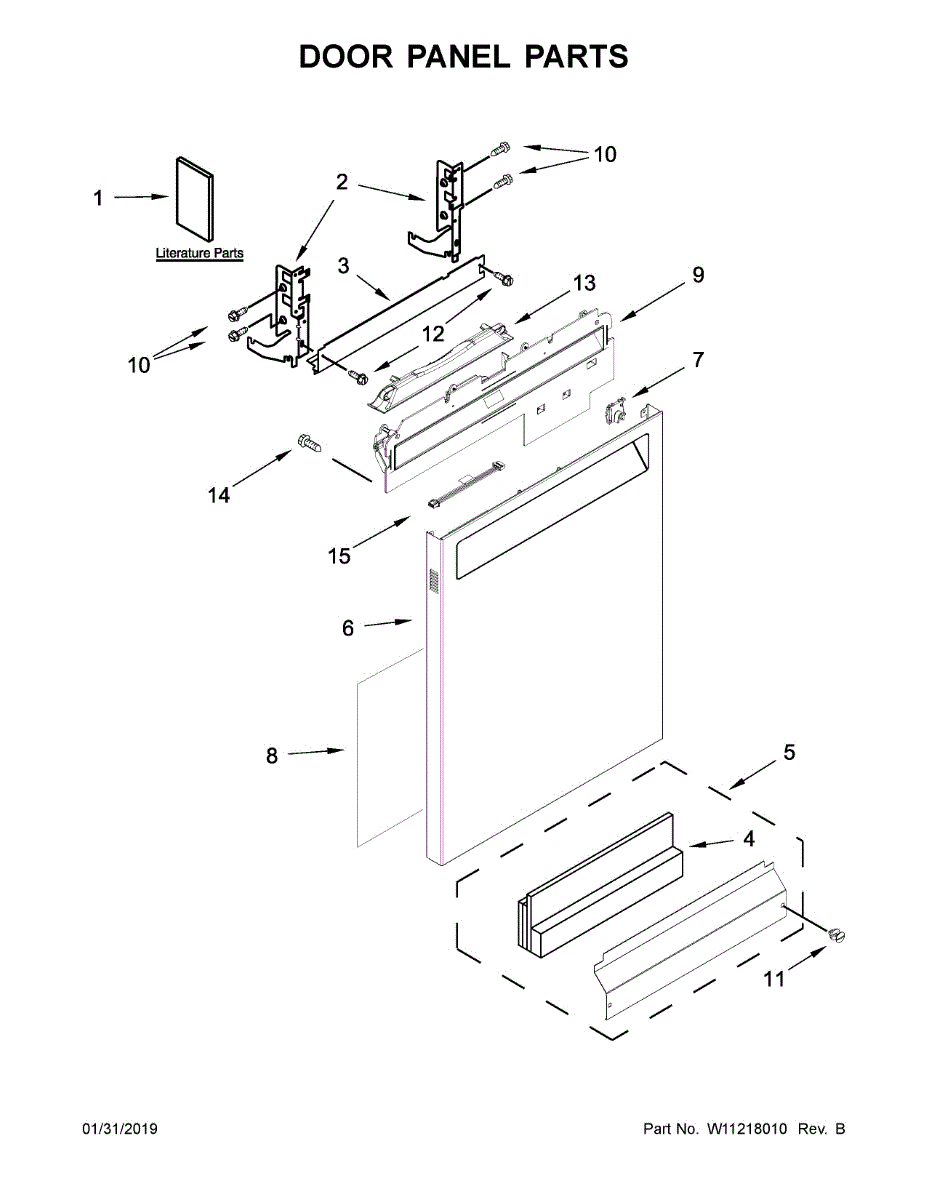

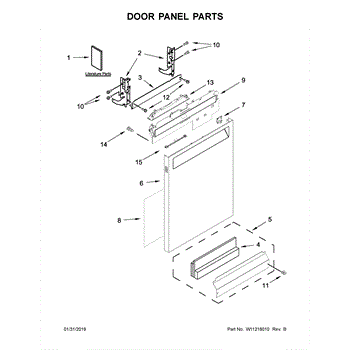

Parts for Kitchenaid KDFE104HBS0: Door Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White

The Dishwasher Access Panel is an OEM part for Whirlpool dishwashers. This panel covers the lower front section of the dishwasher, providing a finished look while protecting internal components from debris and damage.

Causes of a bad access panel include accidental impacts, wear and tear over time, or exposure to moisture, which can lead to rust or corrosion.

Symptoms of a bad access panel include:

• Visible cracks or dents
• Rust or discoloration
• Loose or misaligned panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control panel restores the appliance's front console appearance and secures the control assembly. It provides a finished surface and protects the underlying switches and electronics from damage and wear. What it does:

• Replaces cracked, dented, or faded console trim for a clean, factory look
• Secures and protects control switches, buttons, and display areas
• Helps stop drafts and debris from entering the control cavity
• Addresses symptoms like visible damage, loose or warped trim, or exposed controls

• Disconnect power to the appliance before starting any repair
• Remove knobs, bezels, or mounting screws as needed; handle panel edges carefully to avoid scratching
• Align tabs and fasteners before seating the panel; do not force into place

This control panel is the outer console surface that holds the touchpads, display window and control openings so your range's user interface is protected and accessible. It restores a clean, functional front for the console area. What it does

• Replaces a cracked, chipped or cosmetically damaged console surface
• Provides the correct openings and mounting points for the display and control buttons
• Restores proper alignment of touchpads and protects internal electronics from spills
• Helps resolve issues where buttons or display bezels are loose, broken, or missing

• Disconnect power at the breaker before starting any repair
• Handle edges and glass areas carefully to avoid cuts or further damage
• Installation typically requires removal of the oven/range backguard or console screws and careful alignment of clips/mounting tabs
• Test controls and display operation before fully reassembling

This replacement control panel restores the oven's front console so you can operate settings and view the display. It provides the user-interface surface and protective cover for the range's electronic controls. What it does:

• Houses the touch pads/buttons and display area so you can select bake, broil, timers, and settings
• Protects underlying electronic components from spills, grease, and everyday wear
• Replaces damaged, cracked, or cosmetic panels that interfere with button use or readability
• Can resolve issues where buttons stick, feel loose, or the faceplate is visibly broken

• One control panel (console) as shown

• Always disconnect power at the breaker before starting any service
• Handle glass or painted surfaces carefully to avoid scratches; wear gloves if needed
• Installation typically requires removing the oven door or inner trim and unfastening mounting screws—refer to the service manual

This is a replacement fastening nut used to secure appliance components and mounting hardware. It restores a solid connection so panels, brackets, or assemblies stay properly attached and function safely. What it does:

• Secures threaded shafts, studs, or bolts to hold parts in place
• Prevents loosening that can cause rattling, misalignment, or detached panels
• Restores proper mounting for brackets, trim pieces, and small assemblies
• Works wherever the correct threaded nut is required for a secure fit

• Turn off power to the appliance and unplug before servicing
• Hand-start threads to avoid cross-threading, then tighten with appropriate hand tool

This foam pad installs between the inner and outer door panels of a dishwasher to dampen sound and help shield the outer panel from heat and moisture, keeping operation quieter and the door better protected. What it does:

• Lines the inside of the outer door panel to reduce operating noise and vibration
• Acts as a thermal and moisture barrier for the outer door panel
• Helps maintain proper door performance when the original insulation is worn or missing
• Replace if torn, degraded, or waterlogged, or if noise/condensation around the door has increased

• 1 door insulation pad

• Disconnect power and shut off water to the dishwasher before servicing
• Support the door; remove perimeter screws to separate the inner and outer door panels
• Note the pad's orientation; seat the new insulation evenly without pinching wires or harnesses
• Reassemble panels and fasteners; verify smooth door/latch operation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Pocket Control Panel is an OEM replacement part for Whirlpool dishwashers. It is responsible for housing the control buttons and display panel of your dishwasher, allowing you to navigate and select the desired settings for washing.

A bad control panel console can occur due to wear and tear, electrical malfunctions, or physical damage. If you notice symptoms such as unresponsive buttons, a malfunctioning display, or error codes on the console, it may be time to replace it.

Symptoms of a bad control panel console include:

• Unresponsive buttons or a non-functional display
• Flickering or dim indicators
• Error codes displayed on the console

Repair your dishwasher by replacing the faulty or damaged control panel console with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.
