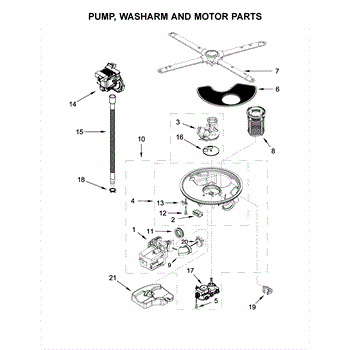

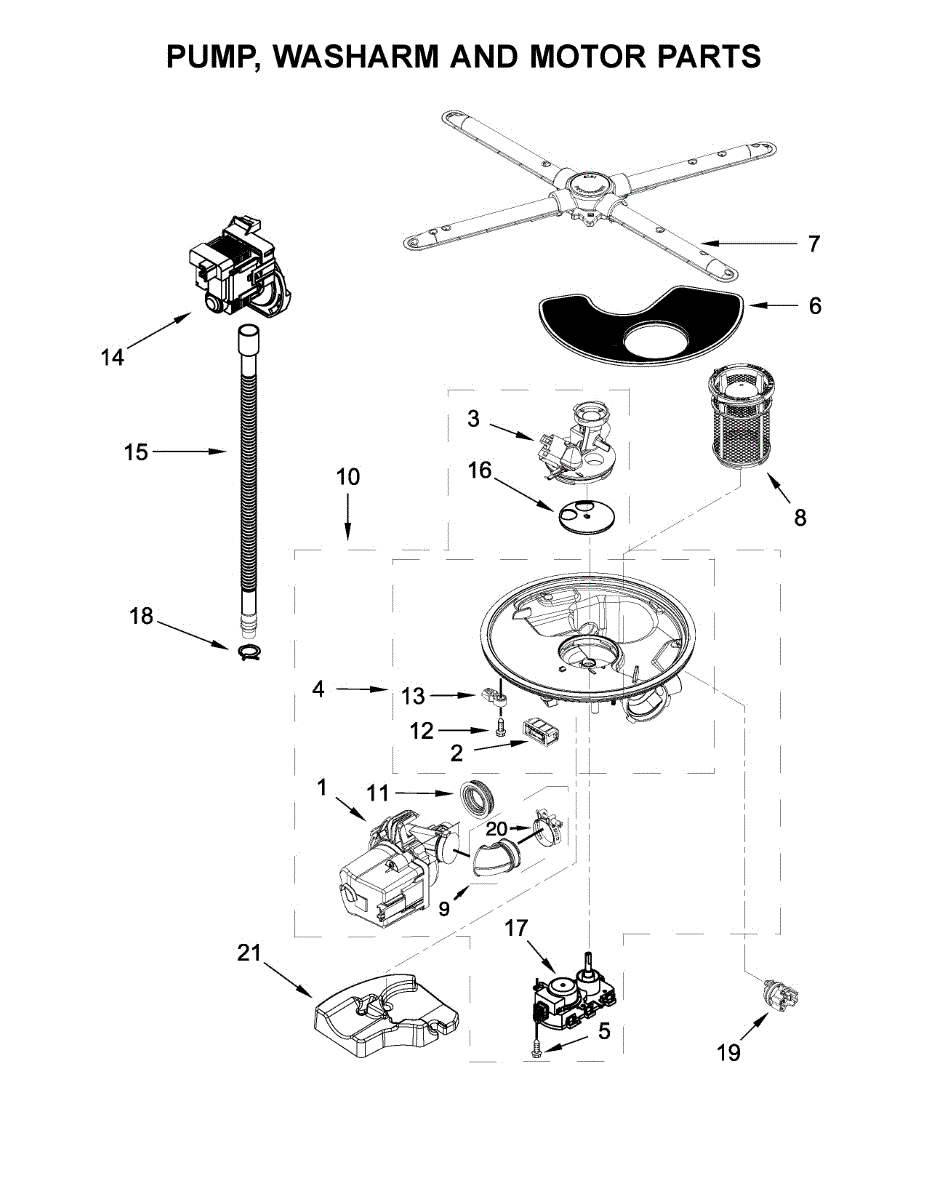

Parts for Kitchenaid KDFE104HBS0: Pump, Washarm And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Pump Motor is an OEM part for Whirlpool dishwashers. It is responsible for circulating water through the dishwasher during the wash and rinse cycles. This motor ensures that water is effectively sprayed over the dishes, providing thorough cleaning and optimal performance.

Causes of a bad pump motor can include wear and tear from regular use, blockages from debris or food particles, or electrical issues such as motor burnout. A malfunctioning pump motor can significantly affect the dishwasher's cleaning efficiency and may prevent the machine from completing cycles properly.

Symptoms of a bad pump motor include:

• Dishwasher not cleaning dishes thoroughly
• Water not circulating during wash cycles
• Unusual noises coming from the dishwasher
• Dishwasher not draining properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This support bracket helps hold internal components in place to restore proper alignment and reduce movement. It's a simple replacement that stabilizes the affected assembly and helps stop rattling or sagging. What it does:

• Secures and supports a loose or misaligned internal component or panel
• Prevents shifting that can cause vibration, noise, or uneven operation
• Restores proper alignment to reduce wear on adjoining parts
• Functions as the OEM replacement for the original support bracket

• One support bracket

• Inspect the mounting points and surrounding parts for wear before installing
• Replace only with the matching OEM part number to ensure fit; fasten securely per manufacturer torque recommendations
• Disconnect power and follow basic safety precautions before servicing the appliance

The Diverter Cover is an OEM replacement part for Whirlpool dishwashers. It is a protective plastic shield that covers the diverter valve, which controls the path of water flow during different wash cycles. The cover helps protect internal components from debris while allowing the valve underneath to operate smoothly.

Causes of a bad diverter cover can include cracks or breaks due to impact, loosening of mounting screws over time, or discoloration and wear of the plastic material.

Symptoms of a bad diverter cover include:

• Leaks from the diverter valve area
• Difficulty with water diversion during cycles
• Reduced spray pressure or coverage inside the wash compartment
• Debris accumulating near the valve mechanism

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Sump is an OEM part for Whirlpool dishwashers. It serves as the central component of the dishwasher's water circulation system, housing the pump and filters. This part collects water during the wash cycle, which is then pumped through the spray arms to clean the dishes. The sump also traps food particles and debris, preventing them from recirculating and ensuring dishes come out clean.

Symptoms of a failing Sump include:

• Poor cleaning performance, with dishes still dirty after a cycle
• Water not draining properly or remaining in the bottom of the dishwasher
• Unusual noises, like grinding or humming, indicating pump issues
• Leaks under the dishwasher due to cracks or seal failures in the sump

Causes of a bad sump often include regular wear and tear, accumulation of hard water deposits, or blockages from large food particles and debris. Additionally, the seals can degrade over time, leading to leaks.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Sump Filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping food particles and debris from the water during the wash cycle, preventing them from recirculating and ensuring clean water is used throughout the cycle.

You should replace this sump filter if it becomes clogged, damaged, or excessively dirty. Causes of a bad sump filter can include the accumulation of food particles, grease buildup, or wear and tear over time. A compromised filter can lead to reduced cleaning performance and potential damage to other dishwasher components.

Symptoms of a bad Sump Filter include:

• Poor cleaning results, with food particles left on dishes
• Slow or incomplete draining
• Unpleasant odors from the dishwasher
• Error codes related to water flow or drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Lower Spray Arm is an OEM replacement part specific to Whirlpool dishwashers. It is a component located on the lower rack that sprays water uniformly across dishes to fully saturate and rinse them. The lower spray arm ensures complete coverage to remove stuck-on foods and refresh dishes.

Symptoms of a faulty lower spray arm include:

• Dirty or improperly cleaned lower rack dishes after cycles
• Leaks or excess water pooling in the dishwasher bottom tub
• Cracks or deterioration of the spray arm material over time

Causes may involve normal wear from frequent use or impact damage.

This genuine OEM replacement part is compatible with Whirlpool, KitchenAid, Jenn-Air, and other branded dishwashers as well.

The pump filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping large particles, preventing them from entering the pump and potentially causing blockages or malfunctions.

A bad filter can occur due to regular use, accumulation of debris, or wear and tear over time.

Symptoms of a bad pump filter include:

• Dirty or cloudy dishes after a cycle.
• Noisy operation, such as grinding or rattling sounds.
• Water pooling at the bottom of the dishwasher.
• Foul odors in the dishwasher.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dishwasher Motor to Sump Hose is an OEM replacement part for Whirlpool dishwashers. It is a flexible tube that connects the dishwasher's drain pump motor to the sump, allowing for the efficient drainage of water from the dishwasher tub.

Symptoms of a faulty motor to sump hose include:

• Water leaks around the hose connections or along its length
• Poor drainage or standing water in the dishwasher tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad motor to sump hose can range from normal wear and tear over time, exposure to high temperatures or chemicals, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Sump and motor assembly is an OEM component for Whirlpool dishwashers. Located at the bottom of the dishwasher tub, this assembly contains both the pump and motor that circulate water during the wash and rinse cycles.

Causes of a bad sump and motor assembly include mineral or grit buildup inside the pump/motor housing that causes reduced water flow, worn-out seals or impellers in the pump, or failure of the motor components.

Symptoms of a bad sump and motor assembly include:

• Incomplete cleaning even on short cycles
• Puddles of dirty or soapy water left in the bottom of the dishwasher after a cycle
• Loud noises or vibrations coming from the bottom of the dishwasher
• The dishwasher fails to drain fully

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Motor to Sump Seal is an OEM part for Whirlpool dishwashers. It creates a watertight seal between the motor and the sump, preventing leaks and ensuring efficient operation of the dishwasher. This seal plays a critical role in maintaining the integrity of the dishwasher's internal components.

Causes of a bad motor to sump seal can include wear and tear from regular use, damage due to improper installation or maintenance, and deterioration from exposure to heat and detergents over time. A compromised seal can lead to leaks and reduced efficiency.

Symptoms of a bad motor to sump seal include:

• Water leaking from the bottom of the dishwasher
• Puddles of water underneath the appliance
• Unusual noises or reduced performance of the dishwasher
• Visible cracks or wear on the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Pump-Drain is an OEM part for Whirlpool dishwashers. This drain pump plays a pivotal role in the dishwasher's functionality, actively pumping out used water to prepare the appliance for the next load.

Causes of a bad Pump-Drain can include obstruction by debris or food particles, wear and tear from regular use, and electrical failures that can impair the pump's ability to function.

Symptoms of a failing Pump-Drain include:

• Water not draining completely after cycles
• Unusual noises coming from the pump area during or after the cycle
• The dishwasher not starting due to the presence of standing water
• Error codes related to draining displayed on the dishwasher

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. This flexible hose is designed to carry waste water from the dishwasher to the kitchen drain system or garbage disposal, ensuring that the dishwasher drains properly after each wash cycle.

Causes of damage to the Drain Hose often involve regular wear and tear, bending or kinking of the hose during installation or maintenance activities, or deterioration over time due to exposure to hot water and detergents.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after a cycle
• Leaks found under or behind the dishwasher, which could be due to holes, cracks, or loose connections in the drain hose.
• Unpleasant odors emanating from the dishwasher, potentially caused by food particles or debris caught in a hose that is not draining correctly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This diverter disc directs wash water to different spray zones during a cycle, helping ensure alternating spray patterns and thorough cleaning. A worn or damaged disc can cause poor wash performance or incorrect spray routing.

• Routes water from the sump to selected spray arms/zones
• Helps alternate spray to improve coverage and cleaning
• Worn discs may lead to weak spray, poor cleaning, or unusual cycle behavior
• Can contribute to water leaking at the diverter area if the seal interface is compromised

• Disconnect power and water before servicing
• Access is typically from the bottom; remove the toe kick and lower panel as needed
• Note the disc orientation in relation to the diverter mechanism during removal
• Inspect related components (diverter motor/shaft, seals, sump) and replace if worn

This hose clamp secures dishwasher hoses to fittings and ports to maintain a tight, leak-resistant seal. Replacing a worn clamp helps prevent drips and loose connections that can cause water under the unit.

• Secures drain or circulation hose to the pump, sump, or other dishwasher fittings
• Helps maintain a watertight seal at hose connection points
• Can help resolve water dripping from a hose joint or a loose hose
• Replace if corroded, deformed, cracked, or no longer holds tension

• Disconnect power and turn off the water supply before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Fully seat the hose on the fitting, position the clamp over the barb/connection, and secure firmly
• After reassembly, run a brief fill/drain and check all connections for leaks

The Turbidity Sensor is an OEM component specifically designed for Whirlpool dishwashers. Located inside the wash arm assembly, the turbidity sensor monitors water clarity during the wash and rinse cycles by detecting suspended food and soil particles.

Symptoms of a bad turbidity sensor include:

• Ineffective or inconsistent cleaning even on light soil loads
• The dishwasher fails to advance properly through cycles
• Frequent bending of the rinse and wash arms
• Repeated soil residue left behind on dishes

Over prolonged use, sensors can become coated, corroded, or damaged, impacting their ability to accurately gauge water clarity. Causes may include mineral buildup, mechanical issues, or electrical faults. Replacing the sensor ensures optimal water monitoring and completes the cleaning process appropriately. This Whirlpool replacement part works for KitchenAid, Jenn-Air, Crosley, Amana, and more.


The Clamp is an OEM part for Whirlpool dishwashers. It is designed to secure various hoses or wiring within the appliance, ensuring that connections remain tight and well-organized.

Causes of a bad clamp can include corrosion due to exposure to moisture and chemicals, loss of tension which leads to a loose fit, and physical damage from mishandling or excessive vibration during the appliance's operation.

Symptoms of a failing Clamp include:

• Leaks occurring under or around the dishwasher
• Unusual noises like rattling or banging from loose components
• Electrical malfunctions if wiring is dislodged
• Performance issues due to misplaced or pinched hoses

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air inlet damper controls cold-air flow from the freezer into the refrigerator compartment to help maintain proper fresh-food temperatures. Replacing a faulty damper restores balanced airflow and more consistent cooling. What it does:

• Regulates the amount of cold air entering the fresh-food section from the freezer.
• Opens and closes as the fridge cycles to maintain set temperatures.
• Commonly replaces stuck, broken, or noisy dampers that cause uneven cooling.
• Often used when the refrigerator is warm while the freezer remains cold or when temperatures fluctuate.

• Disconnect power to the appliance before starting any repair.
• Remove interior panels or grille per your model's service instructions to access the damper; keep screws and clips organized.
• Handle plastic fins and actuator gently to avoid damage; do not force the damper into position.
• Reconnect power and verify damper operation and temperature regulation after installation.
